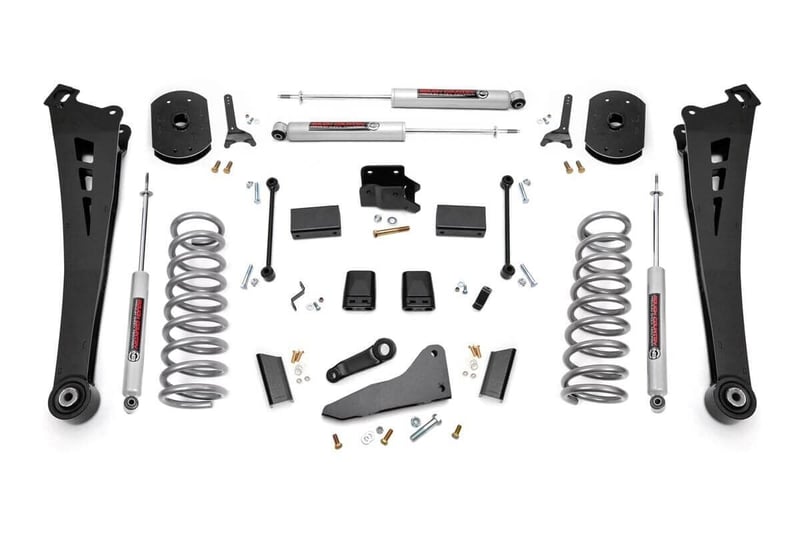

5 Inch Lift Kit Ram 2500 4WD (2014-2018)
Features
- Increased ground clearance
- Track bar bracket keeps the front axle properly centered.
- Fits both rear coil spring and rear air ride suspension models!
- Radius Arms offer a more factory-like angle and feature a durable, durable rubber Bushing for maximum vibration absorption.
- Rear ride height arm brackets let you adjust the rear ride height, up to 1-inch higher than the front - Air Ride models ONLY
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
Fitment Notes
- Does NOT fit "Power Wagon" models.
- Requires drilling and cutting.
- On vehicles equipped with a two piece driveshaft & carrier bearing as on the Mega Cab, there is the potential for take off vibration, depending on the severity
Shock Configuration Options
Premium N3
included10-Stage Variable Valving
High Pressure Nitrogen Charged
35mm Piston
Chromed Hardened 18mm Piston Rod
54mm Shock Body to dissipate heat faster
36kN Tensile Strength
Spring Loaded Piston Rod Seal
Military Spec. Fluid Rated To –40° C
Rubber bushings for better absorption
Metallic Silver Paint
3-year Manufacturer's Warranty
M1 Monotube
+$120.002-inch seamless extruded tube.
46mm digressive piston.
Self-adjusting, deflective-disc independent rebound and compression.
18mm centerless-ground, case-hardened, chromed, and super-polished rod.
46mm monotube design ensures consistent, fade-free performance in all conditions.
Digressive valving instantly reacts to changing surface conditions.
Zinc plated for resistance against harsh elements.
Available in various lift heights for multiple applications.
Durable vulcanized natural rubber bushings.
3-year Manufacturer's Warranty
V2 Monotube
+$320.00Incredible ride quality & performance
Monotube design
Internal floating piston
Nitrogen-charged
46mm high-flow piston
Fast heat dissipation
36kN Tensile Strength
Mounts inverted
T6061 brushed aluminum body
3-year Manufacturer's Warranty
Installation
GET IT INSTALLED
Don’t want to install it yourself? Search for installers in your area.
FITMENT
Vehicles
Always read all product page details for more important fitment information
Wheels & Tires
Due to differences in manufacturing, dimension and inflated measurements, tire & wheel combinations should be test fit prior to installation
About this Product
5 Inch Lift Kit | Ram 2500 4WD (2014-2018)
