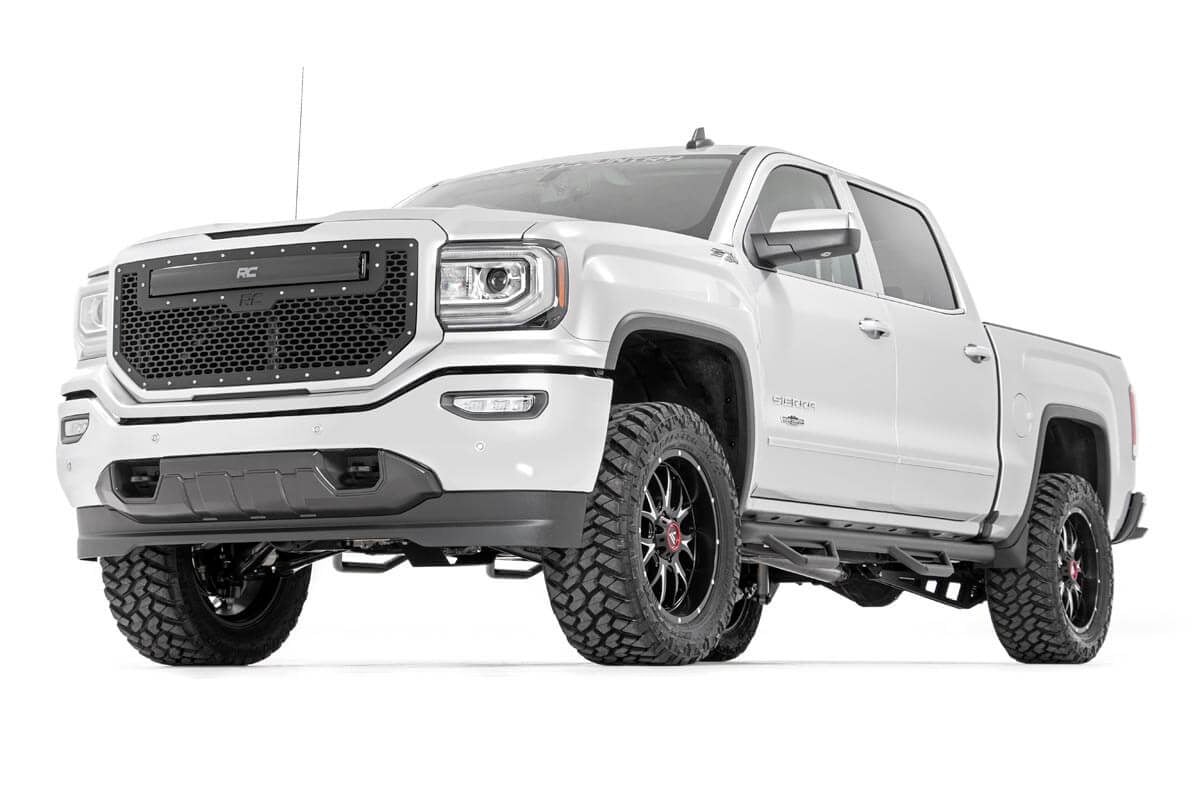

3.5 Inch Lift Kit Chevy/GMC 1500 (14-18)
STARTING PRICE
$549.95
STARTING PRICE
$549.95
Select Matching Wheels and Tires
FREE Mount, Balance, and Shipping!
Features
If you’re looking for not-too-tall and not-too-small, Rough Country’s 3.5” Lifted Knuckle kit is the perfect option for increased ground clearance and aggressive good looks!
- Increased ground clearance.
- Increased CV axle boot clearance with the stamped steel lower control arm.
- Retains factory suspension components
- Levels front with rear
- Fabricated lift blocks are stronger and offer a longer lifespan than cast blocks.
- Features application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
- Includes pre-loaded coil
- Maintains smooth, factory-like ride
- Increased ground clearance
- Engineered for lifted applications
- Infinitely Variable Damping
- Leak-proof piston seal
- Massive 1 3/8in Bore
- Silver powder coat finish
- 3-year Manufacturer's Warranty
- Monotube design
- Internal floating piston
- Nitrogen-charged
- 46mm high-flow piston
- Fast heat dissipation
- 36kN Tensile Strength
- Mounts inverted
- T6061 brushed aluminum body
- 3-year Manufacturer's Warranty
- 8-Stage Adjustable Damping
- Monotube Design
- Nitrogen-charged
- Massive 2.5in Piston
- 22mm Chrome-Hardened Piston Rod
- 3-Stage Seal System
- Heat-Treated, Alloy Bearing
- Honed Steel Body
- 3-year Manufacturer's Warranty
Optional N3 Loaded Struts
Optional V2 Monotube Shocks
Optional Vertex
Fitment Notes
- Requires cutting and grinding
- If using factory wheels, a 0.25in wheel spacer is required. #1065
- Does NOT work with aftermarket control arms
- Does NOT fit GMC Denali models with Magnetic Ride Control.
- New lift block replaces the factory equipped block.
- If truck is equipped with a mass damper on the front differential, the damper must be removed.
Installation
GET IT INSTALLED
Don’t want to install it yourself? Search for installers in your area.
FITMENT
Vehicles
year: 2019
make: Chevy
model: Silverado 1500 LD
drive: 4WD
year: 2014 - 2018
make: Chevy
model: Silverado 1500
drive: 4WD
year: 2019
make: GMC
model: Sierra 1500 Limited
drive: 4WD
year: 2014 - 2018
make: GMC
model: Sierra 1500
drive: 4WD
year: 2014 - 2018
make: GMC
model: Sierra 1500 Denali
drive: 4WD
Always read all product page details for more important fitment information
Wheels & Tires
size: 285/70R17
Popular
wheel: 17x9
Bolt Pattern: 6x5.5
Wheel Offset: +0
note: -
Stance: 1
size: 285/65R18
Popular
wheel: 18x9
Bolt Pattern: 6x5.5
Wheel Offset: +0
note: -
Stance: 1
size: 285/55R20
Popular
wheel: 20x9
Bolt Pattern: 6x5.5
Wheel Offset: +0
note: -
Stance: 1
size: 285/70R17
wheel: Factory 17
Bolt Pattern: 6x5.5
Wheel Offset: -
note: 0.25 Spacer
Stance: 0
size: 285/65R18
wheel: Factory 18
Bolt Pattern: 6x5.5
Wheel Offset: -
note: 0.25 Spacer
Stance: 0
size: 285/55R20
wheel: Factory 20
Bolt Pattern: 6x5.5
Wheel Offset: -
note: 0.25 Spacer
Stance: 0
size: 285/70R17
wheel: 17x8.5
Bolt Pattern: 6x5.5
Wheel Offset: +0
note: -
Stance: 1
size: 285/70R17
wheel: 17x8.5
Bolt Pattern: 6x5.5
Wheel Offset: +1
note: -
Stance: 1
size: 265/70R17
wheel: 17x9
Bolt Pattern: 6x5.5
Wheel Offset: +0
note: -
Stance: 0
size: 265/70R17
wheel: 17x9
Bolt Pattern: 6x5.5
Wheel Offset: +1
note: -
Stance: 0
size: 285/70R17
wheel: 17x9
Bolt Pattern: 6x5.5
Wheel Offset: +1
note: -
Stance: 1
size: 285/70R17
wheel: 17x9
Bolt Pattern: 6x5.5
Wheel Offset: +18
note: -
Stance: 0
size: 285/70R17
wheel: 17x9
Bolt Pattern: 6x5.5
Wheel Offset: +20
note: -
Stance: 0
size: 265/65R18
wheel: 18x8.5
Bolt Pattern: 6x5.5
Wheel Offset: +0
note: -
Stance: 0
size: 265/65R18
wheel: 18x8.5
Bolt Pattern: 6x5.5
Wheel Offset: +1
note: -
Stance: 0
size: 275/65R18
wheel: 18x8.5
Bolt Pattern: 6x5.5
Wheel Offset: +0
note: -
Stance: 0
size: 275/65R18
wheel: 18x8.5
Bolt Pattern: 6x5.5
Wheel Offset: +1
note: -
Stance: 0
size: 285/65R18
wheel: 18x8.5
Bolt Pattern: 6x5.5
Wheel Offset: +0
note: -
Stance: 1
size: 285/65R18
wheel: 18x8.5
Bolt Pattern: 6x5.5
Wheel Offset: +1
note: -
Stance: 1
size: 265/65R18
wheel: 18x9
Bolt Pattern: 6x5.5
Wheel Offset: +0
note: -
Stance: 0
size: 265/65R18
wheel: 18x9
Bolt Pattern: 6x5.5
Wheel Offset: +1
note: -
Stance: 0
size: 265/65R18
wheel: 18x9
Bolt Pattern: 6x5.5
Wheel Offset: +18
note: -
Stance: 0
size: 265/65R18
wheel: 18x9
Bolt Pattern: 6x5.5
Wheel Offset: +20
note: -
Stance: 0
size: 275/65R18
wheel: 18x9
Bolt Pattern: 6x5.5
Wheel Offset: +0
note: -
Stance: 0
size: 275/65R18
wheel: 18x9
Bolt Pattern: 6x5.5
Wheel Offset: +1
note: -
Stance: 0
size: 275/65R18
wheel: 18x9
Bolt Pattern: 6x5.5
Wheel Offset: +18
note: -
Stance: 0
size: 275/65R18
wheel: 18x9
Bolt Pattern: 6x5.5
Wheel Offset: +20
note: -
Stance: 0
size: 285/65R18
wheel: 18x9
Bolt Pattern: 6x5.5
Wheel Offset: +1
note: -
Stance: 1
size: 285/65R18
wheel: 18x9
Bolt Pattern: 6x5.5
Wheel Offset: +18
note: -
Stance: 0
size: 285/65R18
wheel: 18x9
Bolt Pattern: 6x5.5
Wheel Offset: +20
note: -
Stance: 0
size: 265/55R20
wheel: 20x10
Bolt Pattern: 6x5.5
Wheel Offset: -18
note: -
Stance: 1
size: 265/55R20
wheel: 20x10
Bolt Pattern: 6x5.5
Wheel Offset: -19
note: -
Stance: 1
size: 285/55R20
wheel: 20x9
Bolt Pattern: 6x5.5
Wheel Offset: +1
note: -
Stance: 1
size: 285/55R20
wheel: 20x9
Bolt Pattern: 6x5.5
Wheel Offset: +18
note: -
Stance: 0
size: 285/55R20
wheel: 20x9
Bolt Pattern: 6x5.5
Wheel Offset: +20
note: -
Stance: 0
size: 285/45R22
wheel: 22x10
Bolt Pattern: 6x5.5
Wheel Offset: -18
note: -
Stance: 1
size: 285/45R22
wheel: 22x10
Bolt Pattern: 6x5.5
Wheel Offset: -19
note: -
Stance: 1
Due to differences in manufacturing, dimension and inflated measurements, tire & wheel combinations should be test fit prior to installation
Select Matching Wheels and Tires
FREE Mount, Balance, and Shipping!
About this Product
3.5 Inch Lift Kit | Chevy/GMC 1500 (14-18)
