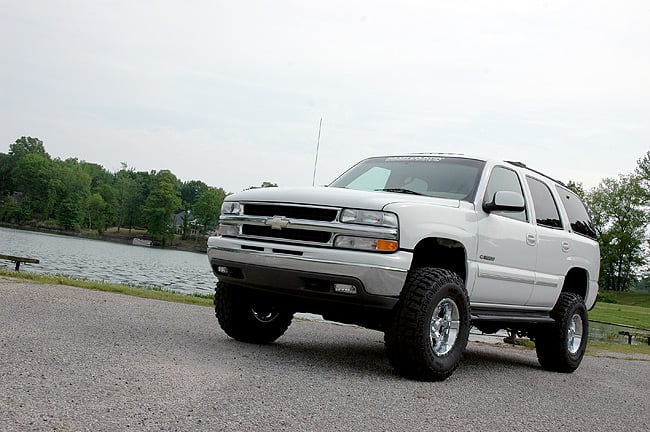

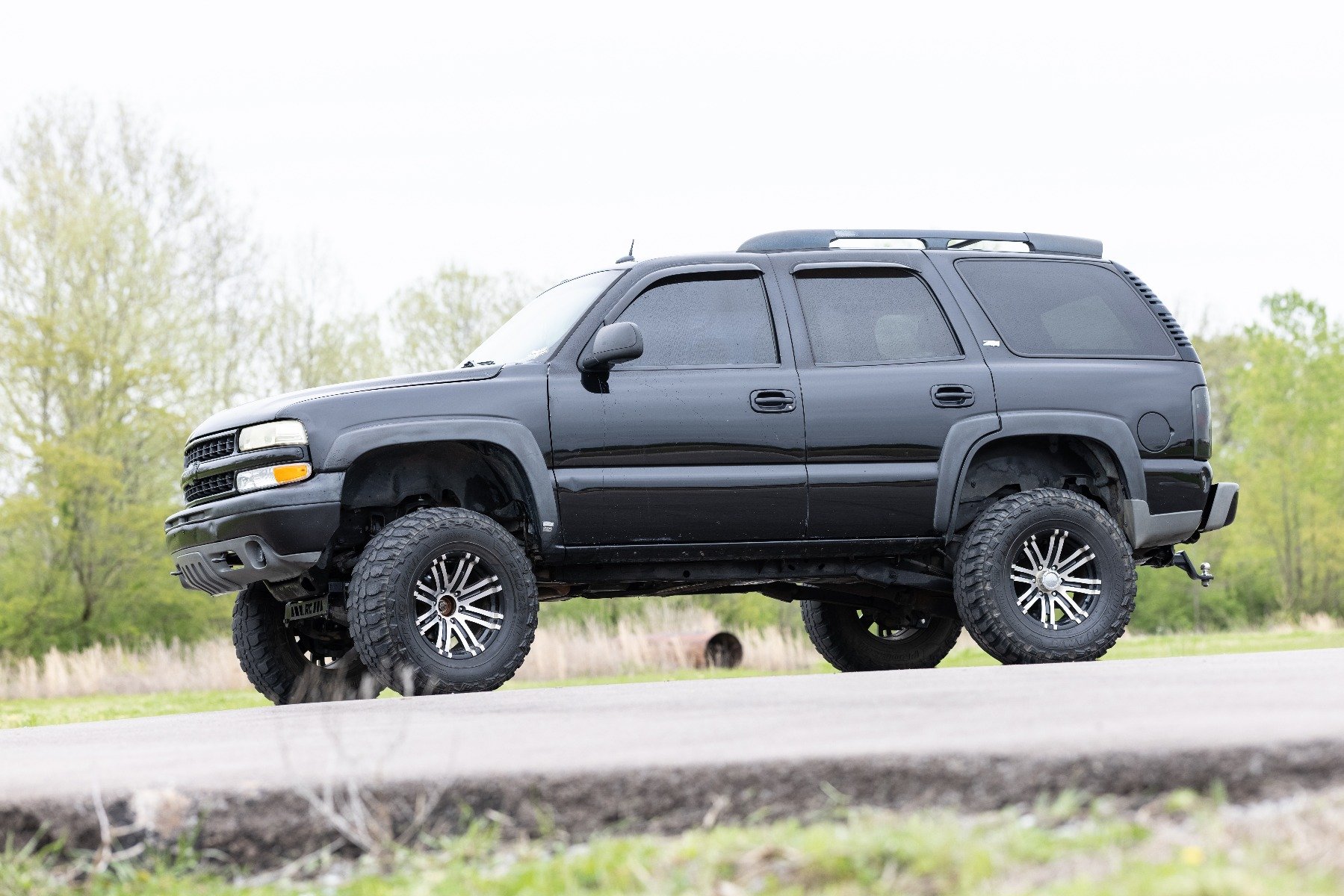

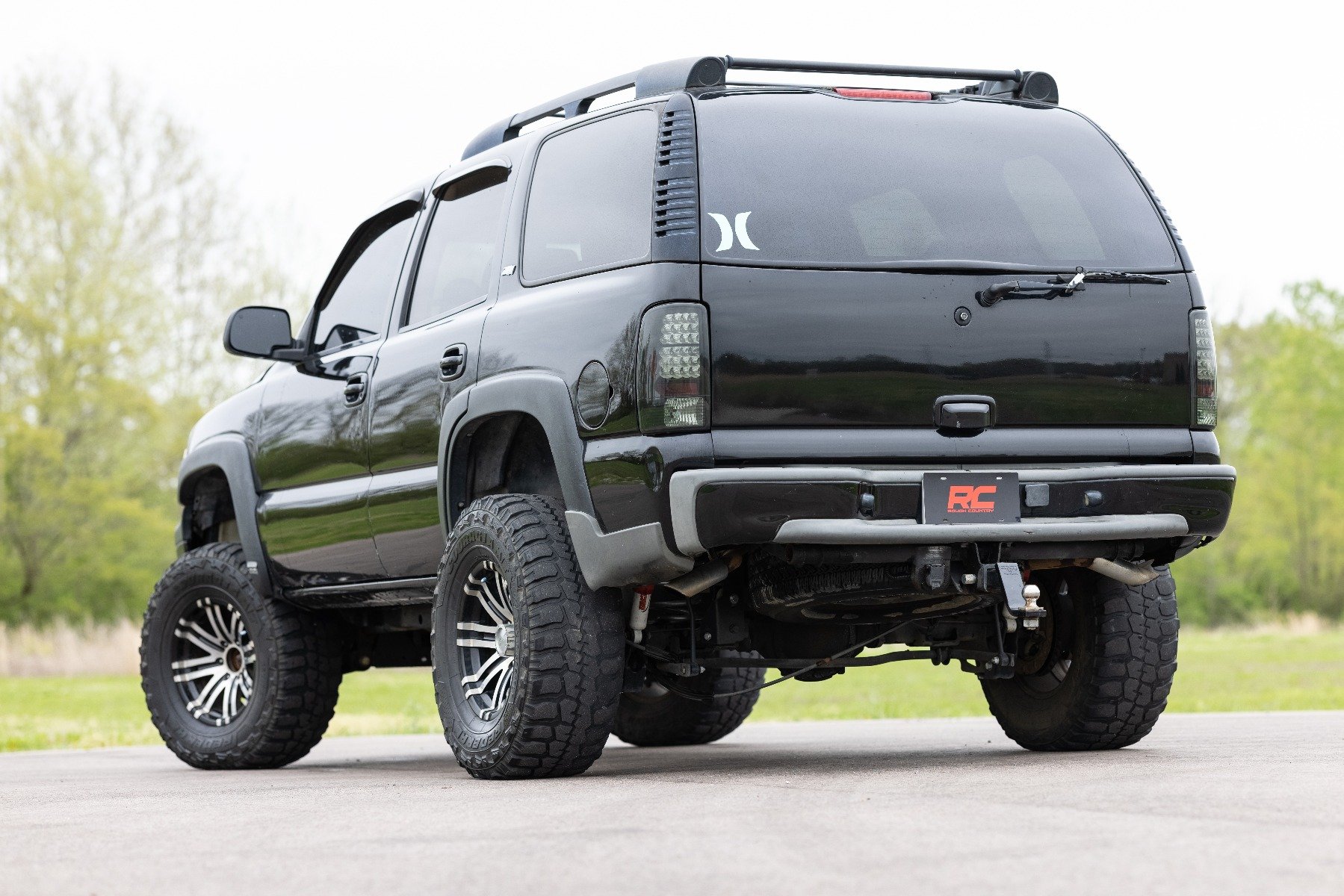

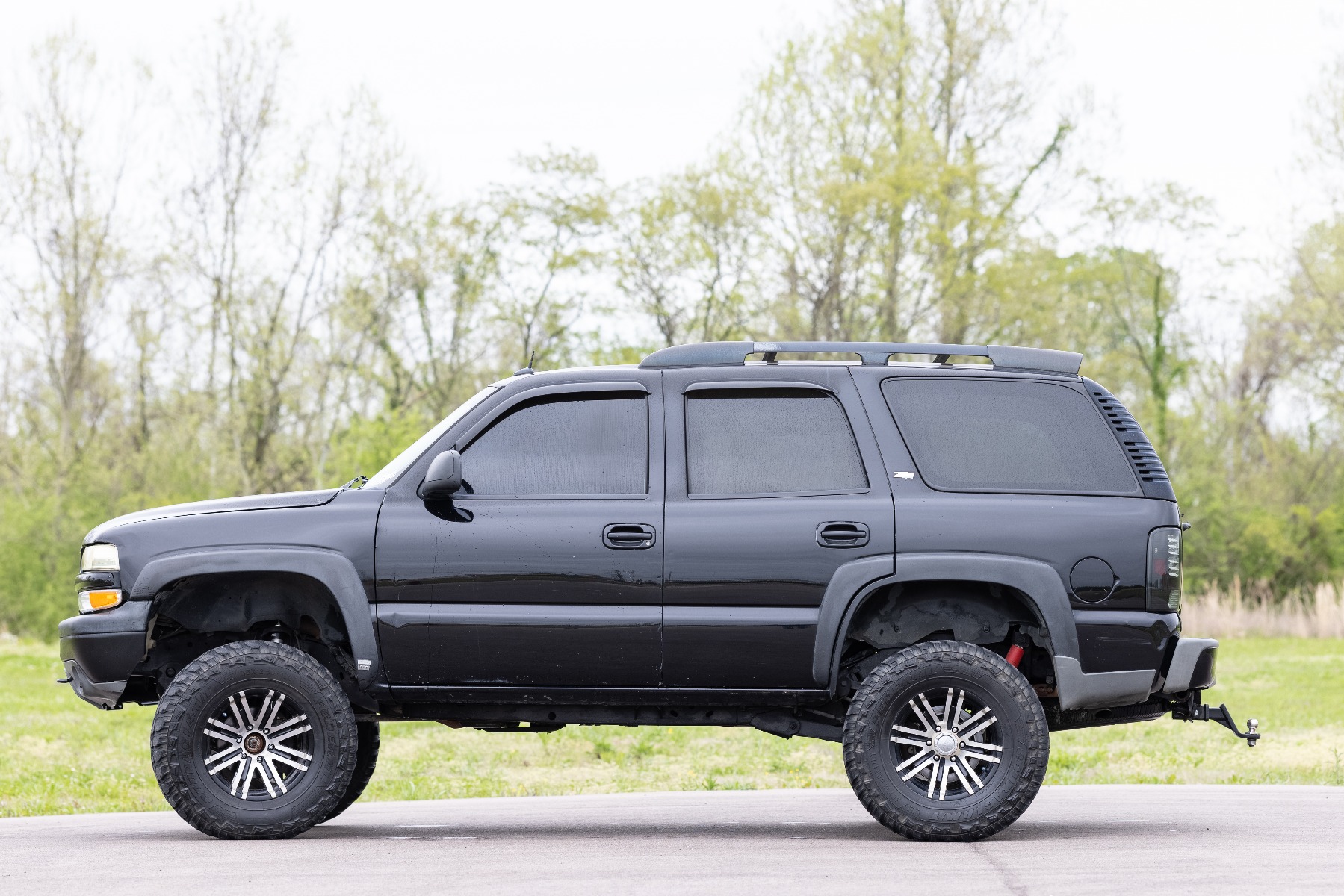

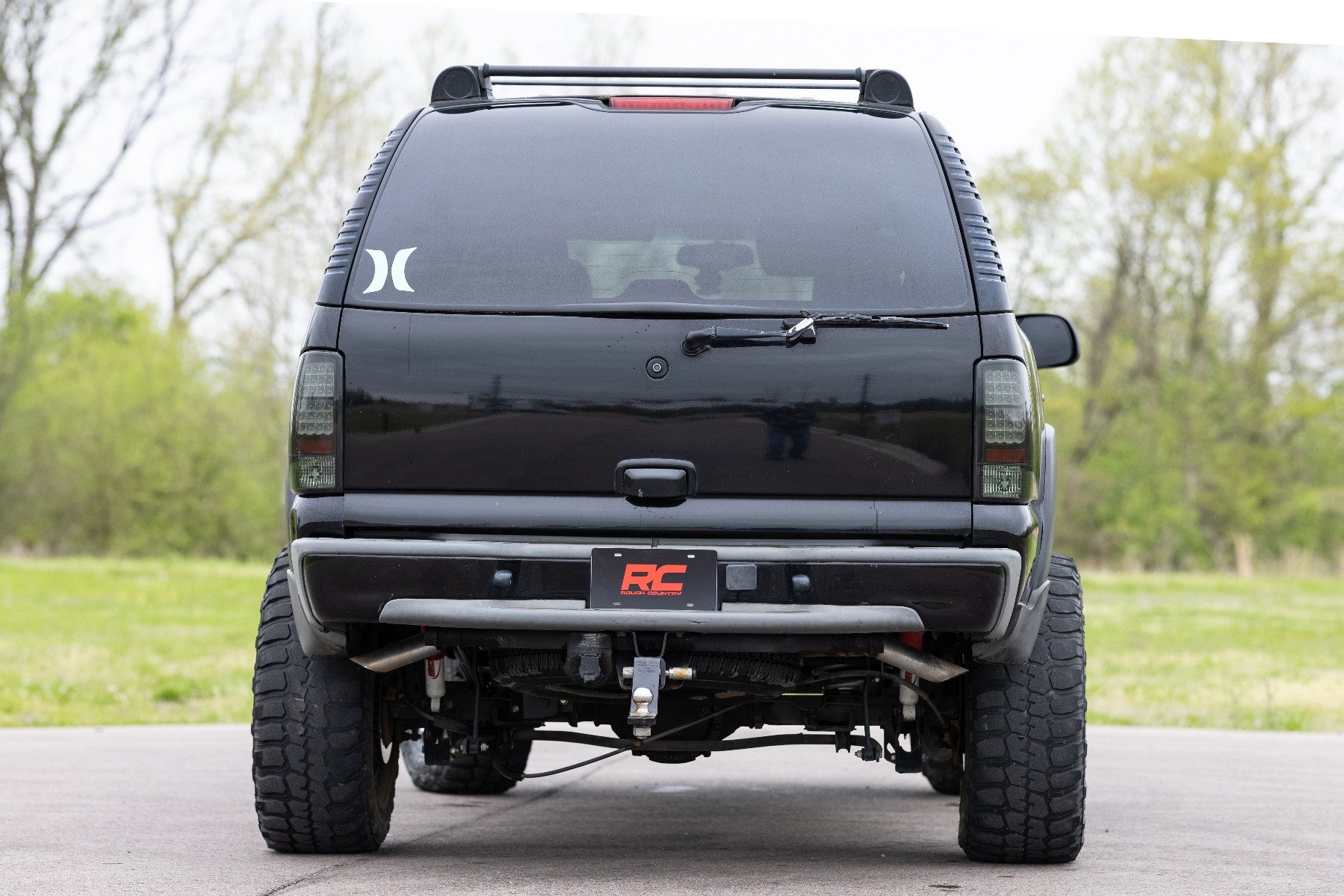

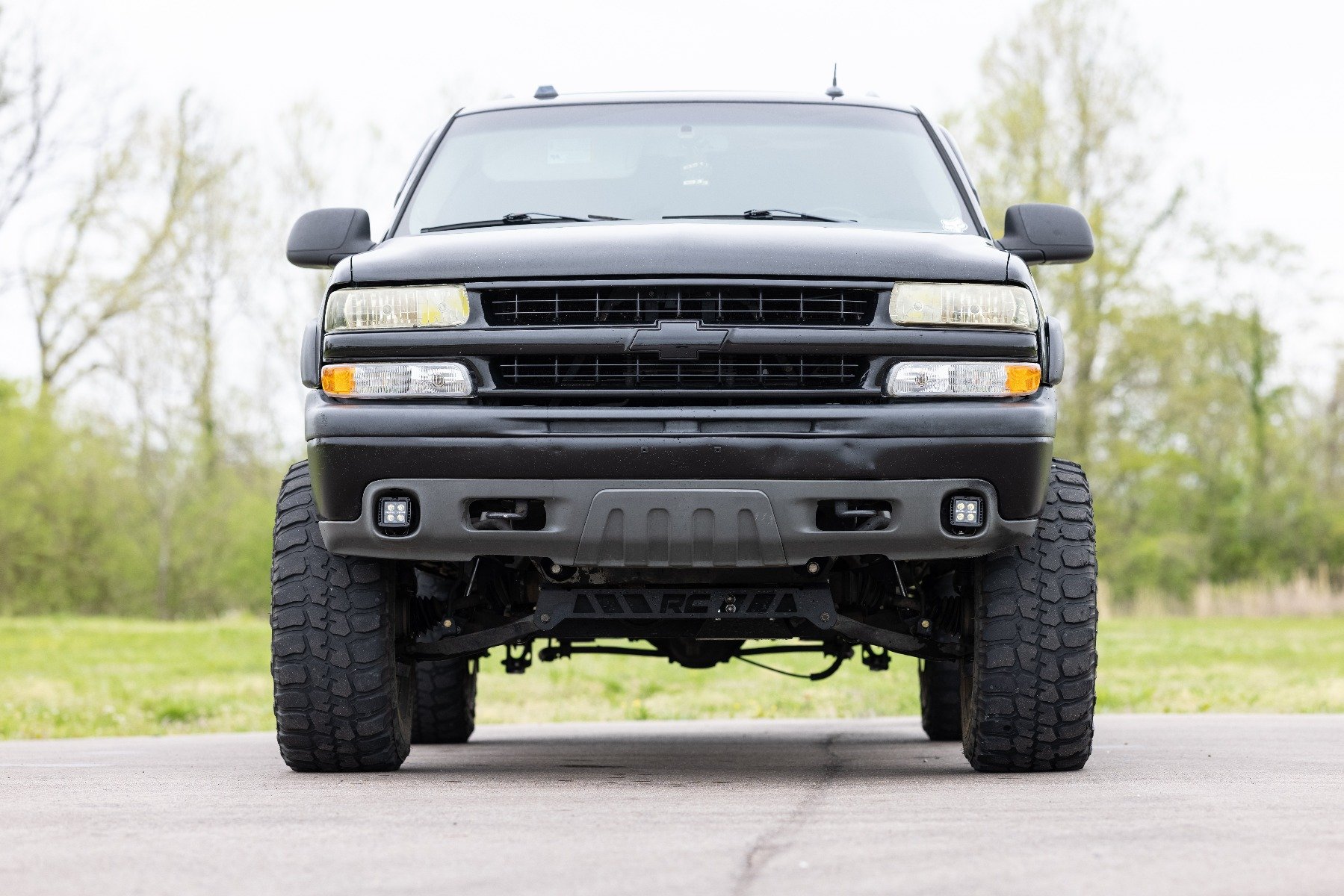

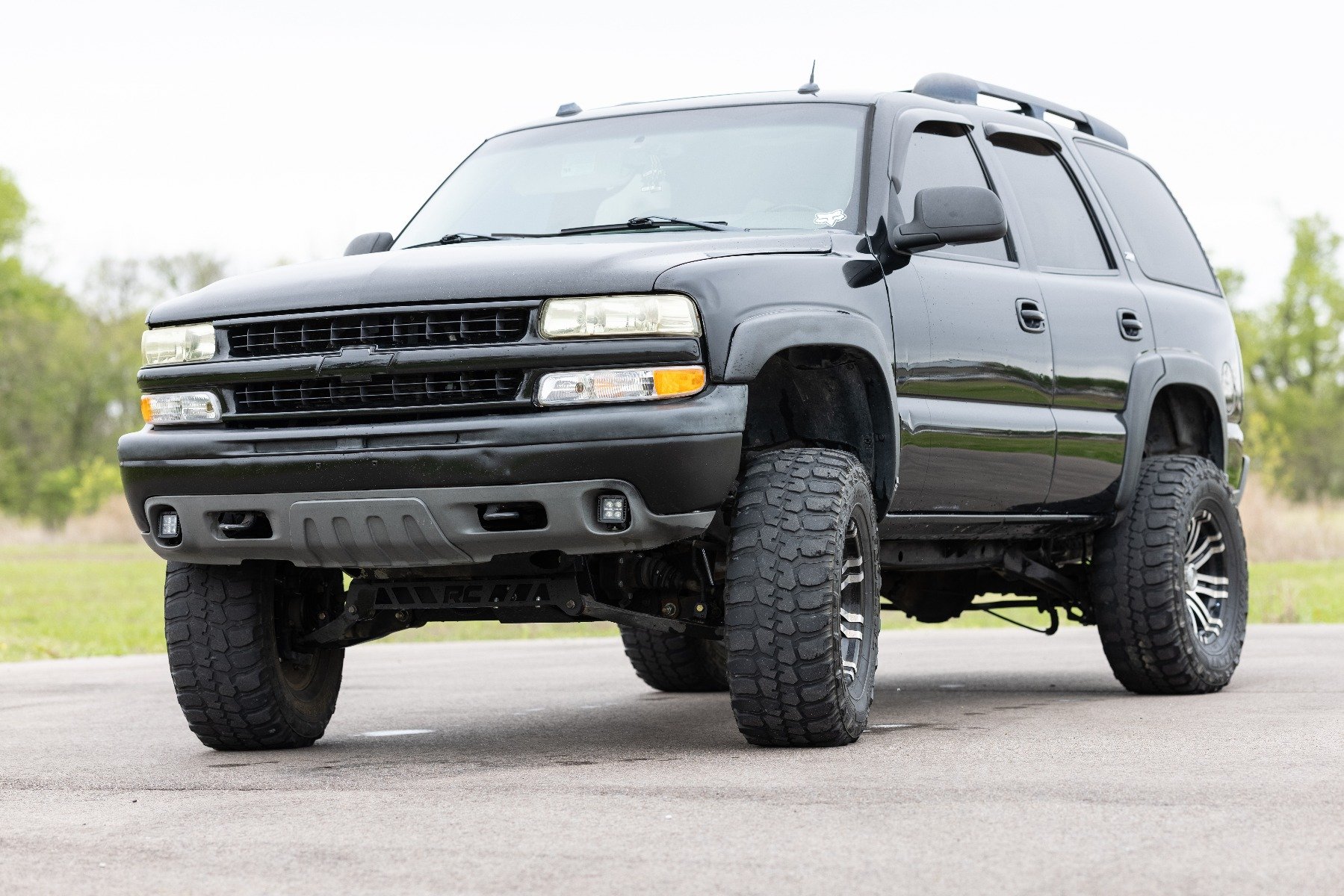

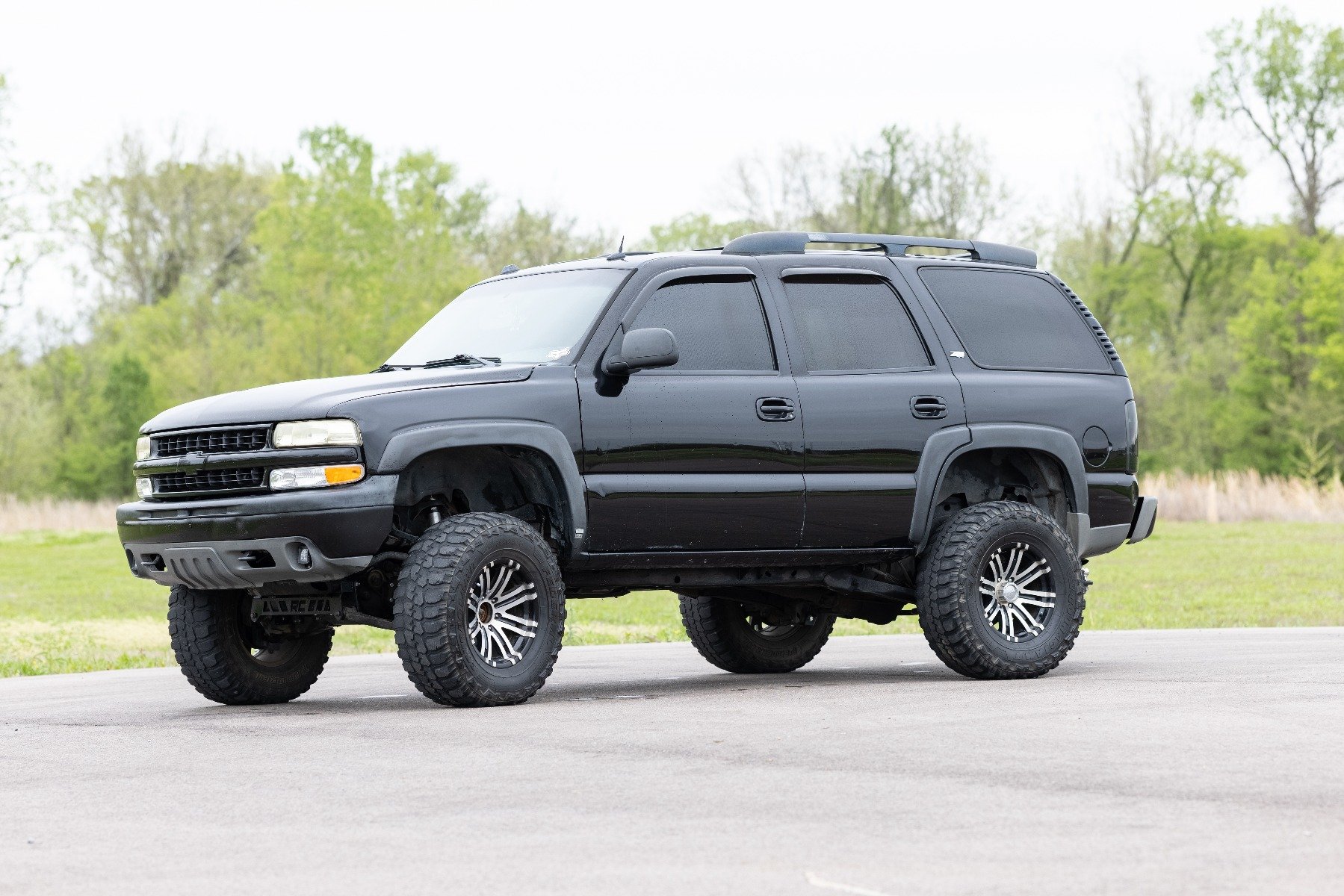

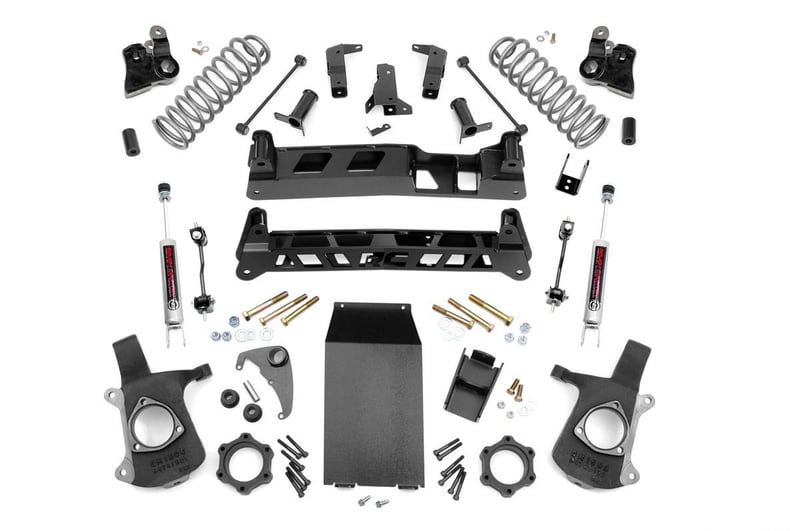

6 Inch Lift Kit NTD | Chevy/GMC Tahoe/Yukon 2WD/4WD (2000-2006)
STARTING PRICE
$999.95
STARTING PRICE
$999.95
Select Matching Wheels and Tires
FREE Mount, Balance, and Shipping!
Features
This NTD kit is easier to install, handles better than ever, and looks killer from any angle since you won't have that unsightly torsion bar peeking out from the underside of the vehicle.
- Torsion bars stay in factory location.
- Redesigned for easier installation.
- Maintains factory ride quality.
- Applicable with AutoTrac equipped models.
- Unmatched ground clearance.
- Axles maintain factory position and angle.
- No drivetrain or exhaust modifications required.
- Designed to reuse factory compression travel stops.
- Includes front application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
Fitment Notes
- Frame bracket modification required.
- Does NOT fit Auto Ride or Auto Leveling models.
- If equipped with factory 17" wheels and purchasing new wheels - the new wheels must be 17" or larger.
- Torsion bar unloading tool required for installation. Available here! SKU: 1067
- AWD models must use replacement driveshaft SKU: 5083.1
Shock Configuration Options
Premium N3
included10-Stage Variable Valving
High Pressure Nitrogen Charged
35mm Piston
Chromed Hardened 18mm Piston Rod
54mm Shock Body to dissipate heat faster
36kN Tensile Strength
Spring Loaded Piston Rod Seal
Military Spec. Fluid Rated To –40° C
Rubber bushings for better absorption
Metallic Silver Paint
3-year Manufacturer's Warranty
M1 Monotube
+$60.002-inch seamless extruded tube.
46mm digressive piston.
Self-adjusting, deflective-disc independent rebound and compression.
18mm centerless-ground, case-hardened, chromed, and super-polished rod.
46mm monotube design ensures consistent, fade-free performance in all conditions.
Digressive valving instantly reacts to changing surface conditions.
Zinc plated for resistance against harsh elements.
Available in various lift heights for multiple applications.
Durable vulcanized natural rubber bushings.
3-year Manufacturer's Warranty
V2 Monotube
+$160.00Incredible ride quality & performance
Monotube design
Internal floating piston
Nitrogen-charged
46mm high-flow piston
Fast heat dissipation
36kN Tensile Strength
Mounts inverted
T6061 brushed aluminum body
3-year Manufacturer's Warranty
Installation
GET IT INSTALLED
Don’t want to install it yourself? Search for installers in your area.
FITMENT
Vehicles
year: 2001 - 2003
make: GMC
model: Yukon
drive: 4WD
year: 2000 - 2006
make: GMC
model: Yukon
drive: RWD
year: 2006
make: Chevy
model: Tahoe
drive: RWD
year: 2000 - 2005
make: Chevy
model: Tahoe
drive: 4WD
year: 2002 - 2006
make: Cadillac
model: Escalade
drive: RWD
Always read all product page details for more important fitment information
Wheels & Tires
size: 35x12.50R17
Popular
wheel: 17x9
Bolt Pattern: 6x5.5
Wheel Offset: +0
note: Minor Trimming
Stance: 1
size: 35x12.50R17
Popular
wheel: 17x9
Bolt Pattern: 6x5.5
Wheel Offset: +0
note: Minor Trimming
Stance: 1
size: 35x12.50R17
Popular
wheel: 17x9
Bolt Pattern: 6x5.5
Wheel Offset: +0
note: Minor Trimming
Stance: 1
size: 35x12.50R17
Popular
wheel: 17x9
Bolt Pattern: 6x5.5
Wheel Offset: +0
note: Minor Trimming
Stance: 1
size: 35x12.50R20
Popular
wheel: 20x9
Bolt Pattern: 6x5.5
Wheel Offset: -12
note: -
Stance: 1
size: 35x12.50R20
Popular
wheel: 20x9
Bolt Pattern: 6x5.5
Wheel Offset: -12
note: -
Stance: 1
size: 35x12.50R20
Popular
wheel: 20x9
Bolt Pattern: 6x5.5
Wheel Offset: -12
note: -
Stance: 1
size: 35x12.50R20
Popular
wheel: 20x9
Bolt Pattern: 6x5.5
Wheel Offset: -12
note: -
Stance: 1
size: 35x12.50R20
Popular
wheel: 20x9
Bolt Pattern: 6x5.5
Wheel Offset: -12
note: -
Stance: 1
size: 305/70R17
wheel: 17x8.5
Bolt Pattern: 6x5.5
Wheel Offset: +0
note: -
Stance: 1
size: 305/70R17
wheel: 17x8.5
Bolt Pattern: 6x5.5
Wheel Offset: +1
note: -
Stance: 1
size: 35x12.50R17
wheel: 17x8.5
Bolt Pattern: 6x5.5
Wheel Offset: +0
note: Minor Trimming
Stance: 1
size: 35x12.50R17
wheel: 17x8.5
Bolt Pattern: 6x5.5
Wheel Offset: +1
note: Minor Trimming
Stance: 1
size: 305/70R17
wheel: 17x9
Bolt Pattern: 6x5.5
Wheel Offset: +0
note: -
Stance: 1
size: 305/70R17
wheel: 17x9
Bolt Pattern: 6x5.5
Wheel Offset: +1
note: -
Stance: 1
size: 305/70R17
wheel: 17x9
Bolt Pattern: 6x5.5
Wheel Offset: -12
note: -
Stance: 1
size: 35x12.50R17
wheel: 17x9
Bolt Pattern: 6x5.5
Wheel Offset: +1
note: Minor Trimming
Stance: 1
size: 35x12.50R17
wheel: 17x9
Bolt Pattern: 6x5.5
Wheel Offset: -12
note: Minor Trimming
Stance: 1
size: 295/70R18
wheel: 18x10
Bolt Pattern: 6x5.5
Wheel Offset: -18
note: -
Stance: 2
size: 295/70R18
wheel: 18x10
Bolt Pattern: 6x5.5
Wheel Offset: -19
note: -
Stance: 2
size: 295/70R18
wheel: 18x10
Bolt Pattern: 6x5.5
Wheel Offset: -25
note: -
Stance: 2
size: 285/75R18
wheel: 18x8.5
Bolt Pattern: 6x5.5
Wheel Offset: +0
note: -
Stance: 1
size: 285/75R18
wheel: 18x8.5
Bolt Pattern: 6x5.5
Wheel Offset: +1
note: -
Stance: 1
size: 295/70R18
wheel: 18x8.5
Bolt Pattern: 6x5.5
Wheel Offset: +0
note: -
Stance: 1
size: 295/70R18
wheel: 18x8.5
Bolt Pattern: 6x5.5
Wheel Offset: +1
note: -
Stance: 1
size: 35x12.50R18
wheel: 18x8.5
Bolt Pattern: 6x5.5
Wheel Offset: +0
note: Minor Trimming
Stance: 1
size: 35x12.50R18
wheel: 18x8.5
Bolt Pattern: 6x5.5
Wheel Offset: +1
note: Minor Trimming
Stance: 1
size: 295/70R18
wheel: 18x9
Bolt Pattern: 6x5.5
Wheel Offset: +0
note: -
Stance: 1
size: 295/70R18
wheel: 18x9
Bolt Pattern: 6x5.5
Wheel Offset: +1
note: -
Stance: 1
size: 295/70R18
wheel: 18x9
Bolt Pattern: 6x5.5
Wheel Offset: -12
note: -
Stance: 1
size: 35x12.50R18
wheel: 18x9
Bolt Pattern: 6x5.5
Wheel Offset: +0
note: Minor Trimming
Stance: 1
size: 35x12.50R18
wheel: 18x9
Bolt Pattern: 6x5.5
Wheel Offset: +1
note: Minor Trimming
Stance: 1
size: 35x12.50R18
wheel: 18x9
Bolt Pattern: 6x5.5
Wheel Offset: -12
note: Minor Trimming
Stance: 1
size: 295/60R20
wheel: 20x10
Bolt Pattern: 6x5.5
Wheel Offset: -18
note: Minor Trimming
Stance: 2
size: 295/60R20
wheel: 20x10
Bolt Pattern: 6x5.5
Wheel Offset: -19
note: Minor Trimming
Stance: 2
size: 295/60R20
wheel: 20x10
Bolt Pattern: 6x5.5
Wheel Offset: -25
note: Minor Trimming
Stance: 2
size: 35x12.50R20
wheel: 20x10
Bolt Pattern: 6x5.5
Wheel Offset: -18
note: Trimming Required
Stance: 2
size: 35x12.50R20
wheel: 20x10
Bolt Pattern: 6x5.5
Wheel Offset: -19
note: Trimming Required
Stance: 2
size: 35x12.50R20
wheel: 20x10
Bolt Pattern: 6x5.5
Wheel Offset: -25
note: Trimming Required
Stance: 2
size: 295/60R20
wheel: 20x9
Bolt Pattern: 6x5.5
Wheel Offset: +0
note: -
Stance: 1
size: 295/60R20
wheel: 20x9
Bolt Pattern: 6x5.5
Wheel Offset: +1
note: -
Stance: 1
size: 295/60R20
wheel: 20x9
Bolt Pattern: 6x5.5
Wheel Offset: -12
note: -
Stance: 1
size: 35x12.50R20
wheel: 20x9
Bolt Pattern: 6x5.5
Wheel Offset: +0
note: Minor Trimming
Stance: 1
size: 35x12.50R20
wheel: 20x9
Bolt Pattern: 6x5.5
Wheel Offset: +1
note: Minor Trimming
Stance: 1
size: 285/55R22
wheel: 22x10
Bolt Pattern: 6x5.5
Wheel Offset: -18
note: -
Stance: 2
size: 285/55R22
wheel: 22x10
Bolt Pattern: 6x5.5
Wheel Offset: -19
note: -
Stance: 2
size: 285/55R22
wheel: 22x10
Bolt Pattern: 6x5.5
Wheel Offset: -25
note: -
Stance: 2
size: 35x12.50R22
wheel: 22x10
Bolt Pattern: 6x5.5
Wheel Offset: -18
note: Trimming Required
Stance: 2
size: 35x12.50R22
wheel: 22x10
Bolt Pattern: 6x5.5
Wheel Offset: -19
note: Trimming Required
Stance: 2
size: 35x12.50R22
wheel: 22x10
Bolt Pattern: 6x5.5
Wheel Offset: -25
note: Trimming Required
Stance: 2
Due to differences in manufacturing, dimension and inflated measurements, tire & wheel combinations should be test fit prior to installation
Select Matching Wheels and Tires
FREE Mount, Balance, and Shipping!
About this Product
6 Inch Lift Kit | NTD | Chevy/GMC Tahoe/Yukon 2WD/4WD (2000-2006)
