6 Inch Lift Kit Radius Arm | Ford F-250/F-350 Super Duty 4WD (2023-2024)

STARTING PRICE
$1,299.95
STARTING PRICE
$1,299.95
Configure Your Kit:
Select options

SKU:

41230-config


Brand:

Rough Country


Lowest Price Guarantee

Features

  • Easy bolt-on installation.
  • Increased ground clearance.
  • Levels the front with the rear of the vehicle.

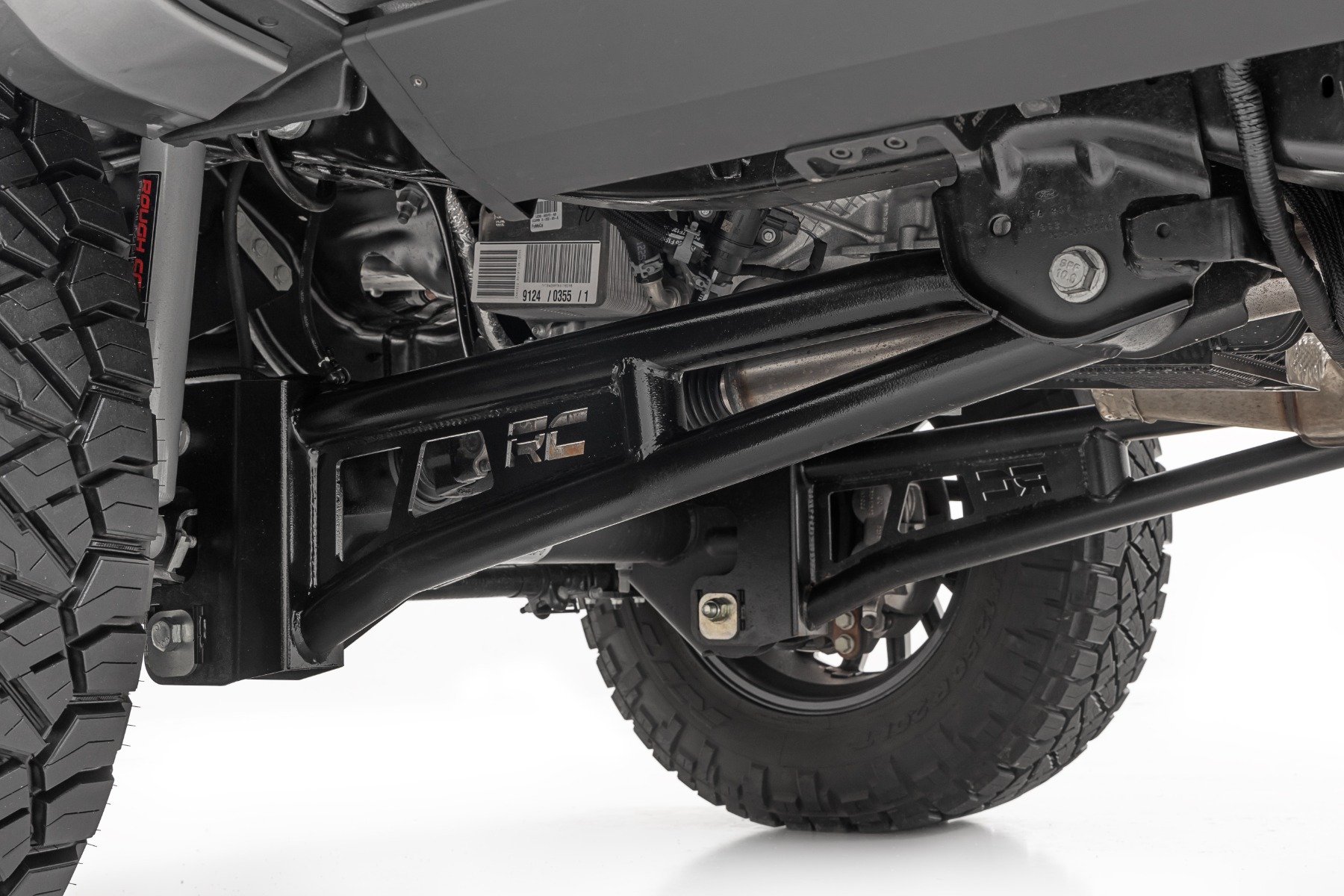

  • Tubular Radius arms allow for properly set caster. Proper caster is crucial to maintaining factory handling and driveability.
  • Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
  • Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
  • Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem.
Fitment Notes
  • Does NOT fit manual shift transfer cases.
  • Does NOT fit models equipped with auto leveling headlight function.
  • Does NOT fit dually models.
  • Does NOT work on models equipped with Tremor Factory Trim Package.
Warranty Details

Est. Install Time 6-10 hours

Shock Configuration Options

N3 Shock Pair
Premium N3
included
  • 10-Stage Variable Valving

  • High Pressure Nitrogen Charged

  • 35mm Piston

  • Chromed Hardened 18mm Piston Rod

  • 54mm Shock Body to dissipate heat faster

  • 36kN Tensile Strength

  • Spring Loaded Piston Rod Seal

  • Military Spec. Fluid Rated To –40° C

  • Rubber bushings for better absorption

  • Metallic Silver Paint

  • 3-year Manufacturer's Warranty

M1 Shock Pair
M1 Monotube
+$320.00
  • 2-inch seamless extruded tube.

  • 46mm digressive piston.

  • Self-adjusting, deflective-disc independent rebound and compression.

  • 18mm centerless-ground, case-hardened, chromed, and super-polished rod.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions.

  • Digressive valving instantly reacts to changing surface conditions.

  • Zinc plated for resistance against harsh elements.

  • Available in various lift heights for multiple applications.

  • Durable vulcanized natural rubber bushings.

  • 3-year Manufacturer's Warranty

V2 Shock Pair
V2 Monotube
+$500.00
  • Incredible ride quality & performance

  • Monotube design

  • Internal floating piston

  • Nitrogen-charged

  • 46mm high-flow piston

  • Fast heat dissipation

  • 36kN Tensile Strength

  • Mounts inverted

  • T6061 brushed aluminum body

  • 3-year Manufacturer's Warranty

Customer Support Headshot
Need Help?
Talk to a Build Expert
1-800-222-7023

Installation


GET IT INSTALLED

Don’t want to install it yourself? Search for installers in your area.


FITMENT

Vehicles
year: 2023 - 2024
make: Ford
model: F-350 Super Duty
drive: 4WD
year: 2023 - 2024
make: Ford
model: F-250 Super Duty
drive: 4WD

Always read all product page details for more important fitment information

Wheels & Tires
Filters
size: 37x12.50R18
Popular
wheel: 18x9
Bolt Pattern: 8x170
Wheel Offset: +0
note: -
Stance: 1
size: 37x12.50R20
Popular
wheel: 20x9
Bolt Pattern: 8x170
Wheel Offset: -12
note: -
Stance: 1
size: 35x12.50R17
wheel: 17x9
Bolt Pattern: 8x170
Wheel Offset: -12
note: -
Stance: 1
size: 37x12.50R17
wheel: 17x9
Bolt Pattern: 8x170
Wheel Offset: +0
note: -
Stance: 1
size: 37x12.50R17
wheel: 17x9
Bolt Pattern: 8x170
Wheel Offset: +1
note: -
Stance: 1
size: 37x12.50R17
wheel: 17x9
Bolt Pattern: 8x170
Wheel Offset: -12
note: -
Stance: 1
size: 35x12.50R18
wheel: 18x9
Bolt Pattern: 8x170
Wheel Offset: +0
note: -
Stance: 1
size: 35x12.50R18
wheel: 18x9
Bolt Pattern: 8x170
Wheel Offset: +1
note: -
Stance: 1
size: 35x12.50R18
wheel: 18x9
Bolt Pattern: 8x170
Wheel Offset: -12
note: -
Stance: 1
size: 37x12.50R18
wheel: 18x9
Bolt Pattern: 8x170
Wheel Offset: +1
note: -
Stance: 1
size: 37x12.50R18
wheel: 18x9
Bolt Pattern: 8x170
Wheel Offset: -12
note: -
Stance: 1
size: 295/65R20
wheel: 20x10
Bolt Pattern: 8x170
Wheel Offset: -18
note: -
Stance: 1
size: 295/65R20
wheel: 20x10
Bolt Pattern: 8x170
Wheel Offset: -19
note: -
Stance: 1
size: 35x11.50R20
wheel: 20x10
Bolt Pattern: 8x170
Wheel Offset: -18
note: -
Stance: 1
size: 35x11.50R20
wheel: 20x10
Bolt Pattern: 8x170
Wheel Offset: -19
note: -
Stance: 1
size: 35x12.50R20
wheel: 20x10
Bolt Pattern: 8x170
Wheel Offset: -18
note: -
Stance: 1
size: 35x12.50R20
wheel: 20x10
Bolt Pattern: 8x170
Wheel Offset: -19
note: -
Stance: 1
size: 37x12.50R20
wheel: 20x10
Bolt Pattern: 8x170
Wheel Offset: -18
note: Minor Trimming
Stance: 1
size: 37x12.50R20
wheel: 20x10
Bolt Pattern: 8x170
Wheel Offset: -19
note: Minor Trimming
Stance: 1
size: 37x12.50R20
wheel: 20x10
Bolt Pattern: 8x170
Wheel Offset: -24
note: Minor Trimming
Stance: 2
size: 37x12.50R20
wheel: 20x10
Bolt Pattern: 8x170
Wheel Offset: -25
note: Minor Trimming
Stance: 2
size: 35x12.50R20
wheel: 20x12
Bolt Pattern: 8x170
Wheel Offset: -44
note: Minor Trimming
Stance: 2
size: 37x12.50R20
wheel: 20x12
Bolt Pattern: 8x170
Wheel Offset: -44
note: Trimming Required
Stance: 2
size: 295/65R20
wheel: 20x9
Bolt Pattern: 8x170
Wheel Offset: -12
note: -
Stance: 1
size: 35x11.50R20
wheel: 20x9
Bolt Pattern: 8x170
Wheel Offset: -12
note: -
Stance: 1
size: 35x12.50R20
wheel: 20x9
Bolt Pattern: 8x170
Wheel Offset: -12
note: -
Stance: 1
size: 37x12.50R20
wheel: 20x9
Bolt Pattern: 8x170
Wheel Offset: +0
note: -
Stance: 1
size: 37x12.50R20
wheel: 20x9
Bolt Pattern: 8x170
Wheel Offset: +1
note: -
Stance: 1
size: 35x12.50R22
wheel: 22x10
Bolt Pattern: 8x170
Wheel Offset: -18
note: -
Stance: 1
size: 35x12.50R22
wheel: 22x10
Bolt Pattern: 8x170
Wheel Offset: -19
note: -
Stance: 1
size: 37x12.50R22
wheel: 22x10
Bolt Pattern: 8x170
Wheel Offset: -18
note: Minor Trimming
Stance: 1
size: 37x12.50R22
wheel: 22x10
Bolt Pattern: 8x170
Wheel Offset: -19
note: Minor Trimming
Stance: 1
size: 37x12.50R22
wheel: 22x10
Bolt Pattern: 8x170
Wheel Offset: -24
note: Minor Trimming
Stance: 2
size: 37x12.50R22
wheel: 22x10
Bolt Pattern: 8x170
Wheel Offset: -25
note: Minor Trimming
Stance: 2
size: 35x12.50R22
wheel: 22x12
Bolt Pattern: 8x170
Wheel Offset: -44
note: -
Stance: 2
size: 37x12.50R22
wheel: 22x12
Bolt Pattern: 8x170
Wheel Offset: -44
note: -
Stance: 2
size: 37x12.50R22
wheel: 22x9
Bolt Pattern: 8x170
Wheel Offset: +0
note: -
Stance: 1
size: 37x12.50R22
wheel: 22x9
Bolt Pattern: 8x170
Wheel Offset: +1
note: -
Stance: 1
size: 37x12.50R22
wheel: 22x9
Bolt Pattern: 8x170
Wheel Offset: -12
note: -
Stance: 1

Due to differences in manufacturing, dimension and inflated measurements, tire & wheel combinations should be test fit prior to installation
