4.5 Inch Lift Kit Ford Super Duty 4WD (2017-2022)
STARTING PRICE
$1,099.95
STARTING PRICE
$1,099.95
Select Matching Wheels and Tires
FREE Mount, Balance, and Shipping!
Features

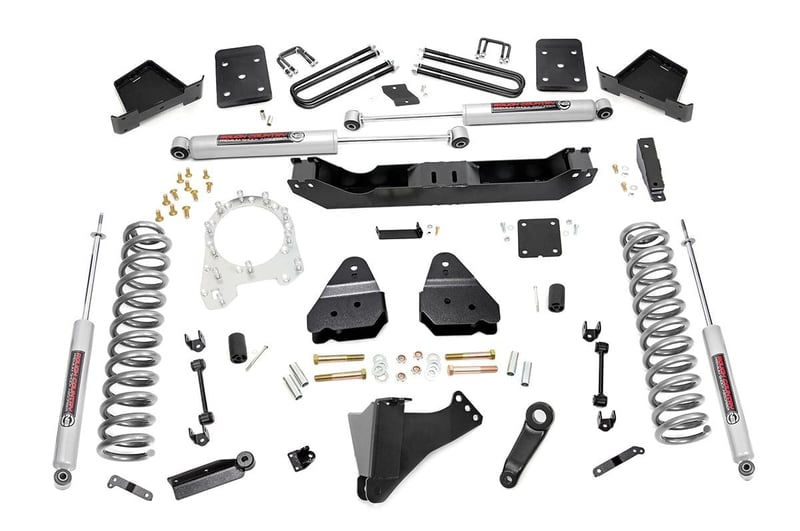

Give your 17-20 Ford Super Duty an impressive upgrade, front to back with Rough Country’s 4.5" Ford Suspension Lift Kit! This easy-to-install lift kit raises the front of your vehicle to be equal height with the rear for a leveled, better-than-stock look that gives an improved ride height and more aggressive appearance.
- Easy bolt-on installation
- Increased ground clearance
- Levels the front with the rear of the vehicle

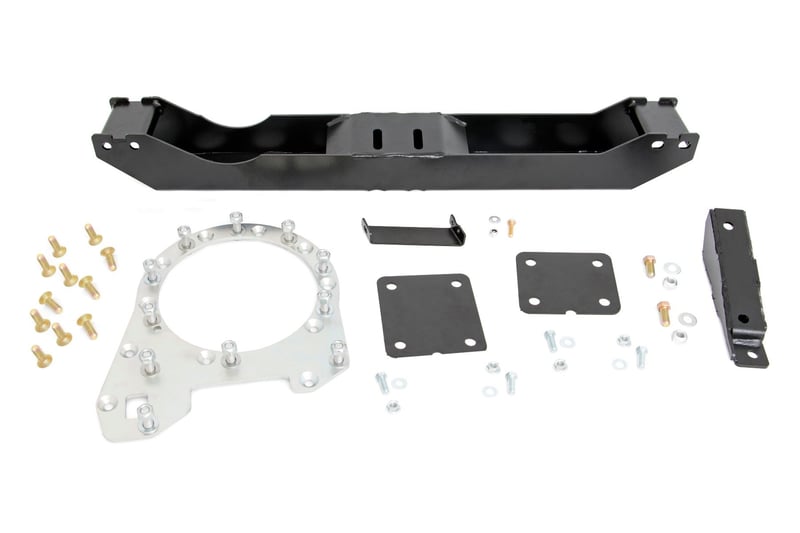

- Radius arm drop brackets allow for properly set caster. Proper caster is crucial to maintaining factory handling and driveability.
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
- Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
- 10-Stage Variable Valving
- High Pressure Nitrogen Charged
- 35mm Piston
- Chromed Hardened 18mm Piston Rod
- 36kN Tensile Strength
- Spring Loaded Piston Rod Seal
- Metallic Silver Paint
- Silver powder coat finish
- 3-year Manufacturer's Warranty
- Monotube design
- Internal floating piston
- Nitrogen-charged
- 46mm high-flow piston
- Fast heat dissipation
- 36kN Tensile Strength
- Mounts inverted
- T6061 brushed aluminum body
- 3-year Manufacturer's Warranty
- 8-Stage Adjustable Damping
- Monotube Design
- Nitrogen-charged
- Massive 2.5in Piston
- 22mm Chrome-Hardened Piston Rod
- 3-Stage Seal System
- Heat-Treated, Alloy Bearing
- Honed Steel Body
- 3-year Manufacturer's Warranty
Optional Premium N3 Shocks
Optional V2 Monotube Shocks
Optional Vertex Shocks
Fitment Notes
- Models equipped with a 10-speed transmission must remove dial pin.
- Does NOT fit gas engine models.
- Vertex kits do NOT allow use of factory wheels.
- Does NOT fit dually models.
- Does NOT fit manual shift transfer cases.
- Does NOT work on models equipped with Tremor Factory Trim Package.
Installation
GET IT INSTALLED
Don’t want to install it yourself? Search for installers in your area.
FITMENT
Vehicles
year: 2017 - 2022
make: Ford
model: F-250 Super Duty
drive: 4WD
year: 2017 - 2022
make: Ford
model: F-350 Super Duty
drive: 4WD
Always read all product page details for more important fitment information
Wheels & Tires
size: 35x12.50R17
Popular
wheel: 17x9
Bolt Pattern: 8x170
Wheel Offset: -12
note: -
Stance: 1
size: 35x12.50R17
Popular
wheel: 17x9
Bolt Pattern: 8x170
Wheel Offset: -12
note: -
Stance: 1
size: 35x12.50R18
Popular
wheel: 18x9
Bolt Pattern: 8x170
Wheel Offset: -12
note: -
Stance: 1
size: 35x12.50R20
Popular
wheel: 20x9
Bolt Pattern: 8x170
Wheel Offset: -12
note: -
Stance: 1
size: 35x12.50R20
Popular
wheel: 20x9
Bolt Pattern: 8x170
Wheel Offset: -12
note: -
Stance: 1
size: 35x12.50R20
Popular
wheel: 20x9
Bolt Pattern: 8x170
Wheel Offset: -12
note: -
Stance: 1
size: 315/70R17
wheel: 17x9
Bolt Pattern: 8x170
Wheel Offset: -12
note: -
Stance: 1
size: 295/70R18
wheel: 18x10
Bolt Pattern: 8x170
Wheel Offset: -18
note: -
Stance: 1
size: 295/70R18
wheel: 18x10
Bolt Pattern: 8x170
Wheel Offset: -19
note: -
Stance: 1
size: 295/70R18
wheel: 18x10
Bolt Pattern: 8x170
Wheel Offset: -25
note: -
Stance: 1
size: 35x12.50R18
wheel: 18x10
Bolt Pattern: 8x170
Wheel Offset: -18
note: -
Stance: 1
size: 35x12.50R18
wheel: 18x10
Bolt Pattern: 8x170
Wheel Offset: -19
note: -
Stance: 1
size: 35x12.50R18
wheel: 18x10
Bolt Pattern: 8x170
Wheel Offset: -25
note: -
Stance: 2
size: 295/70R18
wheel: 18x8.5
Bolt Pattern: 8x170
Wheel Offset: +0
note: -
Stance: 1
size: 295/70R18
wheel: 18x8.5
Bolt Pattern: 8x170
Wheel Offset: +1
note: -
Stance: 1
size: 295/70R18
wheel: 18x9
Bolt Pattern: 8x170
Wheel Offset: -12
note: -
Stance: 1
size: 295/60R20
wheel: 20x10
Bolt Pattern: 8x170
Wheel Offset: -18
note: Minor Trimming
Stance: 1
size: 295/60R20
wheel: 20x10
Bolt Pattern: 8x170
Wheel Offset: -19
note: Minor Trimming
Stance: 1
size: 35x12.50R20
wheel: 20x10
Bolt Pattern: 8x170
Wheel Offset: -18
note: Minor Trimming
Stance: 1
size: 35x12.50R20
wheel: 20x10
Bolt Pattern: 8x170
Wheel Offset: -19
note: Minor Trimming
Stance: 1
size: 35x12.50R20
wheel: 20x10
Bolt Pattern: 8x170
Wheel Offset: -25
note: Minor Trimming
Stance: 2
size: 35x12.50R20
wheel: 20x12
Bolt Pattern: 8x170
Wheel Offset: -44
note: Trimming Required
Stance: 2
size: 295/60R20
wheel: 20x9
Bolt Pattern: 8x170
Wheel Offset: -12
note: -
Stance: 1
size: 295/65R20
wheel: 20x9
Bolt Pattern: 8x170
Wheel Offset: -12
note: -
Stance: 1
size: 35x11.50R20
wheel: 20x9
Bolt Pattern: 8x170
Wheel Offset: -12
note: -
Stance: 1
size: 285/55R22
wheel: 22x10
Bolt Pattern: 8x170
Wheel Offset: -18
note: -
Stance: 1
size: 285/55R22
wheel: 22x10
Bolt Pattern: 8x170
Wheel Offset: -19
note: -
Stance: 1
size: 35x12.50R22
wheel: 22x10
Bolt Pattern: 8x170
Wheel Offset: -18
note: Minor Trimming
Stance: 1
size: 35x12.50R22
wheel: 22x10
Bolt Pattern: 8x170
Wheel Offset: -19
note: Minor Trimming
Stance: 1
size: 35x12.50R22
wheel: 22x10
Bolt Pattern: 8x170
Wheel Offset: -25
note: Minor Trimming
Stance: 2
size: 35x12.50R22
wheel: 22x12
Bolt Pattern: 8x170
Wheel Offset: -44
note: Trimming Required
Stance: 2
Due to differences in manufacturing, dimension and inflated measurements, tire & wheel combinations should be test fit prior to installation
Select Matching Wheels and Tires
FREE Mount, Balance, and Shipping!
About this Product
4.5 Inch Lift Kit | Ford Super Duty 4WD (2017-2022)
