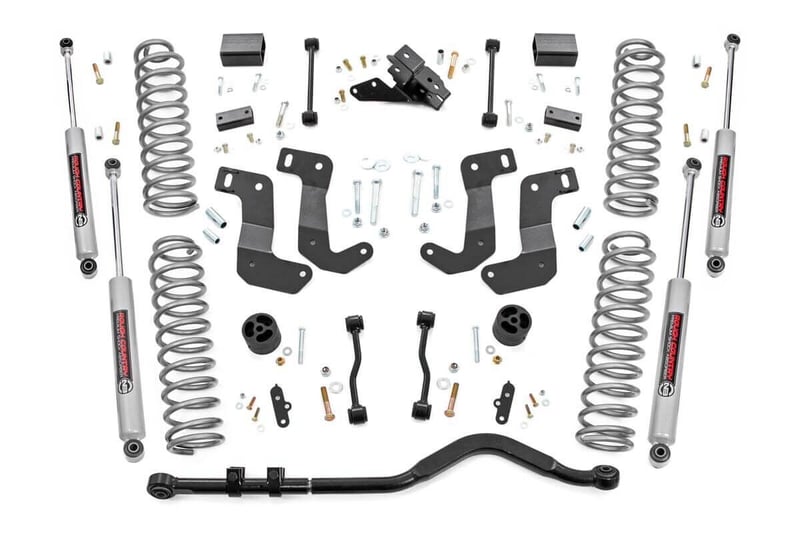

3.5 Inch Lift Kit 4xe | 4-Door | Jeep Wrangler JL 4WD (2024)
Features
When it comes to your four-door Jeep JL 4xe, we know you need a lift that won't let you down. Our 3.5 Inch Lift Kit delivers legendary off-road prowess and smooth on-road handling.
- Easy installation.
- Increased ground clearance.
- Levels the front with the rear of the vehicle.
- Coil springs are based on OEM spring rates for great handling and smooth ride quality.
- Utilizes linear coil rate springs that promote better handing and load support.
- Includes forged track bar and rear track bar bracket keeps the axles perfectly centered.
- Included track bar is constructed of forged solid steel for unsurpassed strength and durability.
- Included track bar features a massive 1.25in outside diameter and durable OEM style rubber bushings.
- Includes control arm drop brackets to retain factory arms at the proper geometric angle.
Fitment Notes
- An aftermarket driveshaft is HIGHLY RECOMMENDED for installation of any Jeep JL lift kit 3.5” or taller. The factory driveshaft will become damaged if the suspension reaches full droop or flex. Please use Rough Country’s Jeep JL Front CV Driveshaft SKU: 5090.1A found HERE.
- Fits 4xe models ONLY.
Shock Configuration Options
Premium N3
included10-Stage Variable Valving
High Pressure Nitrogen Charged
35mm Piston
Chromed Hardened 18mm Piston Rod
54mm Shock Body to dissipate heat faster
36kN Tensile Strength
Spring Loaded Piston Rod Seal
Military Spec. Fluid Rated To –40° C
Rubber bushings for better absorption
Metallic Silver Paint
3-year Manufacturer's Warranty
M1 Monotube
+$120.002-inch seamless extruded tube.
46mm digressive piston.
Self-adjusting, deflective-disc independent rebound and compression.
18mm centerless-ground, case-hardened, chromed, and super-polished rod.
46mm monotube design ensures consistent, fade-free performance in all conditions.
Digressive valving instantly reacts to changing surface conditions.
Zinc plated for resistance against harsh elements.
Available in various lift heights for multiple applications.
Durable vulcanized natural rubber bushings.
3-year Manufacturer's Warranty
Installation
RC Instructional:
Installing a Jeep Wrangler JL 3.5-inch Suspension Lift Kit [by Rough Country]
GET IT INSTALLED
Don’t want to install it yourself? Search for installers in your area.
FITMENT
Vehicles
Year : 2024
Make : Jeep
Model : Wrangler Unlimited Rubicon 4xe
Drive : 4WD
Year : 2024
Make : Jeep
Model : Wrangler Unlimited High Altitude 4xe
Drive : 4WD
Year : 2024
Make : Jeep
Model : Wrangler Unlimited High Tide
Drive : 4WD
Year : 2024
Make : Jeep
Model : Wrangler Unlimited Willys 4xe
Drive : 4WD
Year : 2024
Make : Jeep
Model : Wrangler Unlimited Sahara 4xe
Drive : 4WD
Always read all product page details for more important fitment information
Tires
Size: 35x12.50R17
Wheel: 17x8.5
Bolt Pattern: 5x5.0
Wheel Offset: +0
Note: -
Stance: -
Size: 35x12.50R17
Wheel: 17x8.5
Bolt Pattern: 5x5.0
Wheel Offset: +1
Note: -
Stance: -
Size: 315/70R17
Wheel: 17x9
Bolt Pattern: 5x5.0
Wheel Offset: +0
Note: -
Stance: -
Size: 315/70R17
Wheel: 17x9
Bolt Pattern: 5x5.0
Wheel Offset: +1
Note: -
Stance: -
Size: 35x12.50R17
Wheel: 17x9
Bolt Pattern: 5x5.0
Wheel Offset: +0
Note: -
Stance: -
Size: 35x12.50R17
Wheel: 17x9
Bolt Pattern: 5x5.0
Wheel Offset: +1
Note: -
Stance: -
Size: 35x12.50R17
Wheel: 17x9
Bolt Pattern: 5x5.0
Wheel Offset: -12
Note: -
Stance: -
Size: 35x12.50R18
Wheel: 18x10
Bolt Pattern: 5x5.0
Wheel Offset: -24
Note: -
Stance: -
Size: 35x12.50R18
Wheel: 18x10
Bolt Pattern: 5x5.0
Wheel Offset: -25
Note: -
Stance: -
Size: 275/75R18
Wheel: 18x8.5
Bolt Pattern: 5x5.0
Wheel Offset: +0
Note: -
Stance: -
Size: 275/75R18
Wheel: 18x8.5
Bolt Pattern: 5x5.0
Wheel Offset: +1
Note: -
Stance: -
Size: 285/75R18
Wheel: 18x8.5
Bolt Pattern: 5x5.0
Wheel Offset: +0
Note: -
Stance: -
Size: 285/75R18
Wheel: 18x8.5
Bolt Pattern: 5x5.0
Wheel Offset: +1
Note: -
Stance: -
Size: 295/70R18
Wheel: 18x8.5
Bolt Pattern: 5x5.0
Wheel Offset: +0
Note: -
Stance: -
Size: 295/70R18
Wheel: 18x8.5
Bolt Pattern: 5x5.0
Wheel Offset: +1
Note: -
Stance: -
Size: 35x12.50R18
Wheel: 18x8.5
Bolt Pattern: 5x5.0
Wheel Offset: +0
Note: -
Stance: -
Size: 35x12.50R18
Wheel: 18x8.5
Bolt Pattern: 5x5.0
Wheel Offset: +1
Note: -
Stance: -
Size: 295/70R18
Wheel: 18x9
Bolt Pattern: 5x5.0
Wheel Offset: +0
Note: -
Stance: -
Size: 295/70R18
Wheel: 18x9
Bolt Pattern: 5x5.0
Wheel Offset: +1
Note: -
Stance: -
Size: 35x12.50R18
Wheel: 18x9
Bolt Pattern: 5x5.0
Wheel Offset: +0
Note: -
Stance: -
Size: 35x12.50R18
Wheel: 18x9
Bolt Pattern: 5x5.0
Wheel Offset: +1
Note: -
Stance: -
Size: 35x12.50R18
Wheel: 18x9
Bolt Pattern: 5x5.0
Wheel Offset: -12
Note: -
Stance: -
Size: 35x12.50R18
Wheel: 18x9
Bolt Pattern: 5x5.0
Wheel Offset: -6
Note: -
Stance: -
Size: 295/60R20
Wheel: 20x10
Bolt Pattern: 5x5.0
Wheel Offset: -18
Note: -
Stance: -
Size: 295/60R20
Wheel: 20x10
Bolt Pattern: 5x5.0
Wheel Offset: -19
Note: -
Stance: -
Size: 35x12.50R20
Wheel: 20x10
Bolt Pattern: 5x5.0
Wheel Offset: -18
Note: -
Stance: -
Size: 35x12.50R20
Wheel: 20x10
Bolt Pattern: 5x5.0
Wheel Offset: -19
Note: -
Stance: -
Size: 35x12.50R20
Wheel: 20x10
Bolt Pattern: 5x5.0
Wheel Offset: -24
Note: -
Stance: -
Size: 35x12.50R20
Wheel: 20x10
Bolt Pattern: 5x5.0
Wheel Offset: -25
Note: -
Stance: -
Size: 35x12.50R20
Wheel: 20x12
Bolt Pattern: 5x5.0
Wheel Offset: -44
Note: Minor Trimming
Stance: -
Size: 295/60R20
Wheel: 20x9
Bolt Pattern: 5x5.0
Wheel Offset: +0
Note: -
Stance: -
Size: 295/60R20
Wheel: 20x9
Bolt Pattern: 5x5.0
Wheel Offset: +1
Note: -
Stance: -
Size: 295/60R20
Wheel: 20x9
Bolt Pattern: 5x5.0
Wheel Offset: -12
Note: -
Stance: -
Size: 35x12.50R20
Wheel: 20x9
Bolt Pattern: 5x5.0
Wheel Offset: +0
Note: -
Stance: -
Size: 35x12.50R20
Wheel: 20x9
Bolt Pattern: 5x5.0
Wheel Offset: +1
Note: -
Stance: -
Size: 35x12.50R20
Wheel: 20x9
Bolt Pattern: 5x5.0
Wheel Offset: -12
Note: -
Stance: -
Size: 35x12.50R22
Wheel: 22x10
Bolt Pattern: 5x5.0
Wheel Offset: -18
Note: -
Stance: -
Size: 35x12.50R22
Wheel: 22x10
Bolt Pattern: 5x5.0
Wheel Offset: -19
Note: -
Stance: -
Size: 35x12.50R22
Wheel: 22x10
Bolt Pattern: 5x5.0
Wheel Offset: -24
Note: -
Stance: -
Size: 35x12.50R22
Wheel: 22x10
Bolt Pattern: 5x5.0
Wheel Offset: -25
Note: -
Stance: -
Size: 35x12.50R22
Wheel: 22x12
Bolt Pattern: 5x5.0
Wheel Offset: -44
Note: Minor Trimming
Stance: -
Due to differences in manufacturing, dimension and inflated measurements, tire & wheel combinations should be test fit prior to installation
About this Product
3.5 Inch Lift Kit | 4xe | 4-Door | Jeep Wrangler JL 4WD (2024)
