4 Inch Lift Kit 4-Door | Long Arm | Jeep Wrangler JK 2WD/4WD (2007-2011)

STARTING PRICE
$1,999.95
STARTING PRICE
$1,999.95
Configure Your Kit:
Select options

SKU:

78630-config


Brand:

Rough Country


Lowest Price Guarantee
Select Matching Wheels and Tires
Select Matching Wheels and Tires
FREE Mount, Balance, and Shipping!

Features

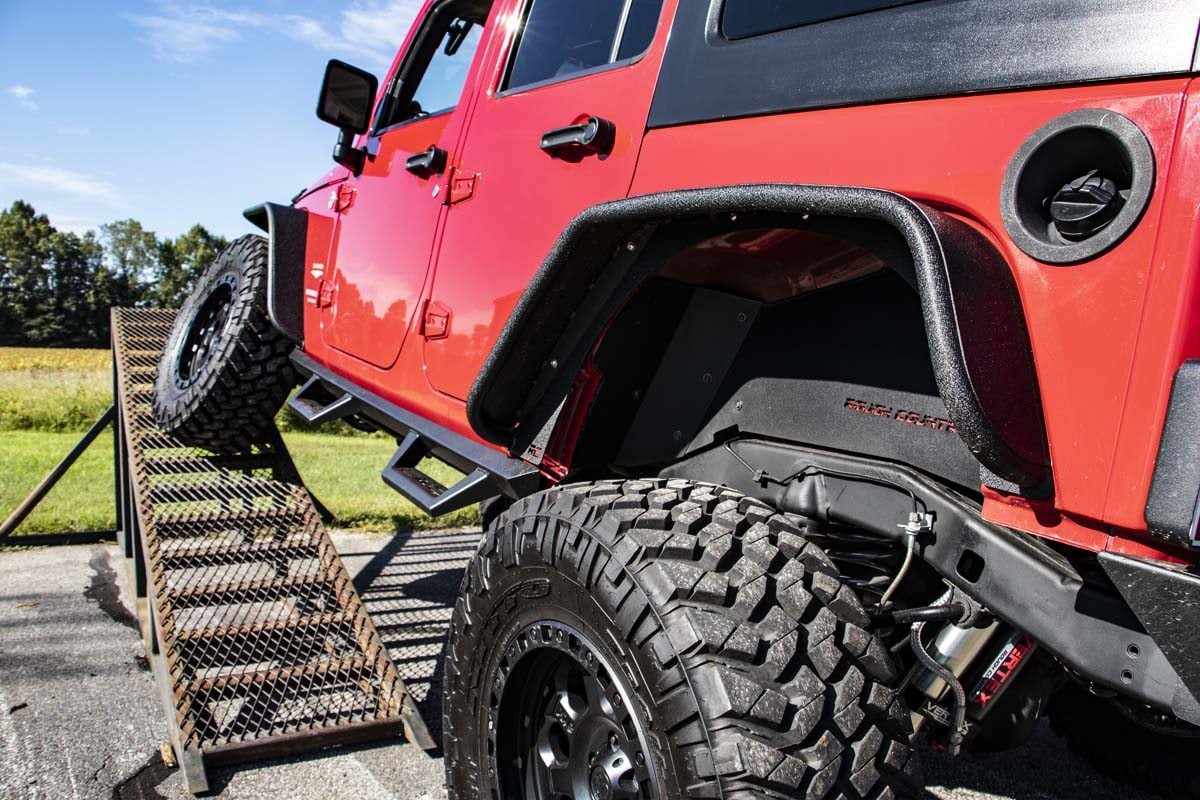

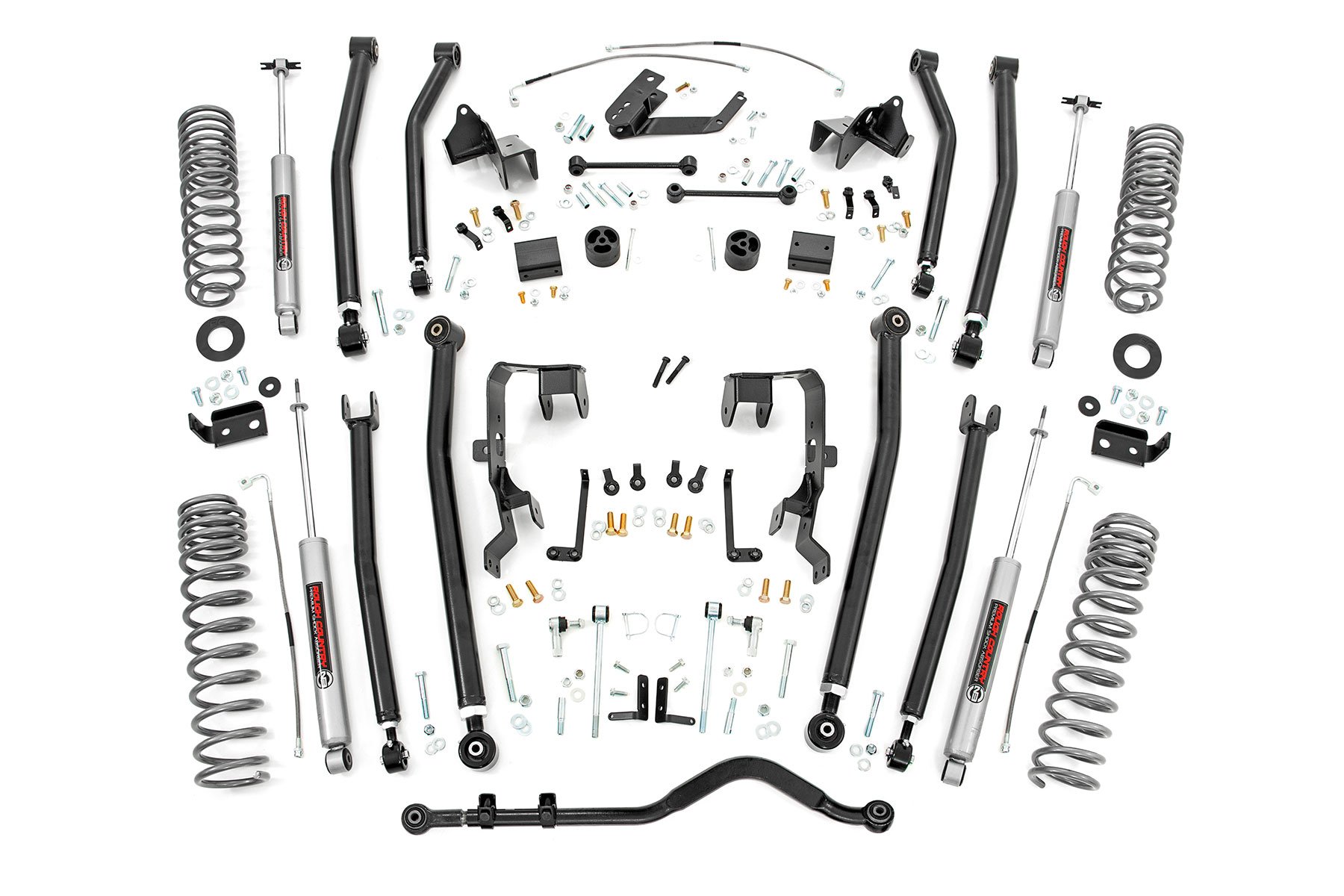

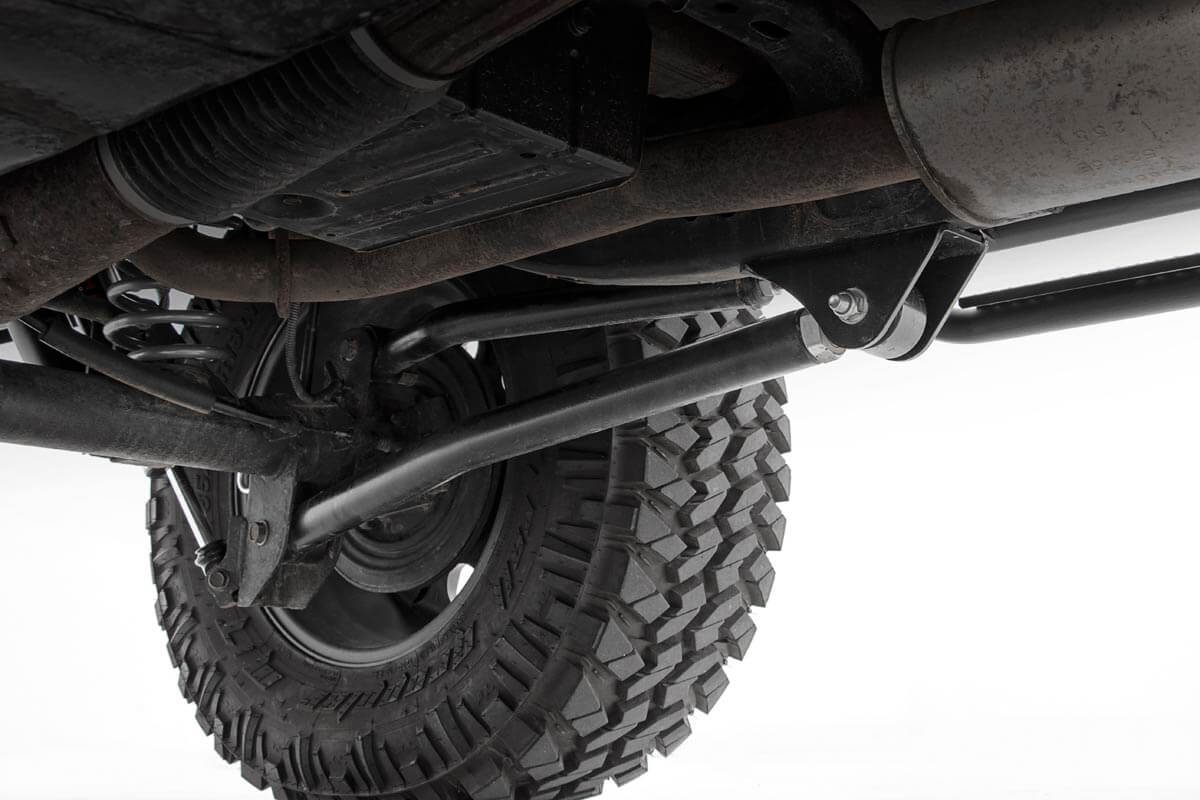

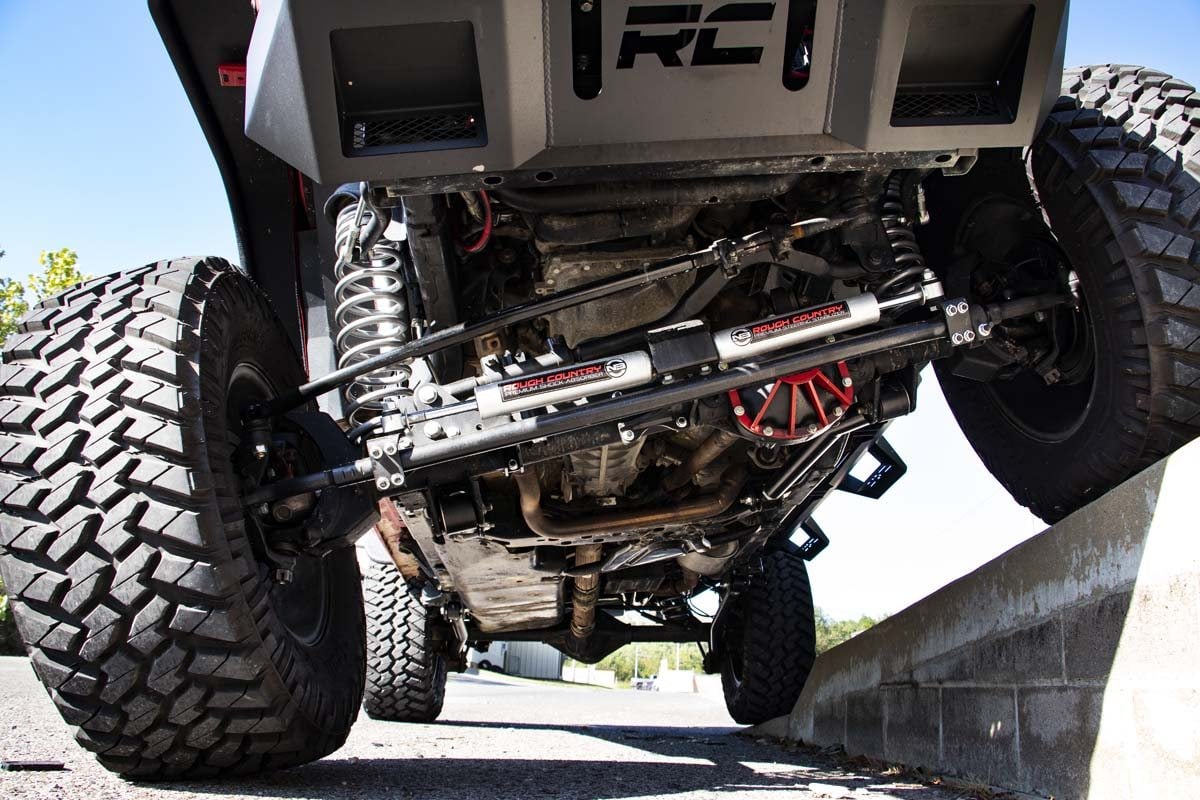

Achieve the ultimate flex and articulation while retaining a smooth highway ride quality with Rough Country's 4in Long Arm Suspension Lift Kit. This true 4-link setup offers incredible off-road performance while keeping the suspension geometry as close to the factory angles as possible. The result is a more capable suspension setup that can deliver jaw-dropping rock crawling performance while still giving the soft, lush highway ride quality a daily driver would enjoy.
  • Incredible on and off-road ride quality.
  • No welding required.

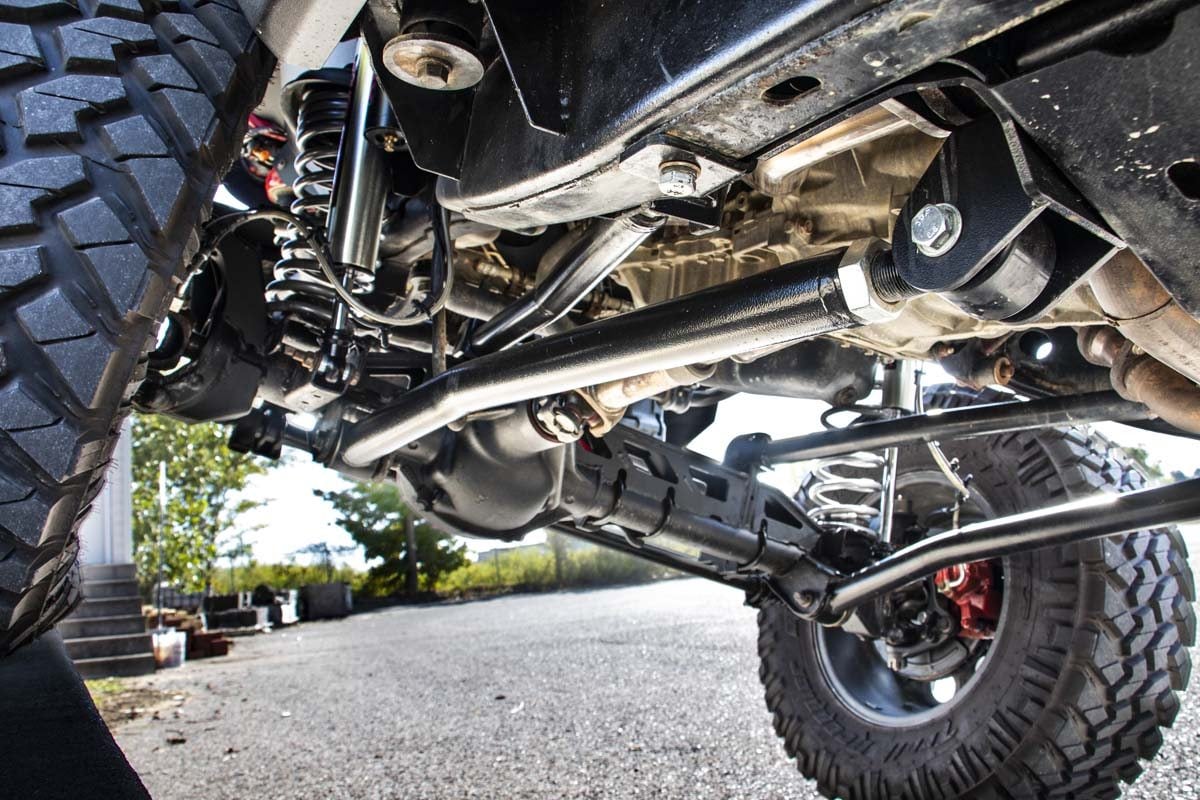

  • True 4-link setup with new, longer travel arms.
  • Prevents binding and rear-steer.
  • Front adjustable track bar is made of forged solid steel for unsurpassed strength and durability.

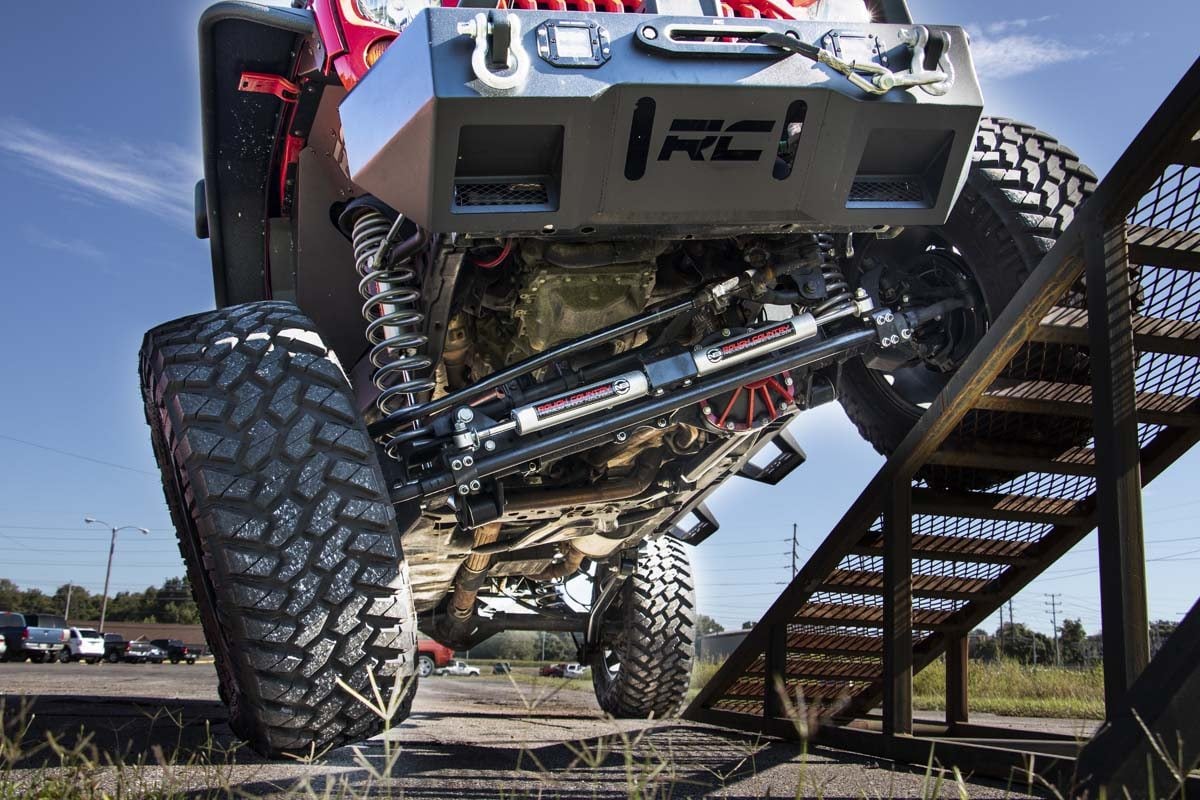

  • Includes our premium N3 shock absorbers.
  • Coil correction plates correct the rear coil spring angle by 10 degrees, allowing them to function more efficiently.
  • Gain unparalleled axle flex while keeping pinion angles optimized.
  • X-Flex control arm features:
    • durable OEM style rubber bushings.
    • Flex joints are fully rebuildable.
    • Flex joints feature a massive 2.5" diameter body and 1.25" thread.
    • Fully greasable.
Fitment Notes
  • Does NOT fit 2-door models.
  • An upgraded front and rear drive shaft is HIGHLY recommended.
Warranty Details

Est. Install Time 10-12 hours

Shock Configuration Options

N3 Shock Pair
Premium N3
included
  • 10-Stage Variable Valving

  • High Pressure Nitrogen Charged

  • 35mm Piston

  • Chromed Hardened 18mm Piston Rod

  • 54mm Shock Body to dissipate heat faster

  • 36kN Tensile Strength

  • Spring Loaded Piston Rod Seal

  • Military Spec. Fluid Rated To –40° C

  • Rubber bushings for better absorption

  • Metallic Silver Paint

  • 3-year Manufacturer's Warranty

Vertex Shock Pair
Vertex Reservoir
+$1,600.00
  • 8-Stage Adjustable Damping

  • Monotube Design

  • Nitrogen-Charged

  • Remote Reservoir with Steel Braided Reservoir Line

  • Massive 2.5in Piston

  • 22mm Chrome-Hardened Piston Rod

  • Specifically Tuned for Each Application

  • 3-Stage Seal System

  • Heat-Treated, Alloy Bearing

  • Honed Steel Body

  • CNC-Machined Billet Aluminum Accents

  • Zinc Plate Finish with Double Clear Coat

  • Incredible >400 Hour Salt Spray Rating

  • 3-year Manufacturer's Warranty

Customer Support Headshot
Need Help?
Talk to a Build Expert
1-800-222-7023

Installation


GET IT INSTALLED

Don’t want to install it yourself? Search for installers in your area.


FITMENT

Vehicles
year: 2016
make: Jeep
model: Wrangler Unlimited Sport S
drive: 4WD
year: 2016
make: Jeep
model: Wrangler Unlimited 75th Anniversary
drive: 4WD
year: 2011
make: Jeep
model: Wrangler Unlimited 70th Anniversary
drive: 4WD
year: 2010 - 2017
make: Jeep
model: Wrangler Unlimited Sport
drive: 4WD
year: 2010
make: Jeep
model: Wrangler Unlimited Sport
drive: RWD
year: 2007 - 2017
make: Jeep
model: Wrangler Unlimited Sahara
drive: 4WD
year: 2007 - 2017
make: Jeep
model: Wrangler Unlimited Rubicon
drive: 4WD
year: 2007 - 2010
make: Jeep
model: Wrangler Unlimited X
drive: 4WD
year: 2007 - 2010
make: Jeep
model: Wrangler Unlimited X
drive: RWD
year: 2007 - 2010
make: Jeep
model: Wrangler Unlimited Sahara
drive: RWD

Always read all product page details for more important fitment information

Wheels & Tires
Filters
size: 35x12.50R17
Popular
wheel: 17x9
Bolt Pattern: 5x5.0
Wheel Offset: +0
note: -
Stance: 1
size: 35x12.50R18
Popular
wheel: 18x9
Bolt Pattern: 5x5.0
Wheel Offset: +0
note: -
Stance: 1
size: 35x12.50R20
Popular
wheel: 20x9
Bolt Pattern: 5x5.0
Wheel Offset: -12
note: -
Stance: 1
size: 305/70R17
wheel: 17x8.5
Bolt Pattern: 5x5.0
Wheel Offset: +0
note: -
Stance: 1
size: 305/70R17
wheel: 17x8.5
Bolt Pattern: 5x5.0
Wheel Offset: +1
note: -
Stance: 1
size: 35x12.50R17
wheel: 17x8.5
Bolt Pattern: 5x5.0
Wheel Offset: +0
note: -
Stance: 1
size: 35x12.50R17
wheel: 17x8.5
Bolt Pattern: 5x5.0
Wheel Offset: +1
note: -
Stance: 1
size: 285/75R17
wheel: 17x9
Bolt Pattern: 5x5.0
Wheel Offset: +0
note: -
Stance: 1
size: 285/75R17
wheel: 17x9
Bolt Pattern: 5x5.0
Wheel Offset: +1
note: -
Stance: 1
size: 305/70R17
wheel: 17x9
Bolt Pattern: 5x5.0
Wheel Offset: +0
note: -
Stance: 1
size: 305/70R17
wheel: 17x9
Bolt Pattern: 5x5.0
Wheel Offset: +1
note: -
Stance: 1
size: 305/70R17
wheel: 17x9
Bolt Pattern: 5x5.0
Wheel Offset: -12
note: -
Stance: 1
size: 315/70R17
wheel: 17x9
Bolt Pattern: 5x5.0
Wheel Offset: +0
note: -
Stance: 1
size: 315/70R17
wheel: 17x9
Bolt Pattern: 5x5.0
Wheel Offset: +1
note: -
Stance: 1
size: 35x12.50R17
wheel: 17x9
Bolt Pattern: 5x5.0
Wheel Offset: +1
note: -
Stance: 1
size: 35x12.50R17
wheel: 17x9
Bolt Pattern: 5x5.0
Wheel Offset: -12
note: -
Stance: 1
size: 295/70R18
wheel: 18x10
Bolt Pattern: 5x5.0
Wheel Offset: -18
note: -
Stance: 1
size: 295/70R18
wheel: 18x10
Bolt Pattern: 5x5.0
Wheel Offset: -19
note: -
Stance: 2
size: 295/70R18
wheel: 18x10
Bolt Pattern: 5x5.0
Wheel Offset: -25
note: -
Stance: 2
size: 35x12.50R18
wheel: 18x10
Bolt Pattern: 5x5.0
Wheel Offset: -18
note: -
Stance: 2
size: 35x12.50R18
wheel: 18x10
Bolt Pattern: 5x5.0
Wheel Offset: -19
note: -
Stance: 2
size: 35x12.50R18
wheel: 18x10
Bolt Pattern: 5x5.0
Wheel Offset: -25
note: -
Stance: 2
size: 285/75R18
wheel: 18x8.5
Bolt Pattern: 5x5.0
Wheel Offset: +0
note: -
Stance: 1
size: 285/75R18
wheel: 18x8.5
Bolt Pattern: 5x5.0
Wheel Offset: +1
note: -
Stance: 1
size: 295/70R18
wheel: 18x8.5
Bolt Pattern: 5x5.0
Wheel Offset: +0
note: -
Stance: 1
size: 295/70R18
wheel: 18x8.5
Bolt Pattern: 5x5.0
Wheel Offset: +1
note: -
Stance: 1
size: 35x12.50R18
wheel: 18x8.5
Bolt Pattern: 5x5.0
Wheel Offset: +0
note: -
Stance: 1
size: 35x12.50R18
wheel: 18x8.5
Bolt Pattern: 5x5.0
Wheel Offset: +1
note: -
Stance: 1
size: 285/75R18
wheel: 18x9
Bolt Pattern: 5x5.0
Wheel Offset: -12
note: -
Stance: 1
size: 295/70R18
wheel: 18x9
Bolt Pattern: 5x5.0
Wheel Offset: +0
note: -
Stance: 1
size: 295/70R18
wheel: 18x9
Bolt Pattern: 5x5.0
Wheel Offset: +1
note: -
Stance: 1
size: 295/70R18
wheel: 18x9
Bolt Pattern: 5x5.0
Wheel Offset: -12
note: -
Stance: 1
size: 35x12.50R18
wheel: 18x9
Bolt Pattern: 5x5.0
Wheel Offset: +1
note: -
Stance: 1
size: 35x12.50R18
wheel: 18x9
Bolt Pattern: 5x5.0
Wheel Offset: -12
note: -
Stance: 1
size: 295/60R20
wheel: 20x10
Bolt Pattern: 5x5.0
Wheel Offset: -18
note: Minor Trimming
Stance: 1
size: 295/60R20
wheel: 20x10
Bolt Pattern: 5x5.0
Wheel Offset: -19
note: Minor Trimming
Stance: 2
size: 295/60R20
wheel: 20x10
Bolt Pattern: 5x5.0
Wheel Offset: -25
note: -
Stance: 2
size: 295/65R20
wheel: 20x10
Bolt Pattern: 5x5.0
Wheel Offset: -25
note: -
Stance: 2
size: 35x11.50R20
wheel: 20x10
Bolt Pattern: 5x5.0
Wheel Offset: -25
note: -
Stance: 2
size: 35x12.50R20
wheel: 20x10
Bolt Pattern: 5x5.0
Wheel Offset: -18
note: Minor Trimming
Stance: 2
size: 35x12.50R20
wheel: 20x10
Bolt Pattern: 5x5.0
Wheel Offset: -19
note: Minor Trimming
Stance: 2
size: 35x12.50R20
wheel: 20x10
Bolt Pattern: 5x5.0
Wheel Offset: -25
note: Minor Trimming
Stance: 2
size: 295/60R20
wheel: 20x9
Bolt Pattern: 5x5.0
Wheel Offset: +0
note: -
Stance: 1
size: 295/60R20
wheel: 20x9
Bolt Pattern: 5x5.0
Wheel Offset: +1
note: -
Stance: 1
size: 295/60R20
wheel: 20x9
Bolt Pattern: 5x5.0
Wheel Offset: -12
note: -
Stance: 1
size: 35x12.50R20
wheel: 20x9
Bolt Pattern: 5x5.0
Wheel Offset: +0
note: -
Stance: 1
size: 35x12.50R20
wheel: 20x9
Bolt Pattern: 5x5.0
Wheel Offset: +1
note: -
Stance: 1
size: 35x12.50R22
wheel: 22x10
Bolt Pattern: 5x5.0
Wheel Offset: -18
note: Minor Trimming
Stance: 2
size: 35x12.50R22
wheel: 22x10
Bolt Pattern: 5x5.0
Wheel Offset: -19
note: Minor Trimming
Stance: 2
size: 35x12.50R22
wheel: 22x10
Bolt Pattern: 5x5.0
Wheel Offset: -25
note: Minor Trimming
Stance: 2
size: 35x12.50R22
wheel: 22x12
Bolt Pattern: 5x5.0
Wheel Offset: -44
note: Trimming Required
Stance: 2

Due to differences in manufacturing, dimension and inflated measurements, tire & wheel combinations should be test fit prior to installation
