4 Inch Lift Kit Jeep Wrangler YJ 4WD (1987-1995)
Overview
Looking for uncompromised performance on and off-road? The 4" N3-Series Kit for Jeep YJ was engineered by Rough Country's Research and Development Team to give the perfect blend of off-road performance and smooth highway ride. A set of application tuned, lifted leaf springs are included in this kit along with a power steering pitman arm and brake line relocation bracket. The 4" N3-Series kit also includes a tubular transfer case drop kit to maintain proper driveshaft angles as well as track bar drop brackets, bumpstops, and a full set of sway bar links. Most notably this kit is outfitted with the all-new N3 Shock Absorbers, nitrogen charged and specifically tested and tuned for YJ applications. This allows for a super smooth highway ride and outstanding control in rugged off road situations from the same shock.
Features
- Easy bolt-on installation
- Increased ground clearance
- Levels the front with the rear of the vehicle
- Leaf springs are double tapered with teflon pad inserts for a softer ride quality.
- Transfer case drop maintains proper driveshaft angles to avoid vibration.
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
Notes - Important
- Must know if the vehicle has manual or power steering.
Specs
Est. Install Time | 6-8 hours |
---|

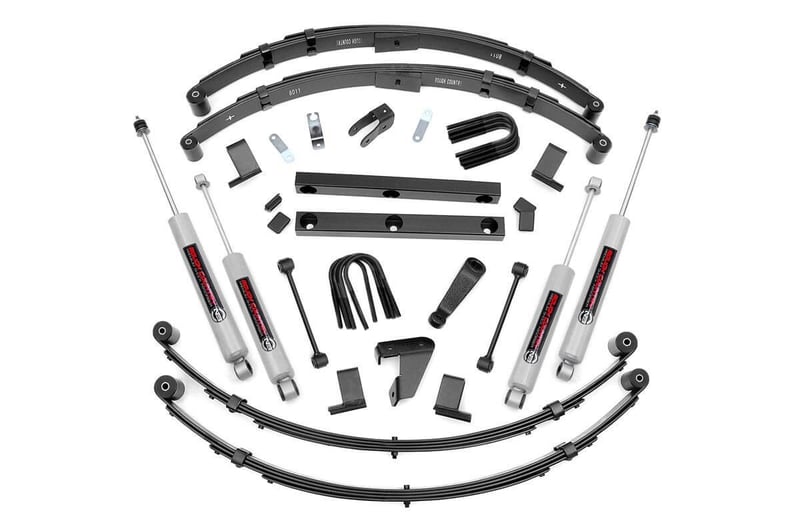

In the Box
Front
- Lifted leaf springs
- Transfer case drop kit
- Power steering pitman arm
- Option: Manual steering pitman arm [+$45]
- Extended sway-bar links
- Track bar drop bracket
- Brake line brackets
- Bumpstops
- U-bolts
- Hardware
Rear
- Lifted leaf springs
- Track bar drop bracket
- Brake line brackets
- Bumpstops
- U-bolts
- Hardware
Shocks
- (4) Premium N3 Series
Instructions
- Est. Install Time: 6-8 hours
- View Instruction Sheet
Vehicle Fitment
Years | Drive | Make | Model |
---|---|---|---|
1987-1995 | 4WD | Jeep | Wrangler YJ |
ALWAYS read all product page details for more important fitment information
Recommended Tires & Wheels
Tire | Wheel | Bolt Pattern | Offset | Note |
---|---|---|---|---|
33x12.50R15 | 15x8 | 5x4.5 | -19 | - |
33x12.50R15 | 15x8 | 5x4.5 | -18 | - |
33x12.50R15 | 15x8 | 5x4.5 | -16 | - |
33x12.50R15 | 15x8 | 5x4.5 | -12 | - |
33x12.50R15 | 15x8 | 5x4.5 | -6 | - |
305/70R16 | 16x8 | 5x4.5 | +0 | - |
305/70R16 | 16x8 | 5x4.5 | +1 | - |
305/70R16 | 16x8 | 5x4.5 | +6 | - |
33x12.50R16 | 16x9 | 5x4.5 | +0 | - |
33x12.50R16 | 16x9 | 5x4.5 | +1 | - |
33x12.50R16 | 16x9 | 5x4.5 | +6 | - |
285/70R17 | 17x8.5 | 5x4.5 | -12 | - |
285/70R17 | 17x8.5 | 5x4.5 | +0 | - |
33x12.50R17 | 17x8.5 | 5x4.5 | +0 | - |
33x12.50R17 | 17x8.5 | 5x4.5 | +1 | - |
33x12.50R17 | 17x9 | 5x4.5 | -12 | - |
285/70R17 | 17x9 | 5x4.5 | -12 | - |
33x12.50R17 | 17x9 | 5x4.5 | +0 | - |
33x12.50R17 | 17x9 | 5x4.5 | +1 | - |
285/70R17 | 17x9 | 5x4.5 | +1 | - |
33x12.50R17 | 17x9 | 5x4.5 | +6 | - |
33x12.50R20 | 20x9 | 5x4.5 | -12 | - |
305/55R20 | 20x9 | 5x4.5 | -12 | - |
285/55R20 | 20x9 | 5x4.5 | -12 | - |
33x12.50R20 | 20x10 | 5x4.5 | -19 | - |
305/55R20 | 20x10 | 5x4.5 | -19 | - |
285/55R20 | 20x10 | 5x4.5 | -19 | - |
33x12.50R20 | 20x10 | 5x4.5 | -18 | - |
305/55R20 | 20x10 | 5x4.5 | -18 | - |
285/55R20 | 20x10 | 5x4.5 | -18 | - |
Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation
