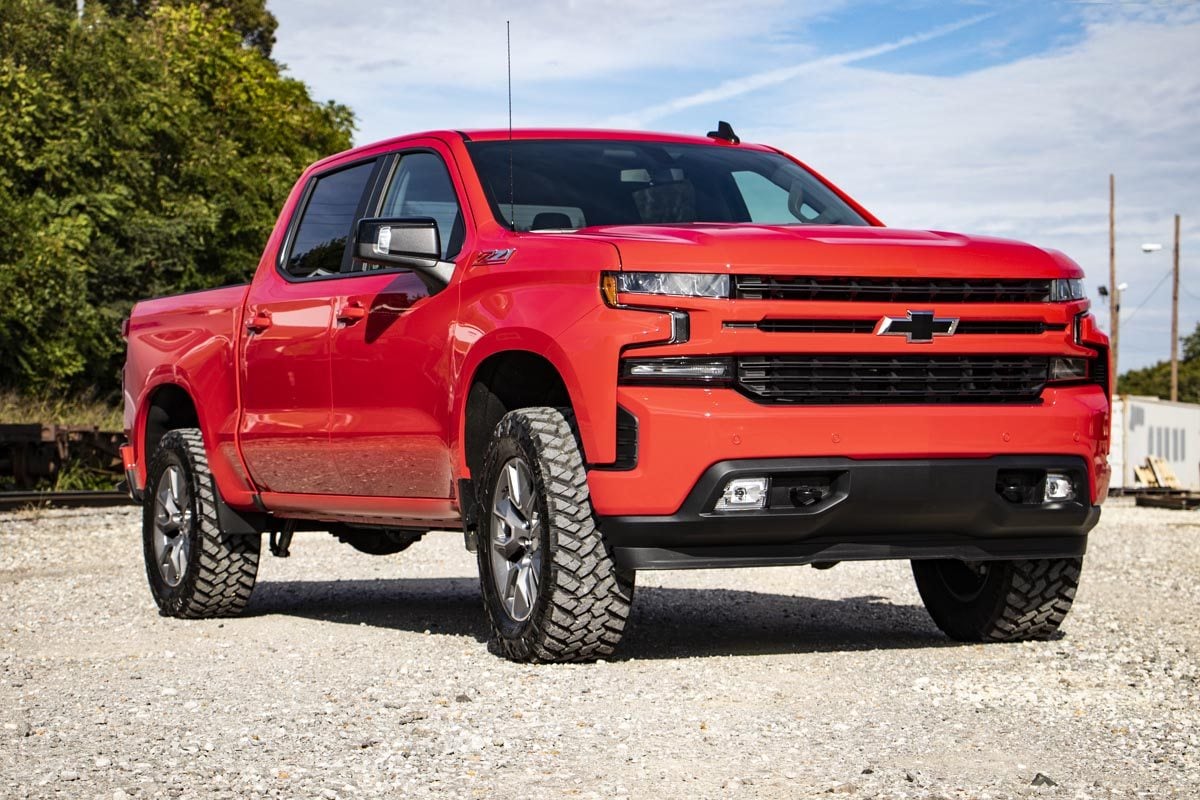

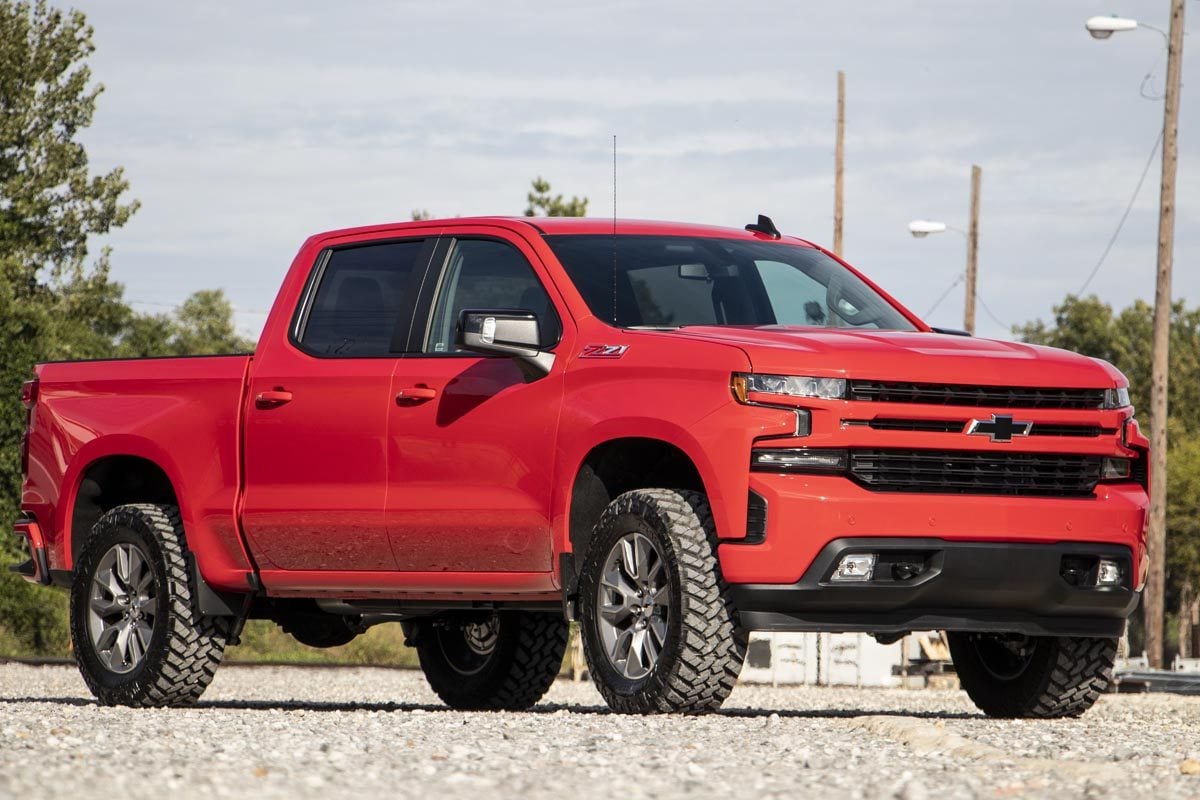

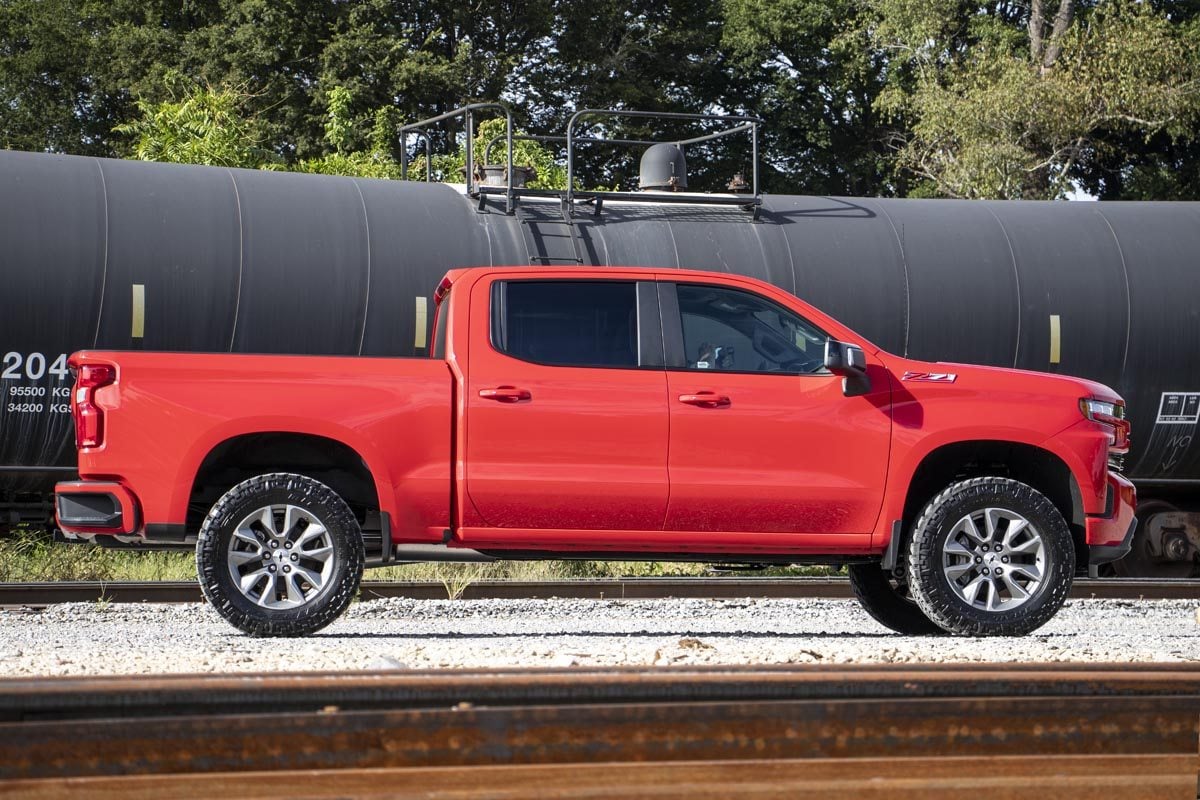

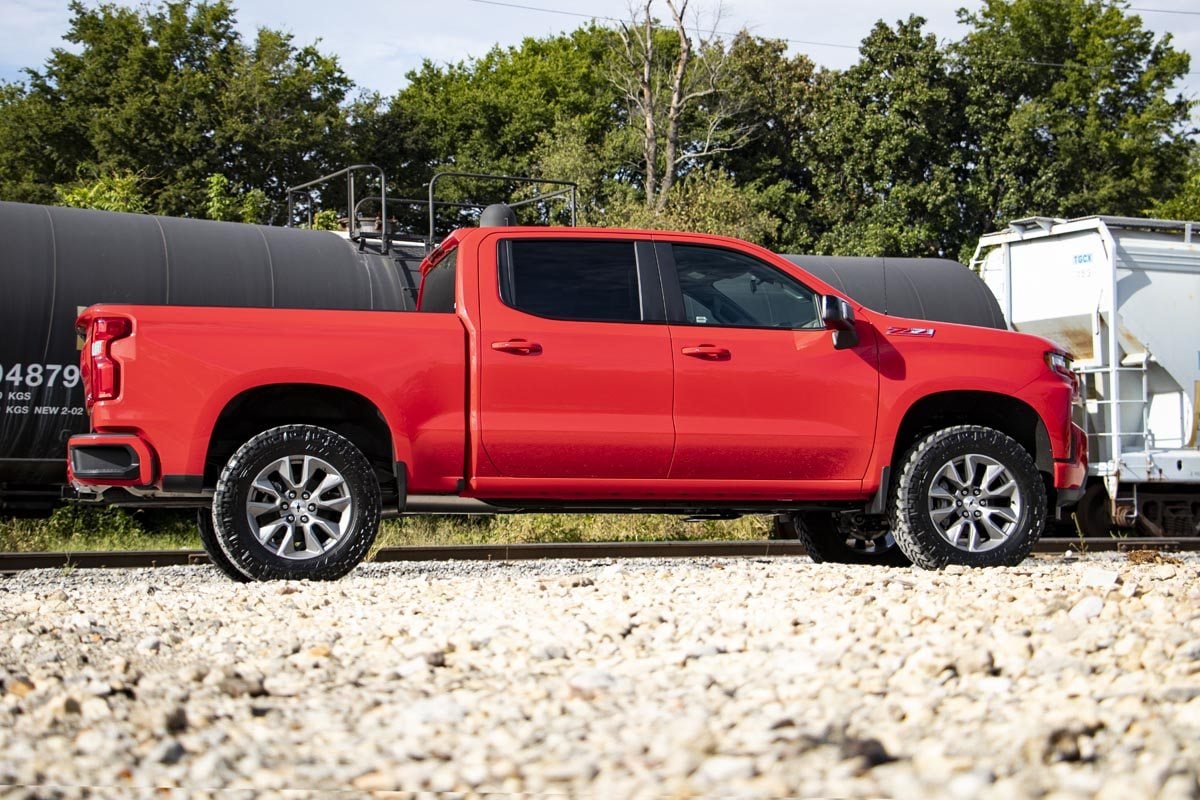

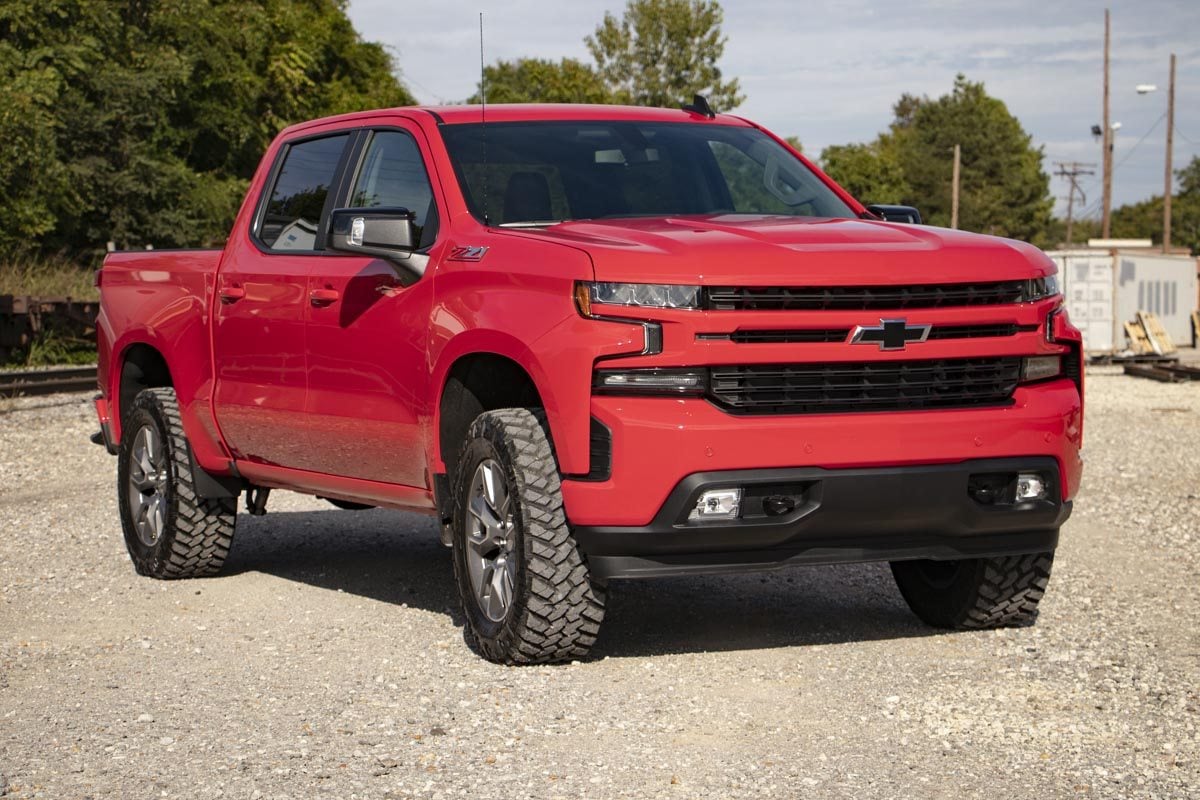

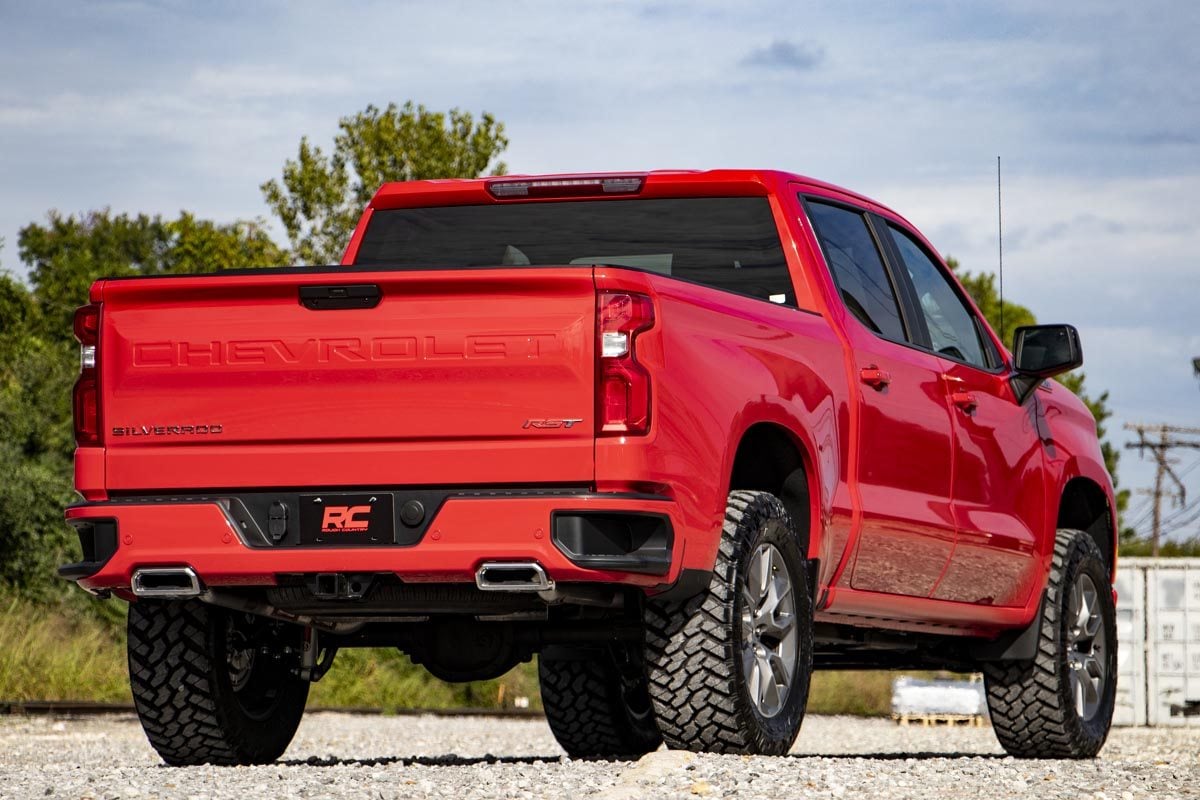

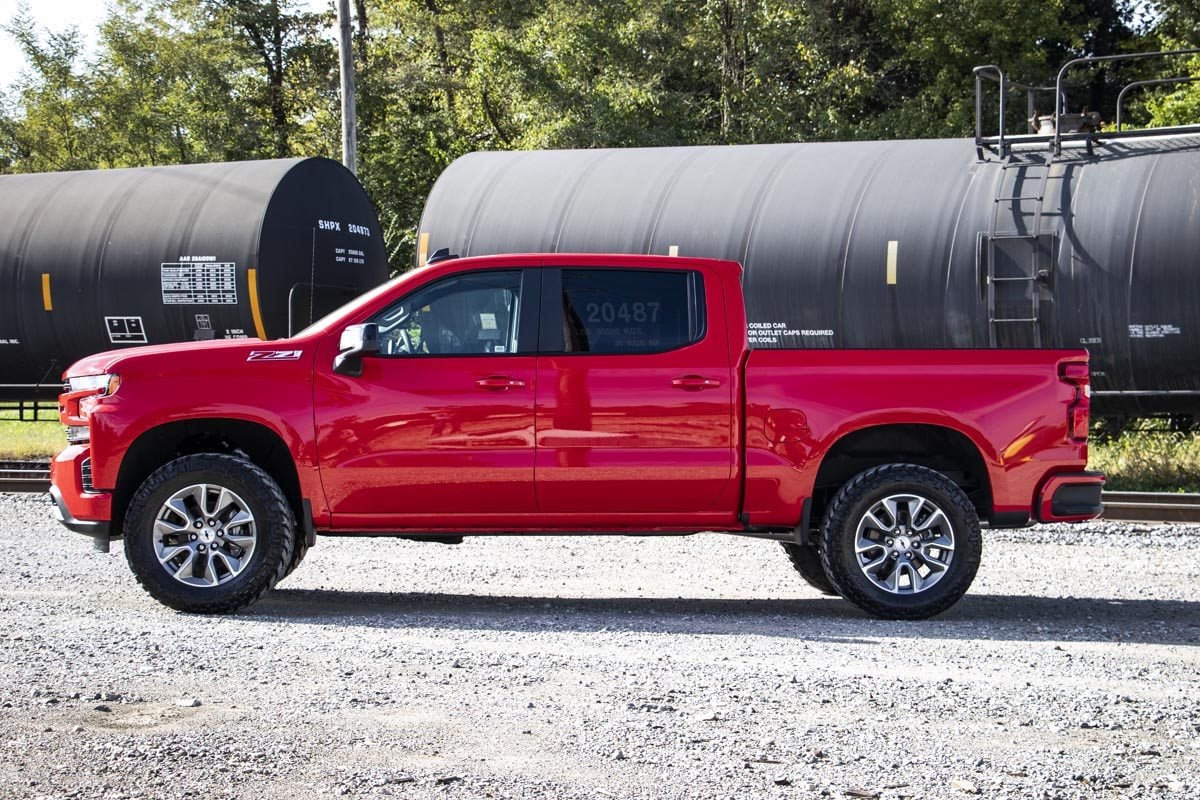

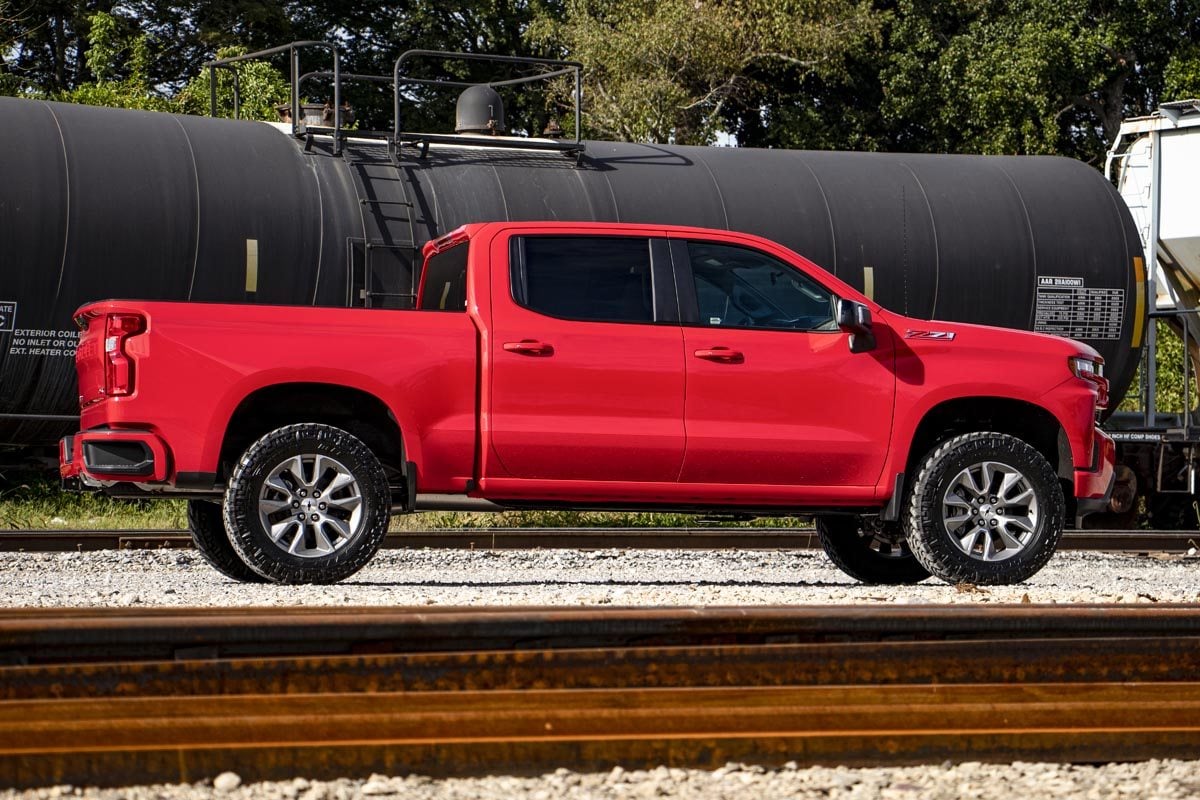

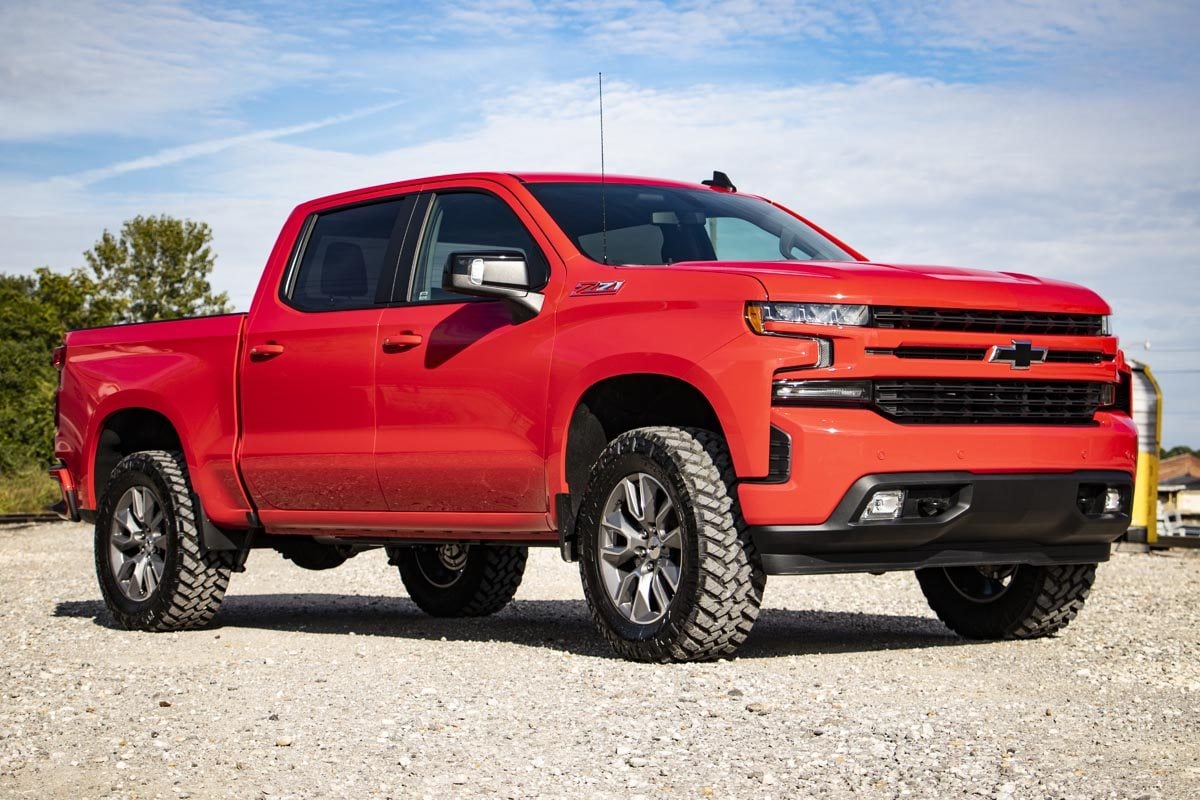

3.5 Inch Lift Kit Chevy Silverado 1500 2WD/4WD (2019-2023)
Features
GM’s 2019 silverado and sierra features an impressive all-new design that’s built from the ground up, with aggressive angles and head-turning stylings. Put the finishing touch on your truck with Rough Country’s 3.5in Upper Control Arm Suspension Lift! This perfect-height lift is a great choice for anyone who wants more than a simple level but doesn’t quite want the full height of a 6-inch option.
- Lifts and levels front of the vehicle with rear
- Front Lift: 3.5in | Rear Lift: 2.5in
- Increased ground clearance.

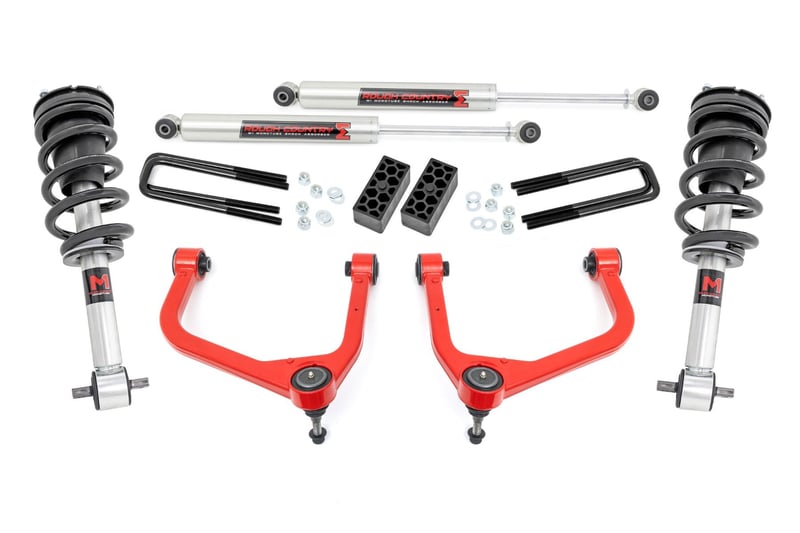

- Includes forged aluminum control arms
- Control arms include POM ball joints for greater range of motion and easier installation
- Ball joints are pre-installed to ease installation.
- Fabricated lift blocks are stronger and offer a longer lifespan than cast blocks.
- Includes pre-loaded coil
- Maintains smooth, factory-like ride
- Increased ground clearance
- Engineered for lifted applications
- Infinitely Variable Damping
- Leak-proof piston seal
- Massive 1 3/8in Bore
- Silver powder coat finish
- 3-year Manufacturer's Warranty
- Monotube design
- Internal floating piston
- Nitrogen-charged
- 46mm high-flow piston
- Fast heat dissipation
- 36kN Tensile Strength
- Mounts inverted
- T6061 brushed aluminum body
- 3-year Manufacturer's Warranty
- 8-Stage Adjustable Damping
- Monotube Design
- Nitrogen-charged
- Massive 2.5in Piston
- 22mm Chrome-Hardened Piston Rod
- 3-Stage Seal System
- Heat-Treated, Alloy Bearing
- Honed Steel Body
- 3-year Manufacturer's Warranty
Optional N3 Loaded Struts
Optional V2 Monotube Shocks
Optional Vertex
Fitment Notes
- Does NOT fit 2019 "Classic" models. (2018 body style)
- Does NOT fit Chevy Trailboss models.
- Does NOT fit GMC AT4.
- Does NOT fit models with Adaptive Ride Control.
- Strut replacement options will NOT work on diesel models.
Installation
GET IT INSTALLED
Don’t want to install it yourself? Search for installers in your area.
FITMENT
Vehicles
Year : 2019 - 2024
Make : Chevy
Model : Silverado 1500
Drive : 4WD
Year : 2019 - 2024
Make : Chevy
Model : Silverado 1500
Drive : RWD
Always read all product page details for more important fitment information
Tires
Size: 285/45R22
Wheel: Factory 22
Bolt: 6x5.5
Offset: -
Note: -
Size: 285/55R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -18
Note: -
Size: 285/55R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -19
Note: -
Size: 285/55R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -24
Note: -
Size: 285/55R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -25
Note: -
Size: 285/55R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +0
Note: -
Size: 285/55R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +1
Note: -
Size: 285/55R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +18
Note: -
Size: 285/55R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +20
Note: -
Size: 285/55R20
Wheel: 20x9
Bolt: 6x5.5
Offset: -12
Note: -
Size: 285/60R20
Wheel: Factory 20
Bolt: 6x5.5
Offset: -
Note: -
Size: 285/65R18
Wheel: 18x9
Bolt: 6x5.5
Offset: +0
Note: Minor Trimming
Size: 285/65R18
Wheel: 18x9
Bolt: 6x5.5
Offset: +1
Note: Minor Trimming
Size: 285/65R18
Wheel: 18x9
Bolt: 6x5.5
Offset: -12
Note: -
Size: 295/55R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +0
Note: -
Size: 295/55R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +1
Note: -
Size: 295/55R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +18
Note: -
Size: 295/55R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +20
Note: -
Size: 295/55R20
Wheel: 20x9
Bolt: 6x5.5
Offset: -12
Note: -
Size: 295/55R20
Wheel: Factory 20
Bolt: 6x5.5
Offset: -
Note: 0.25 Spacer
Size: 305/55R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -18
Note: Trimming Required
Size: 305/55R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -19
Note: Trimming Required
Size: 305/55R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -24
Note: Trimming Required
Size: 305/55R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -25
Note: Trimming Required
Size: 305/55R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +0
Note: -
Size: 305/55R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +1
Note: -
Size: 305/55R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +18
Note: -
Size: 305/55R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +20
Note: -
Size: 305/55R20
Wheel: 20x9
Bolt: 6x5.5
Offset: -12
Note: Minor Trimming
Size: 33x12.50R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -18
Note: Trimming Required
Size: 33x12.50R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -19
Note: Trimming Required
Size: 33x12.50R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -24
Note: Trimming Required
Size: 33x12.50R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -25
Note: Trimming Required
Size: 33x12.50R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +0
Note: -
Size: 33x12.50R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +1
Note: -
Size: 33x12.50R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +18
Note: -
Size: 33x12.50R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +20
Note: -
Size: 33x12.50R20
Wheel: 20x9
Bolt: 6x5.5
Offset: -12
Note: Trimming Required
Size: 33x12.50R22
Wheel: 22x10
Bolt: 6x5.5
Offset: -18
Note: Trimming Required
Size: 33x12.50R22
Wheel: 22x10
Bolt: 6x5.5
Offset: -19
Note: Trimming Required
Size: 33x12.50R22
Wheel: 22x10
Bolt: 6x5.5
Offset: -24
Note: Trimming Required
Size: 33x12.50R22
Wheel: 22x10
Bolt: 6x5.5
Offset: -25
Note: Trimming Required
Due to differences in manufacturing, dimension and inflated measurements, tire & wheel combinations should be test fit prior to installation
About this Product
3.5 Inch Lift Kit | Chevy Silverado 1500 2WD/4WD (2019-2023)
