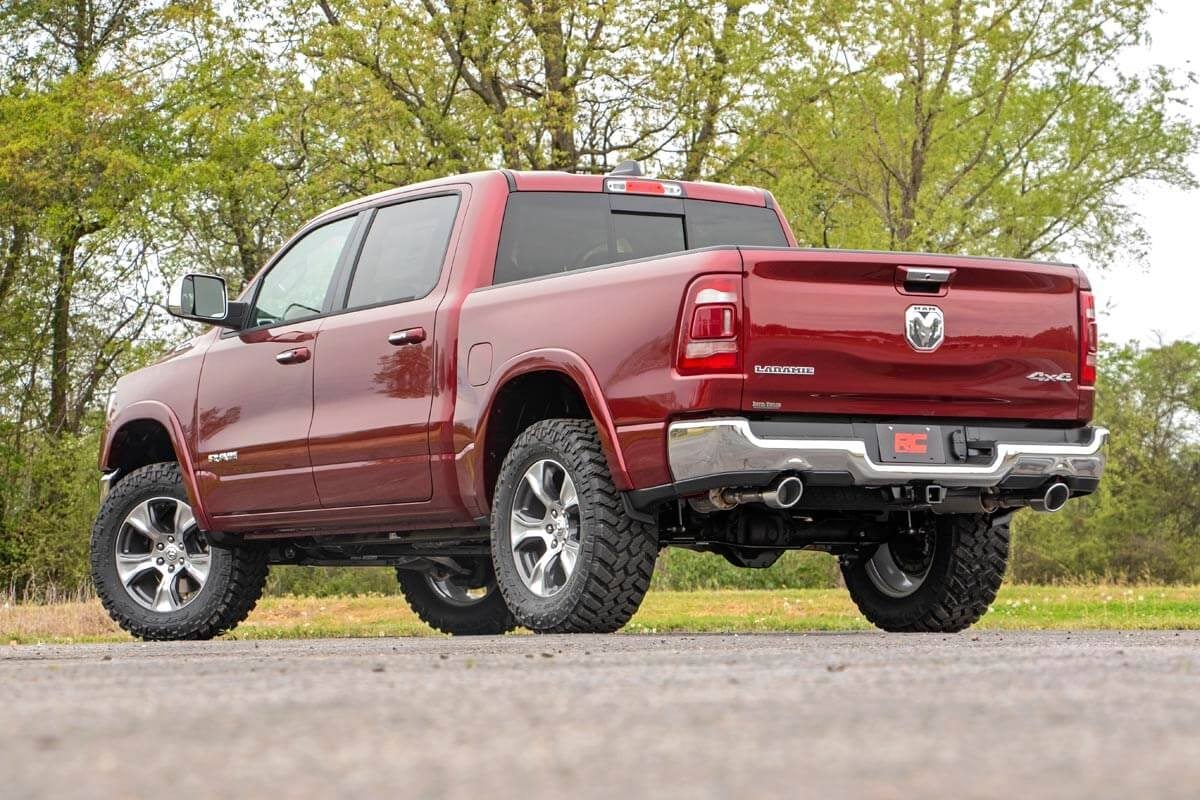

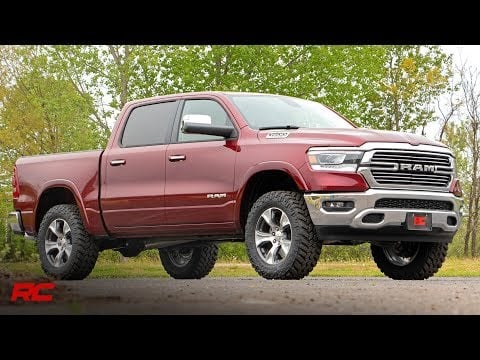

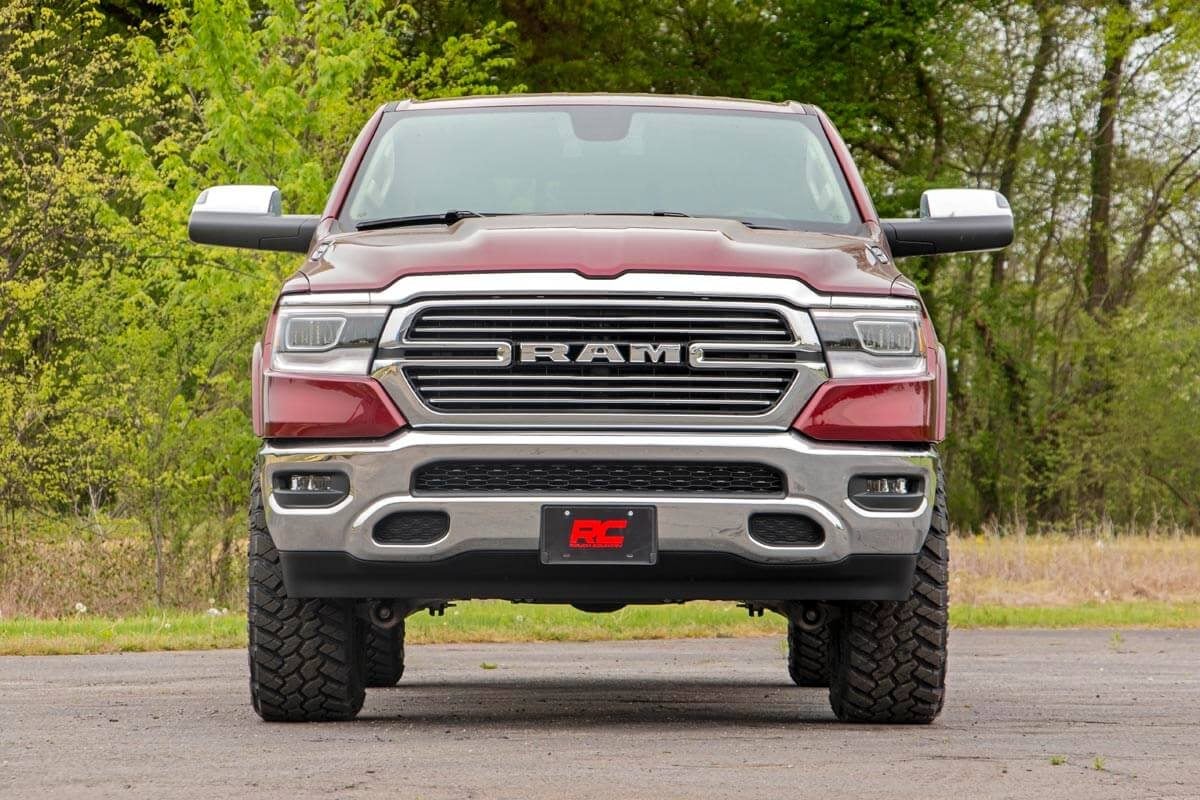

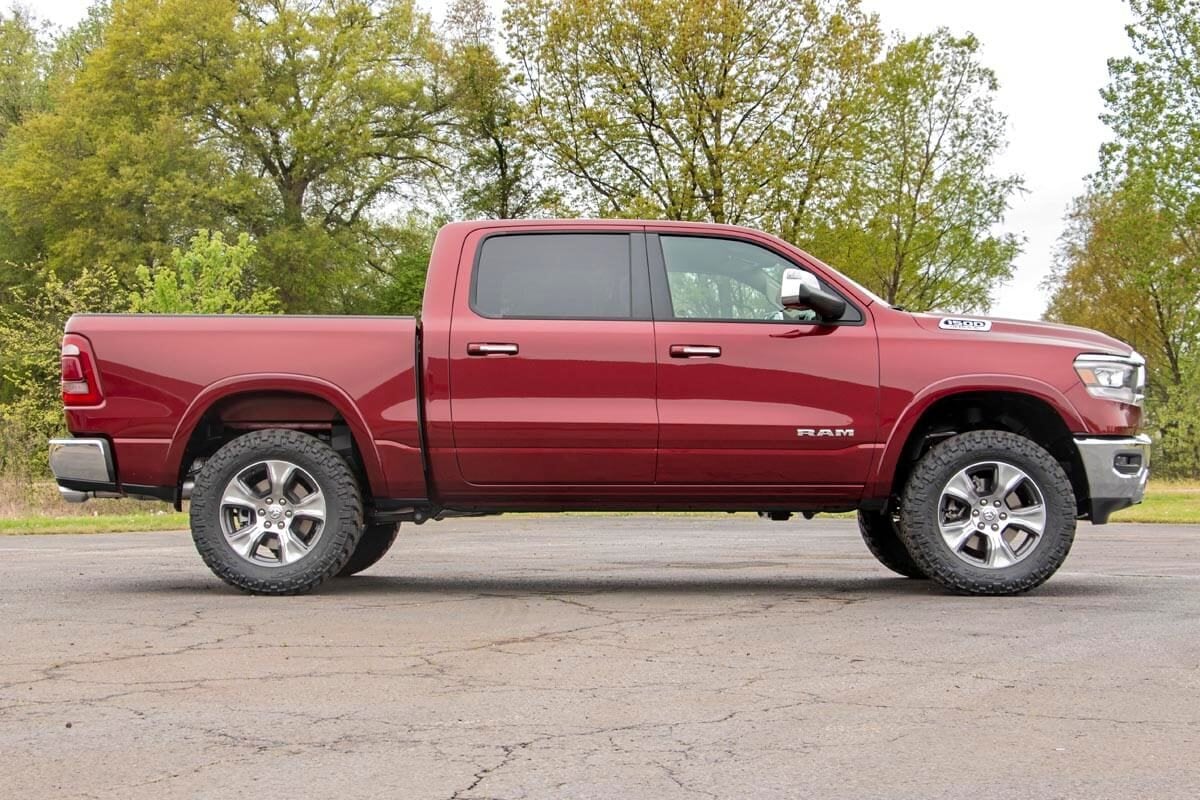

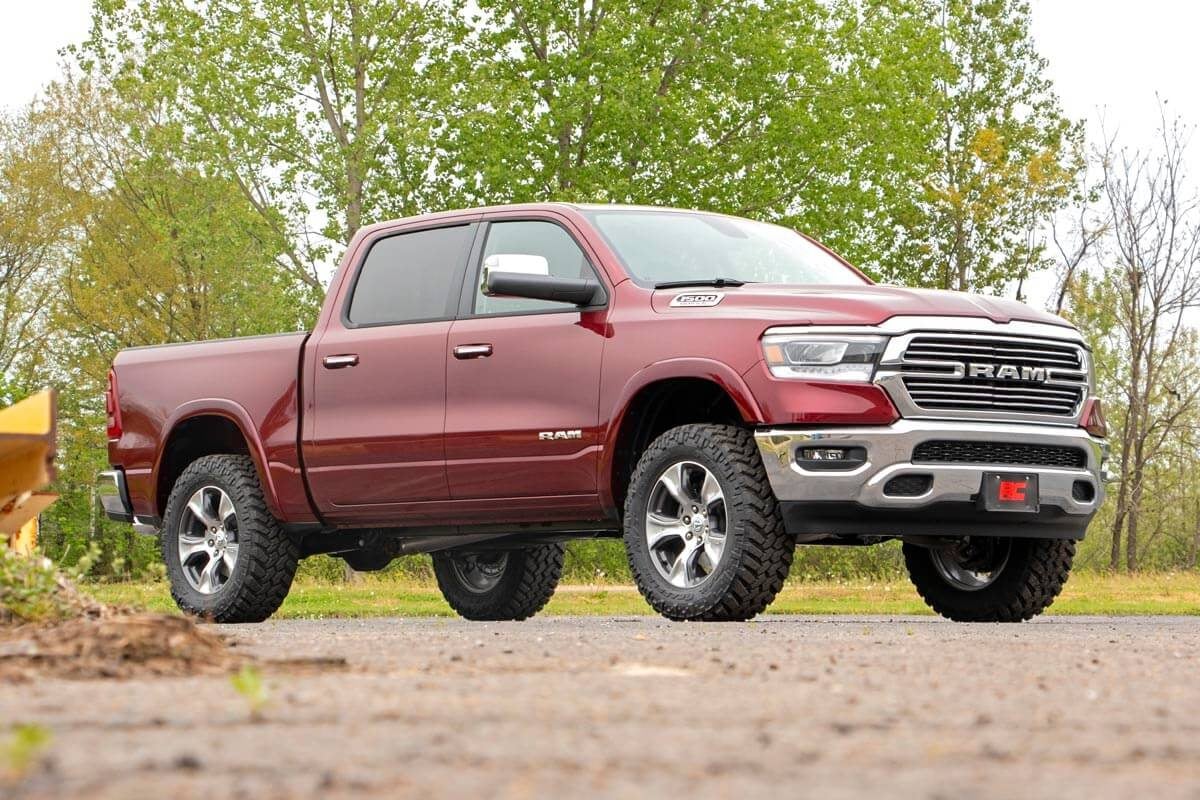

3.5 Inch Lift Kit Ram 1500 2WD/4WD (2019-2024)

Be the first to review.20 Q&A
STARTING PRICE
$599.95
STARTING PRICE
$599.95
Configure Your Kit:
Select options

SKU:

31430-config

Brand:

Rough Country

Lowest Price Guarantee
Select Matching Wheels and Tires
Select Matching Wheels and Tires
FREE Mount, Balance, and Shipping!

Features

Rough Country's 3.5in Bolt-on kit offers easy installation and aggressive good looks at an incredible value. Take your truck to new heights with this excellent option for RAM 1500 pickups
  • Easy Bolt-On installation
  • No Cutting or Drilling required!
  • Includes New forged aluminum upper control arms
  • Control arms include POM ball joints for greater range of motion and easier installation
  • Ball joints are pre-installed to ease installation
  • Increased ground clearance
  • Levels the front and rear of the truck
  • Can be returned to stock
  • Fits Rebel Models

    • Optional N3 Loaded Struts

  • Includes pre-loaded coil
  • Maintains smooth

Fitment Notes
  • Replacement N3 Struts do NOT fit V6 models.
  • Does NOT fit "TRX" models.
  • Does NOT fit models equipped with the off-road package.
  • Does NOT fit models with factory air ride suspension.
Warranty Details
Est. Install Time 5-6 hours

Shock Configuration Options

N3 Shock Pair
Premium N3
included

  • 10-Stage Variable Valving

  • High Pressure Nitrogen Charged

  • 35mm Piston

  • Chromed Hardened 18mm Piston Rod

  • 54mm Shock Body to dissipate heat faster

  • 36kN Tensile Strength

  • Spring Loaded Piston Rod Seal

  • Military Spec. Fluid Rated To –40° C

  • Rubber bushings for better absorption

  • Metallic Silver Paint

  • 3-year Manufacturer's Warranty

M1 Shock Pair
M1 Monotube
+$550.00

  • 2-inch seamless extruded tube.

  • 46mm digressive piston.

  • Self-adjusting, deflective-disc independent rebound and compression.

  • 18mm centerless-ground, case-hardened, chromed, and super-polished rod.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions.

  • Digressive valving instantly reacts to changing surface conditions.

  • Zinc plated for resistance against harsh elements.

  • Available in various lift heights for multiple applications.

  • Durable vulcanized natural rubber bushings.

  • 3-year Manufacturer's Warranty

V2 Shock Pair
V2 Monotube
included

  • Incredible ride quality & performance

  • Monotube design

  • Internal floating piston

  • Nitrogen-charged

  • 46mm high-flow piston

  • Fast heat dissipation

  • 36kN Tensile Strength

  • Mounts inverted

  • T6061 brushed aluminum body

  • 3-year Manufacturer's Warranty

Customer Support Headshot
Need Help?
Talk to a Build Expert
1-800-222-7023

Installation

GET IT INSTALLED

Don’t want to install it yourself? Search for installers in your area.

FITMENT

Vehicles

Year : 2019 - 2024

Make : Ram

Model : 1500

Drive : RWD

Year : 2019 - 2024

Make : Ram

Model : 1500

Drive : 4WD

Always read all product page details for more important fitment information

Tires

Size: 33x12.50R18

Wheel: 18x10

Bolt Pattern: 6x5.5

Wheel Offset: +0

Note: -

Stance: -

Size: 33x12.50R18

Wheel: 18x10

Bolt Pattern: 6x5.5

Wheel Offset: +1

Note: -

Stance: -

Size: 33x12.50R18

Wheel: 18x8.5

Bolt Pattern: 6x5.5

Wheel Offset: +0

Note: -

Stance: -

Size: 33x12.50R18

Wheel: 18x8.5

Bolt Pattern: 6x5.5

Wheel Offset: +1

Note: -

Stance: -

Size: 285/65R18

Wheel: 18x9

Bolt Pattern: 6x5.5

Wheel Offset: +0

Note: -

Stance: -

Size: 285/65R18

Wheel: 18x9

Bolt Pattern: 6x5.5

Wheel Offset: +1

Note: -

Stance: -

Size: 285/65R18

Wheel: 18x9

Bolt Pattern: 6x5.5

Wheel Offset: +18

Note: -

Stance: -

Size: 285/65R18

Wheel: 18x9

Bolt Pattern: 6x5.5

Wheel Offset: +19

Note: -

Stance: -

Size: 285/65R18

Wheel: 18x9

Bolt Pattern: 6x5.5

Wheel Offset: +20

Note: -

Stance: -

Size: 285/65R18

Wheel: 18x9

Bolt Pattern: 6x5.5

Wheel Offset: -12

Note: -

Stance: -

Size: 33x12.50R18

Wheel: 18x9

Bolt Pattern: 6x5.5

Wheel Offset: +0

Note: -

Stance: -

Size: 33x12.50R18

Wheel: 18x9

Bolt Pattern: 6x5.5

Wheel Offset: +1

Note: -

Stance: -

Size: 33x12.50R18

Wheel: 18x9

Bolt Pattern: 6x5.5

Wheel Offset: +18

Note: -

Stance: -

Size: 33x12.50R18

Wheel: 18x9

Bolt Pattern: 6x5.5

Wheel Offset: +20

Note: -

Stance: -

Size: 33x12.50R18

Wheel: 18x9

Bolt Pattern: 6x5.5

Wheel Offset: -12

Note: -

Stance: -

Size: 285/55R20

Wheel: 20x10

Bolt Pattern: 6x5.5

Wheel Offset: -18

Note: -

Stance: -

Size: 285/55R20

Wheel: 20x10

Bolt Pattern: 6x5.5

Wheel Offset: -19

Note: -

Stance: -

Size: 285/55R20

Wheel: 20x10

Bolt Pattern: 6x5.5

Wheel Offset: -24

Note: -

Stance: -

Size: 285/55R20

Wheel: 20x10

Bolt Pattern: 6x5.5

Wheel Offset: -25

Note: -

Stance: -

Size: 295/60R20

Wheel: 20x10

Bolt Pattern: 6x5.5

Wheel Offset: -18

Note: Trimming Required

Stance: -

Size: 295/60R20

Wheel: 20x10

Bolt Pattern: 6x5.5

Wheel Offset: -19

Note: Trimming Required

Stance: -

Size: 295/60R20

Wheel: 20x10

Bolt Pattern: 6x5.5

Wheel Offset: -24

Note: Trimming Required

Stance: -

Size: 295/60R20

Wheel: 20x10

Bolt Pattern: 6x5.5

Wheel Offset: -25

Note: Trimming Required

Stance: -

Size: 305/55R20

Wheel: 20x10

Bolt Pattern: 6x5.5

Wheel Offset: -18

Note: Minor Trimming

Stance: -

Size: 305/55R20

Wheel: 20x10

Bolt Pattern: 6x5.5

Wheel Offset: -19

Note: Minor Trimming

Stance: -

Size: 305/55R20

Wheel: 20x10

Bolt Pattern: 6x5.5

Wheel Offset: -24

Note: Minor Trimming

Stance: -

Size: 305/55R20

Wheel: 20x10

Bolt Pattern: 6x5.5

Wheel Offset: -25

Note: Minor Trimming

Stance: -

Size: 33x12.50R20

Wheel: 20x10

Bolt Pattern: 6x5.5

Wheel Offset: +0

Note: -

Stance: -

Size: 33x12.50R20

Wheel: 20x10

Bolt Pattern: 6x5.5

Wheel Offset: +1

Note: -

Stance: -

Size: 33x12.50R20

Wheel: 20x10

Bolt Pattern: 6x5.5

Wheel Offset: -18

Note: Minor Trimming

Stance: -

Size: 33x12.50R20

Wheel: 20x10

Bolt Pattern: 6x5.5

Wheel Offset: -19

Note: Minor Trimming

Stance: -

Size: 33x12.50R20

Wheel: 20x10

Bolt Pattern: 6x5.5

Wheel Offset: -24

Note: Minor Trimming

Stance: -

Size: 33x12.50R20

Wheel: 20x10

Bolt Pattern: 6x5.5

Wheel Offset: -25

Note: Minor Trimming

Stance: -

Size: 305/55R20

Wheel: 20x12

Bolt Pattern: 6x5.5

Wheel Offset: -44

Note: Trimming Required

Stance: -

Size: 33x12.50R20

Wheel: 20x12

Bolt Pattern: 6x5.5

Wheel Offset: -44

Note: Trimming Required

Stance: -

Size: 285/55R20

Wheel: 20x9

Bolt Pattern: 6x5.5

Wheel Offset: +0

Note: -

Stance: -

Size: 285/55R20

Wheel: 20x9

Bolt Pattern: 6x5.5

Wheel Offset: +1

Note: -

Stance: -

Size: 285/55R20

Wheel: 20x9

Bolt Pattern: 6x5.5

Wheel Offset: +18

Note: -

Stance: -

Size: 285/55R20

Wheel: 20x9

Bolt Pattern: 6x5.5

Wheel Offset: +20

Note: -

Stance: -

Size: 285/55R20

Wheel: 20x9

Bolt Pattern: 6x5.5

Wheel Offset: -12

Note: -

Stance: -

Size: 295/60R20

Wheel: 20x9

Bolt Pattern: 6x5.5

Wheel Offset: +0

Note: Minor Trimming

Stance: -

Size: 295/60R20

Wheel: 20x9

Bolt Pattern: 6x5.5

Wheel Offset: +1

Note: Minor Trimming

Stance: -

Size: 295/60R20

Wheel: 20x9

Bolt Pattern: 6x5.5

Wheel Offset: +18

Note: Minor Trimming

Stance: -

Size: 295/60R20

Wheel: 20x9

Bolt Pattern: 6x5.5

Wheel Offset: +20

Note: Minor Trimming

Stance: -

Size: 295/60R20

Wheel: 20x9

Bolt Pattern: 6x5.5

Wheel Offset: -12

Note: Trimming Required

Stance: -

Size: 305/55R20

Wheel: 20x9

Bolt Pattern: 6x5.5

Wheel Offset: +0

Note: -

Stance: -

Size: 305/55R20

Wheel: 20x9

Bolt Pattern: 6x5.5

Wheel Offset: +1

Note: -

Stance: -

Size: 305/55R20

Wheel: 20x9

Bolt Pattern: 6x5.5

Wheel Offset: +18

Note: -

Stance: -

Size: 305/55R20

Wheel: 20x9

Bolt Pattern: 6x5.5

Wheel Offset: +20

Note: -

Stance: -

Size: 305/55R20

Wheel: 20x9

Bolt Pattern: 6x5.5

Wheel Offset: -12

Note: -

Stance: -

Size: 33x12.50R20

Wheel: 20x9

Bolt Pattern: 6x5.5

Wheel Offset: +0

Note: -

Stance: -

Size: 33x12.50R20

Wheel: 20x9

Bolt Pattern: 6x5.5

Wheel Offset: +1

Note: -

Stance: -

Size: 33x12.50R20

Wheel: 20x9

Bolt Pattern: 6x5.5

Wheel Offset: +18

Note: -

Stance: -

Size: 33x12.50R20

Wheel: 20x9

Bolt Pattern: 6x5.5

Wheel Offset: +20

Note: -

Stance: -

Size: 33x12.50R20

Wheel: 20x9

Bolt Pattern: 6x5.5

Wheel Offset: -12

Note: -

Stance: -

Size: 33x12.50R22

Wheel: 22x10

Bolt Pattern: 6x5.5

Wheel Offset: -18

Note: Trimming Required

Stance: -

Size: 33x12.50R22

Wheel: 22x10

Bolt Pattern: 6x5.5

Wheel Offset: -19

Note: Trimming Required

Stance: -

Size: 33x12.50R22

Wheel: 22x10

Bolt Pattern: 6x5.5

Wheel Offset: -24

Note: Trimming Required

Stance: -

Size: 33x12.50R22

Wheel: 22x10

Bolt Pattern: 6x5.5

Wheel Offset: -25

Note: Trimming Required

Stance: -

Size: 33x12.50R22

Wheel: 22x12

Bolt Pattern: 6x5.5

Wheel Offset: -44

Note: Trimming Required

Stance: -

Size: 295/60R20

Wheel: Factory 20

Bolt Pattern: 6x5.5

Wheel Offset: -

Note: 0.25 Spacer

Stance: -

Due to differences in manufacturing, dimension and inflated measurements, tire & wheel combinations should be test fit prior to installation

Select Matching Wheels and Tires
Select Matching Wheels and Tires
FREE Mount, Balance, and Shipping!
About this Product

3.5 Inch Lift Kit | Ram 1500 2WD/4WD (2019-2024)
