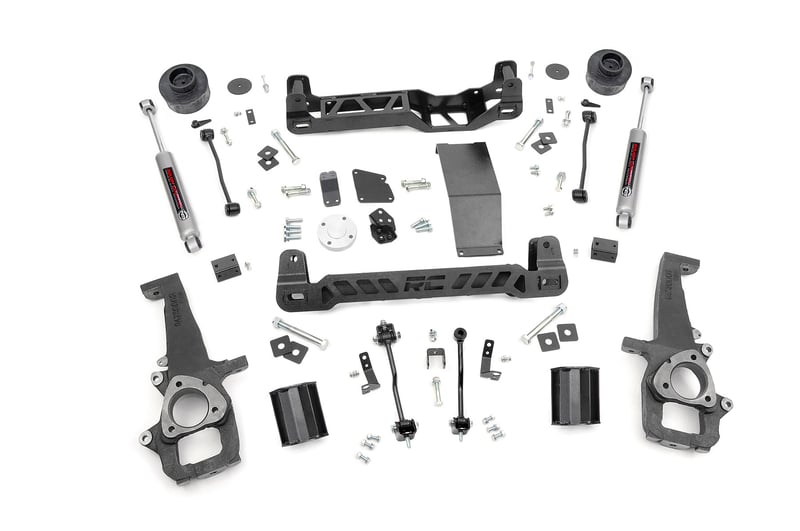

4 Inch Lift Kit Ram 1500 4WD (2012-2018 & Classic)
Features
- Maintains factory ride quality.
- Increased ground clearance.
- Levels the front with the rear of the vehicle.
- Includes pre-loaded coil
- Maintains smooth, factory-like ride
- Increased ground clearance
- Engineered for lifted applications
- Infinitely Variable Damping
- Leak-proof piston seal
- Massive 1 3/8in Bore
- Silver powder coat finish
- 3-year Manufacturer's Warranty
- Monotube design
- Internal floating piston
- Nitrogen-charged
- 46mm high-flow piston
- Fast heat dissipation
- 36kN Tensile Strength
- Mounts inverted
- T6061 brushed aluminum body
- 3-year Manufacturer's Warranty
Optional N3 Loaded Struts
Optional V2 Monotube Shocks
Fitment Notes
- Will fit Eco Diesel engine models.
- Kit is not recommended for AWD models.
- Does NOT fit models with factory air ride suspension.
- "TRX" models will achieve approximately 1" of additional lift.
- Requires 20" or larger wheels! Does NOT fit 18" or smaller wheels.
Shock Configuration Options
Premium N3
included10-Stage Variable Valving
High Pressure Nitrogen Charged
35mm Piston
Chromed Hardened 18mm Piston Rod
54mm Shock Body to dissipate heat faster
36kN Tensile Strength
Spring Loaded Piston Rod Seal
Military Spec. Fluid Rated To –40° C
Rubber bushings for better absorption
Metallic Silver Paint
3-year Manufacturer's Warranty
V2 Monotube
includedIncredible ride quality & performance
Monotube design
Internal floating piston
Nitrogen-charged
46mm high-flow piston
Fast heat dissipation
36kN Tensile Strength
Mounts inverted
T6061 brushed aluminum body
3-year Manufacturer's Warranty
Installation
GET IT INSTALLED
Don’t want to install it yourself? Search for installers in your area.
FITMENT
Vehicles
Year : 2012 - 2018
Make : Ram
Model : 1500
Drive : 4WD
Year : 2019 - 2023
Make : Ram
Model : 1500 Classic
Drive : 4WD
Always read all product page details for more important fitment information
Tires
Size: 295/60R20
Wheel: 20x10
Bolt Pattern: 5x5.5
Wheel Offset: -19
Note: -
Stance: -
Size: 35x12.50R20
Wheel: 20x10
Bolt Pattern: 5x5.5
Wheel Offset: -18
Note: -
Stance: -
Size: 35x12.50R20
Wheel: 20x10
Bolt Pattern: 5x5.5
Wheel Offset: -19
Note: -
Stance: -
Size: 35x12.50R20
Wheel: 20x10
Bolt Pattern: 5x5.5
Wheel Offset: -25
Note: -
Stance: -
Size: 295/60R20
Wheel: 20x9
Bolt Pattern: 5x5.5
Wheel Offset: +0
Note: -
Stance: -
Size: 295/60R20
Wheel: 20x9
Bolt Pattern: 5x5.5
Wheel Offset: +1
Note: -
Stance: -
Size: 35x12.50R20
Wheel: 20x9
Bolt Pattern: 5x5.5
Wheel Offset: +0
Note: -
Stance: -
Size: 35x12.50R20
Wheel: 20x9
Bolt Pattern: 5x5.5
Wheel Offset: +0
Note: Minor trimming
Stance: -
Size: 35x12.50R20
Wheel: 20x9
Bolt Pattern: 5x5.5
Wheel Offset: +1
Note: -
Stance: -
Size: 35x12.50R20
Wheel: 20x9
Bolt Pattern: 5x5.5
Wheel Offset: +1
Note: Minor trimming
Stance: -
Size: 35x12.50R20
Wheel: 20x9
Bolt Pattern: 5x5.5
Wheel Offset: -12
Note: -
Stance: -
Size: 35x12.50R22
Wheel: 22x10
Bolt Pattern: 5x5.5
Wheel Offset: -18
Note: -
Stance: -
Size: 35x12.50R22
Wheel: 22x10
Bolt Pattern: 5x5.5
Wheel Offset: -18
Note: Minor trimming
Stance: -
Size: 35x12.50R22
Wheel: 22x10
Bolt Pattern: 5x5.5
Wheel Offset: -19
Note: -
Stance: -
Size: 35x12.50R22
Wheel: 22x10
Bolt Pattern: 5x5.5
Wheel Offset: -19
Note: Minor trimming
Stance: -
Size: 35x12.50R22
Wheel: 22x10
Bolt Pattern: 5x5.5
Wheel Offset: -24
Note: -
Stance: -
Size: 35x12.50R22
Wheel: 22x10
Bolt Pattern: 5x5.5
Wheel Offset: -25
Note: -
Stance: -
Due to differences in manufacturing, dimension and inflated measurements, tire & wheel combinations should be test fit prior to installation
About this Product
4 Inch Lift Kit | Ram 1500 4WD (2012-2018 & Classic)
