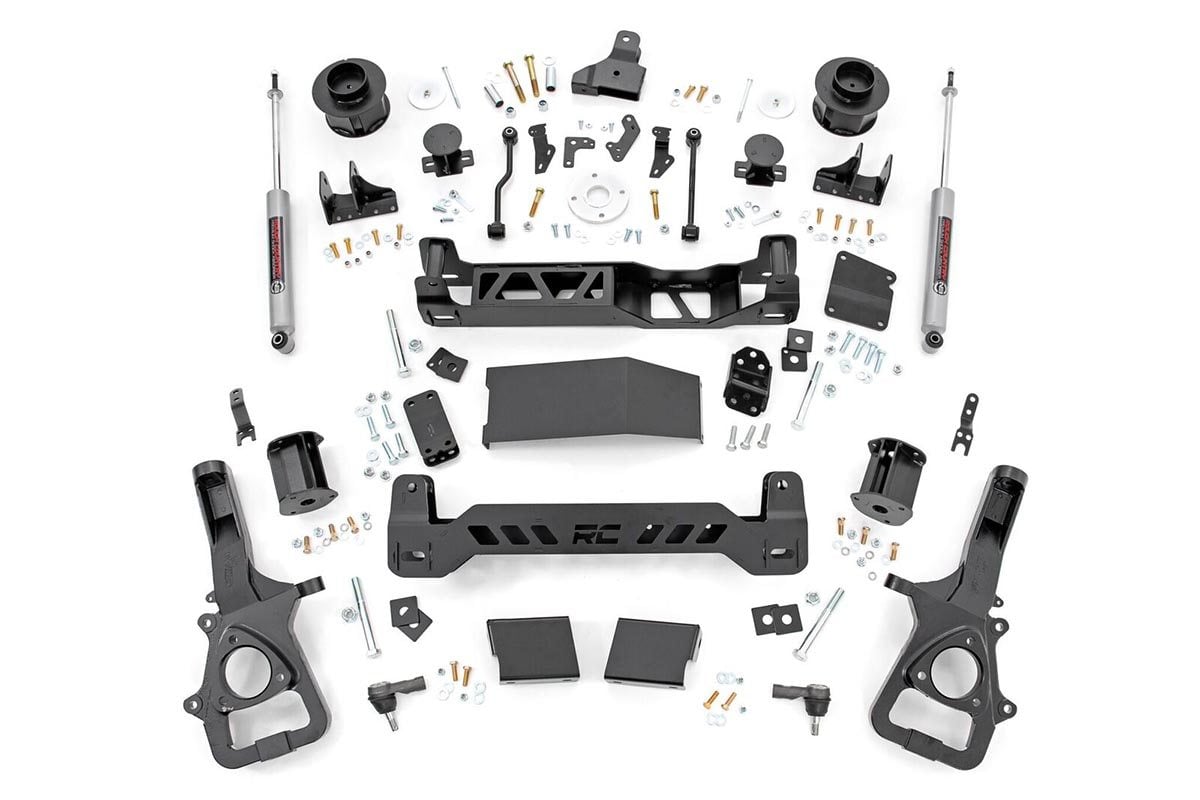

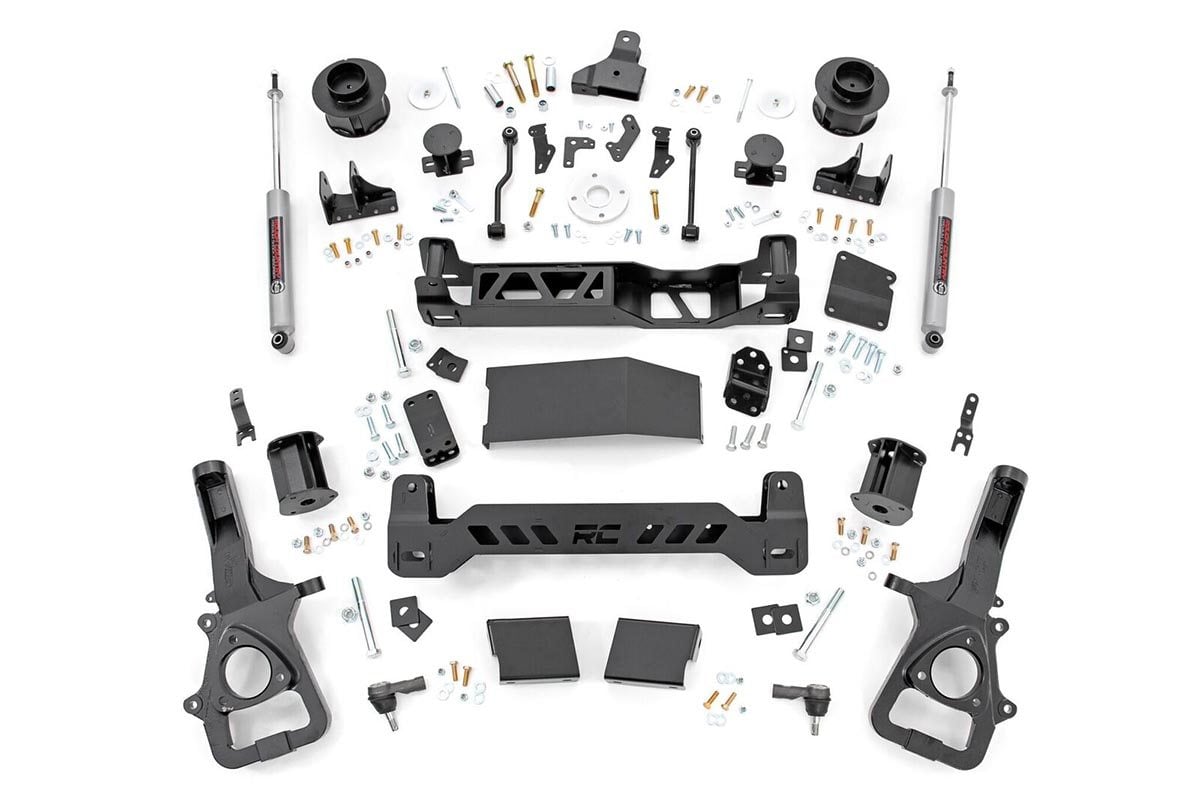

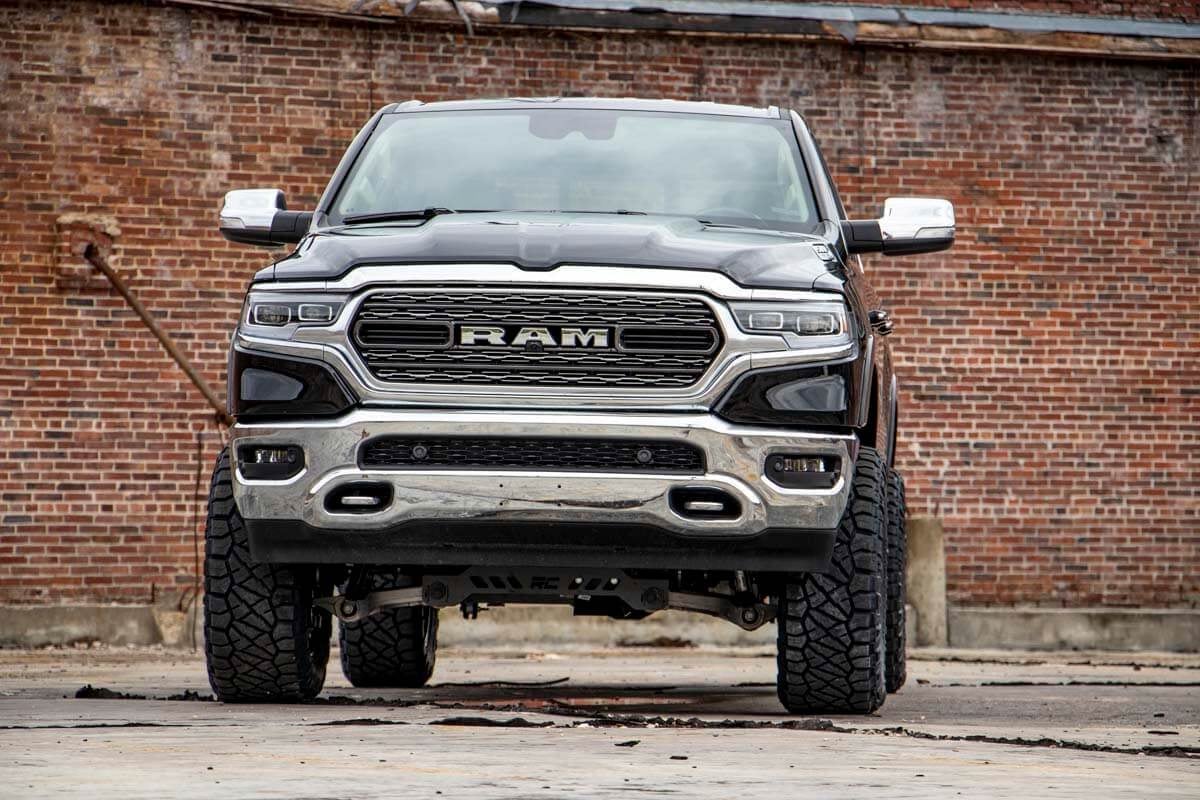

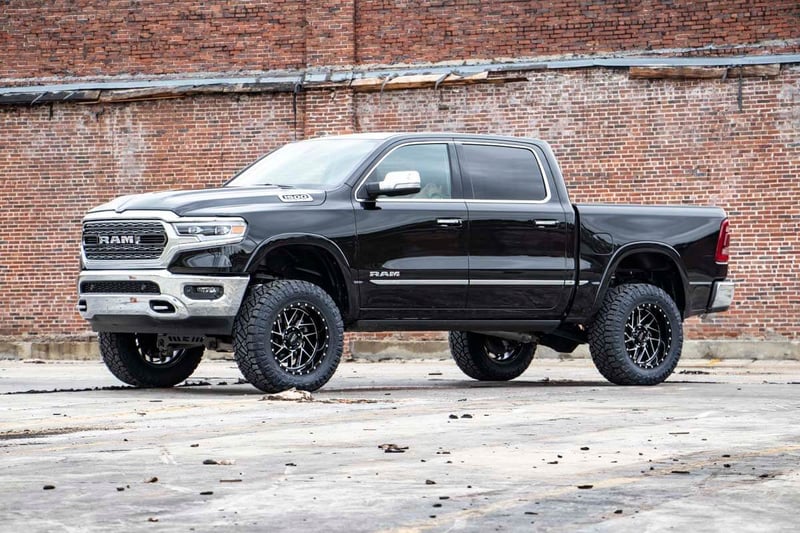

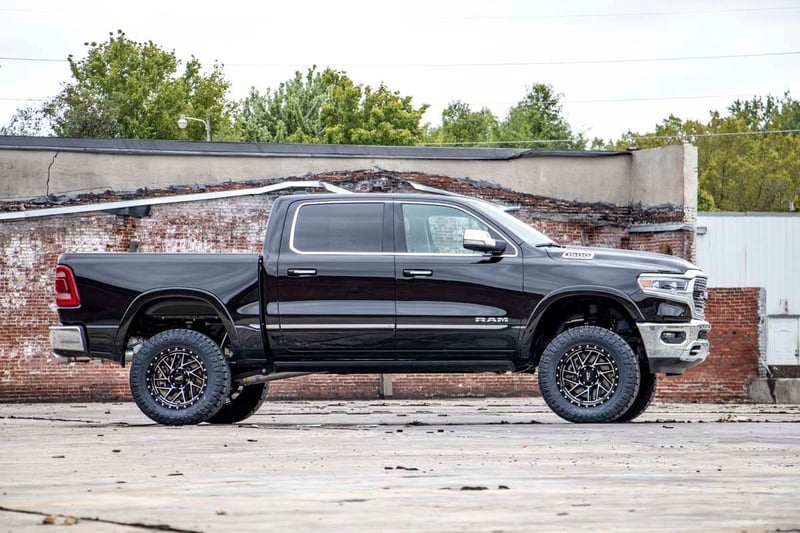

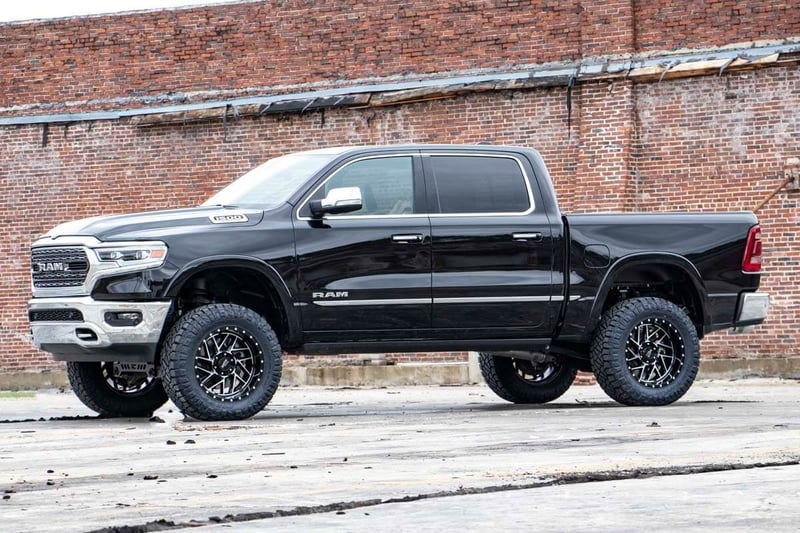

5 Inch Lift Kit Air Ride | Ram 1500 4WD (2019-2024)
STARTING PRICE
$1,424.95
STARTING PRICE
$1,424.95
Select Matching Wheels and Tires
FREE Mount, Balance, and Shipping!
Features
- Boosted Off-Road Performance: Increased ground clearance for better obstacle clearance and rugged terrain capability
- Balanced Ride Height: Levels front of vehicle with rear to improve stance and provide even handling
- Factory Comfort Retained: Maintains factory air ride modes to preserve original ride quality and smooth performance.
- Supports Up to 35-Inch Tires: Provides the clearance and lift height needed to run larger wheels and tires for a more aggressive stance.
- Rear N3 Nitrogen-Charged Shocks: Included shocks are specifically valved for a smooth, responsive ride on and off the pavement.
Fitment Notes
- ONLY fits models with 4-Corner Air-Suspension found standard on Limited and Limited Longhorn models. This package is an available upgrade across multiple sub-models. For a visual to confirm if your vehicle is equipped, click here.
- Does NOT fit 2019-2024 1500 Classic models. For a visual please click here.
- Does NOT fit Rebel models as they are equipped with a off-road-tuned suspension geometry.
- This kit is NOT recommended for AWD models due to pinion angle issues, which cause drivetrain vibrations.
- Requires 20" or larger wheels! Does NOT fit 18" or smaller wheels.
- Does NOT fit factory wheels.
Tire & Wheel Details
Installation
GET IT INSTALLED
Don’t want to install it yourself? Search for installers in your area.
FITMENT
Vehicles
year: 2019 - 2024
make: Ram
model: 1500
drive: 4WD
Always read all product page details for more important fitment information
Wheels & Tires
size: 35x12.50R20
Popular
wheel: 20x9
Bolt Pattern: 6x5.5
Wheel Offset: +0
note: -
Stance: 1
size: 295/60R20
wheel: 20x10
Bolt Pattern: 6x5.5
Wheel Offset: -18
note: Minor Trimming
Stance: 1
size: 295/60R20
wheel: 20x10
Bolt Pattern: 6x5.5
Wheel Offset: -19
note: Minor Trimming
Stance: 1
size: 295/60R20
wheel: 20x10
Bolt Pattern: 6x5.5
Wheel Offset: -25
note: Minor Trimming
Stance: 1
size: 35x12.50R20
wheel: 20x10
Bolt Pattern: 6x5.5
Wheel Offset: -18
note: Minor Trimming
Stance: 1
size: 35x12.50R20
wheel: 20x10
Bolt Pattern: 6x5.5
Wheel Offset: -19
note: Minor Trimming
Stance: 1
size: 35x12.50R20
wheel: 20x10
Bolt Pattern: 6x5.5
Wheel Offset: -25
note: Minor Trimming
Stance: 1
size: 35x12.50R20
wheel: 20x12
Bolt Pattern: 6x5.5
Wheel Offset: -44
note: Trimming Required
Stance: 2
size: 295/60R20
wheel: 20x9
Bolt Pattern: 6x5.5
Wheel Offset: +0
note: -
Stance: 0
size: 295/60R20
wheel: 20x9
Bolt Pattern: 6x5.5
Wheel Offset: +1
note: -
Stance: 0
size: 295/60R20
wheel: 20x9
Bolt Pattern: 6x5.5
Wheel Offset: -12
note: -
Stance: 1
size: 35x12.50R20
wheel: 20x9
Bolt Pattern: 6x5.5
Wheel Offset: +1
note: -
Stance: 1
size: 35x12.50R20
wheel: 20x9
Bolt Pattern: 6x5.5
Wheel Offset: -12
note: -
Stance: 1
size: 285/55R22
wheel: 22x10
Bolt Pattern: 6x5.5
Wheel Offset: -18
note: -
Stance: 1
size: 285/55R22
wheel: 22x10
Bolt Pattern: 6x5.5
Wheel Offset: -19
note: -
Stance: 1
size: 285/55R22
wheel: 22x10
Bolt Pattern: 6x5.5
Wheel Offset: -25
note: -
Stance: 1
size: 35x12.50R22
wheel: 22x10
Bolt Pattern: 6x5.5
Wheel Offset: -18
note: Minor Trimming
Stance: 1
size: 35x12.50R22
wheel: 22x10
Bolt Pattern: 6x5.5
Wheel Offset: -19
note: Minor Trimming
Stance: 1
size: 35x12.50R22
wheel: 22x10
Bolt Pattern: 6x5.5
Wheel Offset: -25
note: Minor Trimming
Stance: 1
size: 35x12.50R22
wheel: 22x12
Bolt Pattern: 6x5.5
Wheel Offset: -44
note: Trimming Required
Stance: 2
Due to differences in manufacturing, dimension and inflated measurements, tire & wheel combinations should be test fit prior to installation
