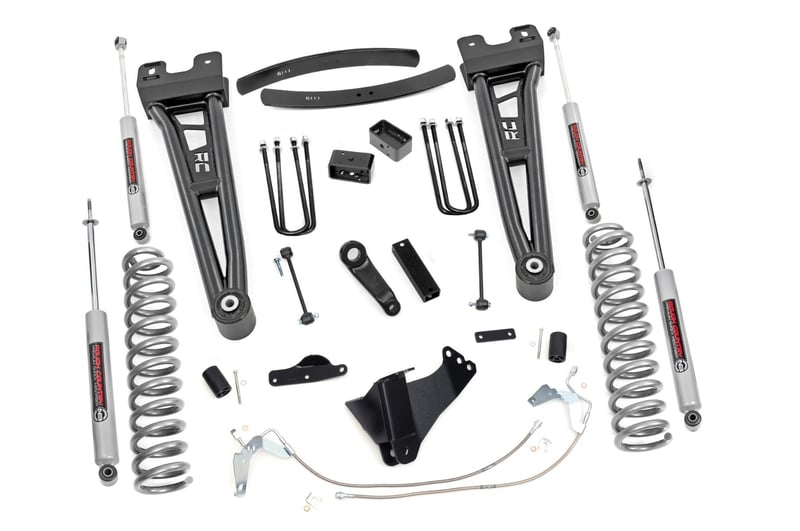

6 Inch Lift Kit Ford Super Duty 4WD (08-10)
Features
- 100% bolt-on installation
- Increased ground clearance
- Levels the front with the rear of the vehicle
- Includes heavy-duty radius arms equipped with durable durable rubber Bushings for maximum vibration absorption.
- New radius arms help maintain factory angles.
- Includes adjustable alignment cam at the axle to allow caster adjustment
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
- Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
- 10-Stage Variable Valving
- High Pressure Nitrogen Charged
- 35mm Piston
- Chromed Hardened 18mm Piston Rod
- 36kN Tensile Strength
- Spring Loaded Piston Rod Seal
- Metallic Silver Paint
- Silver powder coat finish
- 3-year Manufacturer's Warranty
- Monotube design
- Internal floating piston
- Nitrogen-charged
- 46mm high-flow piston
- Fast heat dissipation
- 36kN Tensile Strength
- Mounts inverted
- T6061 brushed aluminum body
- 3-year Manufacturer's Warranty
- 8-Stage Adjustable Damping
- Monotube Design
- Nitrogen-charged
- Massive 2.5in Piston
- 22mm Chrome-Hardened Piston Rod
- 3-Stage Seal System
- Heat-Treated, Alloy Bearing
- Honed Steel Body
- 3-year Manufacturer's Warranty
Optional Premium N3 Shocks
Optional V2 Monotube Shocks
Optional Vertex Shocks
Fitment Notes
- Does NOT fit dually models.
- Factory rear contact overload springs will need to be removed
- Gas models may require exhaust modification to clear front drive shaft
Shock Configuration Options
Premium N3
included10-Stage Variable Valving
High Pressure Nitrogen Charged
35mm Piston
Chromed Hardened 18mm Piston Rod
54mm Shock Body to dissipate heat faster
36kN Tensile Strength
Spring Loaded Piston Rod Seal
Military Spec. Fluid Rated To –40° C
Rubber bushings for better absorption
Metallic Silver Paint
3-year Manufacturer's Warranty
M1 Monotube
+$120.002-inch seamless extruded tube.
46mm digressive piston.
Self-adjusting, deflective-disc independent rebound and compression.
18mm centerless-ground, case-hardened, chromed, and super-polished rod.
46mm monotube design ensures consistent, fade-free performance in all conditions.
Digressive valving instantly reacts to changing surface conditions.
Zinc plated for resistance against harsh elements.
Available in various lift heights for multiple applications.
Durable vulcanized natural rubber bushings.
3-year Manufacturer's Warranty
V2 Monotube
+$320.00Incredible ride quality & performance
Monotube design
Internal floating piston
Nitrogen-charged
46mm high-flow piston
Fast heat dissipation
36kN Tensile Strength
Mounts inverted
T6061 brushed aluminum body
3-year Manufacturer's Warranty
Vertex Reservoir
+$1,600.008-Stage Adjustable Damping
Monotube Design
Nitrogen-Charged
Remote Reservoir with Steel Braided Reservoir Line
Massive 2.5in Piston
22mm Chrome-Hardened Piston Rod
Specifically Tuned for Each Application
3-Stage Seal System
Heat-Treated, Alloy Bearing
Honed Steel Body
CNC-Machined Billet Aluminum Accents
Zinc Plate Finish with Double Clear Coat
Incredible >400 Hour Salt Spray Rating
3-year Manufacturer's Warranty
Installation
GET IT INSTALLED
Don’t want to install it yourself? Search for installers in your area.
FITMENT
Vehicles
Year : 2008 - 2010
Make : Ford
Model : F-250 Super Duty
Drive : 4WD
Year : 2008 - 2010
Make : Ford
Model : F-350 Super Duty
Drive : 4WD
Always read all product page details for more important fitment information
Tires
Size: 35x12.50R17
Wheel: 17x9
Bolt Pattern: 8x170
Wheel Offset: -12
Note: -
Stance: -
Size: 37x12.50R17
Wheel: 17x9
Bolt Pattern: 8x170
Wheel Offset: +0
Note: -
Stance: -
Size: 37x12.50R17
Wheel: 17x9
Bolt Pattern: 8x170
Wheel Offset: +1
Note: -
Stance: -
Size: 37x12.50R17
Wheel: 17x9
Bolt Pattern: 8x170
Wheel Offset: -12
Note: -
Stance: -
Size: 37x12.50R18
Wheel: 18x9
Bolt Pattern: 8x170
Wheel Offset: +0
Note: -
Stance: -
Size: 37x12.50R18
Wheel: 18x9
Bolt Pattern: 8x170
Wheel Offset: +1
Note: -
Stance: -
Size: 37x12.50R18
Wheel: 18x9
Bolt Pattern: 8x170
Wheel Offset: -12
Note: -
Stance: -
Size: 35x12.50R20
Wheel: 20x10
Bolt Pattern: 8x170
Wheel Offset: -18
Note: -
Stance: -
Size: 35x12.50R20
Wheel: 20x10
Bolt Pattern: 8x170
Wheel Offset: -19
Note: -
Stance: -
Size: 37x12.50R20
Wheel: 20x10
Bolt Pattern: 8x170
Wheel Offset: -18
Note: -
Stance: -
Size: 37x12.50R20
Wheel: 20x10
Bolt Pattern: 8x170
Wheel Offset: -19
Note: -
Stance: -
Size: 37x12.50R20
Wheel: 20x10
Bolt Pattern: 8x170
Wheel Offset: -24
Note: -
Stance: -
Size: 37x12.50R20
Wheel: 20x10
Bolt Pattern: 8x170
Wheel Offset: -25
Note: -
Stance: -
Size: 35x12.50R20
Wheel: 20x12
Bolt Pattern: 8x170
Wheel Offset: -44
Note: Minor Trimming
Stance: -
Size: 37x12.50R20
Wheel: 20x12
Bolt Pattern: 8x170
Wheel Offset: -44
Note: Trimming Required
Stance: -
Size: 35x12.50R20
Wheel: 20x9
Bolt Pattern: 8x170
Wheel Offset: -12
Note: -
Stance: -
Size: 37x12.50R20
Wheel: 20x9
Bolt Pattern: 8x170
Wheel Offset: +0
Note: -
Stance: -
Size: 37x12.50R20
Wheel: 20x9
Bolt Pattern: 8x170
Wheel Offset: +1
Note: -
Stance: -
Size: 37x12.50R20
Wheel: 20x9
Bolt Pattern: 8x170
Wheel Offset: -12
Note: -
Stance: -
Size: 35x12.50R22
Wheel: 22x10
Bolt Pattern: 8x170
Wheel Offset: -18
Note: -
Stance: -
Size: 35x12.50R22
Wheel: 22x10
Bolt Pattern: 8x170
Wheel Offset: -19
Note: -
Stance: -
Size: 37x12.50R22
Wheel: 22x10
Bolt Pattern: 8x170
Wheel Offset: -18
Note: -
Stance: -
Size: 37x12.50R22
Wheel: 22x10
Bolt Pattern: 8x170
Wheel Offset: -19
Note: -
Stance: -
Size: 37x12.50R22
Wheel: 22x10
Bolt Pattern: 8x170
Wheel Offset: -24
Note: -
Stance: -
Size: 37x12.50R22
Wheel: 22x10
Bolt Pattern: 8x170
Wheel Offset: -25
Note: -
Stance: -
Size: 35x12.50R22
Wheel: 22x12
Bolt Pattern: 8x170
Wheel Offset: -44
Note: Minor Trimming
Stance: -
Due to differences in manufacturing, dimension and inflated measurements, tire & wheel combinations should be test fit prior to installation
About this Product
6 Inch Lift Kit | Ford Super Duty 4WD (08-10)
