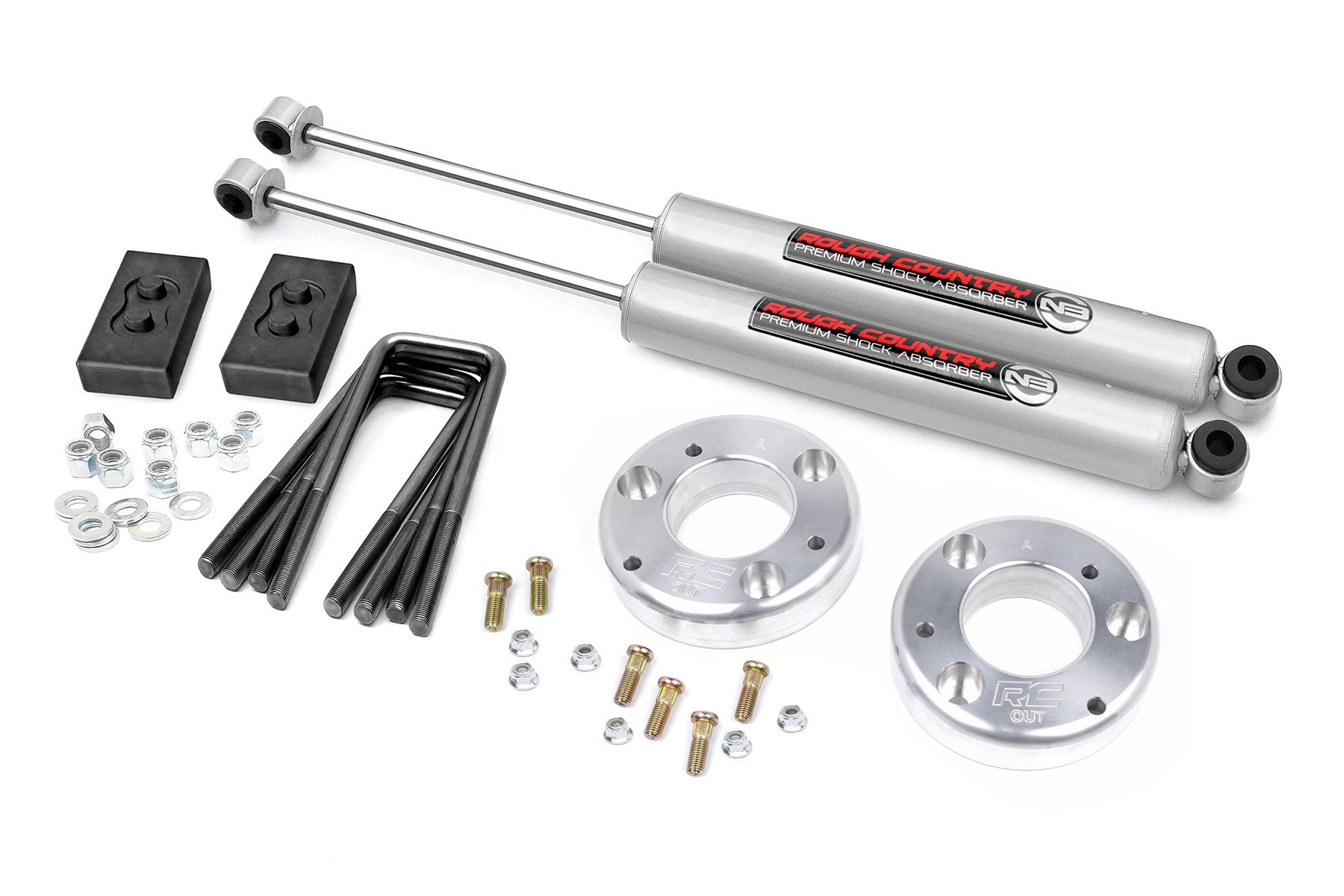

2 Inch Lift Kit Ford F-150 2WD/4WD (2014-2020)
Features
This easily to install, innovative Aluminum Spacer combines great looks and strength in ways that traditional spacers do not. This new spacer features aircraft quality, T6061 Billet Aluminum offering enhanced durability against elements like rain and rust.
- Easy bolt-on installation
- Maintains factory ride quality
- Increased ground clearance
- Levels the front with the rear of the vehicle
- No need to disassemble your struts to install
- Built from aircraft quality T6061 Billet Aluminum
- 10-Stage Variable Valving
- High Pressure Nitrogen Charged
- Nitrogen-charged
- 35mm Piston
- Chromed Hardened 18mm Piston Rod
- Leak-proof piston seal
- 36kN Tensile Strength
- Silver powder coat finish
- 3-year Manufacturer's Warranty
- Monotube design
- Internal floating piston
- Nitrogen-charged
- 46mm high-flow piston
- Fast heat dissipation
- 36kN Tensile Strength
- Mounts inverted
- T6061 brushed aluminum body
- 3-year Manufacturer's Warranty
Optional N3 Shocks
Optional V2 Monotube Shocks
Fitment Notes
- Does NOT fit Raptor models.
Shock Configuration Options
Premium N3
included10-Stage Variable Valving
High Pressure Nitrogen Charged
35mm Piston
Chromed Hardened 18mm Piston Rod
54mm Shock Body to dissipate heat faster
36kN Tensile Strength
Spring Loaded Piston Rod Seal
Military Spec. Fluid Rated To –40° C
Rubber bushings for better absorption
Metallic Silver Paint
3-year Manufacturer's Warranty
V2 Monotube
+$160.00Incredible ride quality & performance
Monotube design
Internal floating piston
Nitrogen-charged
46mm high-flow piston
Fast heat dissipation
36kN Tensile Strength
Mounts inverted
T6061 brushed aluminum body
3-year Manufacturer's Warranty
Installation
GET IT INSTALLED
Don’t want to install it yourself? Search for installers in your area.
FITMENT
Vehicles
Year : 2014 - 2020
Make : Ford
Model : F-150
Drive : RWD
Year : 2014 - 2020
Make : Ford
Model : F-150
Drive : 4WD
Always read all product page details for more important fitment information
Tires
Size: 285/55R20
Wheel: 20x10
Bolt: 6x135
Offset: -18
Note: -
Size: 285/55R20
Wheel: 20x10
Bolt: 6x135
Offset: -19
Note: -
Size: 285/55R20
Wheel: 20x10
Bolt: 6x135
Offset: -24
Note: -
Size: 285/55R20
Wheel: 20x10
Bolt: 6x135
Offset: -25
Note: -
Size: 285/55R20
Wheel: 20x9
Bolt: 6x135
Offset: +0
Note: -
Size: 285/55R20
Wheel: 20x9
Bolt: 6x135
Offset: +1
Note: -
Size: 285/55R20
Wheel: 20x9
Bolt: 6x135
Offset: +20
Note: -
Size: 285/55R20
Wheel: 20x9
Bolt: 6x135
Offset: -12
Note: -
Size: 285/65R18
Wheel: 18x9
Bolt: 6x135
Offset: +1
Note: -
Size: 285/65R18
Wheel: 18x9
Bolt: 6x135
Offset: -12
Note: -
Size: 285/70R17
Wheel: 17x8.5
Bolt: 6x135
Offset: +0
Note: -
Size: 285/70R17
Wheel: 17x9
Bolt: 6x135
Offset: +0
Note: -
Size: 285/70R17
Wheel: 17x9
Bolt: 6x135
Offset: +1
Note: -
Size: 285/70R17
Wheel: 17x9
Bolt: 6x135
Offset: +18
Note: -
Size: 285/70R17
Wheel: 17x9
Bolt: 6x135
Offset: -12
Note: -
Size: 285/70R18
Wheel: Factory 18
Bolt: 6x135
Offset: -
Note: -
Size: 285/75R17
Wheel: Factory 17
Bolt: 6x135
Offset: -
Note: -
Size: 295/60R20
Wheel: 20x9
Bolt: 6x135
Offset: +0
Note: Minor Trimming
Size: 295/60R20
Wheel: 20x9
Bolt: 6x135
Offset: +1
Note: Minor Trimming
Size: 295/60R20
Wheel: 20x9
Bolt: 6x135
Offset: +20
Note: Minor Trimming
Size: 295/60R20
Wheel: Factory 20
Bolt: 6x135
Offset: -
Note: 0.25 Spacer
Size: 305/55R20
Wheel: 20x10
Bolt: 6x135
Offset: -18
Note: -
Size: 305/55R20
Wheel: 20x10
Bolt: 6x135
Offset: -19
Note: -
Size: 305/55R20
Wheel: 20x10
Bolt: 6x135
Offset: -24
Note: -
Size: 305/55R20
Wheel: 20x10
Bolt: 6x135
Offset: -25
Note: -
Size: 305/55R20
Wheel: 20x12
Bolt: 6x135
Offset: -44
Note: -
Size: 305/55R20
Wheel: 20x9
Bolt: 6x135
Offset: +0
Note: -
Size: 305/55R20
Wheel: 20x9
Bolt: 6x135
Offset: +1
Note: -
Size: 305/55R20
Wheel: 20x9
Bolt: 6x135
Offset: +18
Note: -
Size: 305/55R20
Wheel: 20x9
Bolt: 6x135
Offset: +20
Note: -
Size: 305/55R20
Wheel: 20x9
Bolt: 6x135
Offset: -12
Note: -
Size: 305/60R18
Wheel: 18x8.5
Bolt: 6x135
Offset: +0
Note: -
Size: 305/60R18
Wheel: 18x8.5
Bolt: 6x135
Offset: +1
Note: -
Size: 305/60R18
Wheel: 18x9
Bolt: 6x135
Offset: +0
Note: -
Size: 305/60R18
Wheel: 18x9
Bolt: 6x135
Offset: +1
Note: -
Size: 305/60R18
Wheel: 18x9
Bolt: 6x135
Offset: +18
Note: -
Size: 305/60R18
Wheel: 18x9
Bolt: 6x135
Offset: +20
Note: -
Size: 33x12.50R17
Wheel: 17x8.5
Bolt: 6x135
Offset: +0
Note: -
Size: 33x12.50R17
Wheel: 17x8.5
Bolt: 6x135
Offset: +1
Note: -
Size: 33x12.50R17
Wheel: 17x9
Bolt: 6x135
Offset: +0
Note: -
Size: 33x12.50R17
Wheel: 17x9
Bolt: 6x135
Offset: +1
Note: -
Size: 33x12.50R17
Wheel: 17x9
Bolt: 6x135
Offset: +18
Note: -
Size: 33x12.50R17
Wheel: 17x9
Bolt: 6x135
Offset: -12
Note: -
Size: 33x12.50R18
Wheel: 18x8.5
Bolt: 6x135
Offset: +0
Note: -
Size: 33x12.50R18
Wheel: 18x8.5
Bolt: 6x135
Offset: +1
Note: -
Size: 33x12.50R18
Wheel: 18x9
Bolt: 6x135
Offset: +0
Note: -
Size: 33x12.50R18
Wheel: 18x9
Bolt: 6x135
Offset: +1
Note: -
Size: 33x12.50R18
Wheel: 18x9
Bolt: 6x135
Offset: +18
Note: -
Size: 33x12.50R18
Wheel: 18x9
Bolt: 6x135
Offset: +20
Note: -
Size: 33x12.50R18
Wheel: 18x9
Bolt: 6x135
Offset: -12
Note: Trimming Required
Size: 33x12.50R20
Wheel: 20x10
Bolt: 6x135
Offset: -18
Note: Trimming Required
Size: 33x12.50R20
Wheel: 20x10
Bolt: 6x135
Offset: -19
Note: Trimming Required
Size: 33x12.50R20
Wheel: 20x10
Bolt: 6x135
Offset: -24
Note: Trimming Required
Size: 33x12.50R20
Wheel: 20x10
Bolt: 6x135
Offset: -25
Note: Trimming Required
Size: 33x12.50R20
Wheel: 20x12
Bolt: 6x135
Offset: -44
Note: Trimming Required
Size: 33x12.50R20
Wheel: 20x9
Bolt: 6x135
Offset: +0
Note: -
Size: 33x12.50R20
Wheel: 20x9
Bolt: 6x135
Offset: +1
Note: -
Size: 33x12.50R20
Wheel: 20x9
Bolt: 6x135
Offset: +18
Note: -
Size: 33x12.50R20
Wheel: 20x9
Bolt: 6x135
Offset: +20
Note: -
Size: 33x12.50R20
Wheel: 20x9
Bolt: 6x135
Offset: -12
Note: -
Size: 33x12.50R22
Wheel: 22x10
Bolt: 6x135
Offset: -18
Note: Trimming Required
Size: 33x12.50R22
Wheel: 22x10
Bolt: 6x135
Offset: -19
Note: Trimming Required
Size: 33x12.50R22
Wheel: 22x10
Bolt: 6x135
Offset: -24
Note: Trimming Required
Size: 33x12.50R22
Wheel: 22x10
Bolt: 6x135
Offset: -25
Note: Trimming Required
Size: 33x12.50R22
Wheel: 22x12
Bolt: 6x135
Offset: -44
Note: Trimming Required
Due to differences in manufacturing, dimension and inflated measurements, tire & wheel combinations should be test fit prior to installation
About this Product
2 Inch Lift Kit | Ford F-150 2WD/4WD (2014-2020)
