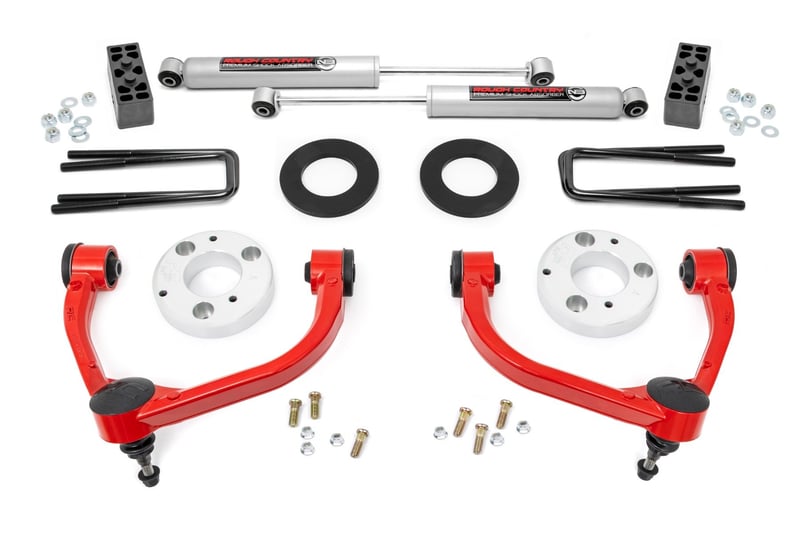

3 Inch Lift Kit Ford F-150 4WD (2009-2013)
Features
- Easy Bolt-On installation.
- Includes loaded struts for no-fuss installation.
- No Cutting or Drilling required!
- Includes New forged aluminum upper control arms.
- Control arms keep ball joints at optimum angles for less wear and tear.
- Control arms include durable rubber bushings for enhanced durability.
- Increased ground clearance.
- Levels the front and rear of the truck.
- Can be returned to stock.
- Includes pre-loaded coil
- Maintains smooth, factory-like ride
- Increased ground clearance
- Engineered for lifted applications
- Infinitely Variable Damping
- Leak-proof piston seal
- Massive 1 3/8in Bore
- Silver powder coat finish
- 3-year Manufacturer's Warranty
- Monotube design
- Internal floating piston
- Nitrogen-charged
- 46mm high-flow piston
- Fast heat dissipation
- 36kN Tensile Strength
- Mounts inverted
- T6061 brushed aluminum body
- 3-year Manufacturer's Warranty
- 8-Stage Adjustable Damping
- Monotube Design
- Nitrogen-charged
- Massive 2.5in Piston
- 22mm Chrome-Hardened Piston Rod
- 3-Stage Seal System
- Heat-Treated, Alloy Bearing
- Honed Steel Body
- 3-year Manufacturer's Warranty
Optional N3 Loaded Struts
Optional V2 Monotube Shocks
Optional Vertex
Fitment Notes
- Does NOT fit regular/standard cab models.
- SKU: 51013 does NOT work on models with stock ride height over 22in. [measured from center of wheel to the bottom of the fender]
- Spacer kit '51013' does NOT fit on trucks with FX4, Snow Prep, and other off-road packages that modify front strut assemblies will likely measure over 22in and will not work with this kit.
- Designed to work with aluminum factory lower control arms. Replacement control arms or replacement factory steel control arms may interfere with the CV boot.
Installation
GET IT INSTALLED
Don’t want to install it yourself? Search for installers in your area.
FITMENT
Vehicles
Year : 2010 - 2012
Make : Ford
Model : F-150
Drive : AWD
Year : 2009 - 2013
Make : Ford
Model : F-150
Drive : 4WD
Always read all product page details for more important fitment information
Tires
Size: 295/60R20
Wheel: 20x9
Bolt: 6x135
Offset: +0
Note: Minor trimming
Size: 295/60R20
Wheel: 20x9
Bolt: 6x135
Offset: +1
Note: Minor trimming
Size: 295/60R20
Wheel: 20x9
Bolt: 6x135
Offset: +12
Note: Minor trimming
Size: 295/70R18
Wheel: 18x8.5
Bolt: 6x135
Offset: +0
Note: Minor trimming
Size: 295/70R18
Wheel: 18x8.5
Bolt: 6x135
Offset: +1
Note: Minor trimming
Size: 295/70R18
Wheel: 18x9
Bolt: 6x135
Offset: +0
Note: Minor trimming
Size: 295/70R18
Wheel: 18x9
Bolt: 6x135
Offset: +1
Note: Minor trimming
Size: 295/70R18
Wheel: 18x9
Bolt: 6x135
Offset: +12
Note: Minor trimming
Size: 305/55R20
Wheel: 20x9
Bolt: 6x135
Offset: +0
Note: -
Size: 305/55R20
Wheel: 20x9
Bolt: 6x135
Offset: +1
Note: -
Size: 33x12.50R17
Wheel: 17x8.5
Bolt: 6x135
Offset: +0
Note: Minor trimming
Size: 33x12.50R17
Wheel: 17x8.5
Bolt: 6x135
Offset: +1
Note: Minor trimming
Size: 33x12.50R17
Wheel: 17x9
Bolt: 6x135
Offset: +0
Note: Minor trimming
Size: 33x12.50R17
Wheel: 17x9
Bolt: 6x135
Offset: +1
Note: Minor trimming
Size: 33x12.50R17
Wheel: 17x9
Bolt: 6x135
Offset: +12
Note: Minor trimming
Size: 33x12.50R18
Wheel: 18x8.5
Bolt: 6x135
Offset: +0
Note: Minor trimming
Size: 33x12.50R18
Wheel: 18x8.5
Bolt: 6x135
Offset: +1
Note: Minor trimming
Size: 33x12.50R18
Wheel: 18x9
Bolt: 6x135
Offset: +0
Note: Minor trimming
Size: 33x12.50R18
Wheel: 18x9
Bolt: 6x135
Offset: +1
Note: Minor trimming
Size: 33x12.50R18
Wheel: 18x9
Bolt: 6x135
Offset: +12
Note: Minor trimming
Size: 33x12.50R20
Wheel: 20x9
Bolt: 6x135
Offset: +0
Note: Minor trimming
Size: 33x12.50R20
Wheel: 20x9
Bolt: 6x135
Offset: +1
Note: Minor trimming
Size: 33x12.50R20
Wheel: 20x9
Bolt: 6x135
Offset: +12
Note: Minor trimming
Due to differences in manufacturing, dimension and inflated measurements, tire & wheel combinations should be test fit prior to installation
About this Product
3 Inch Lift Kit | Ford F-150 4WD (2009-2013)
