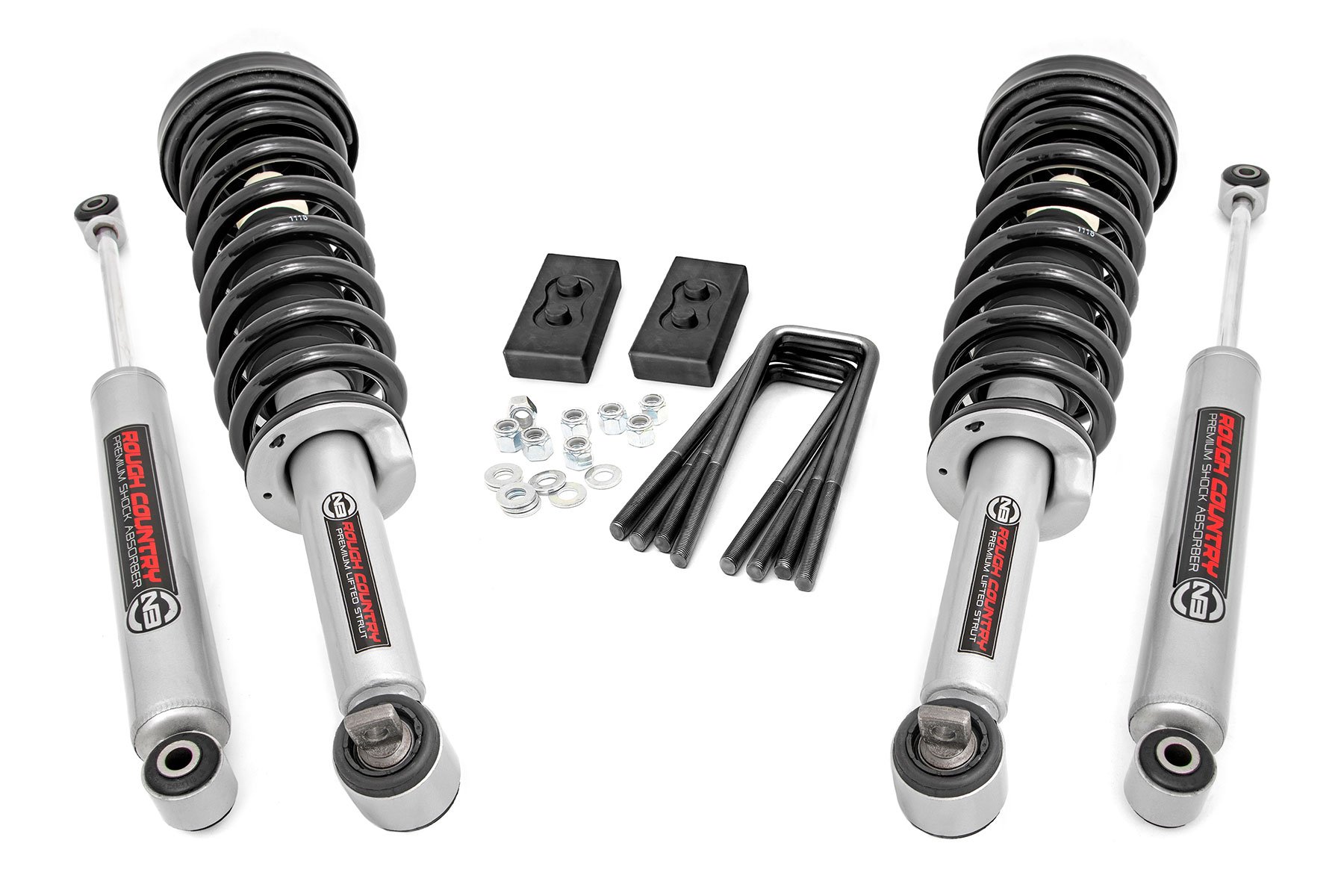

2 Inch Lift Kit Lifted Struts | Ford F-150 4WD (2014-2020)
Features
- Easy bolt-on installation.
- Maintains factory ride quality.
- Increased ground clearance.
- Levels the front with the rear of the vehicle.
- Maintains smooth, factory-like ride
- Increased ground clearance
- Nitrogen-charged
- Engineered for lifted applications
- Infinitely Variable Damping
- Leak-proof piston seal
- Massive 1 3/8in Bore
- Silver powder coat finish
- 3-year Manufacturer's Warranty
- Monotube design
- Internal floating piston
- Nitrogen-charged
- 46mm high-flow piston
- Fast heat dissipation
- 36kN Tensile Strength
- Mounts inverted
- T6061 brushed aluminum body
- 3-year Manufacturer's Warranty
- 8-Stage Adjustable Damping
- Monotube Design
- Nitrogen-charged
- Massive 2.5in Piston
- 22mm Chrome-Hardened Piston Rod
- 3-Stage Seal System
- Heat-Treated, Alloy Bearing
- Honed Steel Body
- 3-year Manufacturer's Warranty
Optional N3 Loaded Struts
Optional V2 Monotube Shocks
Optional Vertex Coilovers
Fitment Notes
- Does NOT fit Raptor models.
Installation
GET IT INSTALLED
Don’t want to install it yourself? Search for installers in your area.
FITMENT
Vehicles
Year : 2014 - 2020
Make : Ford
Model : F-150
Drive : 4WD
Always read all product page details for more important fitment information
Tires
Size: 285/55R20
Wheel: 20x10
Bolt: 6x135
Offset: -18
Note: -
Size: 285/55R20
Wheel: 20x10
Bolt: 6x135
Offset: -19
Note: -
Size: 285/55R20
Wheel: 20x10
Bolt: 6x135
Offset: -24
Note: -
Size: 285/55R20
Wheel: 20x10
Bolt: 6x135
Offset: -25
Note: -
Size: 285/55R20
Wheel: 20x9
Bolt: 6x135
Offset: +0
Note: -
Size: 285/55R20
Wheel: 20x9
Bolt: 6x135
Offset: +1
Note: -
Size: 285/55R20
Wheel: 20x9
Bolt: 6x135
Offset: +20
Note: -
Size: 285/55R20
Wheel: 20x9
Bolt: 6x135
Offset: -12
Note: -
Size: 285/65R18
Wheel: 18x9
Bolt: 6x135
Offset: +1
Note: -
Size: 285/65R18
Wheel: 18x9
Bolt: 6x135
Offset: -12
Note: -
Size: 285/70R17
Wheel: 17x8.5
Bolt: 6x135
Offset: +0
Note: -
Size: 285/70R17
Wheel: 17x9
Bolt: 6x135
Offset: +0
Note: -
Size: 285/70R17
Wheel: 17x9
Bolt: 6x135
Offset: +1
Note: -
Size: 285/70R17
Wheel: 17x9
Bolt: 6x135
Offset: +18
Note: -
Size: 285/70R17
Wheel: 17x9
Bolt: 6x135
Offset: -12
Note: -
Size: 285/70R18
Wheel: Factory 18
Bolt: 6x135
Offset: -
Note: -
Size: 285/75R17
Wheel: Factory 17
Bolt: 6x135
Offset: -
Note: -
Size: 295/60R20
Wheel: 20x9
Bolt: 6x135
Offset: +0
Note: Minor Trimming
Size: 295/60R20
Wheel: 20x9
Bolt: 6x135
Offset: +1
Note: Minor Trimming
Size: 295/60R20
Wheel: 20x9
Bolt: 6x135
Offset: +20
Note: Minor Trimming
Size: 295/60R20
Wheel: 20x9
Bolt: 6x135
Offset: -12
Note: Minor Trimming
Size: 295/60R20
Wheel: Factory 20
Bolt: 6x135
Offset: -
Note: 0.25 Spacer
Size: 305/55R20
Wheel: 20x10
Bolt: 6x135
Offset: -18
Note: Minor Trimming
Size: 305/55R20
Wheel: 20x10
Bolt: 6x135
Offset: -19
Note: Minor Trimming
Size: 305/55R20
Wheel: 20x10
Bolt: 6x135
Offset: -24
Note: Minor Trimming
Size: 305/55R20
Wheel: 20x10
Bolt: 6x135
Offset: -25
Note: Minor Trimming
Size: 305/55R20
Wheel: 20x12
Bolt: 6x135
Offset: -44
Note: -
Size: 305/55R20
Wheel: 20x9
Bolt: 6x135
Offset: +0
Note: -
Size: 305/55R20
Wheel: 20x9
Bolt: 6x135
Offset: +1
Note: -
Size: 305/55R20
Wheel: 20x9
Bolt: 6x135
Offset: +18
Note: -
Size: 305/55R20
Wheel: 20x9
Bolt: 6x135
Offset: +20
Note: -
Size: 305/55R20
Wheel: 20x9
Bolt: 6x135
Offset: -12
Note: -
Size: 305/60R18
Wheel: 18x8.5
Bolt: 6x135
Offset: +0
Note: -
Size: 305/60R18
Wheel: 18x8.5
Bolt: 6x135
Offset: +1
Note: -
Size: 305/60R18
Wheel: 18x9
Bolt: 6x135
Offset: +0
Note: -
Size: 305/60R18
Wheel: 18x9
Bolt: 6x135
Offset: +1
Note: -
Size: 305/60R18
Wheel: 18x9
Bolt: 6x135
Offset: +18
Note: -
Size: 305/60R18
Wheel: 18x9
Bolt: 6x135
Offset: +20
Note: -
Size: 33x12.50R17
Wheel: 17x8.5
Bolt: 6x135
Offset: +0
Note: -
Size: 33x12.50R17
Wheel: 17x8.5
Bolt: 6x135
Offset: +1
Note: -
Size: 33x12.50R17
Wheel: 17x9
Bolt: 6x135
Offset: +0
Note: -
Size: 33x12.50R17
Wheel: 17x9
Bolt: 6x135
Offset: +1
Note: -
Size: 33x12.50R17
Wheel: 17x9
Bolt: 6x135
Offset: +18
Note: -
Size: 33x12.50R17
Wheel: 17x9
Bolt: 6x135
Offset: -12
Note: -
Size: 33x12.50R18
Wheel: 18x8.5
Bolt: 6x135
Offset: +0
Note: -
Size: 33x12.50R18
Wheel: 18x8.5
Bolt: 6x135
Offset: +1
Note: -
Size: 33x12.50R18
Wheel: 18x9
Bolt: 6x135
Offset: +0
Note: -
Size: 33x12.50R18
Wheel: 18x9
Bolt: 6x135
Offset: +1
Note: -
Size: 33x12.50R18
Wheel: 18x9
Bolt: 6x135
Offset: +18
Note: -
Size: 33x12.50R18
Wheel: 18x9
Bolt: 6x135
Offset: +20
Note: -
Size: 33x12.50R18
Wheel: 18x9
Bolt: 6x135
Offset: -12
Note: Trimming Required
Size: 33x12.50R20
Wheel: 20x10
Bolt: 6x135
Offset: -18
Note: Trimming Required
Size: 33x12.50R20
Wheel: 20x10
Bolt: 6x135
Offset: -19
Note: Trimming Required
Size: 33x12.50R20
Wheel: 20x10
Bolt: 6x135
Offset: -24
Note: Trimming Required
Size: 33x12.50R20
Wheel: 20x10
Bolt: 6x135
Offset: -25
Note: Trimming Required
Size: 33x12.50R20
Wheel: 20x12
Bolt: 6x135
Offset: -44
Note: Trimming Required
Size: 33x12.50R20
Wheel: 20x9
Bolt: 6x135
Offset: +0
Note: -
Size: 33x12.50R20
Wheel: 20x9
Bolt: 6x135
Offset: +1
Note: -
Size: 33x12.50R20
Wheel: 20x9
Bolt: 6x135
Offset: +18
Note: -
Size: 33x12.50R20
Wheel: 20x9
Bolt: 6x135
Offset: +20
Note: -
Size: 33x12.50R20
Wheel: 20x9
Bolt: 6x135
Offset: -12
Note: -
Size: 33x12.50R22
Wheel: 22x10
Bolt: 6x135
Offset: -18
Note: Trimming Required
Size: 33x12.50R22
Wheel: 22x10
Bolt: 6x135
Offset: -19
Note: Trimming Required
Size: 33x12.50R22
Wheel: 22x10
Bolt: 6x135
Offset: -24
Note: Trimming Required
Size: 33x12.50R22
Wheel: 22x10
Bolt: 6x135
Offset: -25
Note: Trimming Required
Size: 33x12.50R22
Wheel: 22x12
Bolt: 6x135
Offset: -44
Note: Trimming Required
Due to differences in manufacturing, dimension and inflated measurements, tire & wheel combinations should be test fit prior to installation
About this Product
2 Inch Lift Kit | Lifted Struts | Ford F-150 4WD (2014-2020)
