3.5 Inch Lift Kit Chevy/GMC 1500 (07-13)
STARTING PRICE
$549.95
STARTING PRICE
$549.95
Select Matching Wheels and Tires
FREE Mount, Balance, and Shipping!
Features
- Enhanced Ground Clearance: Conquer rough terrain with improved undercarriage clearance for better off-road capability.

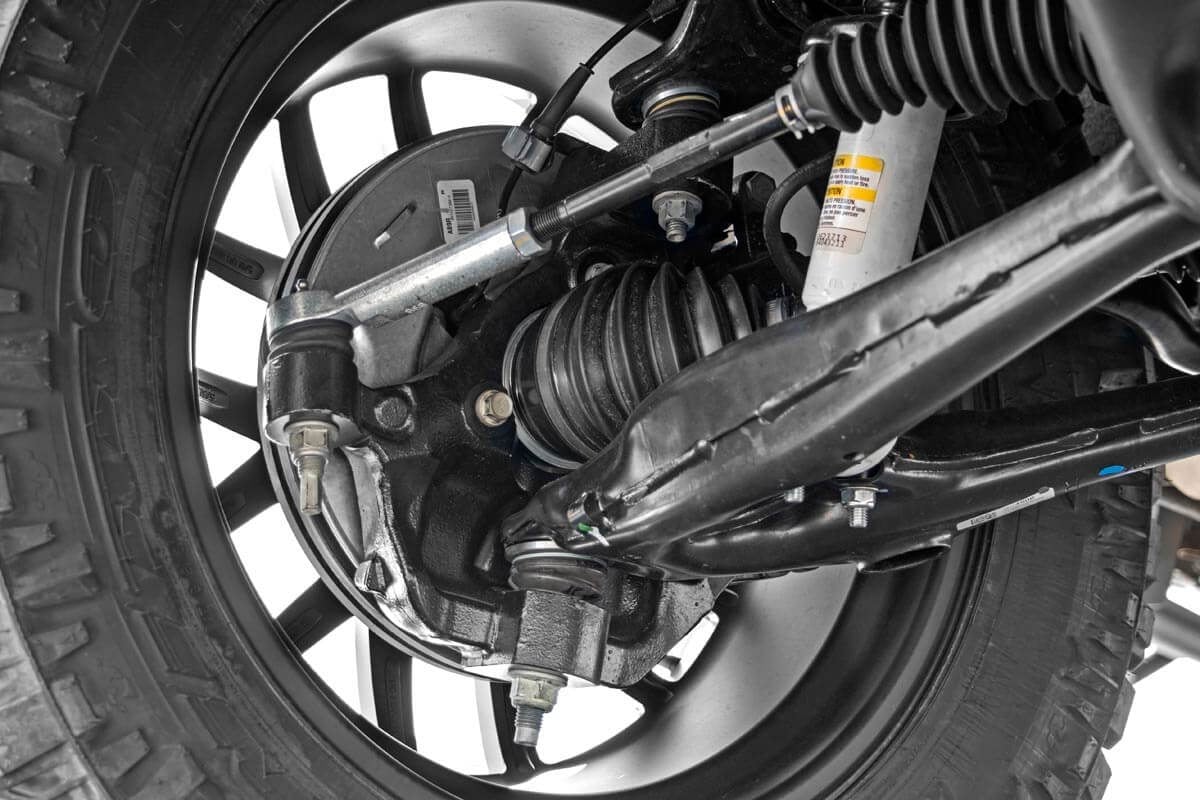

- Improved CV Axle Boot Protection: Knuckle lift design raises the CV axle position, providing better clearance from the lower control arm to reduce boot stress and wear.
- Factory Suspension Compatibility: Maintains original suspension components for reliable performance and easier installation.
- Front-to-Rear Level Stance: Eliminates the factory rake by leveling the front end with the rear for a balanced, aggressive look.
- Durable Fabricated Lift Blocks: Built stronger than cast alternatives for maximum strength and a longer service life.
- Fully Configurable with All Shock/Strut Options: Choose from our nitrogen-charged N3's to the premium Vertex reservoir for the perfect ride quality.
Fitment Notes
- Requires cutting and grinding.
- Does NOT work with aftermarket control arms.
- New lift block replaces the factory-equipped block.
- Does NOT fit 2007 "Classic" models. For a visual, please click here.
- To ensure adequate clearance when lowering the differential models equipped with a mass damper on the front differential must be removed. For a visual, please click here.
- To retain factory wheels a 0.25" wheel spacer will be required SKU: 1065.
Installation
GET IT INSTALLED
Don’t want to install it yourself? Search for installers in your area.
FITMENT
Vehicles
year: 2007 - 2013
make: Chevy
model: Silverado 1500
drive: 4WD
year: 2007 - 2013
make: GMC
model: Sierra 1500
drive: 4WD
year: 2007 - 2013
make: GMC
model: Sierra 1500
drive: AWD
Always read all product page details for more important fitment information
Wheels & Tires
size: 285/70R17
Popular
wheel: 17x9
Bolt Pattern: 6x5.5
Wheel Offset: +0
note: -
Stance: 1
size: 285/65R18
Popular
wheel: 18x8.5
Bolt Pattern: 6x5.5
Wheel Offset: +0
note: -
Stance: 1
size: 285/55R20
Popular
wheel: 20x9
Bolt Pattern: 6x5.5
Wheel Offset: +0
note: -
Stance: 1
size: 285/70R17
wheel: Factory 17
Bolt Pattern: 6x5.5
Wheel Offset: -
note: -
Stance: 0
size: 285/65R18
wheel: Factory 18
Bolt Pattern: 6x5.5
Wheel Offset: -
note: -
Stance: 0
size: 285/55R20
wheel: Factory 20
Bolt Pattern: 6x5.5
Wheel Offset: -
note: -
Stance: 0
size: 285/70R17
wheel: 17x8.5
Bolt Pattern: 6x5.5
Wheel Offset: +0
note: -
Stance: 1
size: 285/70R17
wheel: 17x8.5
Bolt Pattern: 6x5.5
Wheel Offset: +1
note: -
Stance: 1
size: 285/70R17
wheel: 17x8.5
Bolt Pattern: 6x5.5
Wheel Offset: +25
note: -
Stance: 0
size: 265/70R17
wheel: 17x9
Bolt Pattern: 6x5.5
Wheel Offset: +0
note: -
Stance: 0
size: 265/70R17
wheel: 17x9
Bolt Pattern: 6x5.5
Wheel Offset: +1
note: -
Stance: 0
size: 285/70R17
wheel: 17x9
Bolt Pattern: 6x5.5
Wheel Offset: +1
note: -
Stance: 1
size: 285/70R17
wheel: 17x9
Bolt Pattern: 6x5.5
Wheel Offset: +18
note: -
Stance: 0
size: 285/70R17
wheel: 17x9
Bolt Pattern: 6x5.5
Wheel Offset: +20
note: -
Stance: 0
size: 265/65R18
wheel: 18x8.5
Bolt Pattern: 6x5.5
Wheel Offset: +0
note: -
Stance: 0
size: 265/65R18
wheel: 18x8.5
Bolt Pattern: 6x5.5
Wheel Offset: +1
note: -
Stance: 0
size: 275/65R18
wheel: 18x8.5
Bolt Pattern: 6x5.5
Wheel Offset: +0
note: -
Stance: 0
size: 275/65R18
wheel: 18x8.5
Bolt Pattern: 6x5.5
Wheel Offset: +1
note: -
Stance: 0
size: 285/65R18
wheel: 18x8.5
Bolt Pattern: 6x5.5
Wheel Offset: +1
note: -
Stance: 1
size: 265/65R18
wheel: 18x9
Bolt Pattern: 6x5.5
Wheel Offset: +0
note: -
Stance: 0
size: 265/65R18
wheel: 18x9
Bolt Pattern: 6x5.5
Wheel Offset: +1
note: -
Stance: 0
size: 265/65R18
wheel: 18x9
Bolt Pattern: 6x5.5
Wheel Offset: +18
note: -
Stance: 0
size: 265/65R18
wheel: 18x9
Bolt Pattern: 6x5.5
Wheel Offset: +20
note: -
Stance: 0
size: 275/65R18
wheel: 18x9
Bolt Pattern: 6x5.5
Wheel Offset: +0
note: -
Stance: 0
size: 275/65R18
wheel: 18x9
Bolt Pattern: 6x5.5
Wheel Offset: +1
note: -
Stance: 0
size: 275/65R18
wheel: 18x9
Bolt Pattern: 6x5.5
Wheel Offset: +18
note: -
Stance: 0
size: 275/65R18
wheel: 18x9
Bolt Pattern: 6x5.5
Wheel Offset: +20
note: -
Stance: 0
size: 285/65R18
wheel: 18x9
Bolt Pattern: 6x5.5
Wheel Offset: +0
note: -
Stance: 1
size: 285/65R18
wheel: 18x9
Bolt Pattern: 6x5.5
Wheel Offset: +1
note: -
Stance: 1
size: 285/65R18
wheel: 18x9
Bolt Pattern: 6x5.5
Wheel Offset: +18
note: -
Stance: 0
size: 285/65R18
wheel: 18x9
Bolt Pattern: 6x5.5
Wheel Offset: +20
note: -
Stance: 0
size: 265/55R20
wheel: 20x10
Bolt Pattern: 6x5.5
Wheel Offset: -18
note: -
Stance: 1
size: 265/55R20
wheel: 20x10
Bolt Pattern: 6x5.5
Wheel Offset: -19
note: -
Stance: 1
size: 285/55R20
wheel: 20x9
Bolt Pattern: 6x5.5
Wheel Offset: +1
note: -
Stance: 1
size: 285/55R20
wheel: 20x9
Bolt Pattern: 6x5.5
Wheel Offset: +18
note: -
Stance: 0
size: 285/55R20
wheel: 20x9
Bolt Pattern: 6x5.5
Wheel Offset: +20
note: -
Stance: 0
size: 285/45R22
wheel: 22x10
Bolt Pattern: 6x5.5
Wheel Offset: -18
note: -
Stance: 1
size: 285/45R22
wheel: 22x10
Bolt Pattern: 6x5.5
Wheel Offset: -19
note: -
Stance: 1
Due to differences in manufacturing, dimension and inflated measurements, tire & wheel combinations should be test fit prior to installation
