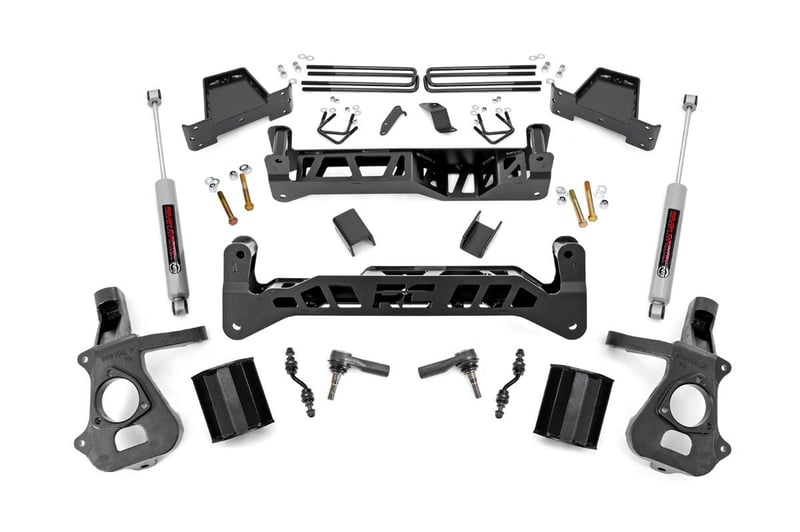

7 Inch Lift Kit Chevy/GMC 1500 2WD (2014-2018)
Features
- Can run 34" tires on factory 20" wheels.
- Provides highly sought level stance.
- High clearance crossmember design gives unmatched ground clearance.
- Requires no modification to the stock drivetrain or exhaust.
- 100% precision laser cut materials using the latest computer aided design process.
- No need to disassemble your struts to install
- Re-uses stock front skid plate
Fitment Notes
- IMPORTANT! - Installation of larger tires will require a Hypertech Speedometer Calibrator (#732501)
- Does not fit Hybrid eAssist models
- Requires minor cutting and drilling.
- Must know if Stock Control Arms are Cast Aluminum, Stamped Steel or Cast Steel
- Cast Steel Control arm kit (237.20) will give a total of 7.5-inches of lift
- Does NOT fit GMC Denali models with Magnetic Ride Control.
- 2014+ models require removal of front skid plate bracket
- 18" or larger wheels are required.
- Please view installation instructions for complete information on proper tire/wheel combinations.
Installation
GET IT INSTALLED
Don’t want to install it yourself? Search for installers in your area.
FITMENT
Vehicles
Year : 2014 - 2018
Make : Chevy
Model : Silverado 1500
Drive : RWD
Year : 2014 - 2018
Make : GMC
Model : Sierra 1500
Drive : RWD
Always read all product page details for more important fitment information
Tires
Size: 295/60R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -18
Note: -
Size: 295/60R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -19
Note: -
Size: 295/60R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +0
Note: -
Size: 295/60R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +1
Note: -
Size: 295/60R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +18
Note: -
Size: 295/60R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +20
Note: 0.25 Spacer
Size: 295/60R20
Wheel: Factory 20
Bolt: 6x5.5
Offset: -
Note: -
Size: 295/60R20
Wheel: Factory 20
Bolt: 6x5.5
Offset: -
Note: 0.25 Spacer
Size: 295/65R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +12
Note: -
Size: 295/65R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +12
Note: 0.25 Spacer
Size: 295/65R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +18
Note: -
Size: 295/65R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +18
Note: 0.25 Spacer
Size: 295/70R18
Wheel: 18x9
Bolt: 6x5.5
Offset: +12
Note: -
Size: 295/70R18
Wheel: 18x9
Bolt: 6x5.5
Offset: +12
Note: 0.25 Spacer
Size: 295/70R18
Wheel: 18x9
Bolt: 6x5.5
Offset: +18
Note: -
Size: 295/70R18
Wheel: 18x9
Bolt: 6x5.5
Offset: +18
Note: 0.25 Spacer
Size: 295/70R18
Wheel: Factory 18
Bolt: 6x5.5
Offset: -
Note: -
Size: 295/70R18
Wheel: Factory 18
Bolt: 6x5.5
Offset: -
Note: 0.25 Spacer
Size: 315/70R17
Wheel: 17x9
Bolt: 6x5.5
Offset: +12
Note: -
Size: 315/70R17
Wheel: 17x9
Bolt: 6x5.5
Offset: +18
Note: -
Size: 35x12.50R17
Wheel: 17x8.5
Bolt: 6x5.5
Offset: +0
Note: -
Size: 35x12.50R17
Wheel: 17x8.5
Bolt: 6x5.5
Offset: +1
Note: -
Size: 35x12.50R17
Wheel: 17x9
Bolt: 6x5.5
Offset: +0
Note: -
Size: 35x12.50R17
Wheel: 17x9
Bolt: 6x5.5
Offset: +1
Note: -
Size: 35x12.50R17
Wheel: 17x9
Bolt: 6x5.5
Offset: +18
Note: -
Size: 35x12.50R18
Wheel: 18x8.5
Bolt: 6x5.5
Offset: +0
Note: -
Size: 35x12.50R18
Wheel: 18x8.5
Bolt: 6x5.5
Offset: +1
Note: -
Size: 35x12.50R18
Wheel: 18x9
Bolt: 6x5.5
Offset: +0
Note: -
Size: 35x12.50R18
Wheel: 18x9
Bolt: 6x5.5
Offset: +1
Note: -
Size: 35x12.50R18
Wheel: 18x9
Bolt: 6x5.5
Offset: +18
Note: -
Size: 35x12.50R18
Wheel: 18x9
Bolt: 6x5.5
Offset: +19
Note: 0.25 Spacer
Size: 35x12.50R18
Wheel: 18x9
Bolt: 6x5.5
Offset: +20
Note: -
Size: 35x12.50R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -18
Note: Minor Trimming
Size: 35x12.50R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -19
Note: Minor Trimming
Size: 35x12.50R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +0
Note: -
Size: 35x12.50R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +1
Note: -
Size: 35x12.50R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +18
Note: -
Size: 35x12.50R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +20
Note: -
Size: 35x12.50R22
Wheel: 22x10
Bolt: 6x5.5
Offset: -19
Note: Minor Trimming
Due to differences in manufacturing, dimension and inflated measurements, tire & wheel combinations should be test fit prior to installation
About this Product
7 Inch Lift Kit | Chevy/GMC 1500 2WD (2014-2018)
