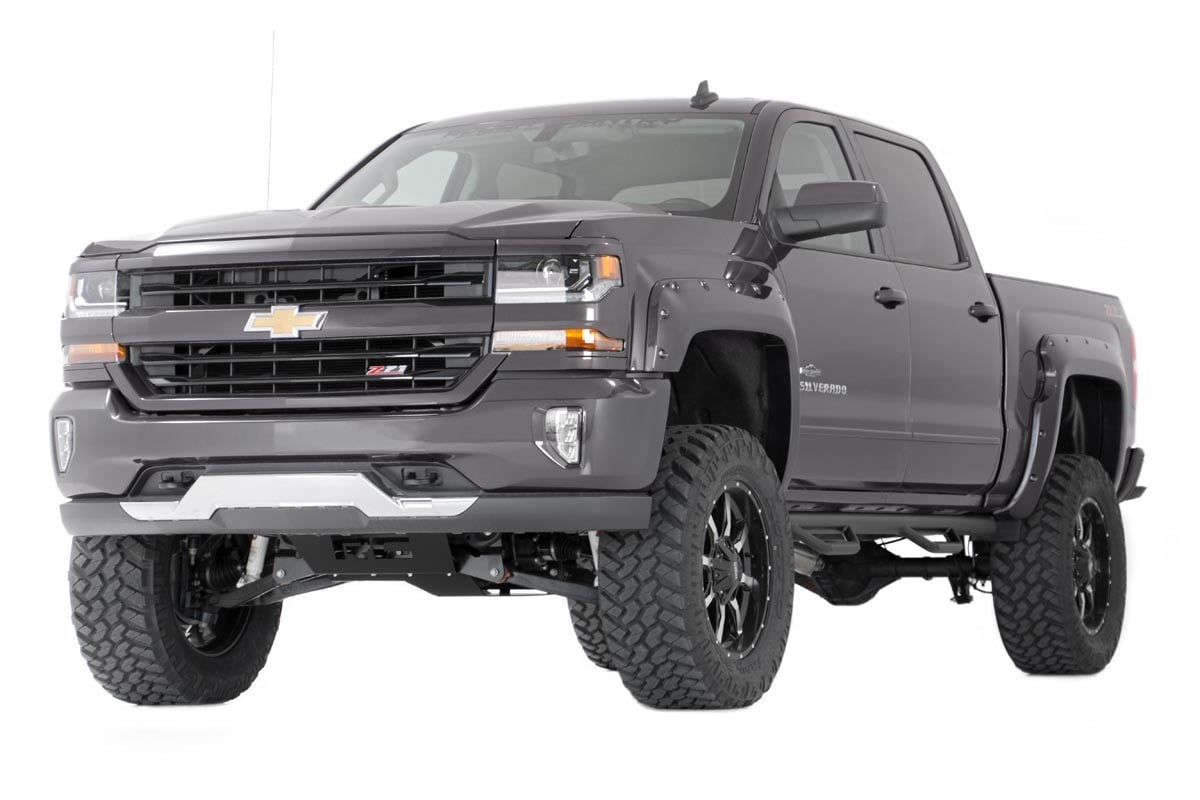

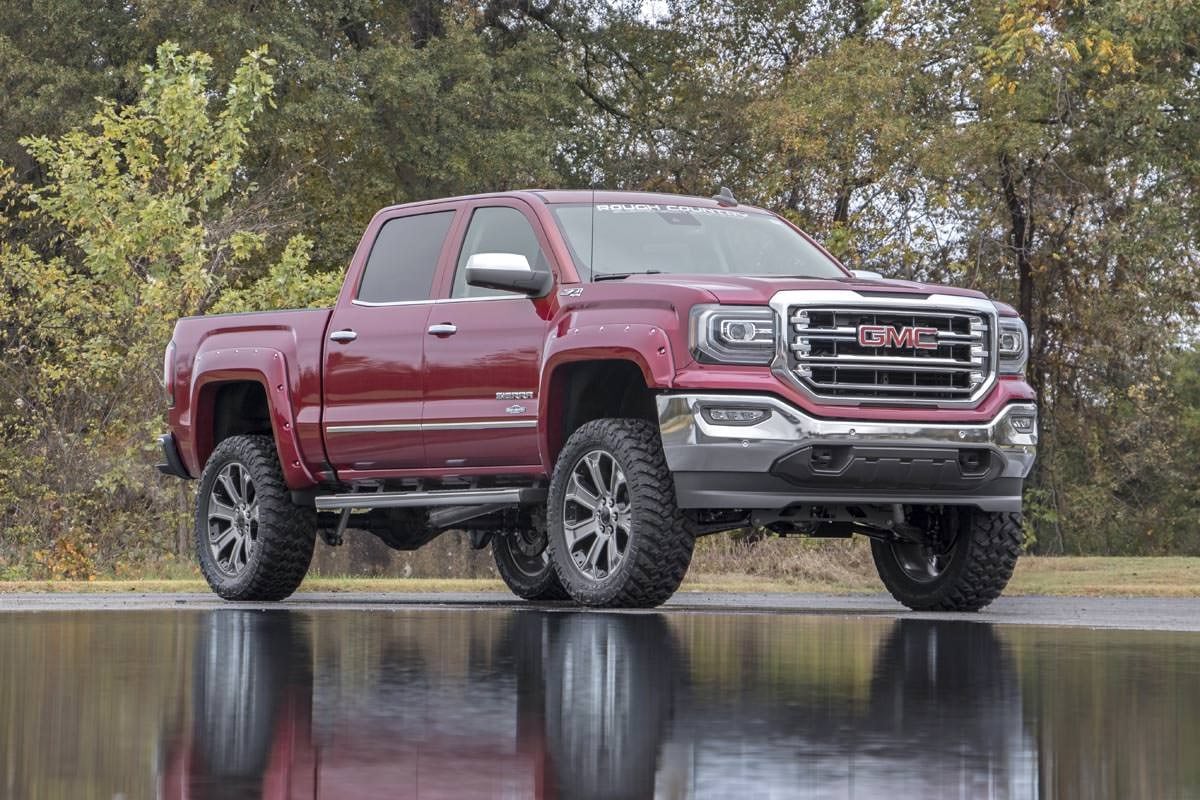

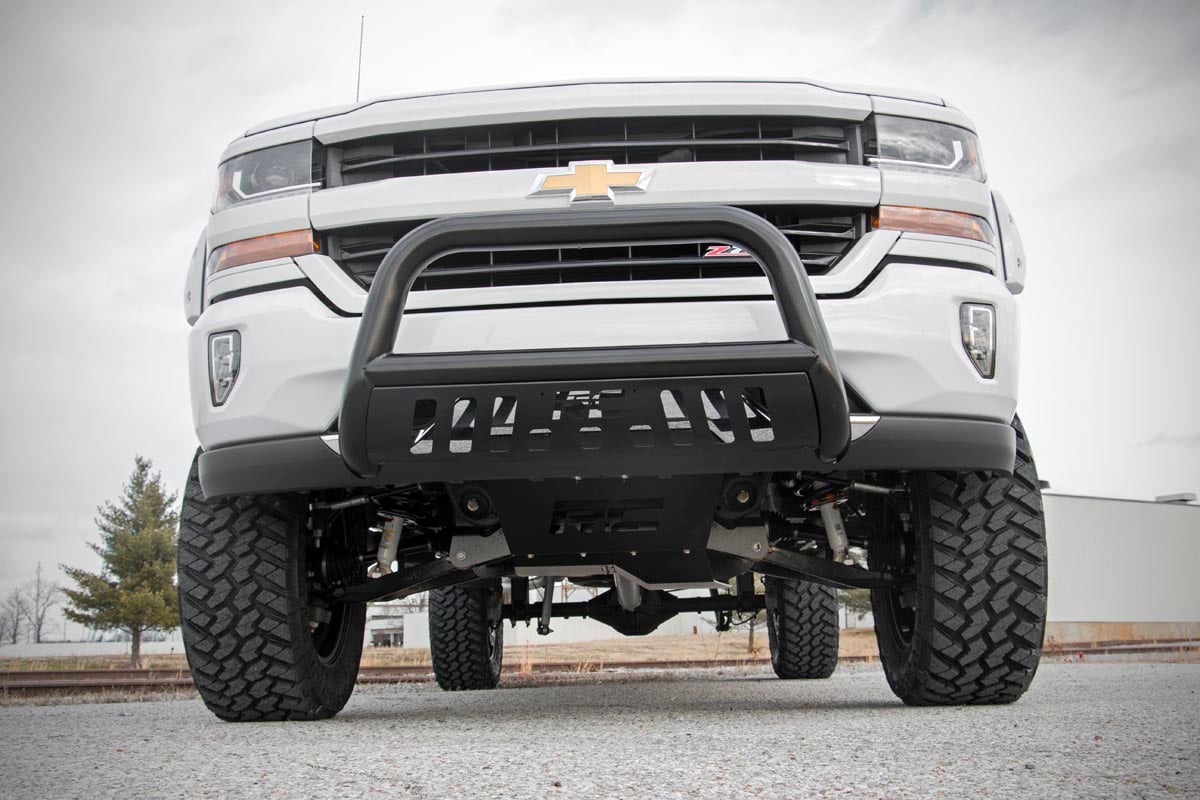

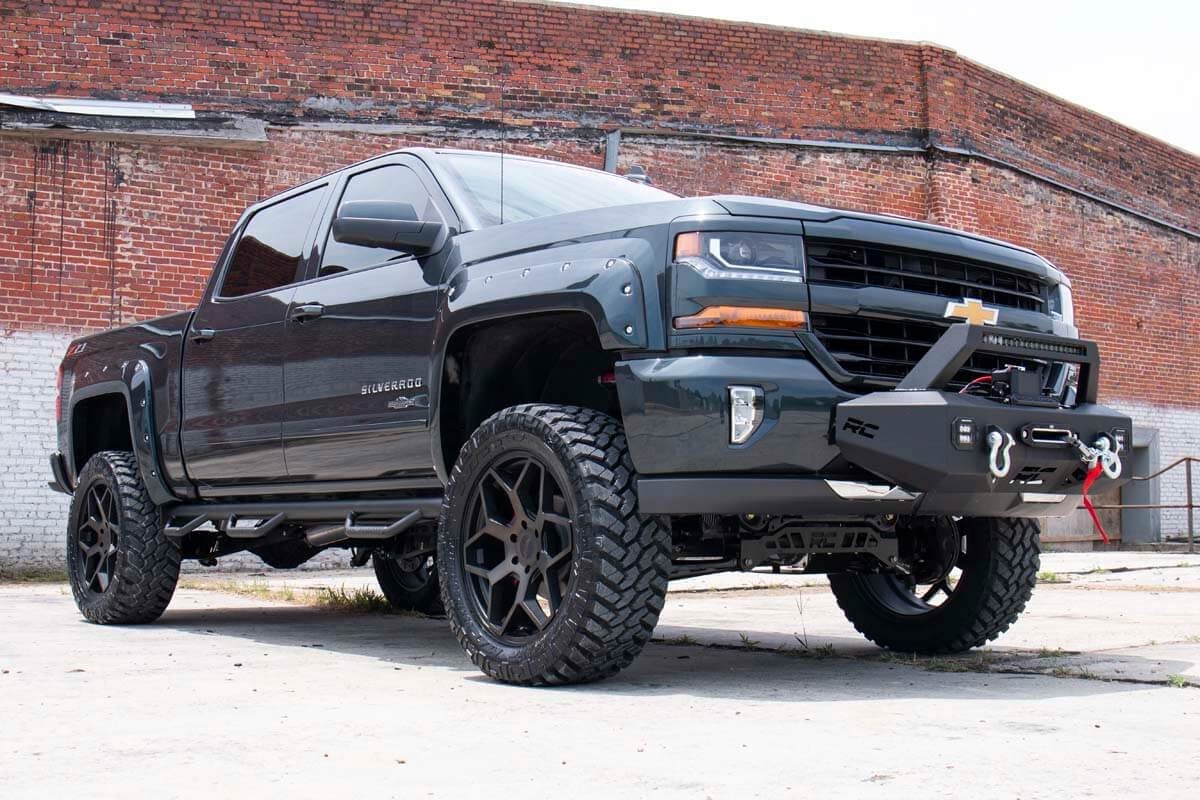

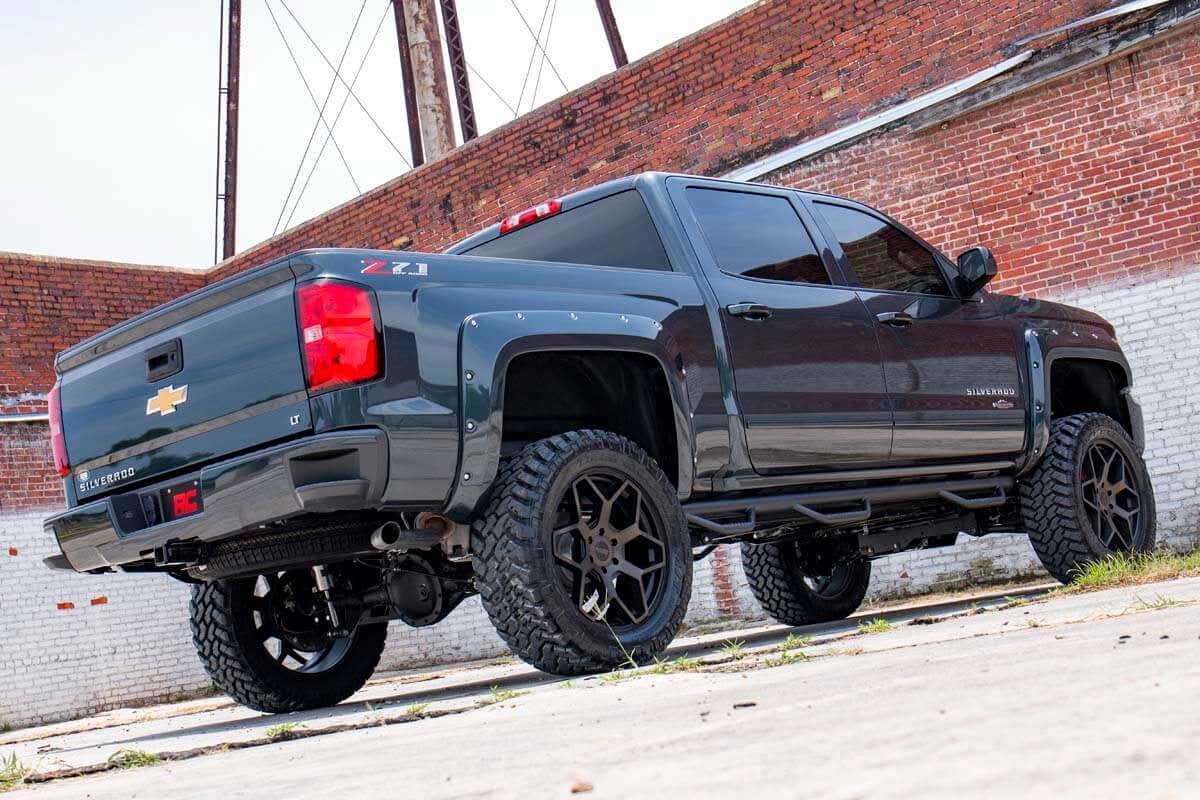

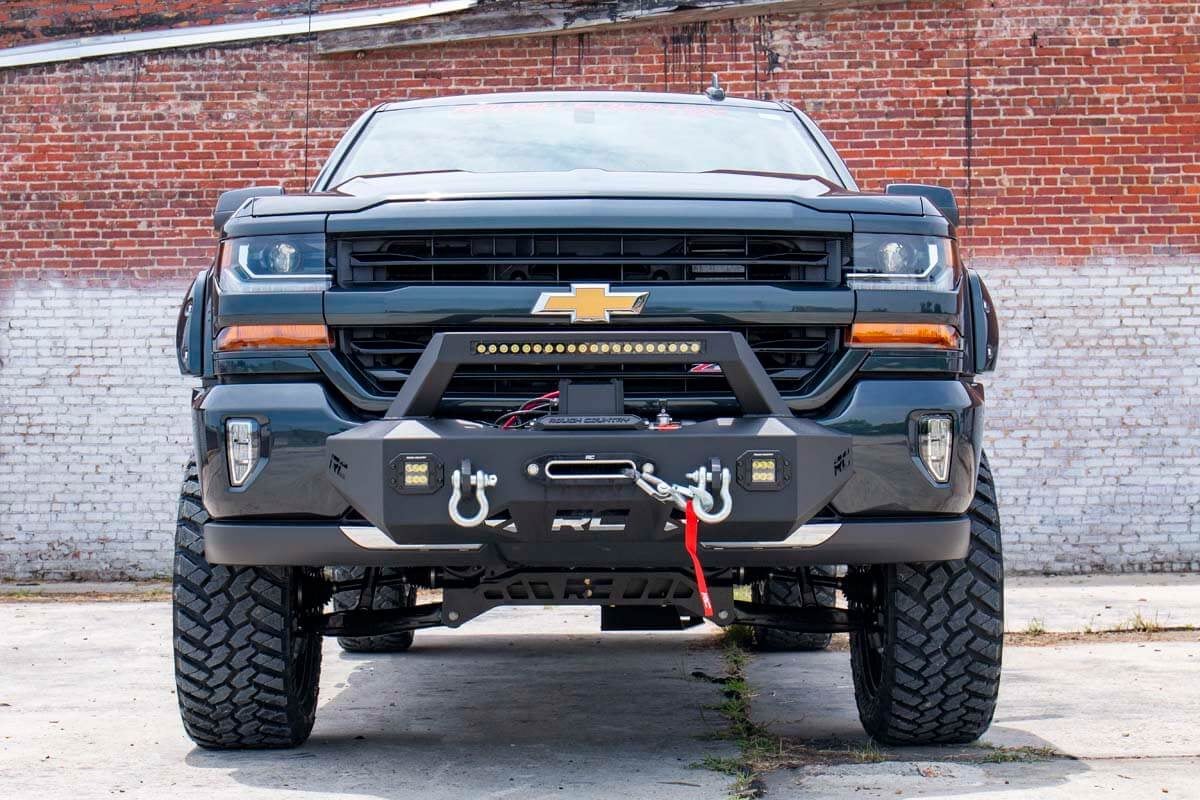

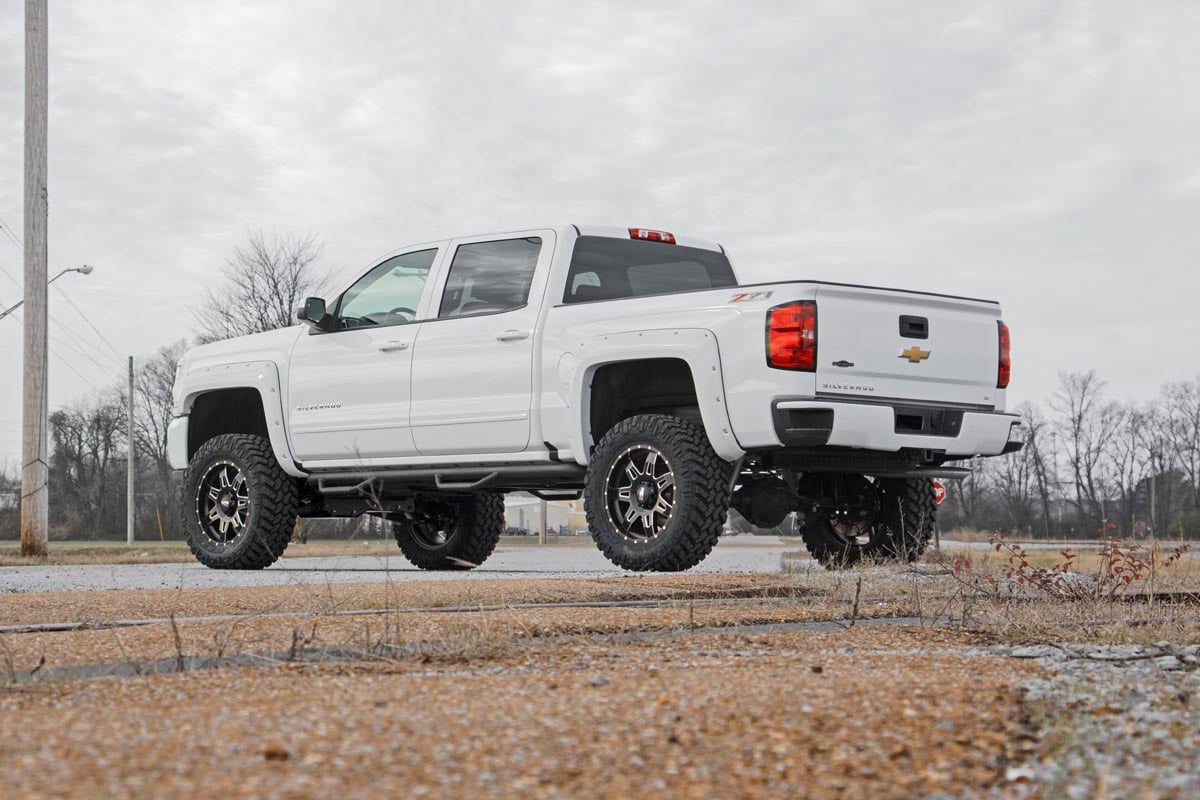

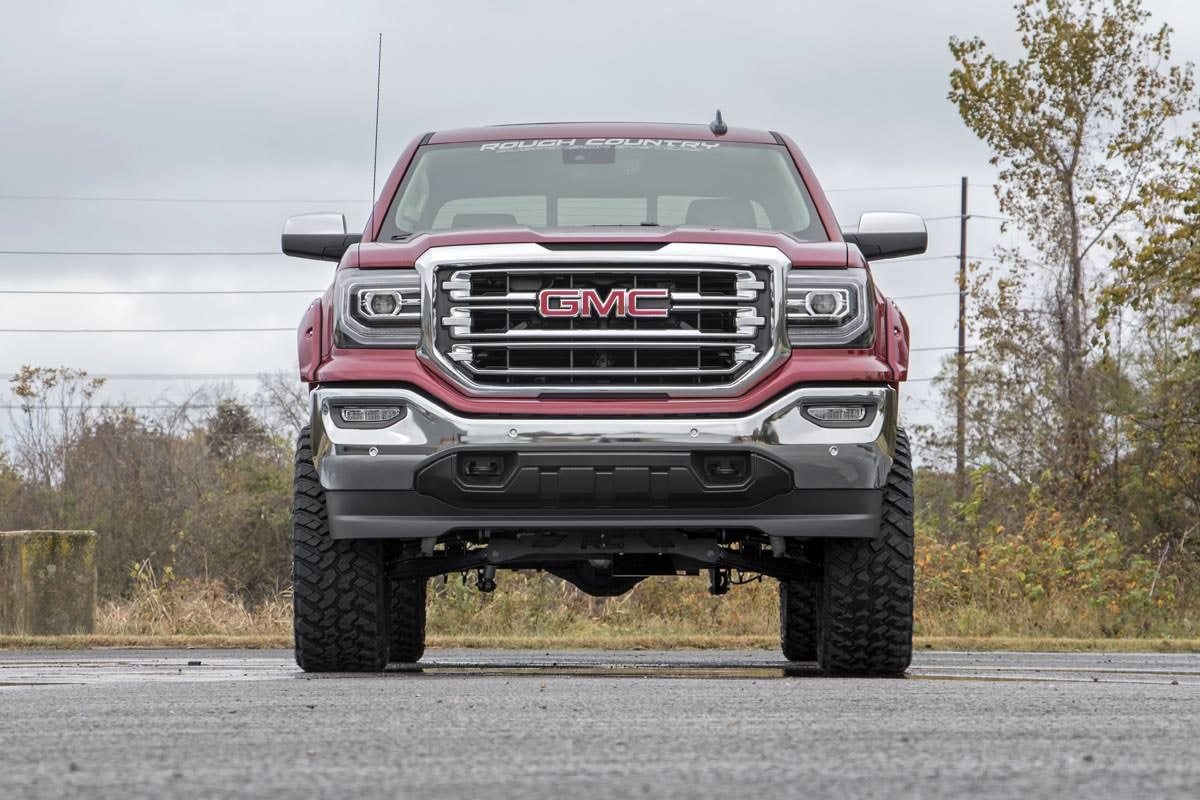

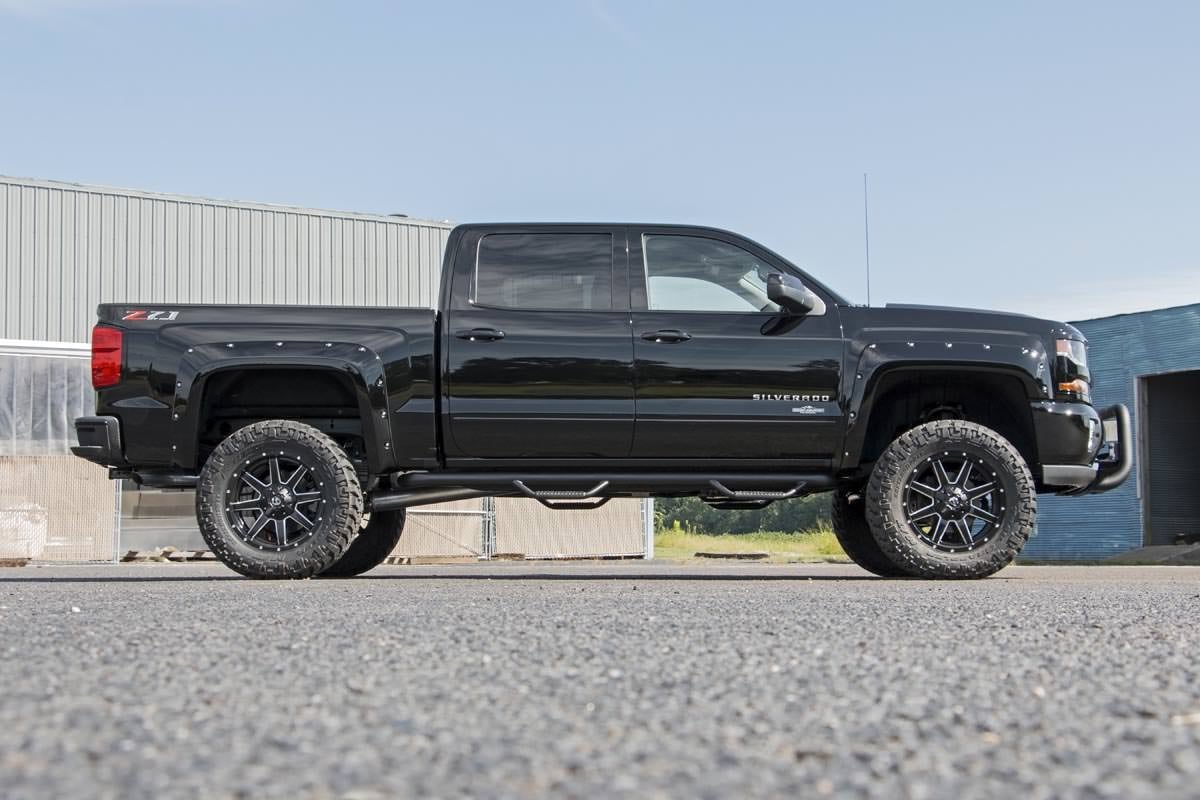

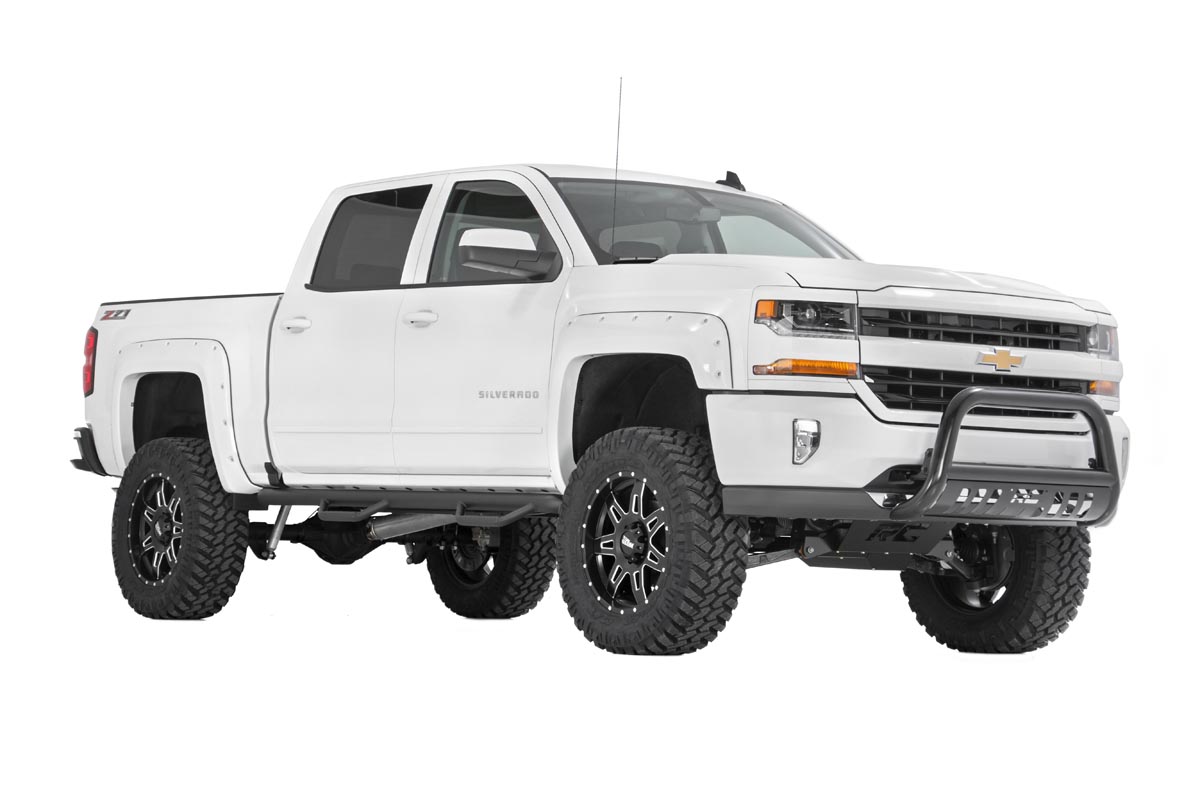

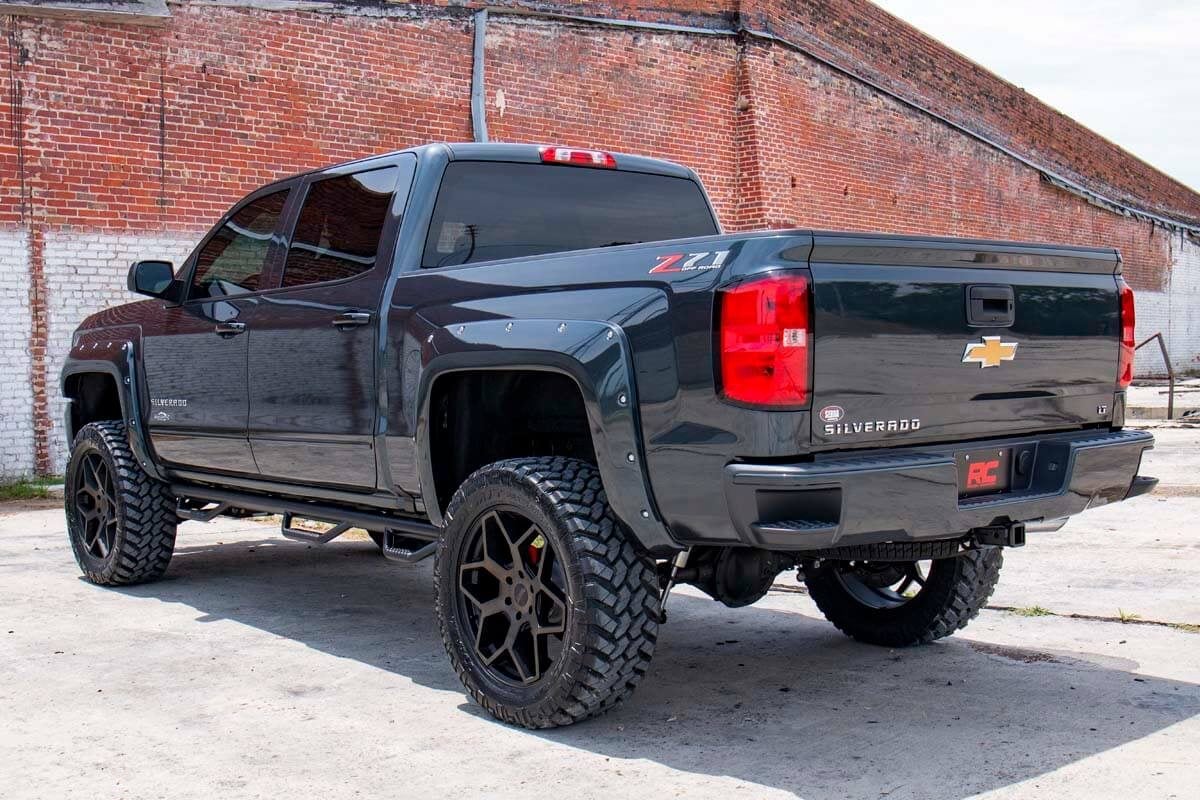

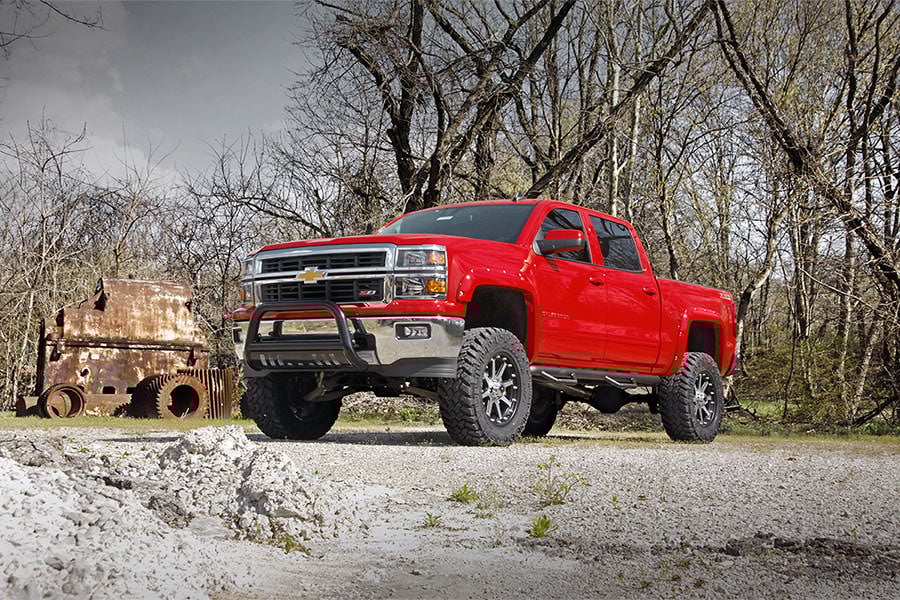

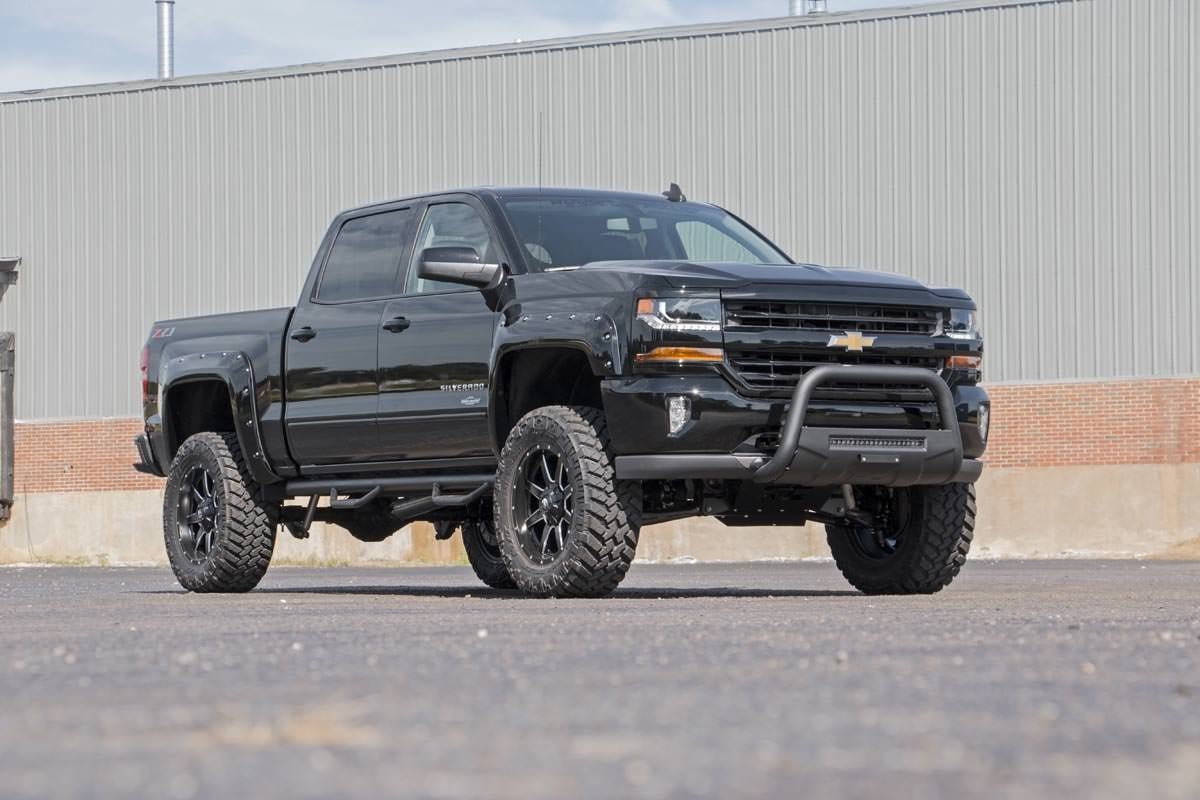

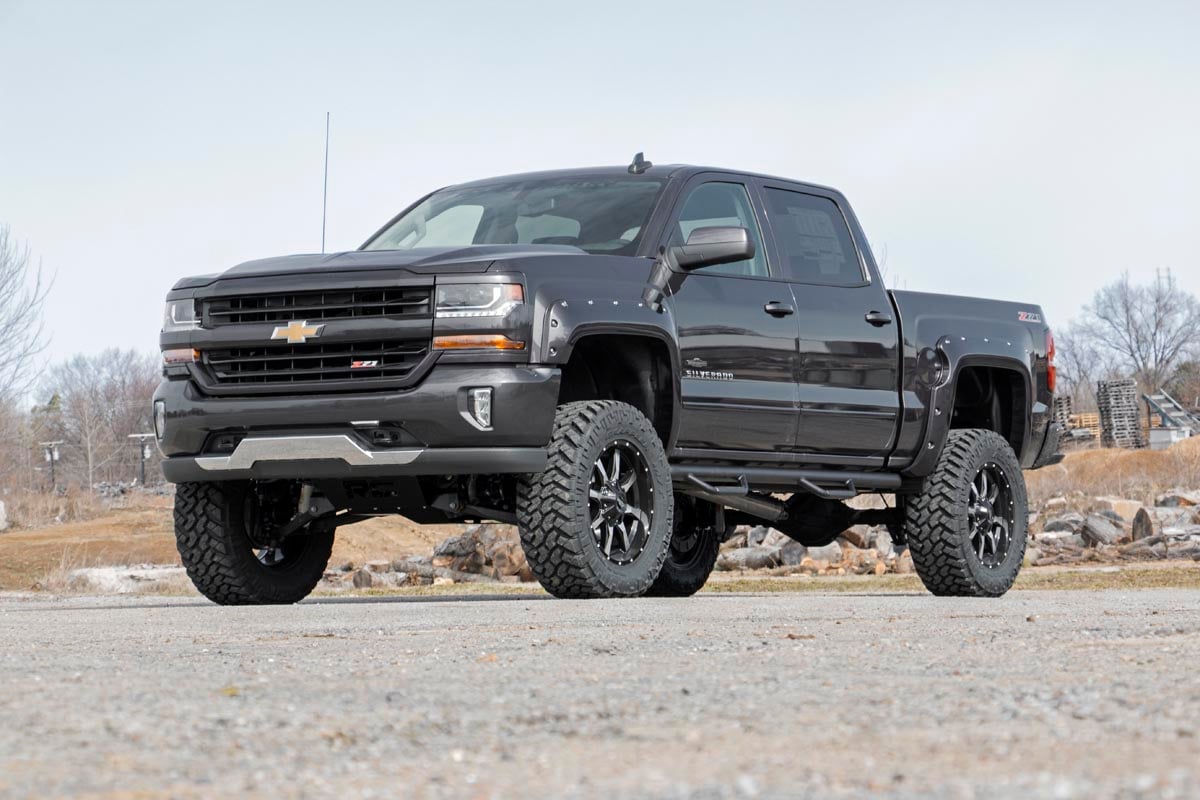

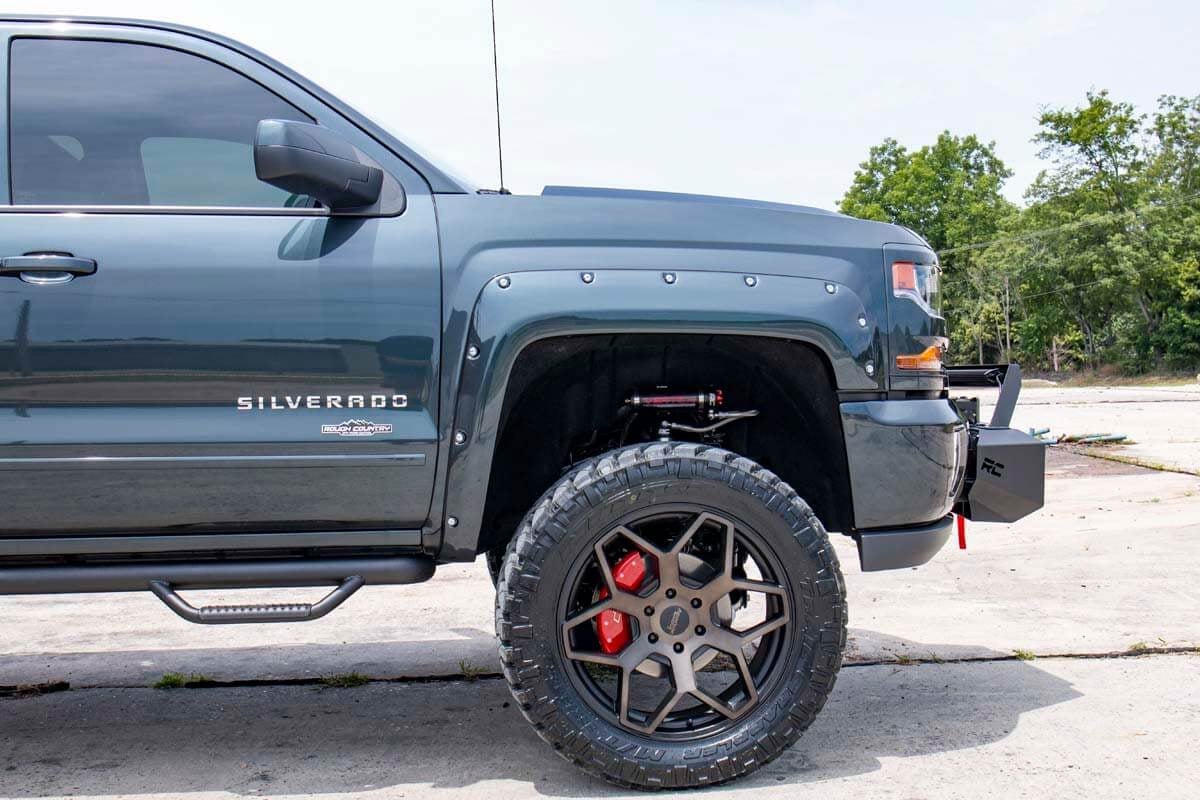

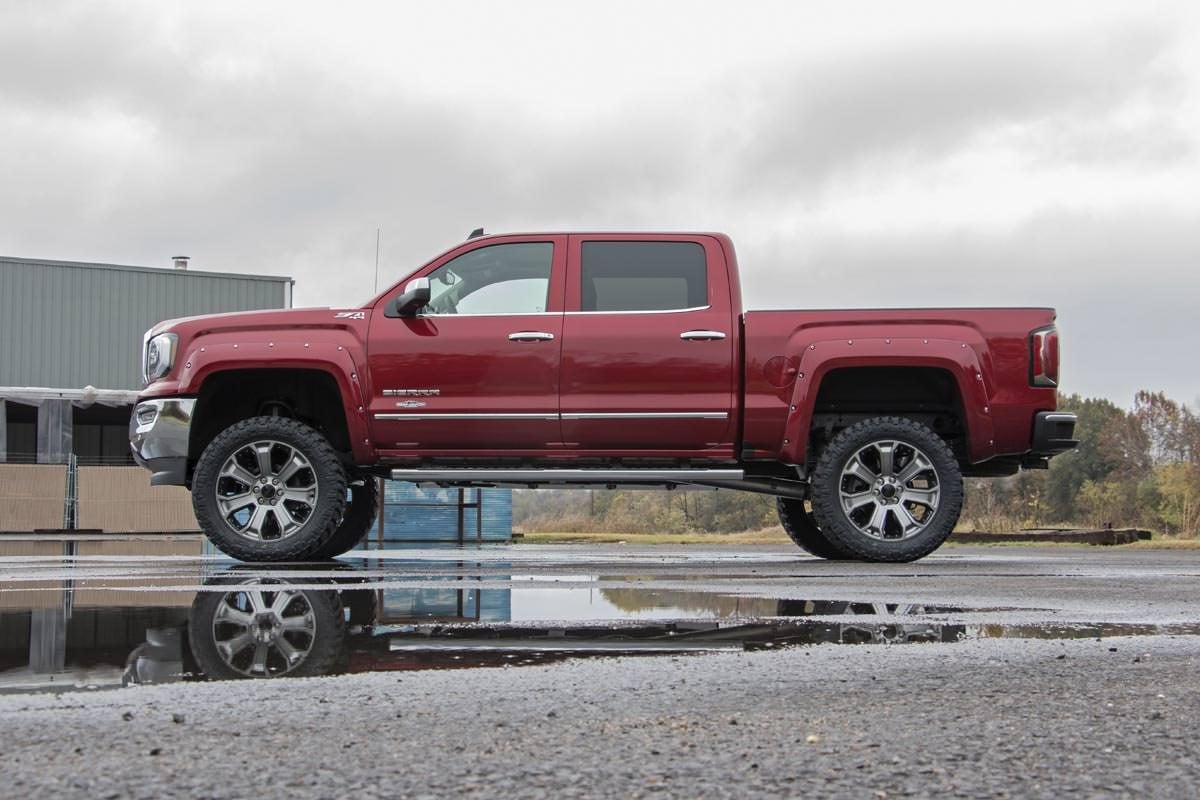

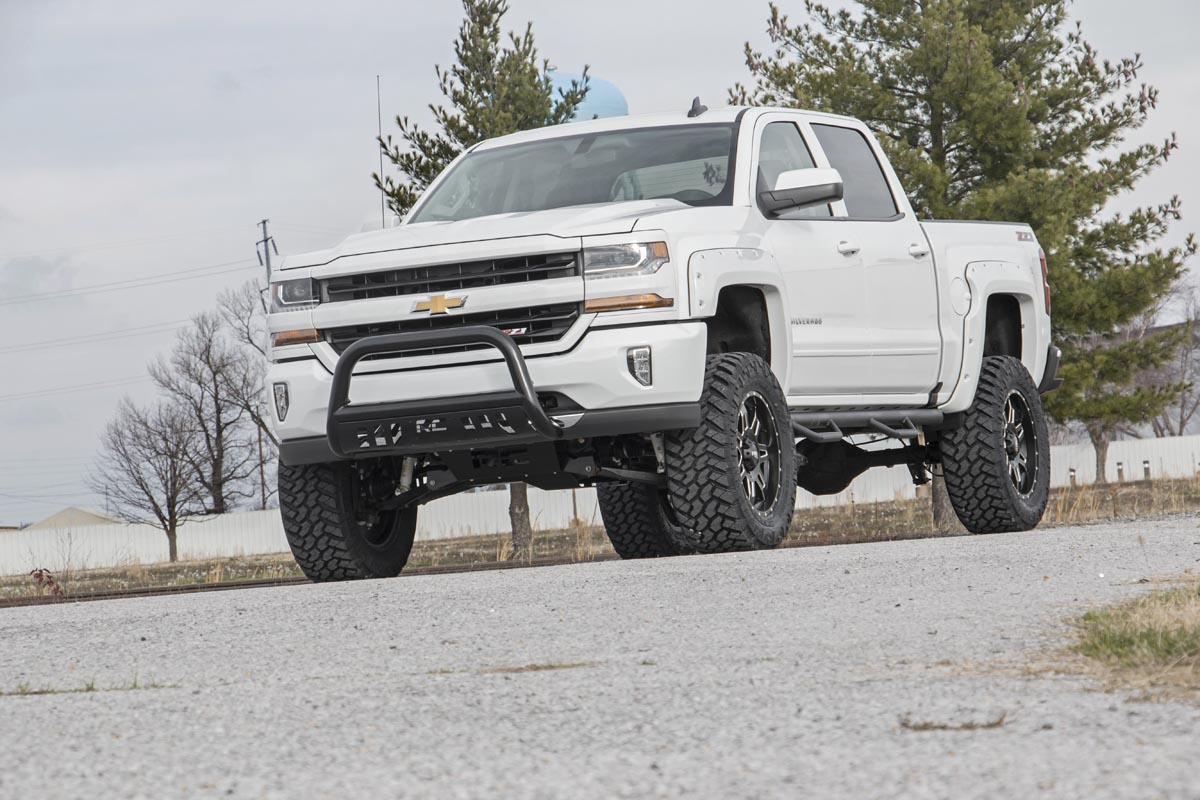

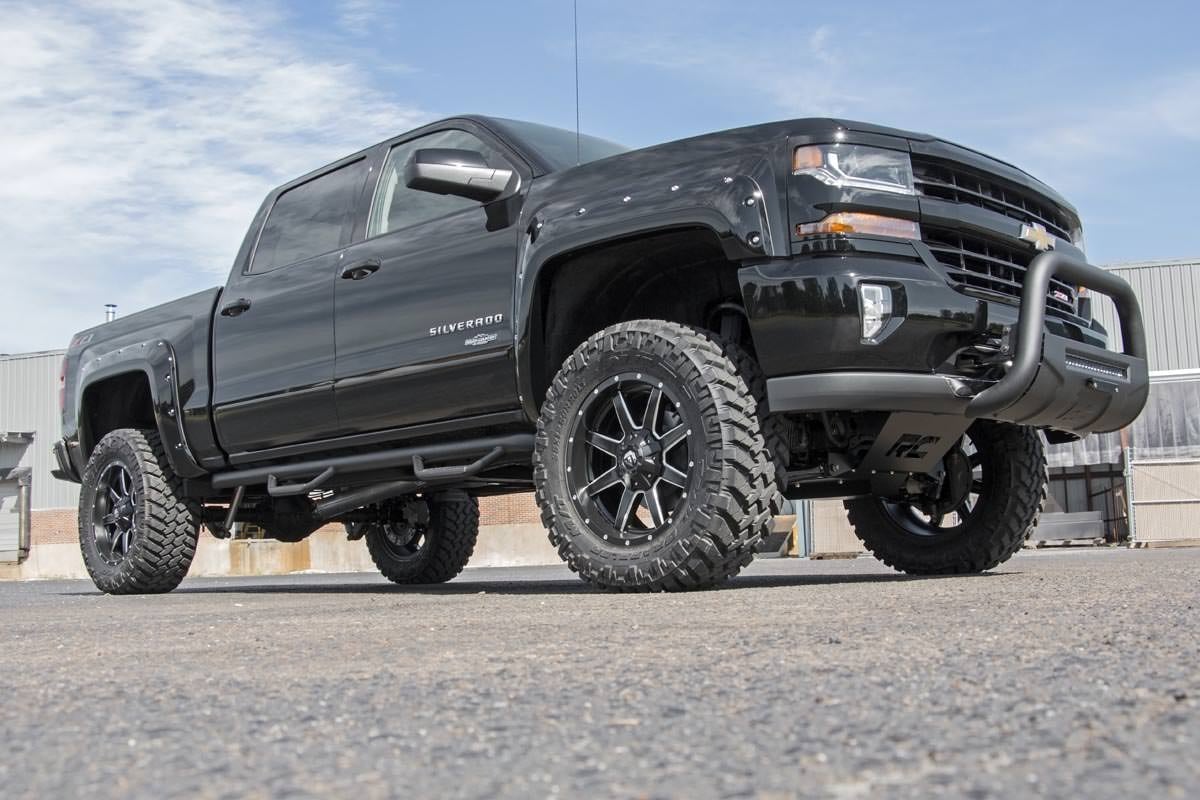

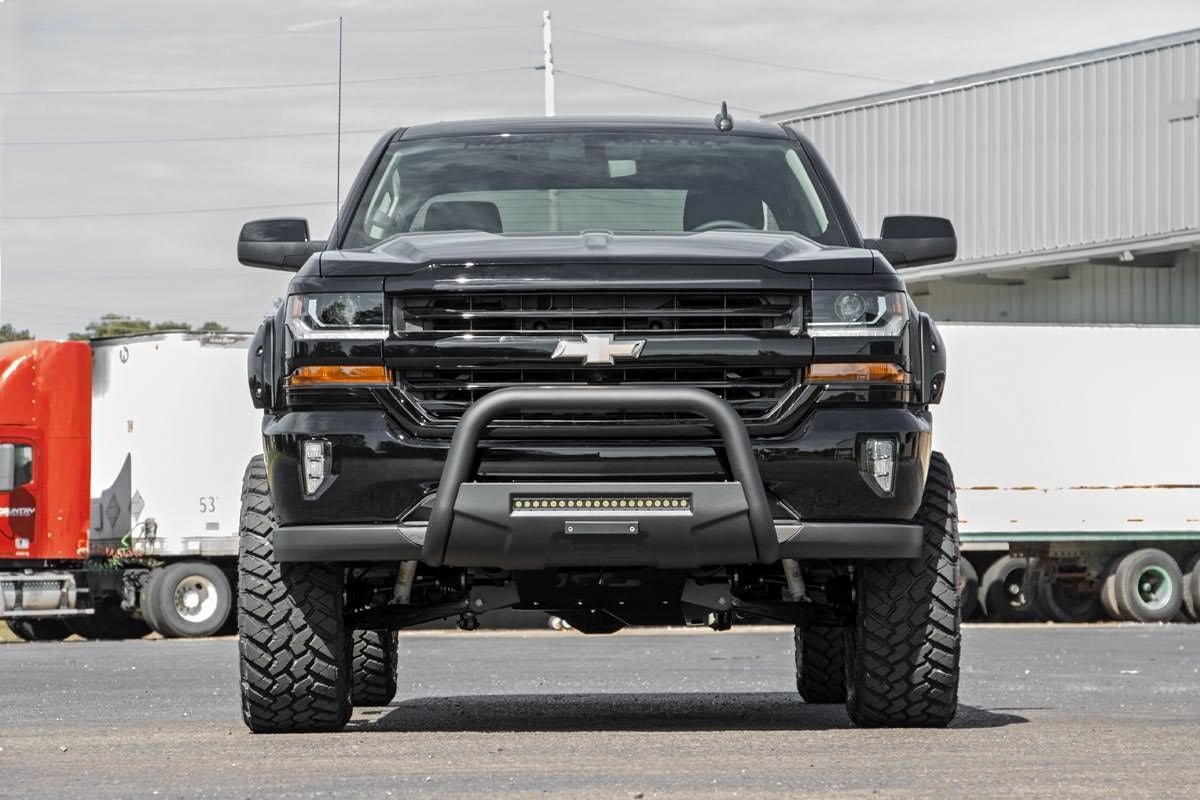

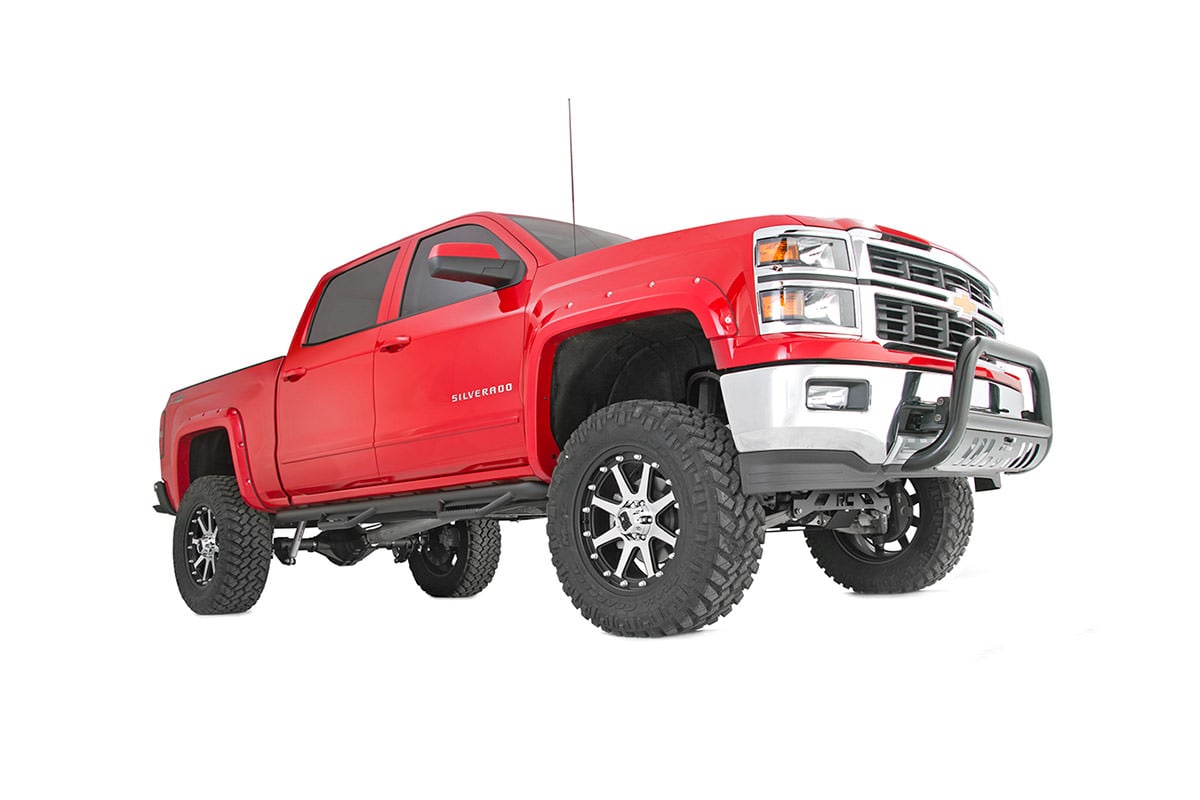

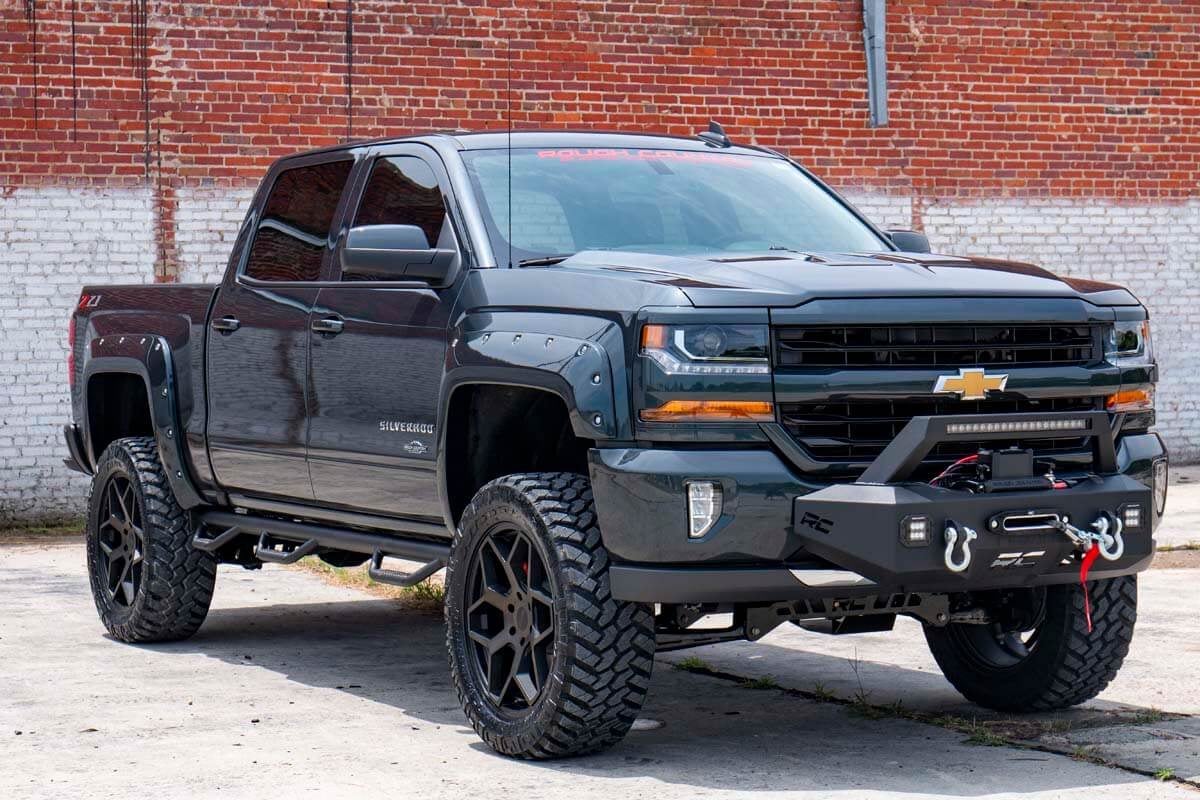

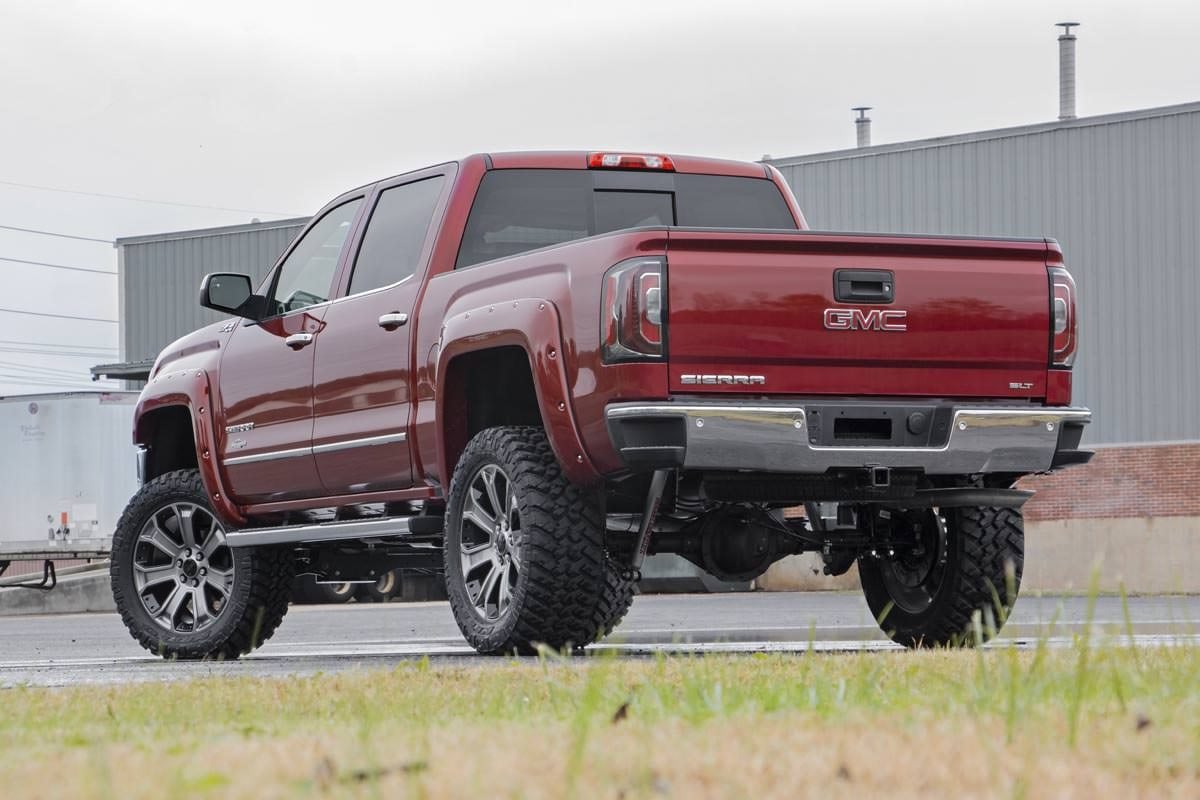

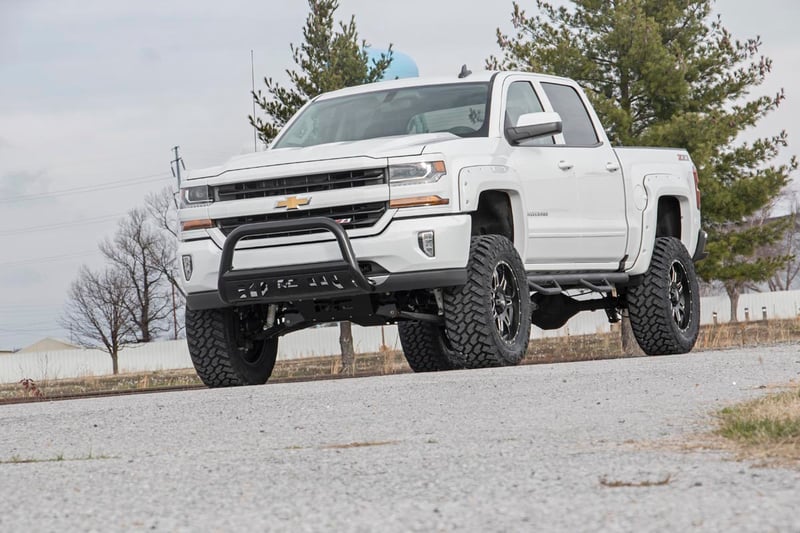

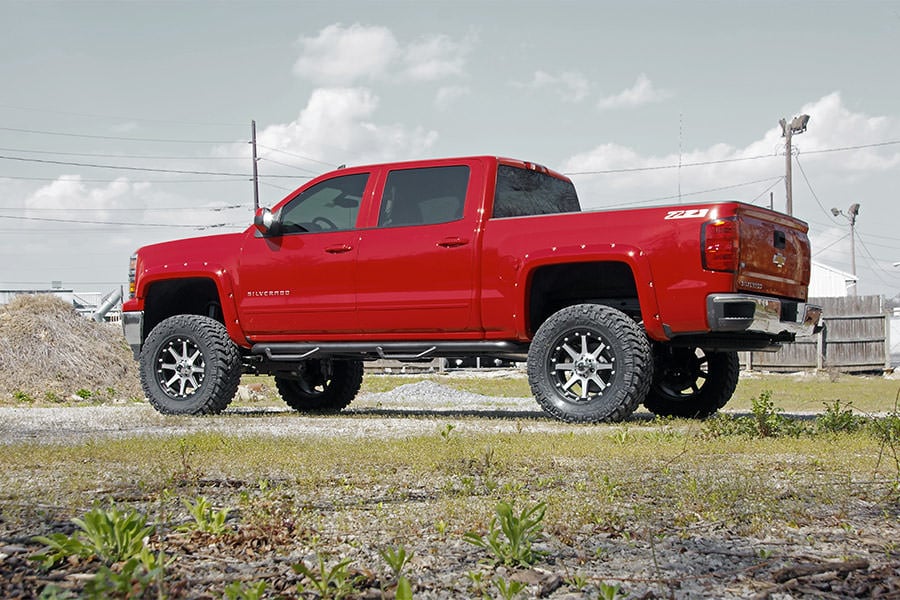

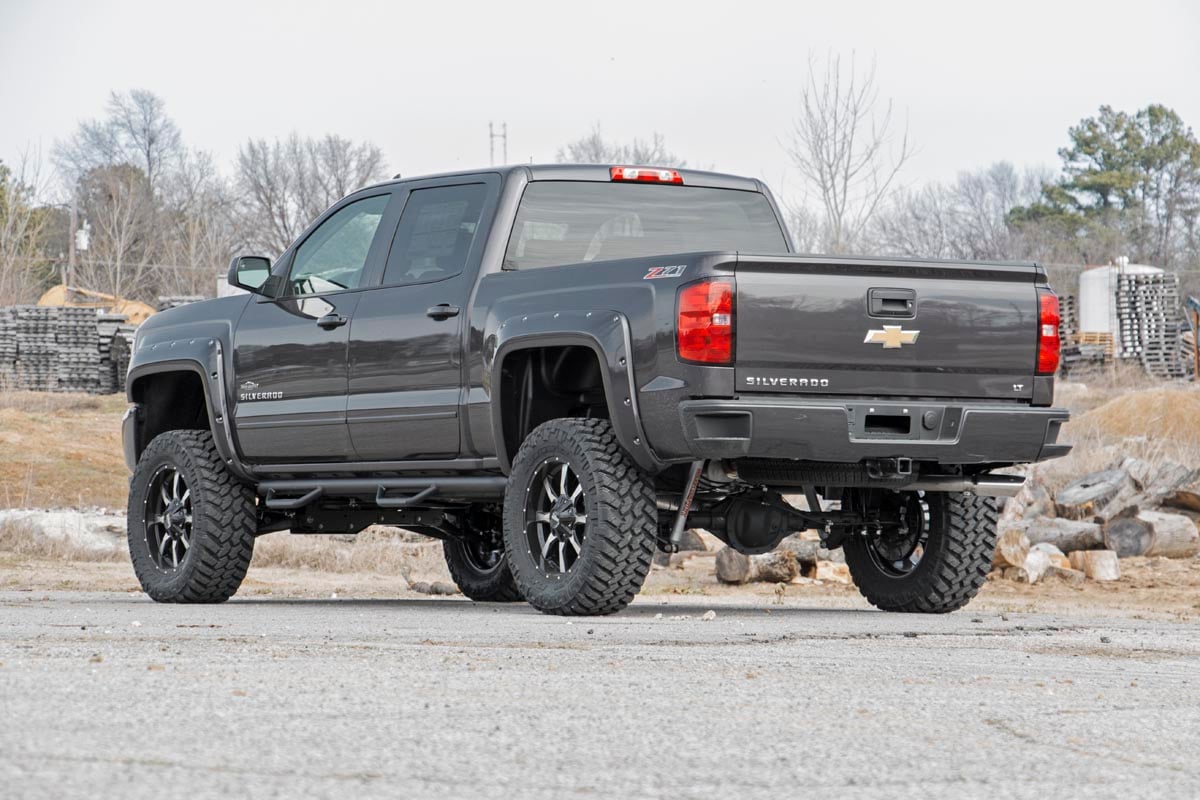

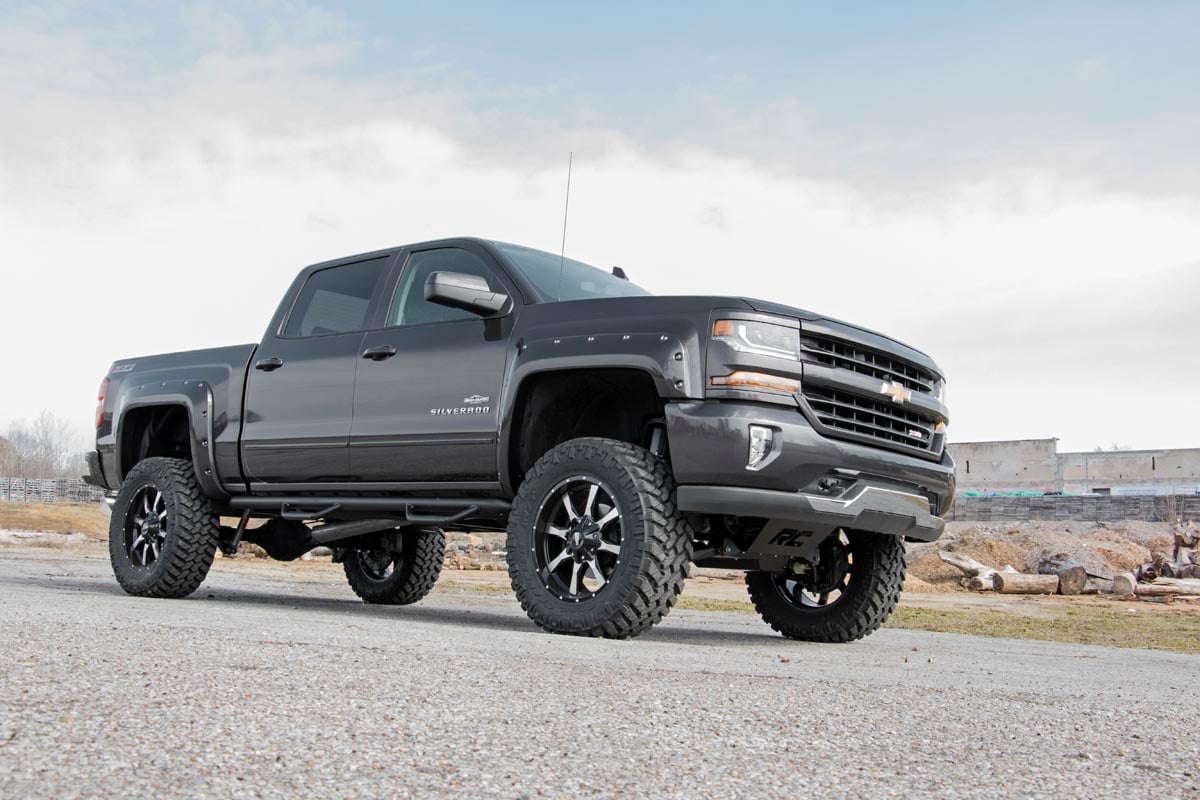

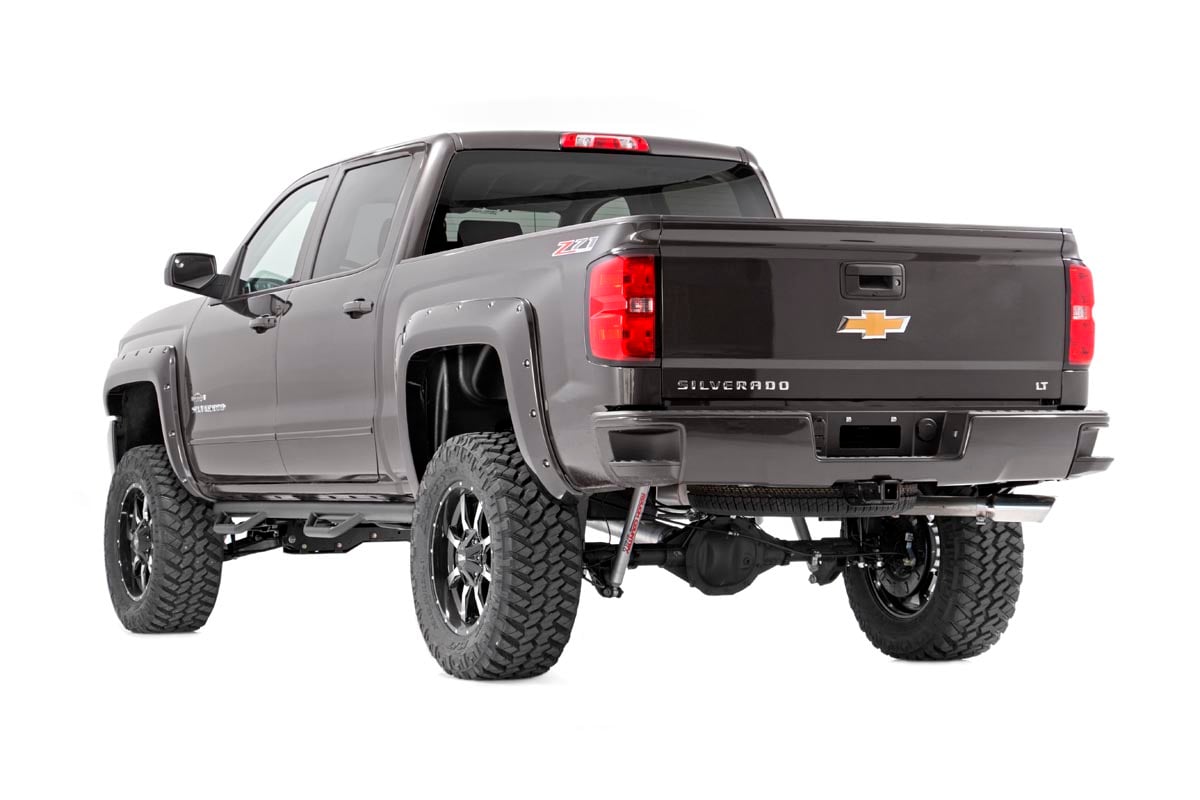

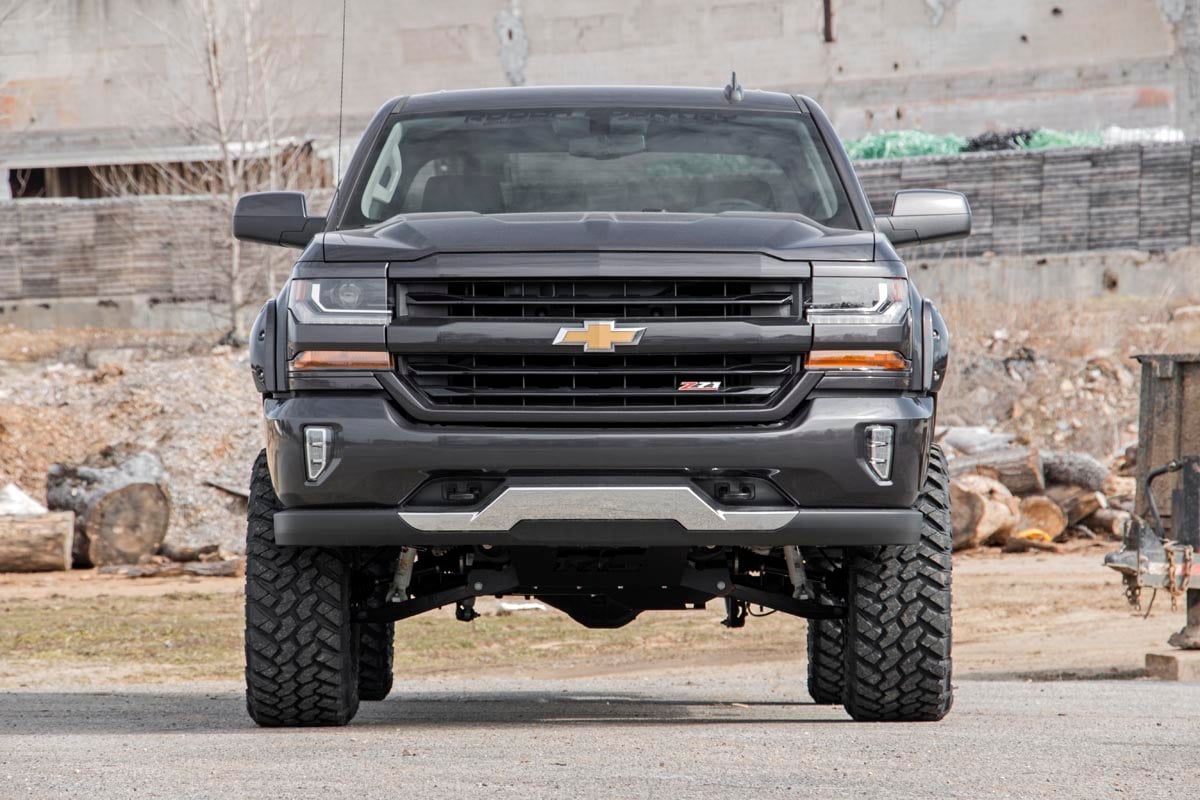

7 Inch Lift Kit Chevy/GMC 1500 (14-18)
Features
- Can run factory 20-inch wheels.
- Provides highly sought level stance.
- High clearance crossmember design gives unmatched ground clearance.
- 100% precision laser cut materials using the latest computer aided design process.
- Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
- Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem.
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
- Includes pre-loaded coil
- Maintains smooth, factory-like ride
- Increased ground clearance
- Engineered for lifted applications
- Infinitely Variable Damping
- Leak-proof piston seal
- Massive 1 3/8in Bore
- Silver powder coat finish
- 3-year Manufacturer's Warranty
- Monotube design
- Internal floating piston
- Nitrogen-charged
- 46mm high-flow piston
- Fast heat dissipation
- 36kN Tensile Strength
- Mounts inverted
- T6061 brushed aluminum body
- 3-year Manufacturer's Warranty
- 8-Stage Adjustable Damping
- Monotube Design
- Nitrogen-charged
- Massive 2.5in Piston
- 22mm Chrome-Hardened Piston Rod
- 3-Stage Seal System
- Heat-Treated, Alloy Bearing
- Honed Steel Body
- 3-year Manufacturer's Warranty
Optional N3 Loaded Struts
Optional V2 Monotube Shocks

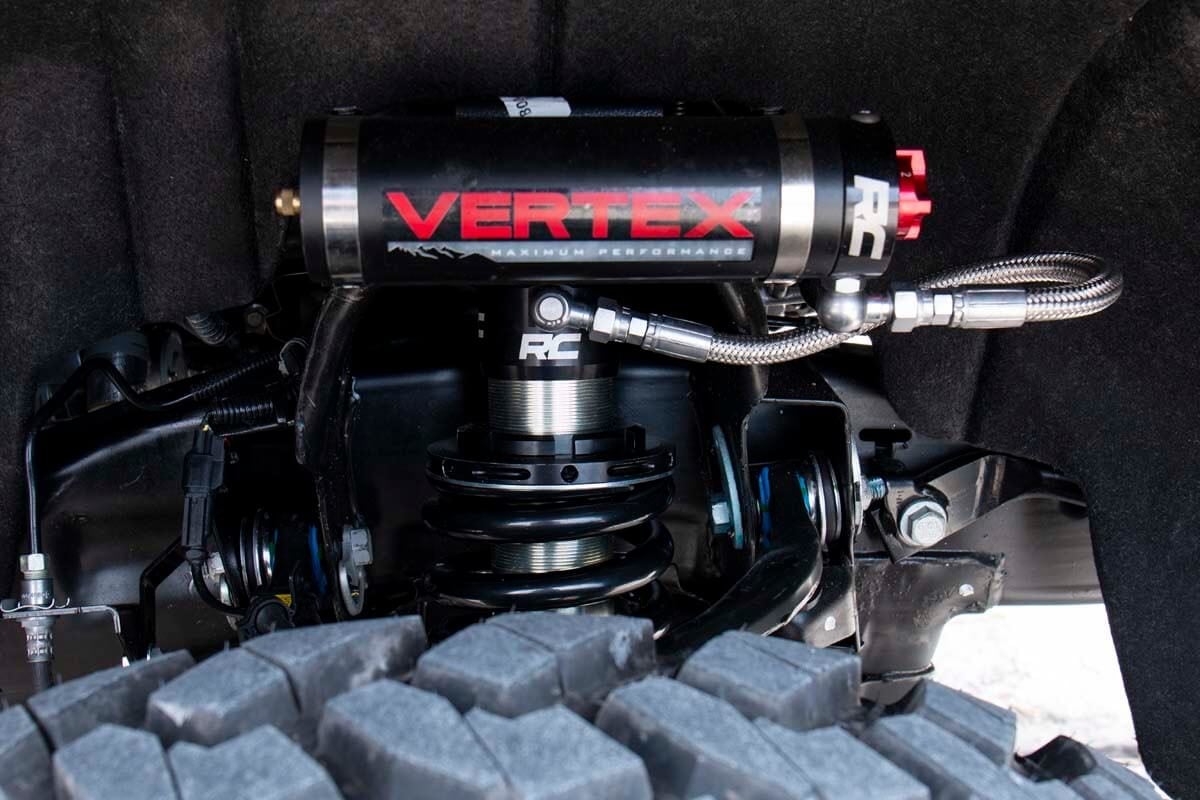

Optional Vertex
Fitment Notes
- IMPORTANT! - Installation of larger tires will require Rough Country's Speedometer Calibrator SKU: 90019T.
- Does not fit Hybrid eAssist models
- Requires 18" or larger wheels.
- Requires cutting and drilling.
- Must know if Stock Control Arms are Cast Aluminum, Cast Steel, or Stamped Steel
- 2016 models with stock stamped control arms only receive 7 inches of front lift
- Does NOT fit GMC Denali models with Magnetic Ride Control.
- If wider than 35x12.50 R20 tires are used, offset wheels will be required and trimming may be required.
- Please view installation instructions for complete information on proper tire/wheel combinations.
- If truck is equipped with a mass damper on the front differential, the damper must be removed.
Installation
GET IT INSTALLED
Don’t want to install it yourself? Search for installers in your area.
FITMENT
Vehicles
Year : 2014 - 2018
Make : Chevy
Model : Silverado 1500
Drive : 4WD
Year : 2014 - 2018
Make : GMC
Model : Sierra 1500
Drive : 4WD
Always read all product page details for more important fitment information
Tires
Size: 295/60R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -18
Note: Minor Trimming
Size: 295/60R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -19
Note: Minor Trimming
Size: 295/60R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -24
Note: Minor Trimming
Size: 295/60R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -25
Note: Minor Trimming
Size: 295/60R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +0
Note: Minor Trimming
Size: 295/60R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +1
Note: Minor Trimming
Size: 295/60R20
Wheel: 20x9
Bolt: 6x5.5
Offset: -12
Note: Minor Trimming
Size: 295/70R18
Wheel: Factory 18
Bolt: 6x5.5
Offset: -
Note: 0.25 Spacer
Size: 35x12.50R18
Wheel: 18x8.5
Bolt: 6x5.5
Offset: +1
Note: -
Size: 35x12.50R18
Wheel: 18x9
Bolt: 6x5.5
Offset: +0
Note: Trimming Required
Size: 35x12.50R18
Wheel: 18x9
Bolt: 6x5.5
Offset: +1
Note: -
Size: 35x12.50R18
Wheel: 18x9
Bolt: 6x5.5
Offset: -12
Note: -
Size: 35x12.50R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -18
Note: Trimming Required
Size: 35x12.50R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -19
Note: Trimming Required
Size: 35x12.50R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -24
Note: Trimming Required
Size: 35x12.50R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -25
Note: Trimming Required
Size: 35x12.50R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +0
Note: -
Size: 35x12.50R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +1
Note: -
Size: 35x12.50R20
Wheel: 20x9
Bolt: 6x5.5
Offset: -12
Note: -
Size: 35x12.50R20
Wheel: Factory 20
Bolt: 6x5.5
Offset: -
Note: 0.25 Spacer
Size: 35x12.50R22
Wheel: 22x10
Bolt: 6x5.5
Offset: -18
Note: Trimming Required
Size: 35x12.50R22
Wheel: 22x10
Bolt: 6x5.5
Offset: -19
Note: Trimming Required
Size: 35x12.50R22
Wheel: 22x10
Bolt: 6x5.5
Offset: -24
Note: Trimming Required
Size: 35x12.50R22
Wheel: 22x10
Bolt: 6x5.5
Offset: -25
Note: Trimming Required
Due to differences in manufacturing, dimension and inflated measurements, tire & wheel combinations should be test fit prior to installation
About this Product
7 Inch Lift Kit | Chevy/GMC 1500 (14-18)
