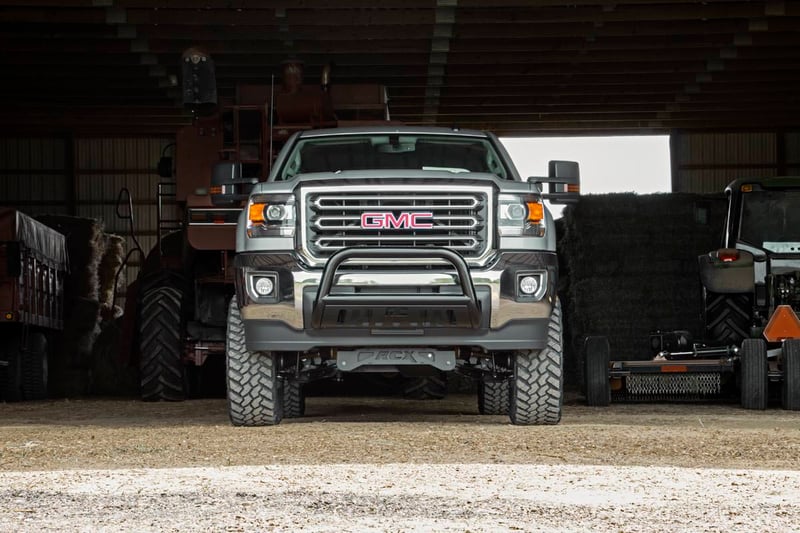

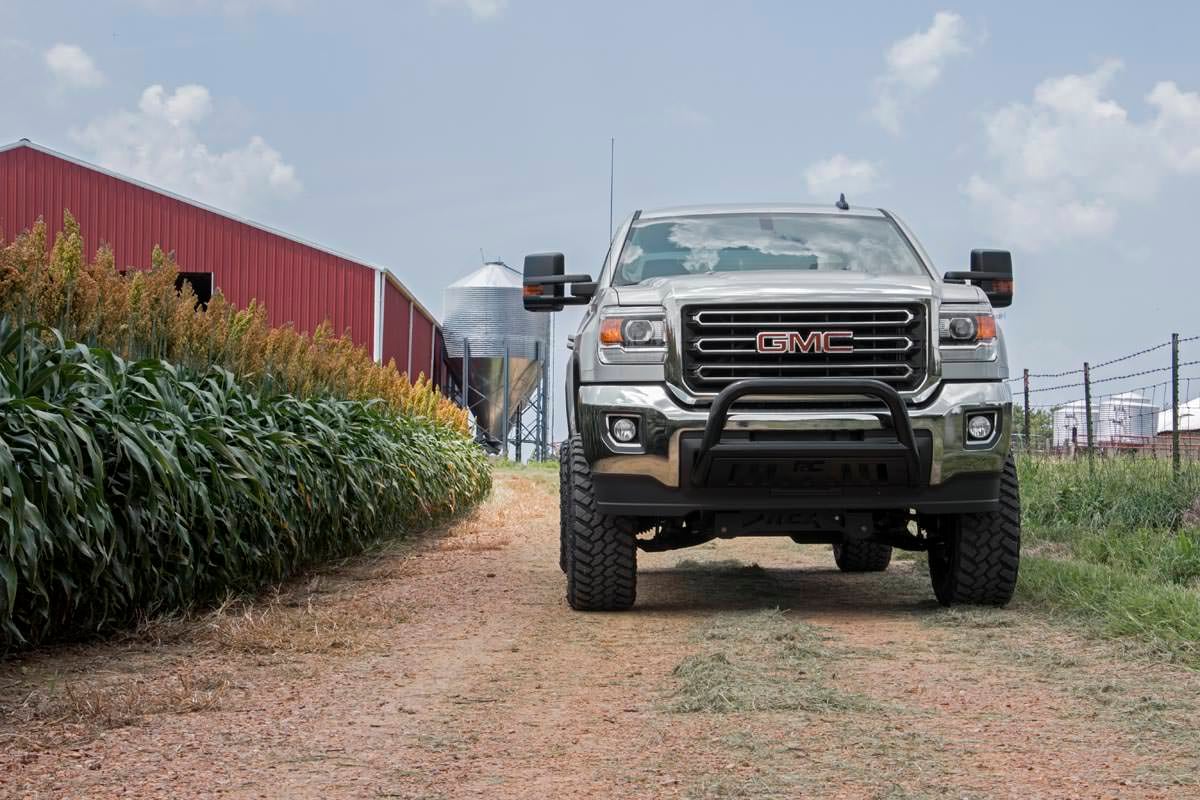

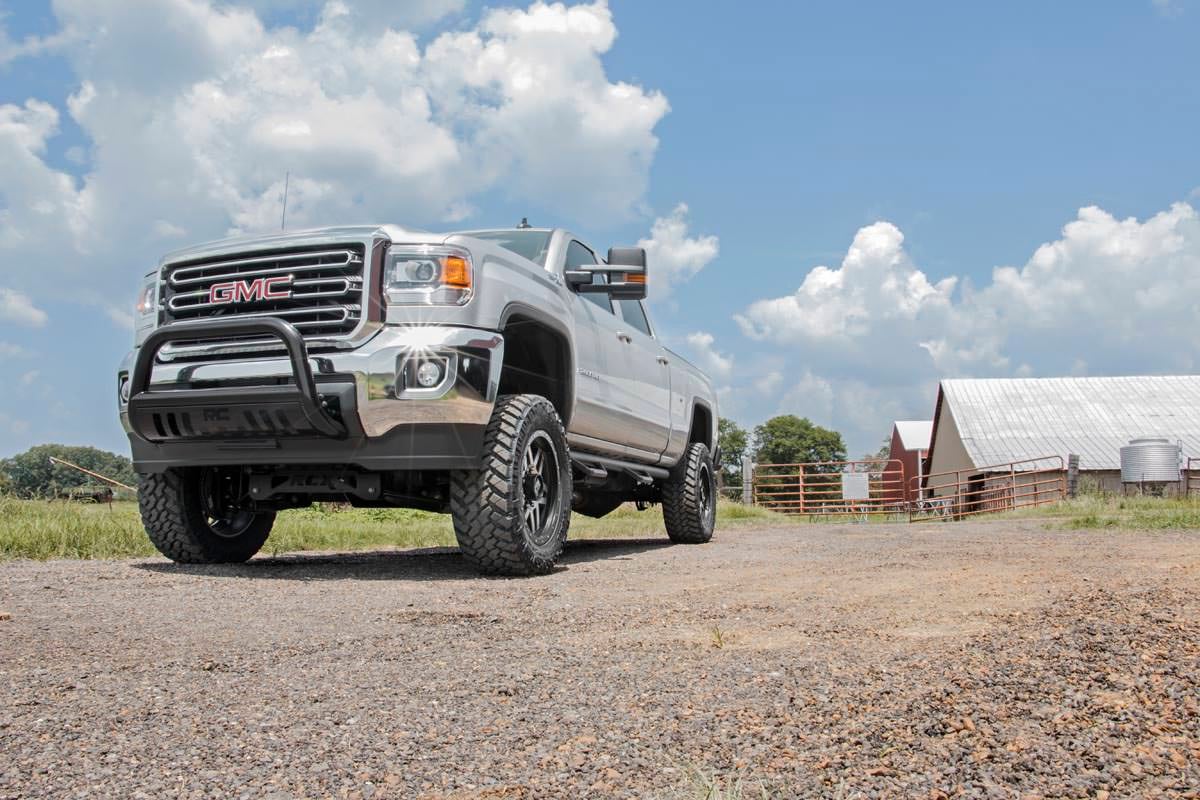

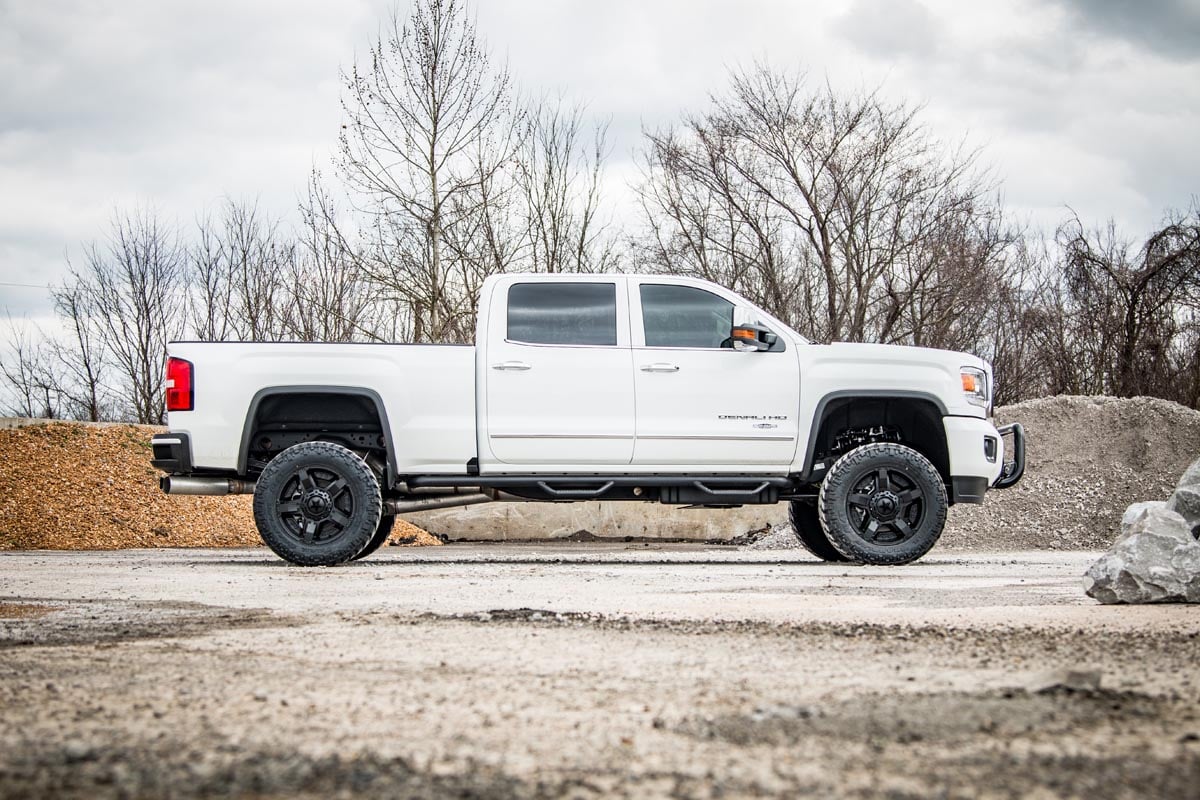

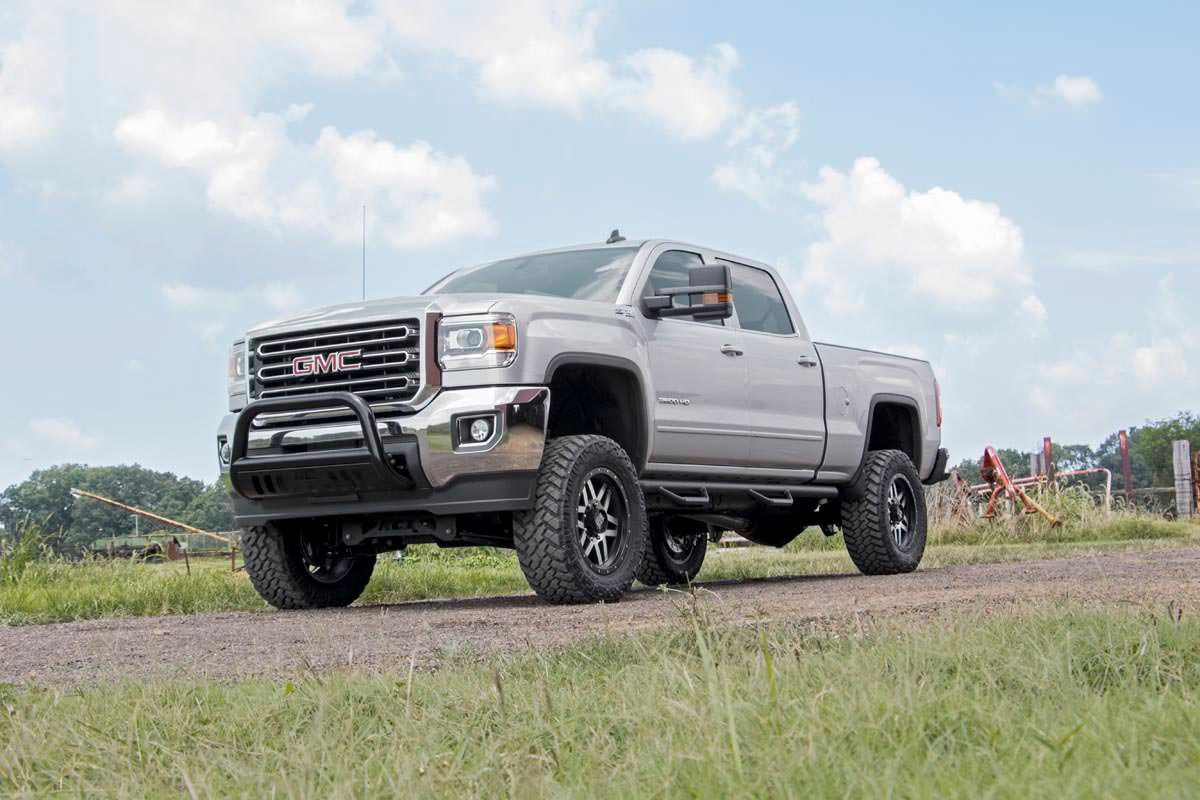

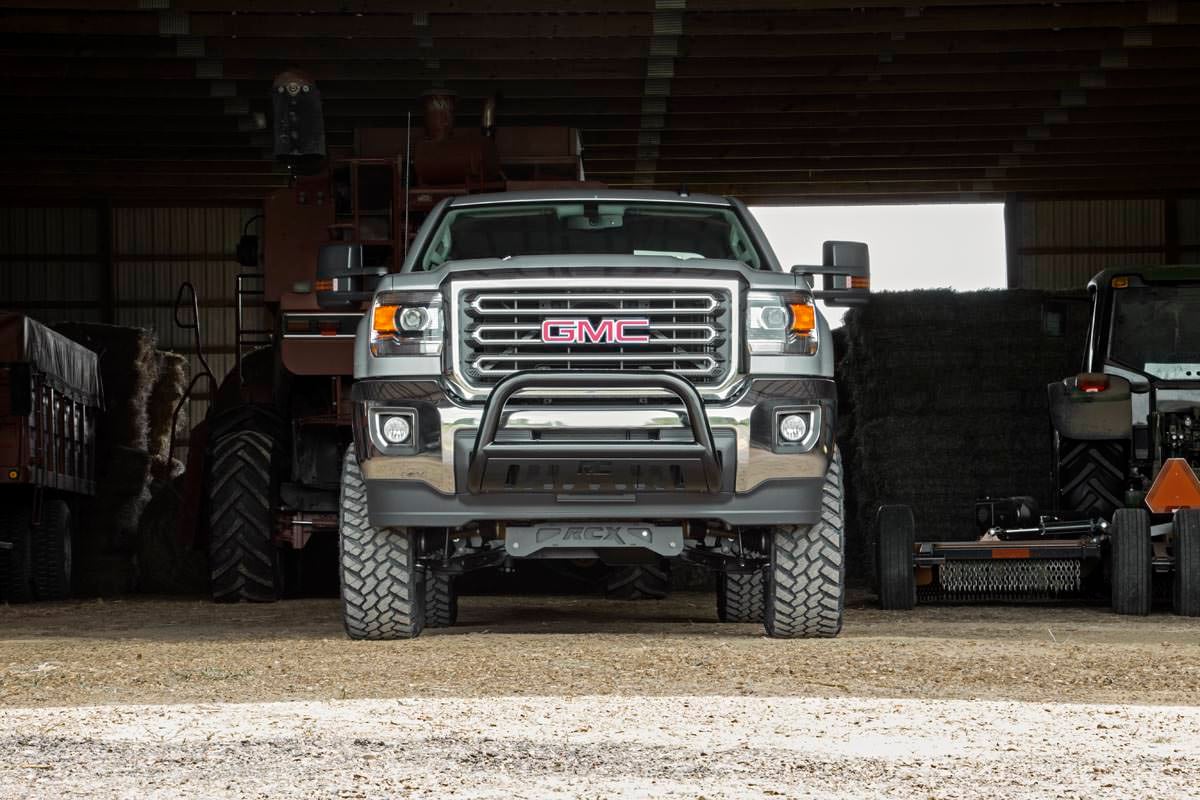

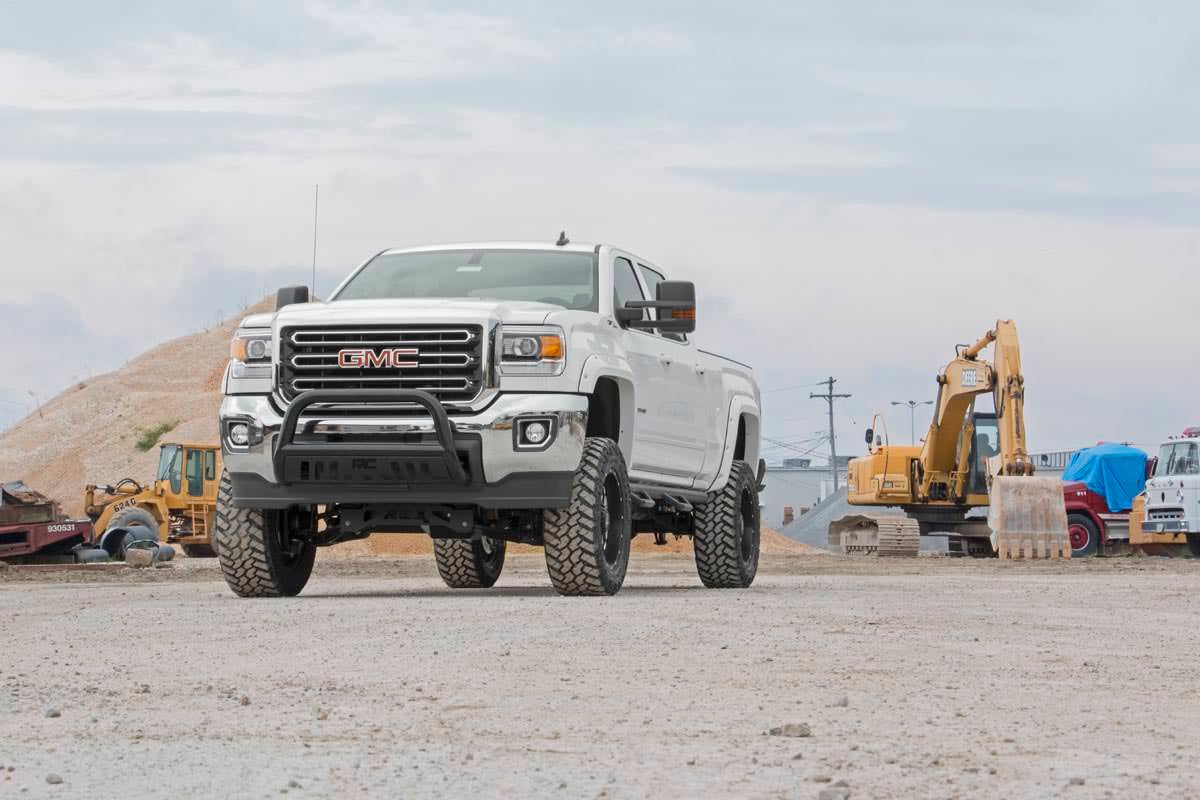

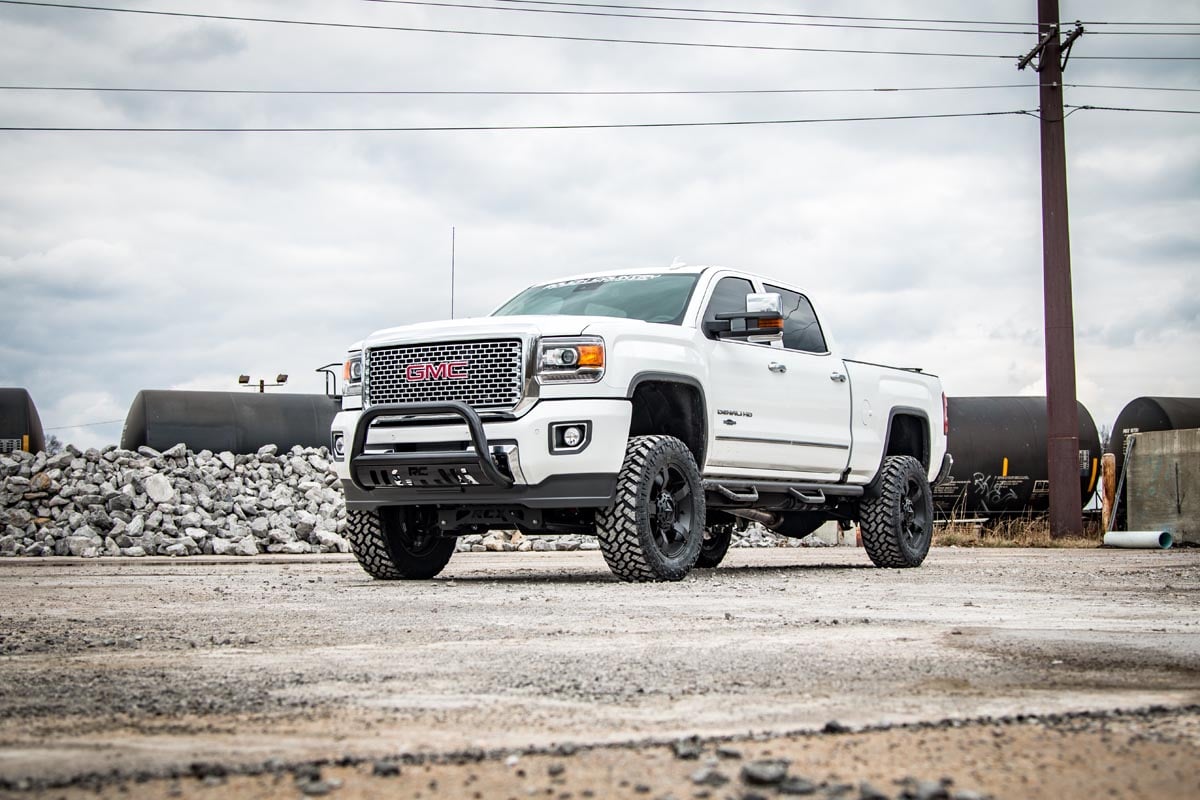

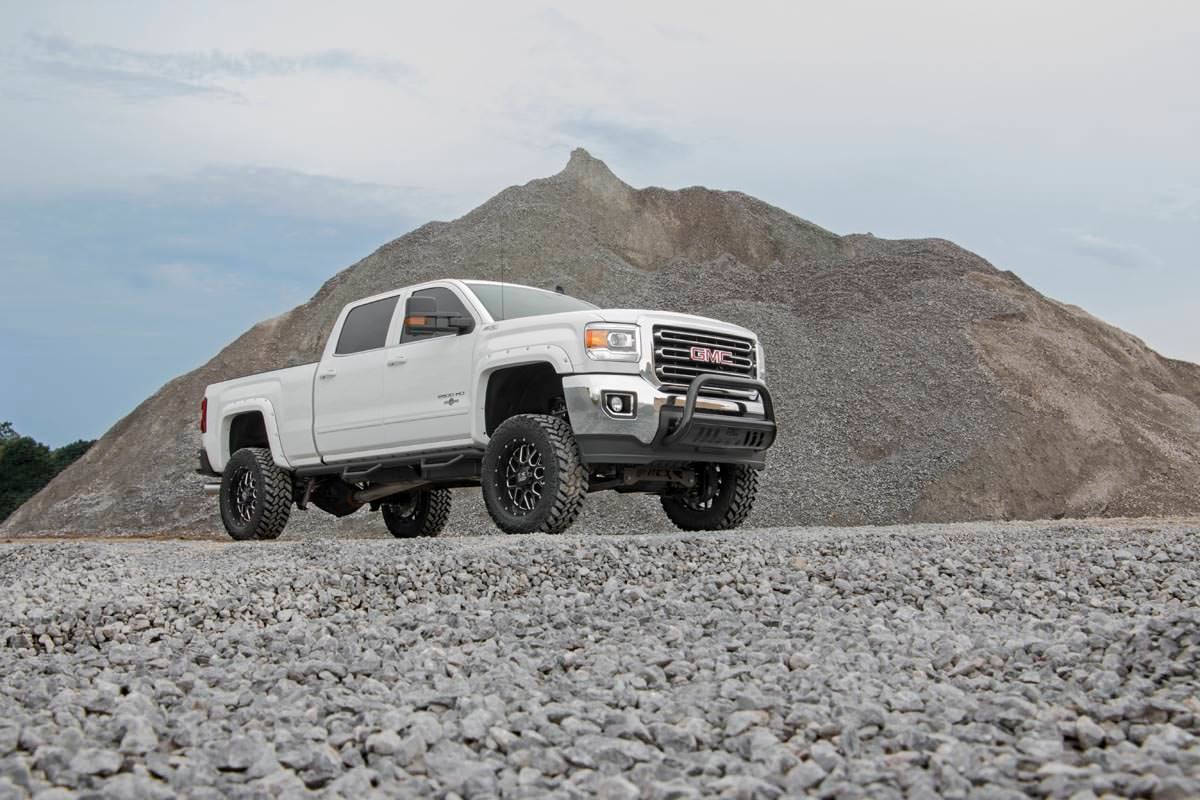

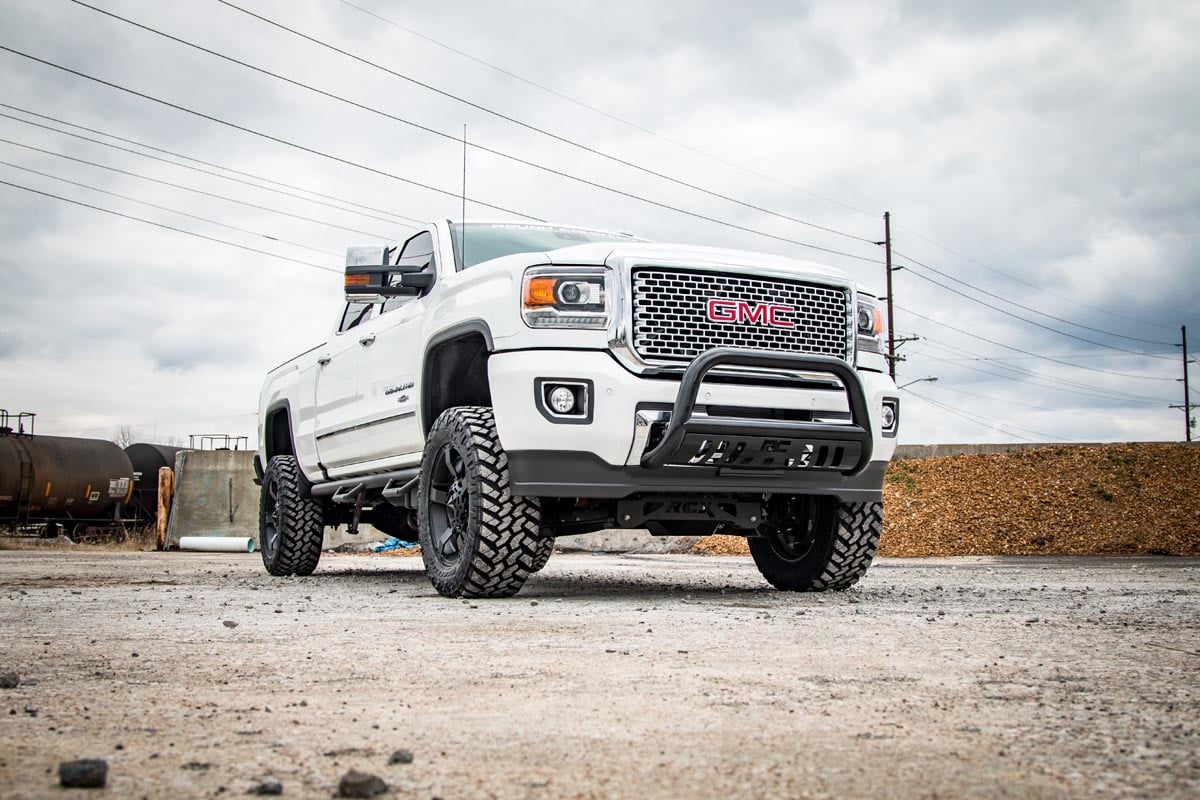

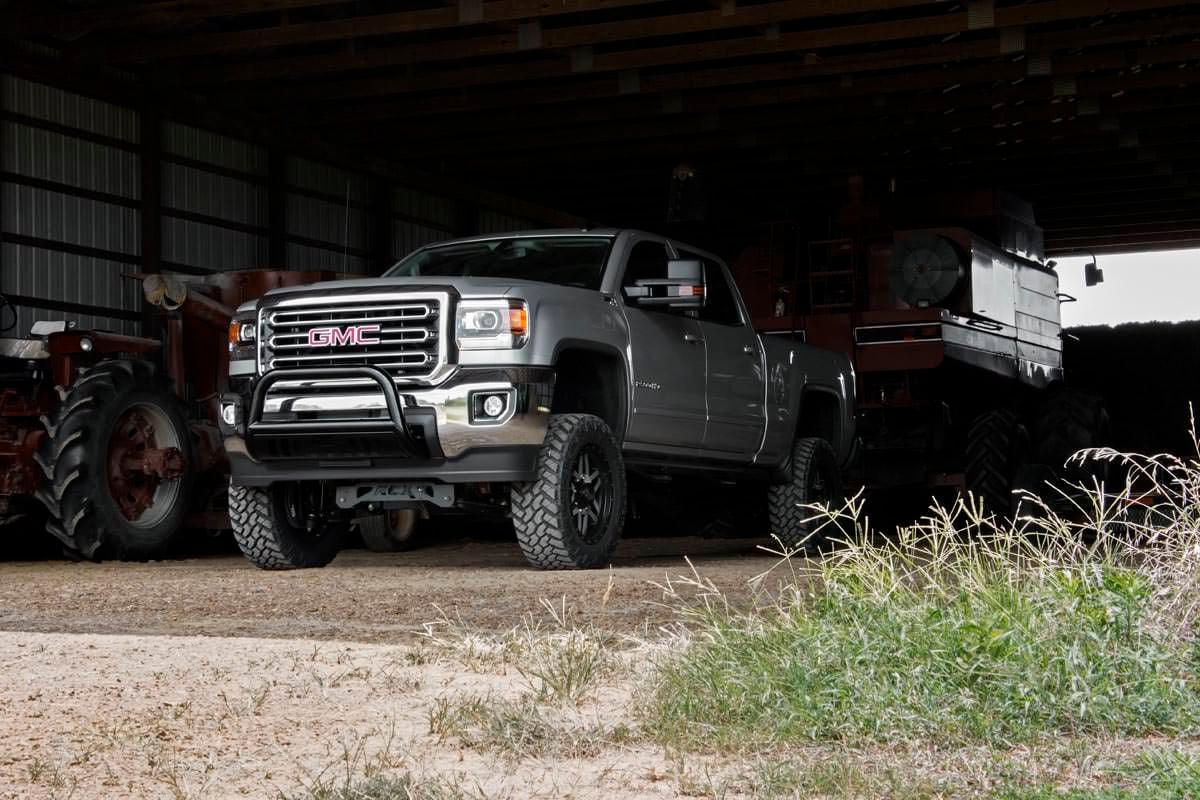

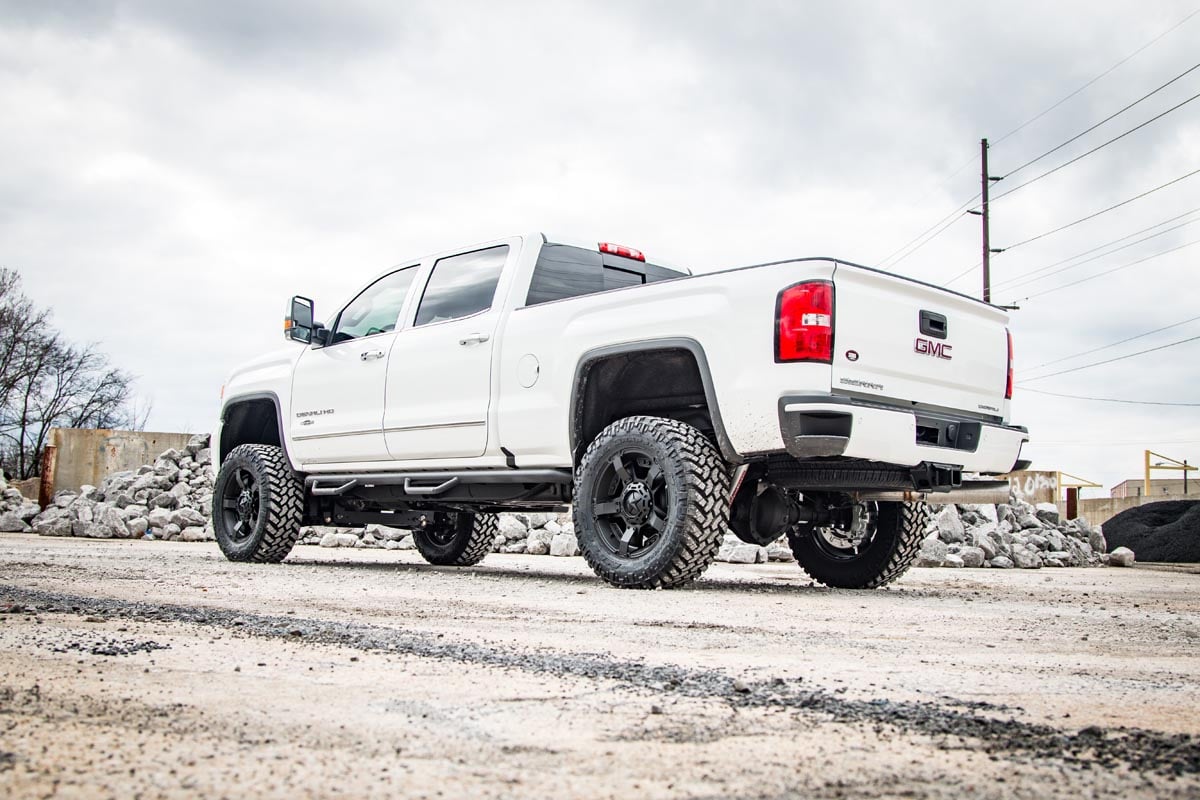

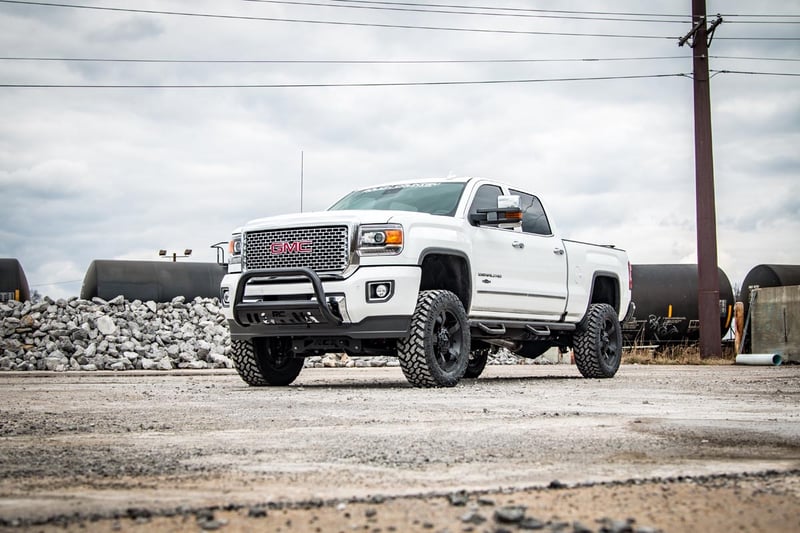

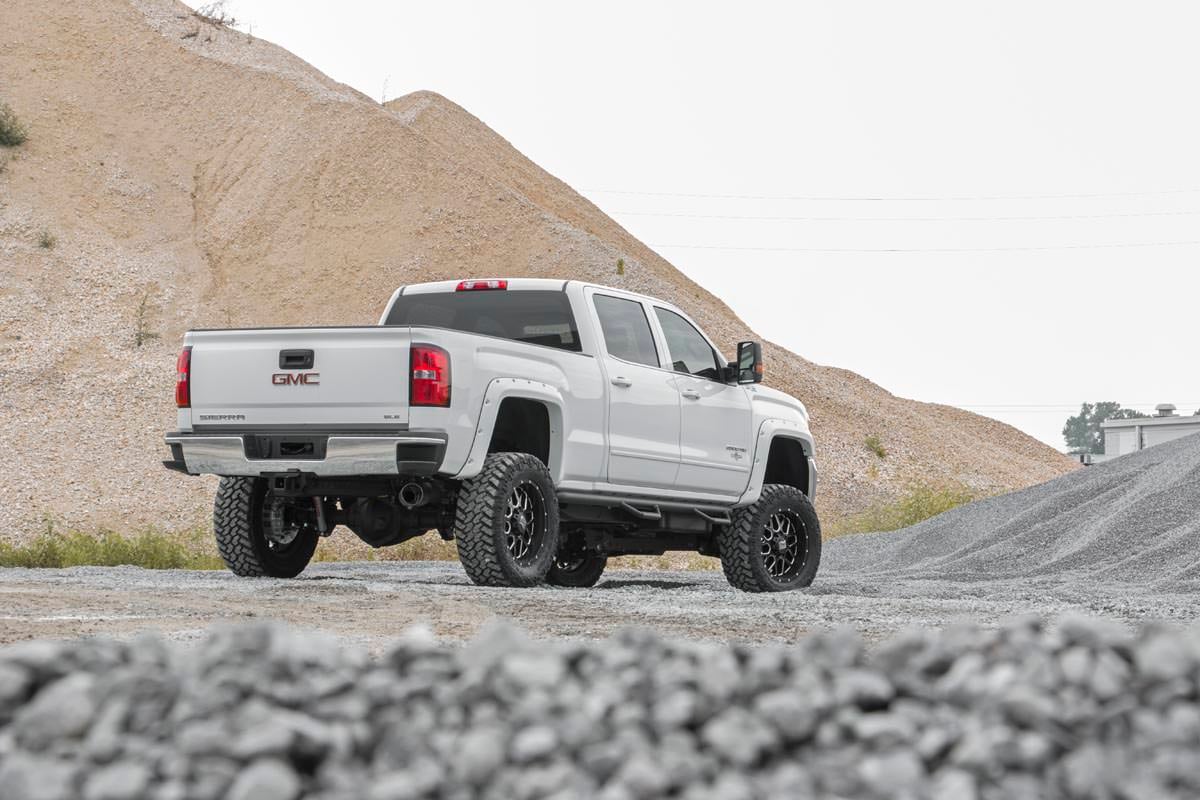

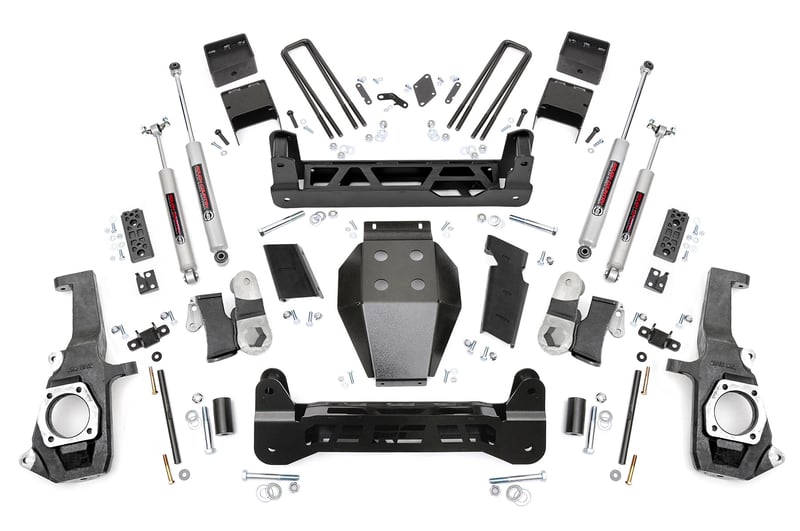

5 Inch Lift Kit Chevy/GMC 2500HD/3500HD (11-19)

STARTING PRICE
$1,449.95
STARTING PRICE
$1,449.95
Configure Your Kit:
Select options

SKU:

26030-config


Brand:

Rough Country


Lowest Price Guarantee
Select Matching Wheels and Tires
Select Matching Wheels and Tires
FREE Mount, Balance, and Shipping!

Features

  • Maintains factory ride quality
  • Maintains the stock track width
  • Torsion bars stay in the factory location
  • Unmatched ground clearance
  • Axles maintain factory position and angle
  • No drilling or modifying of the differential
  • No drivetrain or exhaust modifications required
  • Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
  • Optional Vertex Shocks

  • 8-Stage Adjustable Damping
  • Monotube Design
  • Nitrogen-Charged
  • Massive 2.5in Piston
  • 3-Stage Seal System
  • Heat-Treated, Alloy Bearing
  • 3-year Manufacturer's Warranty
  • Optional V2 Monotube Shocks

  • Incredible ride quality & performance
  • Monotube design
  • Nitrogen-charged
  • 46mm high-flow piston
  • Mounts inverted
  • 36kN Tensile Strength
  • 3-year Manufacturer's Warranty
  • Optional N3 Shocks

  • 10-Stage Variable Valving
  • High Pressure Nitrogen Charged
  • 35mm Piston
  • Chromed Hardened 18mm Piston Rod
  • 36kN Tensile Strength
  • Spring Loaded Piston Rod Seal
  • 3-year Limited Warranty
Fitment Notes
  • Requires minor cutting and drilling.
  • Does NOT fit dually models.
  • Does NOT fit models with Magnetic Ride Control.
  • Gas models may require modification to the exhaust for driveshaft clearance
  • Factory rear overload springs will NEED to be removed on equipped models.
  • Does NOT work with factory wheels.
  • Models equipped with factory 17-inch wheels must use 17-inch or larger aftermarket wheels due to larger calipers/rotor.
Warranty Details

Est. Install Time 8 - 10 hours

Shock Configuration Options

N3 Shock Pair
Premium N3
included
  • 10-Stage Variable Valving

  • High Pressure Nitrogen Charged

  • 35mm Piston

  • Chromed Hardened 18mm Piston Rod

  • 54mm Shock Body to dissipate heat faster

  • 36kN Tensile Strength

  • Spring Loaded Piston Rod Seal

  • Military Spec. Fluid Rated To –40° C

  • Rubber bushings for better absorption

  • Metallic Silver Paint

  • 3-year Manufacturer's Warranty

M1 Shock Pair
M1 Monotube
+$140.00
  • 2-inch seamless extruded tube.

  • 46mm digressive piston.

  • Self-adjusting, deflective-disc independent rebound and compression.

  • 18mm centerless-ground, case-hardened, chromed, and super-polished rod.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions.

  • Digressive valving instantly reacts to changing surface conditions.

  • Zinc plated for resistance against harsh elements.

  • Available in various lift heights for multiple applications.

  • Durable vulcanized natural rubber bushings.

  • 3-year Manufacturer's Warranty

V2 Shock Pair
V2 Monotube
+$320.00
  • Incredible ride quality & performance

  • Monotube design

  • Internal floating piston

  • Nitrogen-charged

  • 46mm high-flow piston

  • Fast heat dissipation

  • 36kN Tensile Strength

  • Mounts inverted

  • T6061 brushed aluminum body

  • 3-year Manufacturer's Warranty

Vertex Shock Pair
Vertex Reservoir
+$1,600.00
  • 8-Stage Adjustable Damping

  • Monotube Design

  • Nitrogen-Charged

  • Remote Reservoir with Steel Braided Reservoir Line

  • Massive 2.5in Piston

  • 22mm Chrome-Hardened Piston Rod

  • Specifically Tuned for Each Application

  • 3-Stage Seal System

  • Heat-Treated, Alloy Bearing

  • Honed Steel Body

  • CNC-Machined Billet Aluminum Accents

  • Zinc Plate Finish with Double Clear Coat

  • Incredible >400 Hour Salt Spray Rating

  • 3-year Manufacturer's Warranty

Customer Support Headshot
Need Help?
Talk to a Build Expert
1-800-222-7023

Installation


GET IT INSTALLED

Don’t want to install it yourself? Search for installers in your area.


FITMENT

Vehicles
year: 2011 - 2019
make: Chevy
model: Silverado 3500 HD
drive: 4WD
year: 2011 - 2019
make: Chevy
model: Silverado 2500 HD
drive: 4WD
year: 2011 - 2019
make: Chevy
model: Silverado 3500 HD
drive: RWD
year: 2011 - 2019
make: Chevy
model: Silverado 2500 HD
drive: RWD
year: 2011 - 2019
make: GMC
model: Sierra 3500 HD
drive: 4WD
year: 2011 - 2019
make: GMC
model: Sierra 2500 HD
drive: 4WD
year: 2011 - 2019
make: GMC
model: Sierra 3500 HD
drive: RWD
year: 2011 - 2019
make: GMC
model: Sierra 2500 HD
drive: RWD

Always read all product page details for more important fitment information

Wheels & Tires
Filters
size: 35x12.50R20
Popular
wheel: 20x9
Bolt Pattern: 8x180
Wheel Offset: +0
note: -
Stance: 1
size: 35x12.50R22
Popular
wheel: 22x10
Bolt Pattern: 8x180
Wheel Offset: -19
note: Minor Trimming
Stance: 2
size: 295/60R20
wheel: 20x10
Bolt Pattern: 8x180
Wheel Offset: -18
note: Minor Trimming
Stance: 2
size: 295/60R20
wheel: 20x10
Bolt Pattern: 8x180
Wheel Offset: -19
note: Minor Trimming
Stance: 2
size: 295/60R20
wheel: 20x10
Bolt Pattern: 8x180
Wheel Offset: -24
note: Minor Trimming
Stance: 2
size: 295/60R20
wheel: 20x10
Bolt Pattern: 8x180
Wheel Offset: -25
note: Minor Trimming
Stance: 2
size: 35x12.50R20
wheel: 20x10
Bolt Pattern: 8x180
Wheel Offset: -18
note: Minor Trimming
Stance: 2
size: 35x12.50R20
wheel: 20x10
Bolt Pattern: 8x180
Wheel Offset: -19
note: Minor Trimming
Stance: 2
size: 35x12.50R20
wheel: 20x10
Bolt Pattern: 8x180
Wheel Offset: -24
note: Minor Trimming
Stance: 2
size: 35x12.50R20
wheel: 20x10
Bolt Pattern: 8x180
Wheel Offset: -25
note: Minor Trimming
Stance: 2
size: 35x12.50R20
wheel: 20x12
Bolt Pattern: 8x180
Wheel Offset: -44
note: Trimming Required
Stance: 2
size: 295/60R20
wheel: 20x9
Bolt Pattern: 8x180
Wheel Offset: +0
note: -
Stance: 1
size: 295/60R20
wheel: 20x9
Bolt Pattern: 8x180
Wheel Offset: +1
note: -
Stance: 1
size: 295/60R20
wheel: 20x9
Bolt Pattern: 8x180
Wheel Offset: -12
note: -
Stance: 1
size: 295/65R20
wheel: 20x9
Bolt Pattern: 8x180
Wheel Offset: -12
note: -
Stance: 1
size: 35x11.50R20
wheel: 20x9
Bolt Pattern: 8x180
Wheel Offset: -12
note: -
Stance: 1
size: 35x12.50R20
wheel: 20x9
Bolt Pattern: 8x180
Wheel Offset: +1
note: -
Stance: 1
size: 35x12.50R20
wheel: 20x9
Bolt Pattern: 8x180
Wheel Offset: -12
note: -
Stance: 1
size: 285/55R22
wheel: 22x10
Bolt Pattern: 8x180
Wheel Offset: -18
note: -
Stance: 1
size: 285/55R22
wheel: 22x10
Bolt Pattern: 8x180
Wheel Offset: -19
note: -
Stance: 2
size: 295/55R22
wheel: 22x10
Bolt Pattern: 8x180
Wheel Offset: -18
note: Minor Trimming
Stance: 2
size: 295/55R22
wheel: 22x10
Bolt Pattern: 8x180
Wheel Offset: -19
note: Minor Trimming
Stance: 2
size: 295/55R22
wheel: 22x10
Bolt Pattern: 8x180
Wheel Offset: -24
note: Minor Trimming
Stance: 2
size: 295/55R22
wheel: 22x10
Bolt Pattern: 8x180
Wheel Offset: -25
note: Minor Trimming
Stance: 2
size: 35x12.50R22
wheel: 22x10
Bolt Pattern: 8x180
Wheel Offset: -18
note: Minor Trimming
Stance: 2
size: 35x12.50R22
wheel: 22x10
Bolt Pattern: 8x180
Wheel Offset: -24
note: Minor Trimming
Stance: 2
size: 35x12.50R22
wheel: 22x10
Bolt Pattern: 8x180
Wheel Offset: -25
note: Minor Trimming
Stance: 2
size: 35x12.50R22
wheel: 22x12
Bolt Pattern: 8x180
Wheel Offset: -44
note: Trimming Required
Stance: 2

Due to differences in manufacturing, dimension and inflated measurements, tire & wheel combinations should be test fit prior to installation
