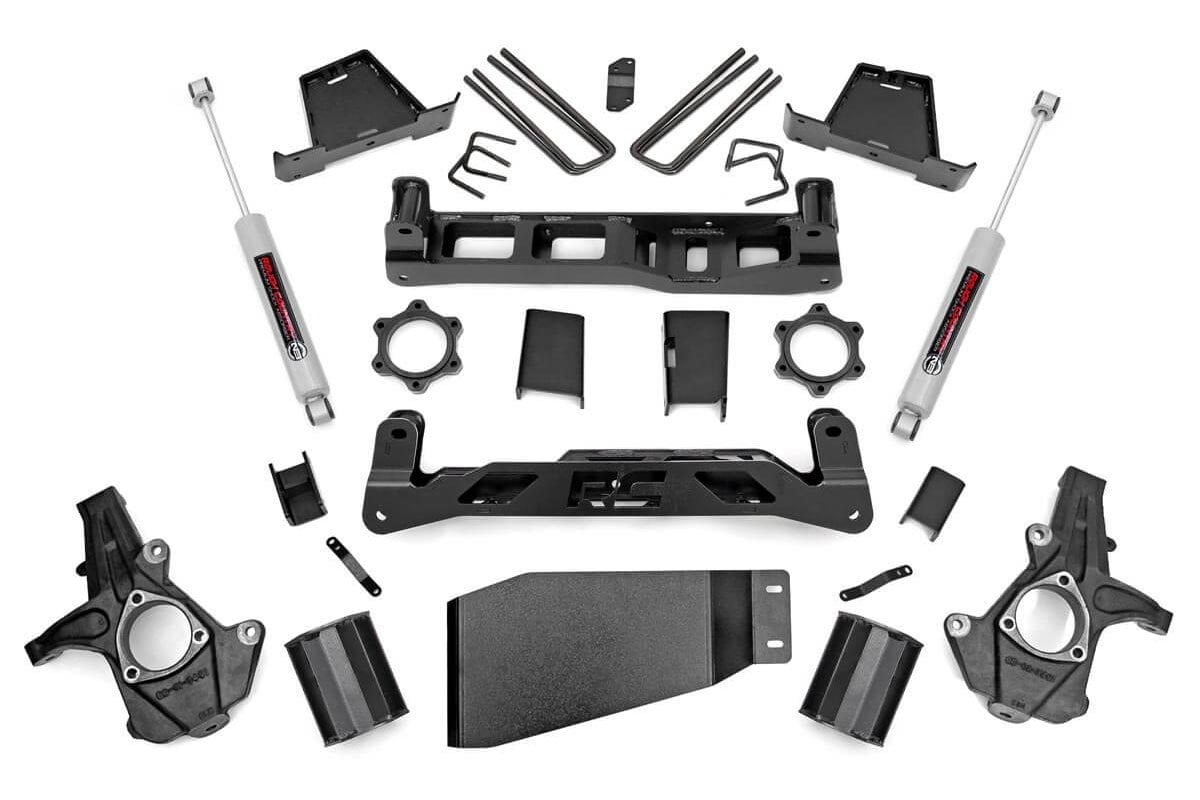

7.5 Inch Lift Kit Chevy/GMC 1500 4WD (07-13)
Features
- Can run 35" tires on factory 20" wheels.
- Provides highly sought level stance.
- High clearance crossmember design gives unmatched ground clearance.
- Requires no modification to the stock differential mounts, drivetrain or exhaust.
- 100% precision laser cut materials using the latest computer aided design process.
- No need to disassemble your struts to install.
- Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem.
- Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
- Maintains smooth, factory-like ride
- Increased ground clearance
- Nitrogen-charged
- Engineered for lifted applications
- Infinitely Variable Damping
- Leak-proof piston seal
- Massive 1 3/8in Bore
- Silver powder coat finish
- 3-year Manufacturer's Warranty
- Monotube design
- Internal floating piston
- Nitrogen-charged
- 46mm high-flow piston
- Fast heat dissipation
- 36kN Tensile Strength
- Mounts inverted
- T6061 brushed aluminum body
- 3-year Manufacturer's Warranty
- 8-Stage Adjustable Damping
- Monotube Design
- Nitrogen-charged
- Massive 2.5in Piston
- 22mm Chrome-Hardened Piston Rod
- 3-Stage Seal System
- Heat-Treated, Alloy Bearing
- Honed Steel Body
- 3-year Manufacturer's Warranty
Optional N3 Loaded Struts
Optional V2 Monotube Shocks
Optional Vertex Coilovers
Fitment Notes
- Requires minor cutting and drilling.
- Does NOT fit 2007 "Classic" models.
- Does NOT fit models with electric steering.
- AWD models require a new aftermarket driveshaft SKU: 5083.1.
- 18" or larger wheels are required.
- Please view installation instructions for complete information on proper tire/wheel combinations.
Installation
GET IT INSTALLED
Don’t want to install it yourself? Search for installers in your area.
FITMENT
Vehicles
Year : 2007 - 2013
Make : Chevy
Model : Silverado 1500
Drive : 4WD
Year : 2007 - 2013
Make : GMC
Model : Sierra 1500
Drive : 4WD
Year : 2007 - 2013
Make : GMC
Model : Sierra 1500 Denali
Drive : AWD
Always read all product page details for more important fitment information
Tires
Size: 295/60R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -18
Note: -
Size: 295/60R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -19
Note: -
Size: 295/60R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -24
Note: -
Size: 295/60R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -25
Note: -
Size: 295/60R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +0
Note: -
Size: 295/60R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +1
Note: -
Size: 295/60R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +18
Note: -
Size: 295/60R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +20
Note: -
Size: 295/60R20
Wheel: 20x9
Bolt: 6x5.5
Offset: -12
Note: -
Size: 295/60R20
Wheel: Factory 20
Bolt: 6x5.5
Offset: -
Note: -
Size: 35x12.50R18
Wheel: 18x8.5
Bolt: 6x5.5
Offset: +0
Note: -
Size: 35x12.50R18
Wheel: 18x8.5
Bolt: 6x5.5
Offset: +1
Note: -
Size: 35x12.50R18
Wheel: 18x9
Bolt: 6x5.5
Offset: +0
Note: -
Size: 35x12.50R18
Wheel: 18x9
Bolt: 6x5.5
Offset: +1
Note: -
Size: 35x12.50R18
Wheel: 18x9
Bolt: 6x5.5
Offset: +18
Note: -
Size: 35x12.50R18
Wheel: 18x9
Bolt: 6x5.5
Offset: +19
Note: -
Size: 35x12.50R18
Wheel: 18x9
Bolt: 6x5.5
Offset: +20
Note: -
Size: 35x12.50R18
Wheel: 18x9
Bolt: 6x5.5
Offset: -12
Note: Minor Trimming
Size: 35x12.50R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -18
Note: Trimming Required
Size: 35x12.50R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -19
Note: Trimming Required
Size: 35x12.50R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -24
Note: Trimming Required
Size: 35x12.50R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -25
Note: Trimming Required
Size: 35x12.50R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +0
Note: -
Size: 35x12.50R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +1
Note: -
Size: 35x12.50R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +18
Note: -
Size: 35x12.50R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +20
Note: -
Size: 35x12.50R20
Wheel: 20x9
Bolt: 6x5.5
Offset: -12
Note: Minor Trimming
Size: 35x12.50R22
Wheel: 22x10
Bolt: 6x5.5
Offset: -18
Note: Trimming Required
Size: 35x12.50R22
Wheel: 22x10
Bolt: 6x5.5
Offset: -19
Note: Trimming Required
Size: 35x12.50R22
Wheel: 22x10
Bolt: 6x5.5
Offset: -24
Note: Trimming Required
Size: 35x12.50R22
Wheel: 22x10
Bolt: 6x5.5
Offset: -25
Note: Trimming Required
Due to differences in manufacturing, dimension and inflated measurements, tire & wheel combinations should be test fit prior to installation
About this Product
7.5 Inch Lift Kit | Chevy/GMC 1500 4WD (07-13)
