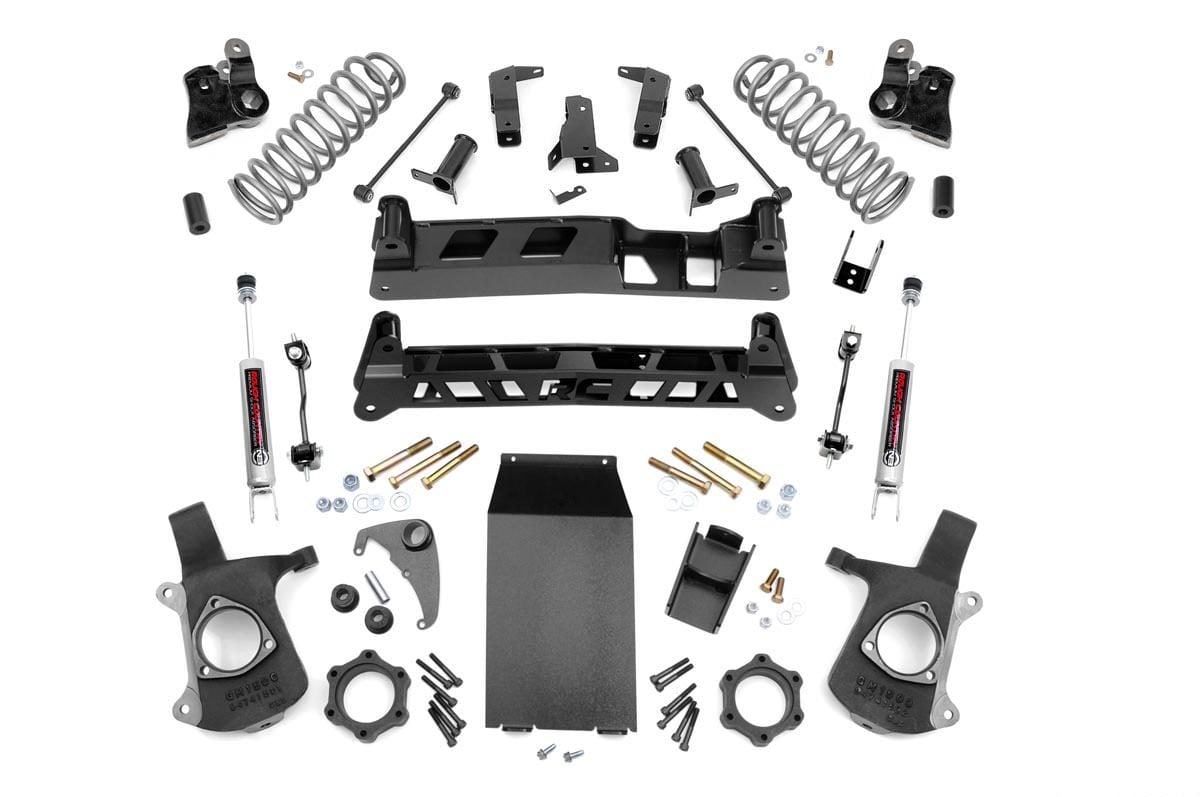

6 Inch Lift Kit NTD | Chevy Avalanche 1500 (02-06)/Suburban 1500 (00-06)
Features
- Factory Fit: Torsion bars remain in their original location for seamless integration.
- Hassle-Free Install: Redesigned components make installation quicker and easier.
- Smooth Ride: Engineered to maintain factory ride quality for ultimate comfort.
- Auto Trac Compatible: Fully applicable with Auto Trac-equipped models.
- Maximum Ground Clearance: Experience unmatched clearance for superior off-road capability.
- Optimal Axle Positioning: Axles retain factory position and angle to reduce wear.
- No Modifications Needed: No changes required to the drivetrain or exhaust.
- Factory Compression Stops: Designed to reuse OEM compression travel stops for reliability.
- Configurable Shock Options: Choose from our nitrogen-charged N3, V2 Monotube, or M1 Monotube shocks - the power to customize your ride is in your hands!
Fitment Notes
- Frame bracket modification required.
- 17" or larger wheels are required.
- Does not fit models fit auto ride/auto-leveling feature
- For ease of installation a torsion bar removal tool is recommended 1067.
Shock Configuration Options
Premium N3
included10-Stage Variable Valving
High Pressure Nitrogen Charged
35mm Piston
Chromed Hardened 18mm Piston Rod
54mm Shock Body to dissipate heat faster
36kN Tensile Strength
Spring Loaded Piston Rod Seal
Military Spec. Fluid Rated To –40° C
Rubber bushings for better absorption
Metallic Silver Paint
3-year Manufacturer's Warranty
M1 Monotube
+$63.002-inch seamless extruded tube.
46mm digressive piston.
Self-adjusting, deflective-disc independent rebound and compression.
18mm centerless-ground, case-hardened, chromed, and super-polished rod.
46mm monotube design ensures consistent, fade-free performance in all conditions.
Digressive valving instantly reacts to changing surface conditions.
Zinc plated for resistance against harsh elements.
Available in various lift heights for multiple applications.
Durable vulcanized natural rubber bushings.
3-year Manufacturer's Warranty
V2 Monotube
+$144.00Incredible ride quality & performance
Monotube design
Internal floating piston
Nitrogen-charged
46mm high-flow piston
Fast heat dissipation
36kN Tensile Strength
Mounts inverted
T6061 brushed aluminum body
3-year Manufacturer's Warranty
Installation
GET IT INSTALLED
Don’t want to install it yourself? Search for installers in your area.
FITMENT
Vehicles
Always read all product page details for more important fitment information
Wheels & Tires
Due to differences in manufacturing, dimension and inflated measurements, tire & wheel combinations should be test fit prior to installation
