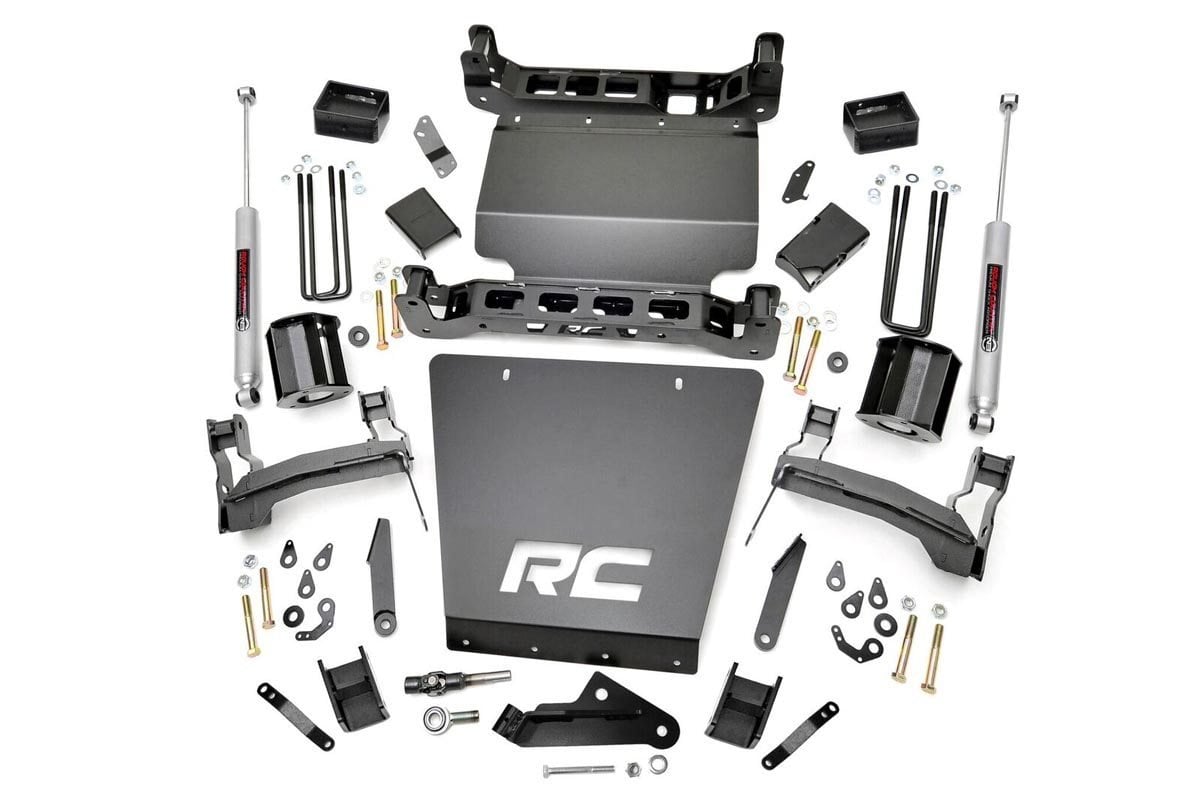

5 Inch Lift Kit Chevy/GMC 1500 (14-18)
Features
- Increased ground clearance.
- Maintains factory track width.
- Can run factory 20-inch wheels.
- Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
- Includes pre-loaded coil
- Maintains smooth, factory-like ride
- Increased ground clearance
- Engineered for lifted applications
- Infinitely Variable Damping
- Leak-proof piston seal
- Massive 1 3/8in Bore
- Silver powder coat finish
- 3-year Manufacturer's Warranty
- Monotube design
- Internal floating piston
- Nitrogen-charged
- 46mm high-flow piston
- Fast heat dissipation
- 36kN Tensile Strength
- Mounts inverted
- T6061 brushed aluminum body
- 3-year Manufacturer's Warranty
Optional N3 Loaded Struts
Optional V2 Monotube Shocks
Fitment Notes
- Requires cutting and drilling.
- Does NOT fit Hybrid eAssist models.
- Does NOT fit GMC Denali models with Magnetic Ride Control.
- If wider than 33x12.50 tires are used, offset wheels will be required and trimming may be required.
- If truck is equipped with a mass damper on the front differential, the damper must be removed.
Shock Configuration Options
Premium N3
included10-Stage Variable Valving
High Pressure Nitrogen Charged
35mm Piston
Chromed Hardened 18mm Piston Rod
54mm Shock Body to dissipate heat faster
36kN Tensile Strength
Spring Loaded Piston Rod Seal
Military Spec. Fluid Rated To –40° C
Rubber bushings for better absorption
Metallic Silver Paint
3-year Manufacturer's Warranty
V2 Monotube
+$160.00Incredible ride quality & performance
Monotube design
Internal floating piston
Nitrogen-charged
46mm high-flow piston
Fast heat dissipation
36kN Tensile Strength
Mounts inverted
T6061 brushed aluminum body
3-year Manufacturer's Warranty
Installation
GET IT INSTALLED
Don’t want to install it yourself? Search for installers in your area.
FITMENT
Vehicles
Year : 2014 - 2018
Make : Chevy
Model : Silverado 1500
Drive : 4WD
Year : 2014 - 2018
Make : GMC
Model : Sierra 1500
Drive : 4WD
Always read all product page details for more important fitment information
Tires
Size: 285/65R18
Wheel: 18x9
Bolt: 6x5.5
Offset: +0
Note: -
Size: 285/65R18
Wheel: 18x9
Bolt: 6x5.5
Offset: +1
Note: -
Size: 285/65R18
Wheel: 18x9
Bolt: 6x5.5
Offset: +18
Note: -
Size: 285/65R18
Wheel: 18x9
Bolt: 6x5.5
Offset: +19
Note: -
Size: 285/65R18
Wheel: 18x9
Bolt: 6x5.5
Offset: +20
Note: -
Size: 285/65R18
Wheel: Factory 18
Bolt: 6x5.5
Offset: -
Note: -
Size: 285/70R17
Wheel: 17x8.5
Bolt: 6x5.5
Offset: +0
Note: -
Size: 285/70R17
Wheel: 17x9
Bolt: 6x5.5
Offset: +0
Note: -
Size: 285/70R17
Wheel: 17x9
Bolt: 6x5.5
Offset: +1
Note: -
Size: 285/70R17
Wheel: 17x9
Bolt: 6x5.5
Offset: +18
Note: -
Size: 295/55R20
Wheel: Factory 20
Bolt: 6x5.5
Offset: -
Note: 0.25 Spacer
Size: 295/60R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -18
Note: Trimming Required
Size: 295/60R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -19
Note: Trimming Required
Size: 295/60R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +0
Note: -
Size: 295/60R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +1
Note: -
Size: 295/60R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +18
Note: -
Size: 295/60R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +20
Note: -
Size: 295/70R17
Wheel: Factory 17
Bolt: 6x5.5
Offset: -
Note: -
Size: 305/55R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -18
Note: Minor Trimming
Size: 305/55R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -19
Note: Minor Trimming
Size: 305/55R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +0
Note: -
Size: 305/55R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +1
Note: -
Size: 305/55R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +12
Note: -
Size: 305/55R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +18
Note: -
Size: 305/55R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +20
Note: -
Size: 305/65R18
Wheel: 18x9
Bolt: 6x5.5
Offset: +12
Note: -
Size: 305/65R18
Wheel: 18x9
Bolt: 6x5.5
Offset: +18
Note: -
Size: 305/70R17
Wheel: 17x9
Bolt: 6x5.5
Offset: +12
Note: -
Size: 305/70R17
Wheel: 17x9
Bolt: 6x5.5
Offset: +18
Note: -
Size: 33x12.50R17
Wheel: 17x8.5
Bolt: 6x5.5
Offset: +0
Note: -
Size: 33x12.50R17
Wheel: 17x8.5
Bolt: 6x5.5
Offset: +1
Note: -
Size: 33x12.50R17
Wheel: 17x9
Bolt: 6x5.5
Offset: +0
Note: -
Size: 33x12.50R17
Wheel: 17x9
Bolt: 6x5.5
Offset: +1
Note: -
Size: 33x12.50R17
Wheel: 17x9
Bolt: 6x5.5
Offset: +12
Note: -
Size: 33x12.50R17
Wheel: 17x9
Bolt: 6x5.5
Offset: +18
Note: -
Size: 33x12.50R18
Wheel: 18x8.5
Bolt: 6x5.5
Offset: +0
Note: -
Size: 33x12.50R18
Wheel: 18x8.5
Bolt: 6x5.5
Offset: +1
Note: -
Size: 33x12.50R18
Wheel: 18x9
Bolt: 6x5.5
Offset: +0
Note: -
Size: 33x12.50R18
Wheel: 18x9
Bolt: 6x5.5
Offset: +1
Note: -
Size: 33x12.50R18
Wheel: 18x9
Bolt: 6x5.5
Offset: +12
Note: -
Size: 33x12.50R18
Wheel: 18x9
Bolt: 6x5.5
Offset: +18
Note: -
Size: 33x12.50R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -18
Note: Minor Trimming
Size: 33x12.50R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -19
Note: Minor Trimming
Size: 33x12.50R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +0
Note: -
Size: 33x12.50R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +1
Note: -
Size: 33x12.50R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +12
Note: -
Size: 33x12.50R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +18
Note: -
Size: 33x12.50R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +20
Note: -
Size: 33x12.50R22
Wheel: 22x10
Bolt: 6x5.5
Offset: -19
Note: Minor Trimming
Due to differences in manufacturing, dimension and inflated measurements, tire & wheel combinations should be test fit prior to installation
About this Product
5 Inch Lift Kit | Chevy/GMC 1500 (14-18)
