4.5 Inch Lift Kit Rear AAL | Jeep Cherokee XJ 2WD/4WD (1984-2001)

STARTING PRICE
$549.95
STARTING PRICE
$549.95
Configure Your Kit:
Select options

SKU:

623-config


Brand:

Rough Country


Lowest Price Guarantee
Select Matching Wheels and Tires
Select Matching Wheels and Tires
FREE Mount, Balance, and Shipping!

Features

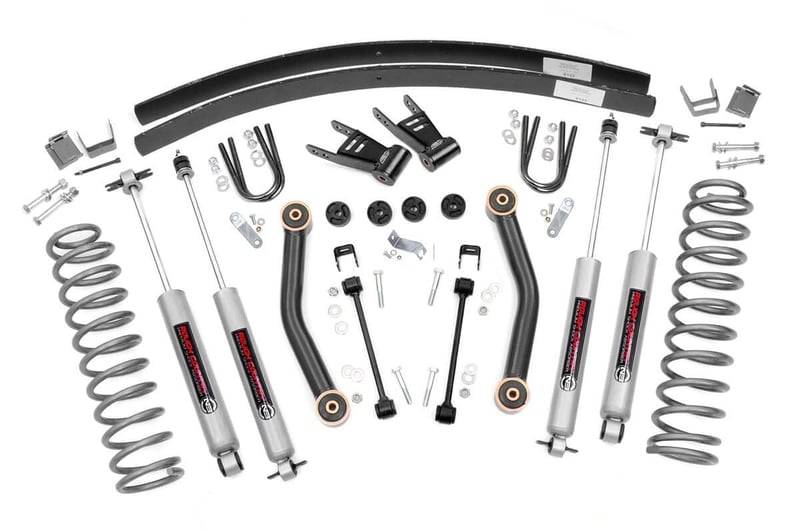

This all inclusive lift kit features everything you need to hit the ground running, with an exciting upgrade to our previous design. This kit now features our new Nitrogen charged N3 shocks with custom 10 stage variable valving. With this redesigned lift, you'll be paired up with the most versatile shocks on the market - balanced for performance on and off-road and custom tuned for this application. This lift also ships with a set of lifted coil springs, which help level the vehicle while providing enough clearance to run up to 32" tires. Standard, this kit ships with rear add-a-leaf springs to bring new life into your rear suspension.

  • Easy bolt-on installation.
  • Increased ground clearance.
  • Levels the front with the rear of the vehicle.
  • Control arms include Clevite brand OEM style rubber bushings.
  • Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
Fitment Notes
  • Does NOT fit models with AX5 transmission.
Warranty Details

Est. Install Time 5-6 hours

Shock Configuration Options

N3 Shock Pair
Premium N3
included
  • 10-Stage Variable Valving

  • High Pressure Nitrogen Charged

  • 35mm Piston

  • Chromed Hardened 18mm Piston Rod

  • 54mm Shock Body to dissipate heat faster

  • 36kN Tensile Strength

  • Spring Loaded Piston Rod Seal

  • Military Spec. Fluid Rated To –40° C

  • Rubber bushings for better absorption

  • Metallic Silver Paint

  • 3-year Manufacturer's Warranty

M1 Shock Pair
M1 Monotube
+$120.00
  • 2-inch seamless extruded tube.

  • 46mm digressive piston.

  • Self-adjusting, deflective-disc independent rebound and compression.

  • 18mm centerless-ground, case-hardened, chromed, and super-polished rod.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions.

  • Digressive valving instantly reacts to changing surface conditions.

  • Zinc plated for resistance against harsh elements.

  • Available in various lift heights for multiple applications.

  • Durable vulcanized natural rubber bushings.

  • 3-year Manufacturer's Warranty

V2 Shock Pair
V2 Monotube
+$320.00
  • Incredible ride quality & performance

  • Monotube design

  • Internal floating piston

  • Nitrogen-charged

  • 46mm high-flow piston

  • Fast heat dissipation

  • 36kN Tensile Strength

  • Mounts inverted

  • T6061 brushed aluminum body

  • 3-year Manufacturer's Warranty

Customer Support Headshot
Need Help?
Talk to a Build Expert
1-800-222-7023

Installation


GET IT INSTALLED

Don’t want to install it yourself? Search for installers in your area.


FITMENT

Vehicles

Year : 1984 - 2001

Make : Jeep

Model : Cherokee

Drive : 4WD

Year : 1985 - 2001

Make : Jeep

Model : Cherokee

Drive : RWD

Always read all product page details for more important fitment information

Tires

Size: 31X10.50R15

Wheel: 15x8

Bolt Pattern: 5x4.5

Wheel Offset: -18

Note: -

Stance: -

Size: 31X10.50R15

Wheel: 15x8

Bolt Pattern: 5x4.5

Wheel Offset: -19

Note: -

Stance: -

Size: 32x11.50R15

Wheel: 15x8

Bolt Pattern: 5x4.5

Wheel Offset: +0

Note: -

Stance: -

Size: 32x11.50R15

Wheel: 15x8

Bolt Pattern: 5x4.5

Wheel Offset: +1

Note: -

Stance: -

Size: 32x11.50R15

Wheel: 15x8

Bolt Pattern: 5x4.5

Wheel Offset: +6

Note: -

Stance: -

Size: 32x11.50R15

Wheel: 15x8

Bolt Pattern: 5x4.5

Wheel Offset: -12

Note: -

Stance: -

Size: 32x11.50R15

Wheel: 15x8

Bolt Pattern: 5x4.5

Wheel Offset: -18

Note: -

Stance: -

Size: 32x11.50R15

Wheel: 15x8

Bolt Pattern: 5x4.5

Wheel Offset: -19

Note: -

Stance: -

Size: 32x11.50R15

Wheel: 15x8

Bolt Pattern: 5x4.5

Wheel Offset: -6

Note: -

Stance: -

Size: 265/75R16

Wheel: 16x8

Bolt Pattern: 5x4.5

Wheel Offset: +0

Note: -

Stance: -

Size: 265/75R16

Wheel: 16x8

Bolt Pattern: 5x4.5

Wheel Offset: +1

Note: -

Stance: -

Size: 265/75R16

Wheel: 16x8

Bolt Pattern: 5x4.5

Wheel Offset: +6

Note: -

Stance: -

Size: 265/75R16

Wheel: 16x8

Bolt Pattern: 5x4.5

Wheel Offset: -12

Note: -

Stance: -

Size: 265/75R16

Wheel: 16x8

Bolt Pattern: 5x4.5

Wheel Offset: -18

Note: -

Stance: -

Size: 265/75R16

Wheel: 16x8

Bolt Pattern: 5x4.5

Wheel Offset: -19

Note: -

Stance: -

Size: 265/75R16

Wheel: 16x8

Bolt Pattern: 5x4.5

Wheel Offset: -6

Note: -

Stance: -

Size: 265/70R17

Wheel: 17x8

Bolt Pattern: 5x4.5

Wheel Offset: +0

Note: -

Stance: -

Size: 265/70R17

Wheel: 17x8

Bolt Pattern: 5x4.5

Wheel Offset: +1

Note: -

Stance: -

Size: 265/70R17

Wheel: 17x8

Bolt Pattern: 5x4.5

Wheel Offset: +6

Note: -

Stance: -

Size: 265/70R17

Wheel: 17x8

Bolt Pattern: 5x4.5

Wheel Offset: -18

Note: -

Stance: -

Size: 265/70R17

Wheel: 17x8

Bolt Pattern: 5x4.5

Wheel Offset: -19

Note: -

Stance: -

Size: 265/65R17

Wheel: 17x8.5

Bolt Pattern: 5x4.5

Wheel Offset: +0

Note: -

Stance: -

Size: 265/65R17

Wheel: 17x8.5

Bolt Pattern: 5x4.5

Wheel Offset: +1

Note: -

Stance: -

Size: 265/70R17

Wheel: 17x8.5

Bolt Pattern: 5x4.5

Wheel Offset: +0

Note: -

Stance: -

Size: 265/70R17

Wheel: 17x8.5

Bolt Pattern: 5x4.5

Wheel Offset: +1

Note: -

Stance: -

Size: 265/70R17

Wheel: 17x8.5

Bolt Pattern: 5x4.5

Wheel Offset: -12

Note: -

Stance: -

Size: 285/70R17

Wheel: 17x8.5

Bolt Pattern: 5x4.5

Wheel Offset: +0

Note: -

Stance: -

Size: 285/70R17

Wheel: 17x8.5

Bolt Pattern: 5x4.5

Wheel Offset: +1

Note: -

Stance: -

Size: 285/70R17

Wheel: 17x8.5

Bolt Pattern: 5x4.5

Wheel Offset: -12

Note: -

Stance: -

Size: 265/65R17

Wheel: 17x9

Bolt Pattern: 5x4.5

Wheel Offset: +0

Note: -

Stance: -

Size: 265/65R17

Wheel: 17x9

Bolt Pattern: 5x4.5

Wheel Offset: +1

Note: -

Stance: -

Size: 265/65R17

Wheel: 17x9

Bolt Pattern: 5x4.5

Wheel Offset: -12

Note: -

Stance: -

Size: 265/70R17

Wheel: 17x9

Bolt Pattern: 5x4.5

Wheel Offset: +0

Note: -

Stance: -

Size: 265/70R17

Wheel: 17x9

Bolt Pattern: 5x4.5

Wheel Offset: +1

Note: -

Stance: -

Size: 265/70R17

Wheel: 17x9

Bolt Pattern: 5x4.5

Wheel Offset: -12

Note: -

Stance: -

Size: 285/70R17

Wheel: 17x9

Bolt Pattern: 5x4.5

Wheel Offset: +0

Note: -

Stance: -

Size: 285/70R17

Wheel: 17x9

Bolt Pattern: 5x4.5

Wheel Offset: +1

Note: -

Stance: -

Size: 285/70R17

Wheel: 17x9

Bolt Pattern: 5x4.5

Wheel Offset: -12

Note: -

Stance: -

Size: 265/65R18

Wheel: 18x8

Bolt Pattern: 5x4.5

Wheel Offset: +0

Note: -

Stance: -

Size: 265/65R18

Wheel: 18x8

Bolt Pattern: 5x4.5

Wheel Offset: +1

Note: -

Stance: -

Size: 265/60R18

Wheel: 18x8.5

Bolt Pattern: 5x4.5

Wheel Offset: +0

Note: -

Stance: -

Size: 265/60R18

Wheel: 18x8.5

Bolt Pattern: 5x4.5

Wheel Offset: +1

Note: -

Stance: -

Size: 265/65R18

Wheel: 18x8.5

Bolt Pattern: 5x4.5

Wheel Offset: +0

Note: -

Stance: -

Size: 265/65R18

Wheel: 18x8.5

Bolt Pattern: 5x4.5

Wheel Offset: +1

Note: -

Stance: -

Size: 265/60R18

Wheel: 18x9

Bolt Pattern: 5x4.5

Wheel Offset: +0

Note: -

Stance: -

Size: 265/60R18

Wheel: 18x9

Bolt Pattern: 5x4.5

Wheel Offset: +1

Note: -

Stance: -

Size: 265/60R18

Wheel: 18x9

Bolt Pattern: 5x4.5

Wheel Offset: -12

Note: -

Stance: -

Size: 265/65R18

Wheel: 18x9

Bolt Pattern: 5x4.5

Wheel Offset: +0

Note: -

Stance: -

Size: 265/65R18

Wheel: 18x9

Bolt Pattern: 5x4.5

Wheel Offset: +1

Note: -

Stance: -

Size: 265/65R18

Wheel: 18x9

Bolt Pattern: 5x4.5

Wheel Offset: -12

Note: -

Stance: -

Size: 275/65R18

Wheel: 18x9

Bolt Pattern: 5x4.5

Wheel Offset: +0

Note: -

Stance: -

Size: 275/65R18

Wheel: 18x9

Bolt Pattern: 5x4.5

Wheel Offset: +1

Note: -

Stance: -

Size: 265/55R20

Wheel: 20x10

Bolt Pattern: 5x4.5

Wheel Offset: -18

Note: -

Stance: -

Size: 265/55R20

Wheel: 20x10

Bolt Pattern: 5x4.5

Wheel Offset: -19

Note: -

Stance: -

Size: 265/50R20

Wheel: 20x9

Bolt Pattern: 5x4.5

Wheel Offset: +0

Note: -

Stance: -

Size: 265/50R20

Wheel: 20x9

Bolt Pattern: 5x4.5

Wheel Offset: +1

Note: -

Stance: -

Size: 265/50R20

Wheel: 20x9

Bolt Pattern: 5x4.5

Wheel Offset: -12

Note: -

Stance: -

Size: 285/55R20

Wheel: 20x9

Bolt Pattern: 5x4.5

Wheel Offset: -12

Note: -

Stance: -

Due to differences in manufacturing, dimension and inflated measurements, tire & wheel combinations should be test fit prior to installation

Select Matching Wheels and Tires
Select Matching Wheels and Tires
FREE Mount, Balance, and Shipping!
About this Product

4.5 Inch Lift Kit | Rear AAL | Jeep Cherokee XJ 2WD/4WD (1984-2001)
