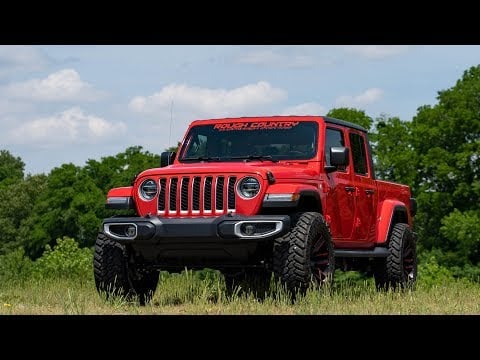

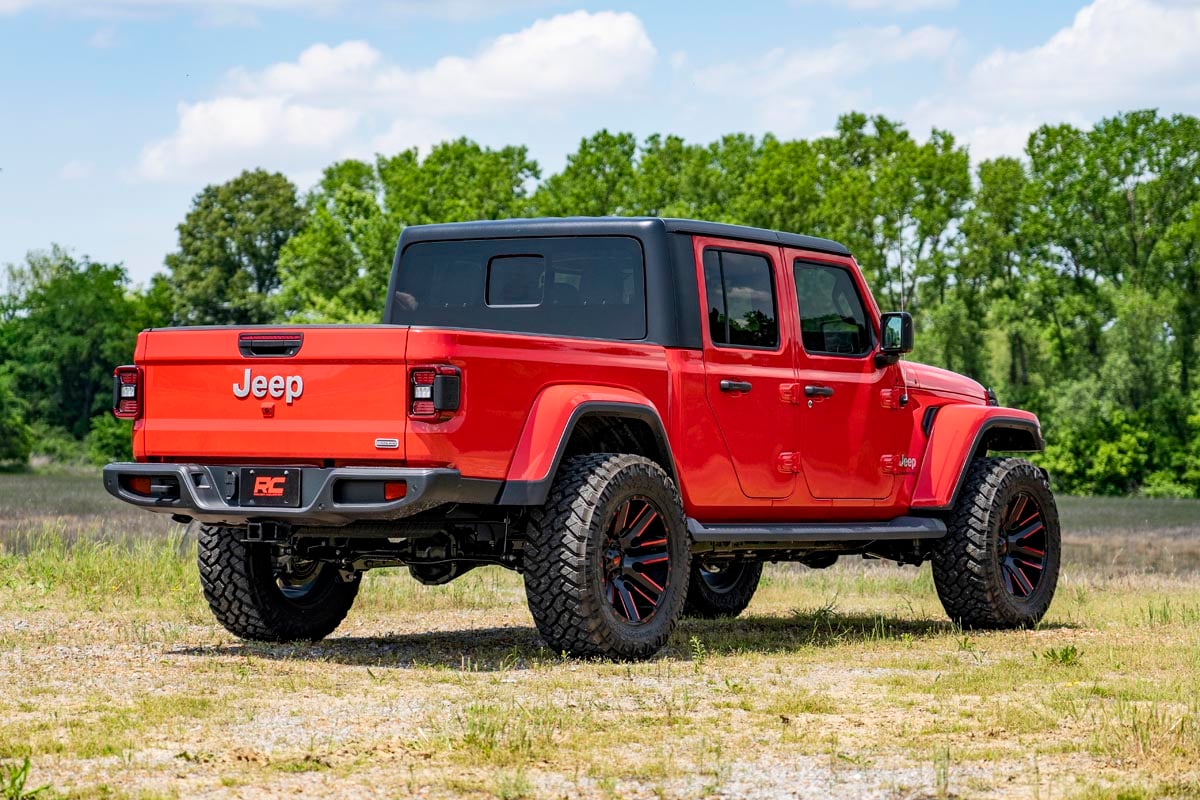

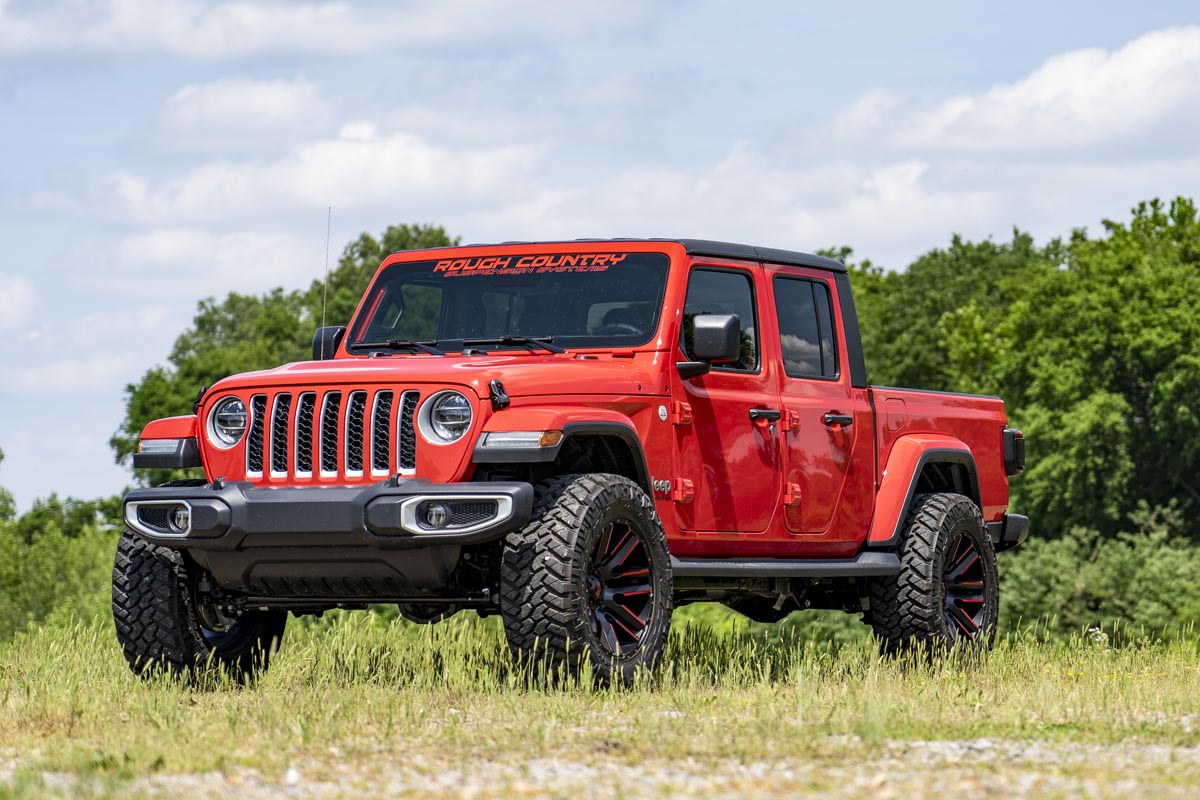

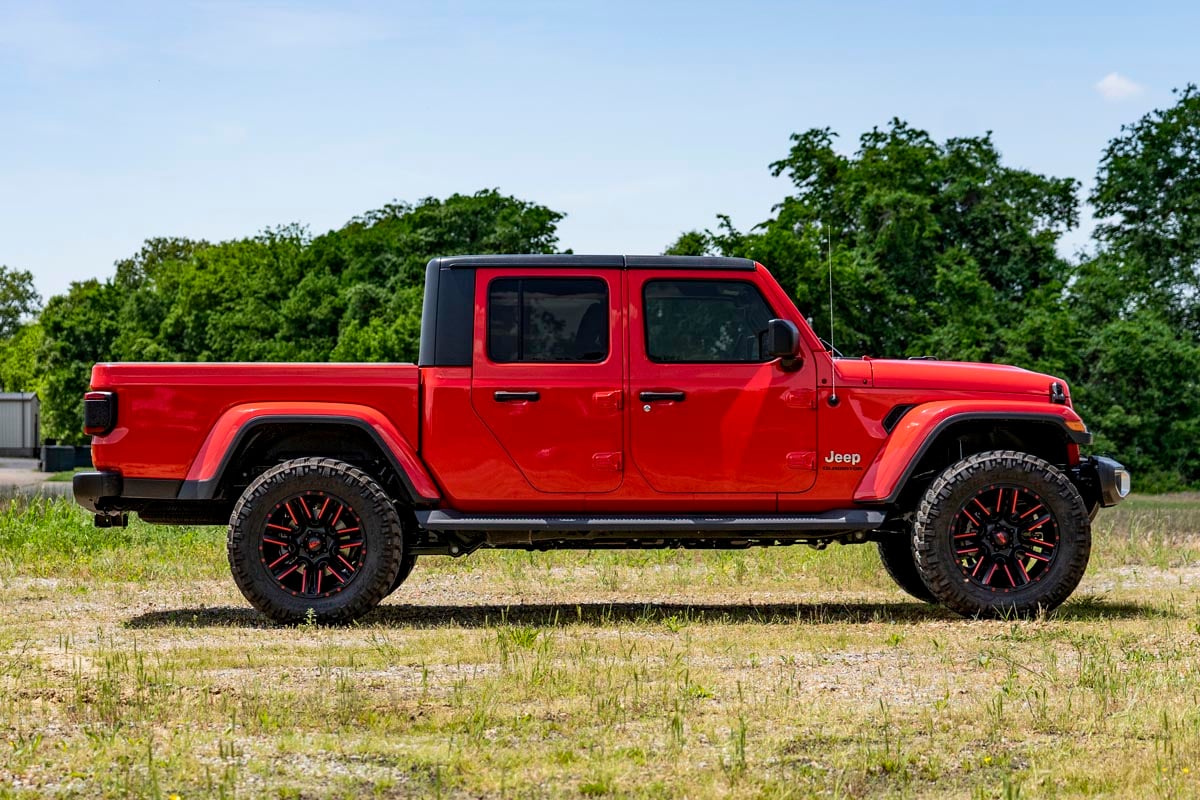

2.5 Inch Leveling Kit Jeep Gladiator JT 4WD (2020-2023)

STARTING PRICE
$99.95
STARTING PRICE
$99.95
Configure Your Kit:
Select options

SKU:

63430-config


Brand:

Rough Country


Lowest Price Guarantee
Select Matching Wheels and Tires
Select Matching Wheels and Tires
FREE Mount, Balance, and Shipping!

Features

Give your Gladiator aggressive, good looks while providing enough ground clearance to run up to 35in tires with Rough Country's 2.5in Suspension Lift Kit. This easy-to-install kit offers a total transformation, giving your Gladiator a more commanding presence while retaining a smooth factory-like ride.

  • Easy bolt-on installation
  • Increased ground clearance
  • Clears up to 35" tires*
Fitment Notes
  • 35" tires will clear but rubbing may occur with extreme articulation
  • If planning on running 35" tires on factory wheels, double check clearance between the front tire, lower control arm and sway-bar links.
  • Does NOT fit Mojave models.
Warranty Details

Est. Install Time 2-3 hours

Shock Configuration Options

N3 Shock Pair
Premium N3
+$200.00
  • 10-Stage Variable Valving

  • High Pressure Nitrogen Charged

  • 35mm Piston

  • Chromed Hardened 18mm Piston Rod

  • 54mm Shock Body to dissipate heat faster

  • 36kN Tensile Strength

  • Spring Loaded Piston Rod Seal

  • Military Spec. Fluid Rated To –40° C

  • Rubber bushings for better absorption

  • Metallic Silver Paint

  • 3-year Manufacturer's Warranty

M1 Shock Pair
M1 Monotube
+$340.00
  • 2-inch seamless extruded tube.

  • 46mm digressive piston.

  • Self-adjusting, deflective-disc independent rebound and compression.

  • 18mm centerless-ground, case-hardened, chromed, and super-polished rod.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions.

  • Digressive valving instantly reacts to changing surface conditions.

  • Zinc plated for resistance against harsh elements.

  • Available in various lift heights for multiple applications.

  • Durable vulcanized natural rubber bushings.

  • 3-year Manufacturer's Warranty

V2 Shock Pair
V2 Monotube
+$520.00
  • Incredible ride quality & performance

  • Monotube design

  • Internal floating piston

  • Nitrogen-charged

  • 46mm high-flow piston

  • Fast heat dissipation

  • 36kN Tensile Strength

  • Mounts inverted

  • T6061 brushed aluminum body

  • 3-year Manufacturer's Warranty

Customer Support Headshot
Need Help?
Talk to a Build Expert
1-800-222-7023

Installation


GET IT INSTALLED

Don’t want to install it yourself? Search for installers in your area.


FITMENT

Vehicles
year: 2020 - 2023
make: Jeep
model: Gladiator Rubicon
drive: 4WD
year: 2020 - 2023
make: Jeep
model: Gladiator
drive: 4WD

Always read all product page details for more important fitment information

Wheels & Tires
Filters
size: 35x12.50R17
Popular
wheel: 17x9
Bolt Pattern: 5x5.0
Wheel Offset: +0
note: -
Stance: 1
size: 35x12.50R18
Popular
wheel: 18x9
Bolt Pattern: 5x5.0
Wheel Offset: +0
note: -
Stance: 1
size: 35x12.50R20
Popular
wheel: 20x9
Bolt Pattern: 5x5.0
Wheel Offset: -12
note: -
Stance: 1
size: 35x12.50R17
wheel: Factory 17
Bolt Pattern: 5x5.0
Wheel Offset: -
note: -
Stance: 0
size: 35x12.50R18
wheel: Factory 18
Bolt Pattern: 5x5.0
Wheel Offset: -
note: -
Stance: 0
size: 305/70R17
wheel: 17x8.5
Bolt Pattern: 5x5.0
Wheel Offset: +0
note: -
Stance: 1
size: 305/70R17
wheel: 17x8.5
Bolt Pattern: 5x5.0
Wheel Offset: +1
note: -
Stance: 1
size: 35x12.50R17
wheel: 17x8.5
Bolt Pattern: 5x5.0
Wheel Offset: +0
note: -
Stance: 1
size: 35x12.50R17
wheel: 17x8.5
Bolt Pattern: 5x5.0
Wheel Offset: +1
note: -
Stance: 1
size: 285/75R17
wheel: 17x9
Bolt Pattern: 5x5.0
Wheel Offset: +0
note: -
Stance: 1
size: 285/75R17
wheel: 17x9
Bolt Pattern: 5x5.0
Wheel Offset: +1
note: -
Stance: 1
size: 305/70R17
wheel: 17x9
Bolt Pattern: 5x5.0
Wheel Offset: +0
note: -
Stance: 1
size: 305/70R17
wheel: 17x9
Bolt Pattern: 5x5.0
Wheel Offset: +1
note: -
Stance: 1
size: 305/70R17
wheel: 17x9
Bolt Pattern: 5x5.0
Wheel Offset: -12
note: -
Stance: 1
size: 315/70R17
wheel: 17x9
Bolt Pattern: 5x5.0
Wheel Offset: +0
note: -
Stance: 1
size: 315/70R17
wheel: 17x9
Bolt Pattern: 5x5.0
Wheel Offset: +1
note: -
Stance: 1
size: 35x12.50R17
wheel: 17x9
Bolt Pattern: 5x5.0
Wheel Offset: +1
note: -
Stance: 1
size: 35x12.50R17
wheel: 17x9
Bolt Pattern: 5x5.0
Wheel Offset: -12
note: -
Stance: 1
size: 295/70R18
wheel: 18x10
Bolt Pattern: 5x5.0
Wheel Offset: -18
note: -
Stance: 2
size: 295/70R18
wheel: 18x10
Bolt Pattern: 5x5.0
Wheel Offset: -19
note: -
Stance: 2
size: 295/70R18
wheel: 18x10
Bolt Pattern: 5x5.0
Wheel Offset: -24
note: -
Stance: 2
size: 295/70R18
wheel: 18x10
Bolt Pattern: 5x5.0
Wheel Offset: -25
note: -
Stance: 2
size: 35x12.50R18
wheel: 18x10
Bolt Pattern: 5x5.0
Wheel Offset: -18
note: -
Stance: 2
size: 35x12.50R18
wheel: 18x10
Bolt Pattern: 5x5.0
Wheel Offset: -19
note: -
Stance: 2
size: 35x12.50R18
wheel: 18x10
Bolt Pattern: 5x5.0
Wheel Offset: -24
note: -
Stance: 2
size: 35x12.50R18
wheel: 18x10
Bolt Pattern: 5x5.0
Wheel Offset: -25
note: -
Stance: 2
size: 285/75R18
wheel: 18x8.5
Bolt Pattern: 5x5.0
Wheel Offset: +0
note: -
Stance: 1
size: 285/75R18
wheel: 18x8.5
Bolt Pattern: 5x5.0
Wheel Offset: +1
note: -
Stance: 1
size: 295/70R18
wheel: 18x8.5
Bolt Pattern: 5x5.0
Wheel Offset: +0
note: -
Stance: 1
size: 295/70R18
wheel: 18x8.5
Bolt Pattern: 5x5.0
Wheel Offset: +1
note: -
Stance: 1
size: 35x12.50R18
wheel: 18x8.5
Bolt Pattern: 5x5.0
Wheel Offset: +0
note: -
Stance: 1
size: 35x12.50R18
wheel: 18x8.5
Bolt Pattern: 5x5.0
Wheel Offset: +1
note: -
Stance: 1
size: 285/75R18
wheel: 18x9
Bolt Pattern: 5x5.0
Wheel Offset: -12
note: -
Stance: 1
size: 295/70R18
wheel: 18x9
Bolt Pattern: 5x5.0
Wheel Offset: +0
note: -
Stance: 1
size: 295/70R18
wheel: 18x9
Bolt Pattern: 5x5.0
Wheel Offset: +1
note: -
Stance: 1
size: 295/70R18
wheel: 18x9
Bolt Pattern: 5x5.0
Wheel Offset: -12
note: -
Stance: 1
size: 295/70R18
wheel: 18x9
Bolt Pattern: 5x5.0
Wheel Offset: -6
note: -
Stance: 1
size: 35x12.50R18
wheel: 18x9
Bolt Pattern: 5x5.0
Wheel Offset: +1
note: -
Stance: 1
size: 35x12.50R18
wheel: 18x9
Bolt Pattern: 5x5.0
Wheel Offset: -12
note: -
Stance: 1
size: 295/60R20
wheel: 20x10
Bolt Pattern: 5x5.0
Wheel Offset: -18
note: Minor Trimming
Stance: 2
size: 295/60R20
wheel: 20x10
Bolt Pattern: 5x5.0
Wheel Offset: -19
note: Minor Trimming
Stance: 2
size: 295/60R20
wheel: 20x10
Bolt Pattern: 5x5.0
Wheel Offset: -25
note: -
Stance: 2
size: 295/65R20
wheel: 20x10
Bolt Pattern: 5x5.0
Wheel Offset: -25
note: -
Stance: 2
size: 35x11.50R20
wheel: 20x10
Bolt Pattern: 5x5.0
Wheel Offset: -25
note: -
Stance: 2
size: 35x12.50R20
wheel: 20x10
Bolt Pattern: 5x5.0
Wheel Offset: -18
note: Minor Trimming
Stance: 2
size: 35x12.50R20
wheel: 20x10
Bolt Pattern: 5x5.0
Wheel Offset: -19
note: Minor Trimming
Stance: 2
size: 35x12.50R20
wheel: 20x10
Bolt Pattern: 5x5.0
Wheel Offset: -24
note: Minor Trimming
Stance: 2
size: 35x12.50R20
wheel: 20x10
Bolt Pattern: 5x5.0
Wheel Offset: -25
note: Minor Trimming
Stance: 2
size: 295/60R20
wheel: 20x9
Bolt Pattern: 5x5.0
Wheel Offset: +0
note: -
Stance: 1
size: 295/60R20
wheel: 20x9
Bolt Pattern: 5x5.0
Wheel Offset: +1
note: -
Stance: 1
size: 295/60R20
wheel: 20x9
Bolt Pattern: 5x5.0
Wheel Offset: -12
note: -
Stance: 1
size: 35x12.50R20
wheel: 20x9
Bolt Pattern: 5x5.0
Wheel Offset: +0
note: -
Stance: 1
size: 35x12.50R20
wheel: 20x9
Bolt Pattern: 5x5.0
Wheel Offset: +1
note: -
Stance: 1
size: 35x12.50R22
wheel: 22x10
Bolt Pattern: 5x5.0
Wheel Offset: -18
note: Minor Trimming
Stance: 2
size: 35x12.50R22
wheel: 22x10
Bolt Pattern: 5x5.0
Wheel Offset: -19
note: Minor Trimming
Stance: 2
size: 35x12.50R22
wheel: 22x10
Bolt Pattern: 5x5.0
Wheel Offset: -24
note: Minor Trimming
Stance: 2
size: 35x12.50R22
wheel: 22x10
Bolt Pattern: 5x5.0
Wheel Offset: -25
note: Minor Trimming
Stance: 2
size: 35x12.50R22
wheel: 22x12
Bolt Pattern: 5x5.0
Wheel Offset: -44
note: Trimming Required
Stance: 2

Due to differences in manufacturing, dimension and inflated measurements, tire & wheel combinations should be test fit prior to installation
