3.5 Inch Lift Kit 4-Door | Jeep Wrangler Unlimited 4WD (24-25)
STARTING PRICE
$799.95
STARTING PRICE
$799.95

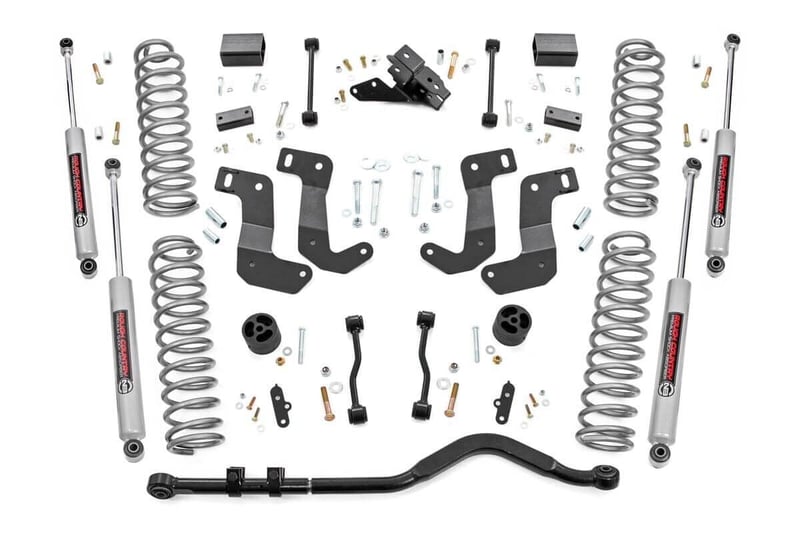

Features
- Hassle-Free Installation: Bolt-on design makes setup simple with no cutting or welding required.
- Enhanced Ground Clearance: Gain extra ride height to conquer tough terrain with confidence.
- Factory-Level Stance: Levels the front with the rear for a clean, aggressive look.
- OEM-Tuned Coil Springs: Designed with stock spring rates for balanced handling and a smooth, factory-quality ride.
- Linear Coil Rate Performance: Improves handling characteristics and enhances load support for on- and off-road use.
- Precision Axle Alignment: Forged track bar and rear track bar bracket maintain perfect axle centering under load.
- Unmatched Strength: Forged solid steel track bar ensures maximum durability and resistance to flex.
- Heavy-Duty Track Bar Design: Features a robust 1.25-inch outer diameter and high-quality OEM-style rubber bushings.
- Optimized Geometry: Control arm drop brackets retain proper suspension angles for improved ride quality and alignment.
- Configurable Shock Options: Choose from our nitrogen-charged N3, V2 Monotube, or M1 Monotube shocks the power to customize your ride is in your hands!
Fitment Notes
- Fits 4-door models ONLY.
- Due to variances in motor weight, this kit does NOT fit models equipped with a 3.0L EcoDiesel V6 motor.
- Due to variances in coil spring rate this kit NOT fit Rubicon models.
- Due to variances in coil spring rate this kit NOT fit 392 models.
- An aftermarket driveshaft is HIGHLY RECOMMENDED for installation of any Jeep JL lift kit 3.5” or taller. The factory driveshaft will become damaged if the suspension reaches full droop or flex. Please use Rough Country’s Jeep JL Front CV Driveshaft SKU: 5090.1A found HERE.
Shock Configuration Options
Premium N3
included10-Stage Variable Valving
High Pressure Nitrogen Charged
35mm Piston
Chromed Hardened 18mm Piston Rod
54mm Shock Body to dissipate heat faster
36kN Tensile Strength
Spring Loaded Piston Rod Seal
Military Spec. Fluid Rated To –40° C
Rubber bushings for better absorption
Metallic Silver Paint
3-year Manufacturer's Warranty
M1 Monotube
+$140.002-inch seamless extruded tube.
46mm digressive piston.
Self-adjusting, deflective-disc independent rebound and compression.
18mm centerless-ground, case-hardened, chromed, and super-polished rod.
46mm monotube design ensures consistent, fade-free performance in all conditions.
Digressive valving instantly reacts to changing surface conditions.
Zinc plated for resistance against harsh elements.
Available in various lift heights for multiple applications.
Durable vulcanized natural rubber bushings.
3-year Manufacturer's Warranty
V2 Monotube
+$320.00Incredible ride quality & performance
Monotube design
Internal floating piston
Nitrogen-charged
46mm high-flow piston
Fast heat dissipation
36kN Tensile Strength
Mounts inverted
T6061 brushed aluminum body
3-year Manufacturer's Warranty
Installation
RC Instructional:
Installing a Jeep Wrangler JL 3.5-inch Suspension Lift Kit [by Rough Country]
GET IT INSTALLED
Don’t want to install it yourself? Search for installers in your area.
FITMENT
Vehicles
year: 2025
make: Jeep
model: Wrangler Unlimited Willys 4xe
drive: 4WD
year: 2025
make: Jeep
model: Wrangler Unlimited Sport S 4xe
drive: 4WD
year: 2025
make: Jeep
model: Wrangler Unlimited Sahara 4xe
drive: 4WD
year: 2025
make: Jeep
model: Wrangler Unlimited High Altitude 4xe
drive: 4WD
year: 2024 - 2025
make: Jeep
model: Wrangler Unlimited Willys
drive: 4WD
year: 2024 - 2025
make: Jeep
model: Wrangler Unlimited Sport S
drive: 4WD
year: 2024 - 2025
make: Jeep
model: Wrangler Unlimited Sport
drive: 4WD
year: 2024 - 2025
make: Jeep
model: Wrangler Unlimited Sahara
drive: 4WD
year: 2024
make: Jeep
model: Wrangler Unlimited Willys Sport
drive: 4WD
Always read all product page details for more important fitment information
Wheels & Tires
size: 35x12.50R17
Popular
wheel: 17x9
Bolt Pattern: 5x5.0
Wheel Offset: +0
note: -
Stance: 1
size: 35x12.50R18
Popular
wheel: 18x9
Bolt Pattern: 5x5.0
Wheel Offset: +0
note: -
Stance: 1
size: 35x12.50R20
Popular
wheel: 20x9
Bolt Pattern: 5x5.0
Wheel Offset: +0
note: -
Stance: 1
size: 35x12.50R17
wheel: 17x8.5
Bolt Pattern: 5x5.0
Wheel Offset: +0
note: -
Stance: 1
size: 35x12.50R17
wheel: 17x8.5
Bolt Pattern: 5x5.0
Wheel Offset: +1
note: -
Stance: 1
size: 315/70R17
wheel: 17x9
Bolt Pattern: 5x5.0
Wheel Offset: +0
note: -
Stance: 1
size: 315/70R17
wheel: 17x9
Bolt Pattern: 5x5.0
Wheel Offset: +1
note: -
Stance: 1
size: 35x12.50R17
wheel: 17x9
Bolt Pattern: 5x5.0
Wheel Offset: +1
note: -
Stance: 1
size: 35x12.50R17
wheel: 17x9
Bolt Pattern: 5x5.0
Wheel Offset: -12
note: -
Stance: 1
size: 35x12.50R18
wheel: 18x10
Bolt Pattern: 5x5.0
Wheel Offset: -24
note: -
Stance: 2
size: 35x12.50R18
wheel: 18x10
Bolt Pattern: 5x5.0
Wheel Offset: -25
note: -
Stance: 2
size: 275/75R18
wheel: 18x8.5
Bolt Pattern: 5x5.0
Wheel Offset: +0
note: -
Stance: 1
size: 275/75R18
wheel: 18x8.5
Bolt Pattern: 5x5.0
Wheel Offset: +1
note: -
Stance: 1
size: 285/75R18
wheel: 18x8.5
Bolt Pattern: 5x5.0
Wheel Offset: +0
note: -
Stance: 1
size: 285/75R18
wheel: 18x8.5
Bolt Pattern: 5x5.0
Wheel Offset: +1
note: -
Stance: 1
size: 295/70R18
wheel: 18x8.5
Bolt Pattern: 5x5.0
Wheel Offset: +0
note: -
Stance: 1
size: 295/70R18
wheel: 18x8.5
Bolt Pattern: 5x5.0
Wheel Offset: +1
note: -
Stance: 1
size: 35x12.50R18
wheel: 18x8.5
Bolt Pattern: 5x5.0
Wheel Offset: +0
note: -
Stance: 1
size: 35x12.50R18
wheel: 18x8.5
Bolt Pattern: 5x5.0
Wheel Offset: +1
note: -
Stance: 1
size: 275/75R18
wheel: 18x9
Bolt Pattern: 5x5.0
Wheel Offset: -12
note: -
Stance: 1
size: 285/75R18
wheel: 18x9
Bolt Pattern: 5x5.0
Wheel Offset: -12
note: -
Stance: 1
size: 295/70R18
wheel: 18x9
Bolt Pattern: 5x5.0
Wheel Offset: -12
note: -
Stance: 1
size: 35x12.50R18
wheel: 18x9
Bolt Pattern: 5x5.0
Wheel Offset: +1
note: -
Stance: 1
size: 35x12.50R18
wheel: 18x9
Bolt Pattern: 5x5.0
Wheel Offset: -12
note: -
Stance: 1
size: 35x12.50R18
wheel: 18x9
Bolt Pattern: 5x5.0
Wheel Offset: -6
note: -
Stance: 1
size: 275/65R20
wheel: 20x10
Bolt Pattern: 5x5.0
Wheel Offset: -25
note: -
Stance: 2
size: 295/60R20
wheel: 20x10
Bolt Pattern: 5x5.0
Wheel Offset: -18
note: -
Stance: 2
size: 295/60R20
wheel: 20x10
Bolt Pattern: 5x5.0
Wheel Offset: -19
note: -
Stance: 2
size: 295/60R20
wheel: 20x10
Bolt Pattern: 5x5.0
Wheel Offset: -25
note: -
Stance: 2
size: 295/65R20
wheel: 20x10
Bolt Pattern: 5x5.0
Wheel Offset: -25
note: -
Stance: 2
size: 35x11.50R20
wheel: 20x10
Bolt Pattern: 5x5.0
Wheel Offset: -25
note: -
Stance: 2
size: 35x12.50R20
wheel: 20x10
Bolt Pattern: 5x5.0
Wheel Offset: -18
note: -
Stance: 2
size: 35x12.50R20
wheel: 20x10
Bolt Pattern: 5x5.0
Wheel Offset: -19
note: -
Stance: 2
size: 35x12.50R20
wheel: 20x10
Bolt Pattern: 5x5.0
Wheel Offset: -24
note: -
Stance: 2
size: 35x12.50R20
wheel: 20x10
Bolt Pattern: 5x5.0
Wheel Offset: -25
note: -
Stance: 2
size: 35x12.50R20
wheel: 20x12
Bolt Pattern: 5x5.0
Wheel Offset: -44
note: Minor Trimming
Stance: 2
size: 295/60R20
wheel: 20x9
Bolt Pattern: 5x5.0
Wheel Offset: +0
note: -
Stance: 1
size: 295/60R20
wheel: 20x9
Bolt Pattern: 5x5.0
Wheel Offset: +1
note: -
Stance: 1
size: 295/60R20
wheel: 20x9
Bolt Pattern: 5x5.0
Wheel Offset: -12
note: -
Stance: 1
size: 35x12.50R20
wheel: 20x9
Bolt Pattern: 5x5.0
Wheel Offset: +1
note: -
Stance: 1
size: 35x12.50R20
wheel: 20x9
Bolt Pattern: 5x5.0
Wheel Offset: -12
note: -
Stance: 1
size: 35x12.50R22
wheel: 22x10
Bolt Pattern: 5x5.0
Wheel Offset: -18
note: -
Stance: 2
size: 35x12.50R22
wheel: 22x10
Bolt Pattern: 5x5.0
Wheel Offset: -19
note: -
Stance: 2
size: 35x12.50R22
wheel: 22x10
Bolt Pattern: 5x5.0
Wheel Offset: -24
note: -
Stance: 2
size: 35x12.50R22
wheel: 22x10
Bolt Pattern: 5x5.0
Wheel Offset: -25
note: -
Stance: 2
size: 35x12.50R22
wheel: 22x12
Bolt Pattern: 5x5.0
Wheel Offset: -44
note: Minor Trimming
Stance: 2
Due to differences in manufacturing, dimension and inflated measurements, tire & wheel combinations should be test fit prior to installation
