3 Inch Lift Kit Nissan Titan 2WD/4WD (2004-2023)
Features
- Easy Bolt-On installation
- Increased ground clearance
- Levels the front and rear of the truck

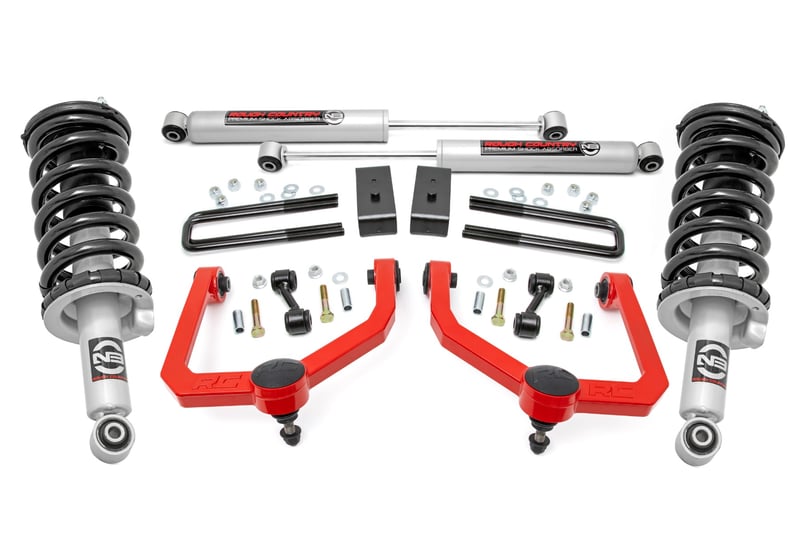

- Includes New forged aluminum upper control arms
- Control arms keep ball joints at optimum angles for less wear and tear
- Control arms include durable rubber bushings for enhanced durability
- Strut spacer kit requires no strut disassembly or strut compressor for installation. [83400]
- Lifetime Replacement Warranty*
Fitment Notes
- Does NOT fit Titan XD models
- Optional N3 Loaded Struts ONLY fit 4WD Titan models.
- Optional N3 Loaded Struts do NOT fit Pro4X models.
- Optional N3 Loaded Struts are non-adjustable.
Shock Configuration Options
Premium N3
+$50.0010-Stage Variable Valving
High Pressure Nitrogen Charged
35mm Piston
Chromed Hardened 18mm Piston Rod
54mm Shock Body to dissipate heat faster
36kN Tensile Strength
Spring Loaded Piston Rod Seal
Military Spec. Fluid Rated To –40° C
Rubber bushings for better absorption
Metallic Silver Paint
3-year Manufacturer's Warranty
Installation
GET IT INSTALLED
Don’t want to install it yourself? Search for installers in your area.
FITMENT
Vehicles
Year : 2004 - 2015
Make : Nissan
Model : TITAN
Drive : 4WD
Year : 2004 - 2015
Make : Nissan
Model : TITAN
Drive : RWD
Year : 2017 - 2023
Make : Nissan
Model : TITAN
Drive : 4WD
Year : 2017 - 2023
Make : Nissan
Model : TITAN
Drive : RWD
Always read all product page details for more important fitment information
Tires
Size: 265/65R18
Wheel: 18x9
Bolt: 6x5.5
Offset: +0
Note: -
Size: 265/65R18
Wheel: 18x9
Bolt: 6x5.5
Offset: +1
Note: -
Size: 265/65R18
Wheel: 18x9
Bolt: 6x5.5
Offset: +18
Note: -
Size: 265/65R18
Wheel: 18x9
Bolt: 6x5.5
Offset: +19
Note: -
Size: 265/65R18
Wheel: 18x9
Bolt: 6x5.5
Offset: +20
Note: -
Size: 285/55R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -18
Note: Minor Trimming
Size: 285/55R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -19
Note: Minor Trimming
Size: 285/55R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +0
Note: -
Size: 285/55R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +1
Note: -
Size: 285/55R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +18
Note: -
Size: 285/55R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +20
Note: -
Size: 285/65R18
Wheel: 18x8.5
Bolt: 6x5.5
Offset: +0
Note: -
Size: 285/65R18
Wheel: 18x8.5
Bolt: 6x5.5
Offset: +1
Note: -
Size: 285/65R18
Wheel: 18x9
Bolt: 6x5.5
Offset: +0
Note: -
Size: 285/65R18
Wheel: 18x9
Bolt: 6x5.5
Offset: +1
Note: -
Size: 285/65R18
Wheel: 18x9
Bolt: 6x5.5
Offset: +18
Note: -
Size: 285/65R18
Wheel: 18x9
Bolt: 6x5.5
Offset: +19
Note: -
Size: 285/65R18
Wheel: 18x9
Bolt: 6x5.5
Offset: +20
Note: -
Size: 285/70R17
Wheel: 17x8.5
Bolt: 6x5.5
Offset: +0
Note: -
Size: 285/70R17
Wheel: 17x8.5
Bolt: 6x5.5
Offset: +1
Note: -
Size: 285/70R17
Wheel: 17x9
Bolt: 6x5.5
Offset: +0
Note: -
Size: 285/70R17
Wheel: 17x9
Bolt: 6x5.5
Offset: +1
Note: -
Size: 285/70R17
Wheel: 17x9
Bolt: 6x5.5
Offset: +18
Note: -
Size: 285/70R17
Wheel: 17x9
Bolt: 6x5.5
Offset: +20
Note: -
Size: 305/55R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -18
Note: Trimming Required
Size: 305/55R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -19
Note: Trimming Required
Size: 305/55R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +0
Note: Trimming Required
Size: 305/55R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +1
Note: Trimming Required
Size: 305/55R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +18
Note: Minor Trimming
Size: 305/55R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +20
Note: Minor Trimming
Size: 33x12.50R17
Wheel: 17x9
Bolt: 6x5.5
Offset: +0
Note: Trimming Required
Size: 33x12.50R17
Wheel: 17x9
Bolt: 6x5.5
Offset: +1
Note: Trimming Required
Size: 33x12.50R17
Wheel: 17x9
Bolt: 6x5.5
Offset: +18
Note: Minor Trimming
Size: 33x12.50R17
Wheel: Factory 17
Bolt: 6x5.5
Offset: -
Note: -
Size: 33x12.50R18
Wheel: Factory 18
Bolt: 6x5.5
Offset: -
Note: -
Size: 33x12.50R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -18
Note: Trimming Required
Size: 33x12.50R20
Wheel: 20x10
Bolt: 6x5.5
Offset: -19
Note: Trimming Required
Size: 33x12.50R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +0
Note: Trimming Required
Size: 33x12.50R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +1
Note: Trimming Required
Size: 33x12.50R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +18
Note: Minor Trimming
Size: 33x12.50R20
Wheel: 20x9
Bolt: 6x5.5
Offset: +20
Note: Minor Trimming
Size: 33x12.50R20
Wheel: Factory 20
Bolt: 6x5.5
Offset: -
Note: -
Size: 33x12.50R22
Wheel: 22x10
Bolt: 6x5.5
Offset: -19
Note: Trimming Required
Size: 33x12.50R22
Wheel: Factory 22
Bolt: 6x5.5
Offset: -
Note: -
Due to differences in manufacturing, dimension and inflated measurements, tire & wheel combinations should be test fit prior to installation
About this Product
3 Inch Lift Kit | Nissan Titan 2WD/4WD (2004-2023)
