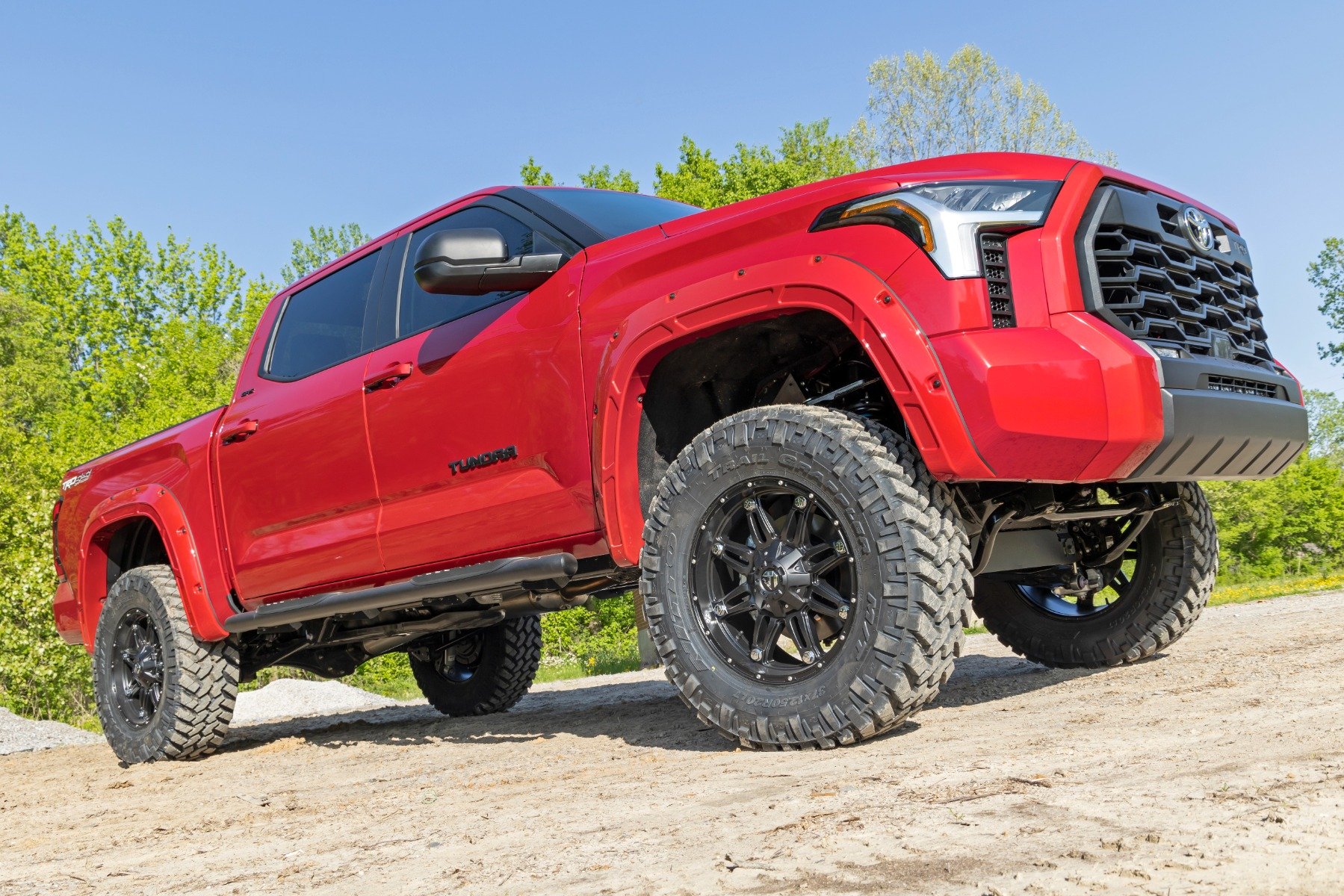

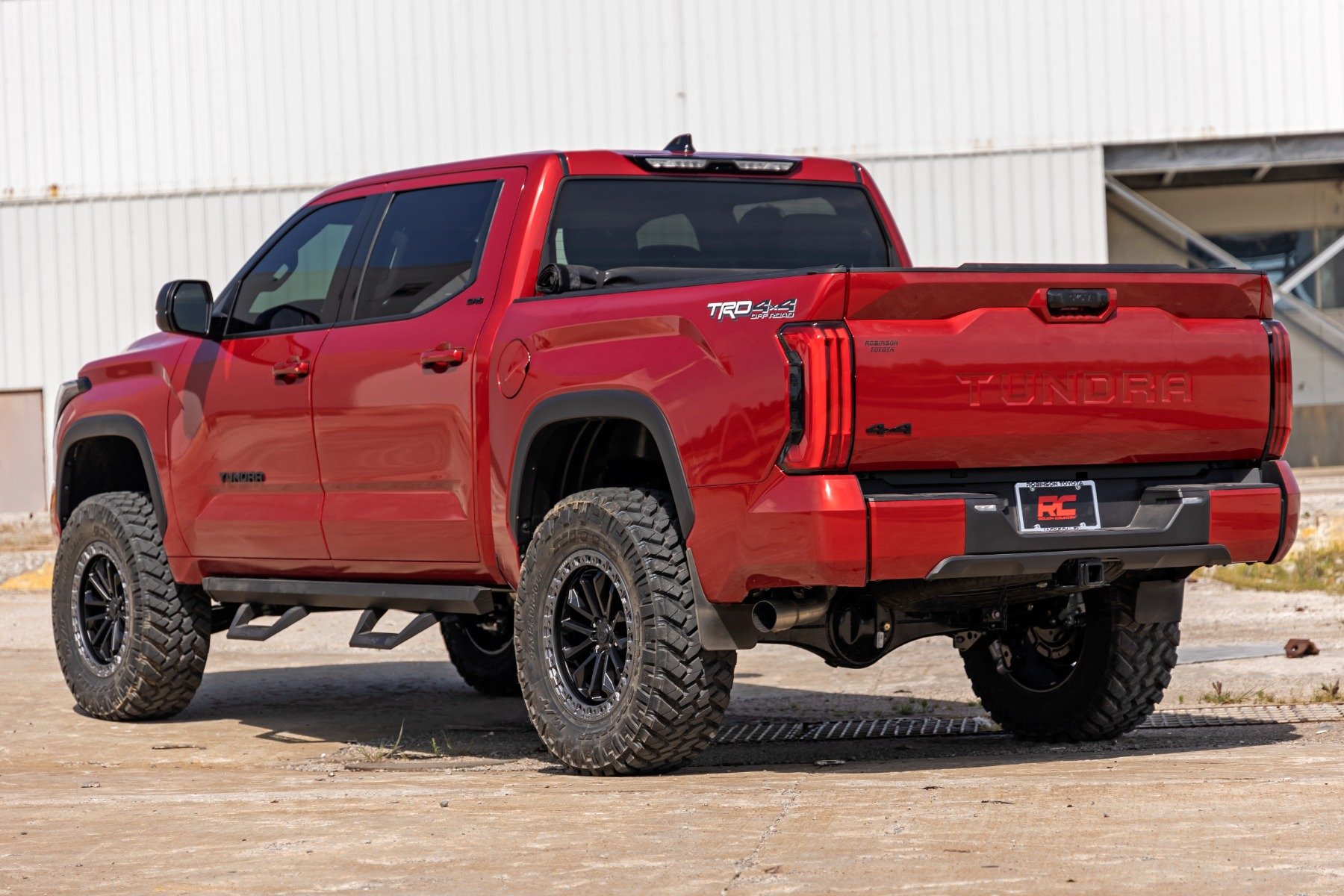

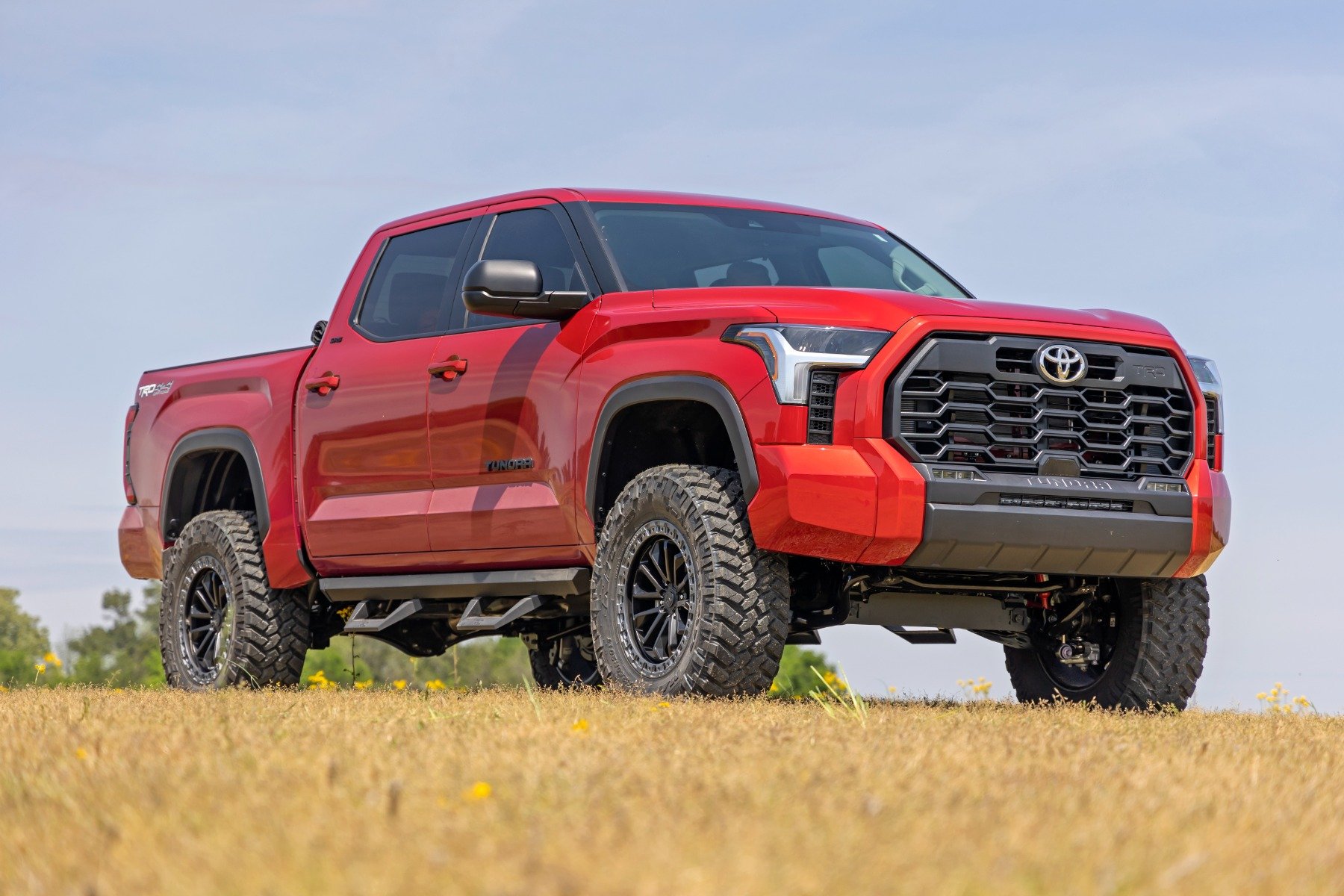

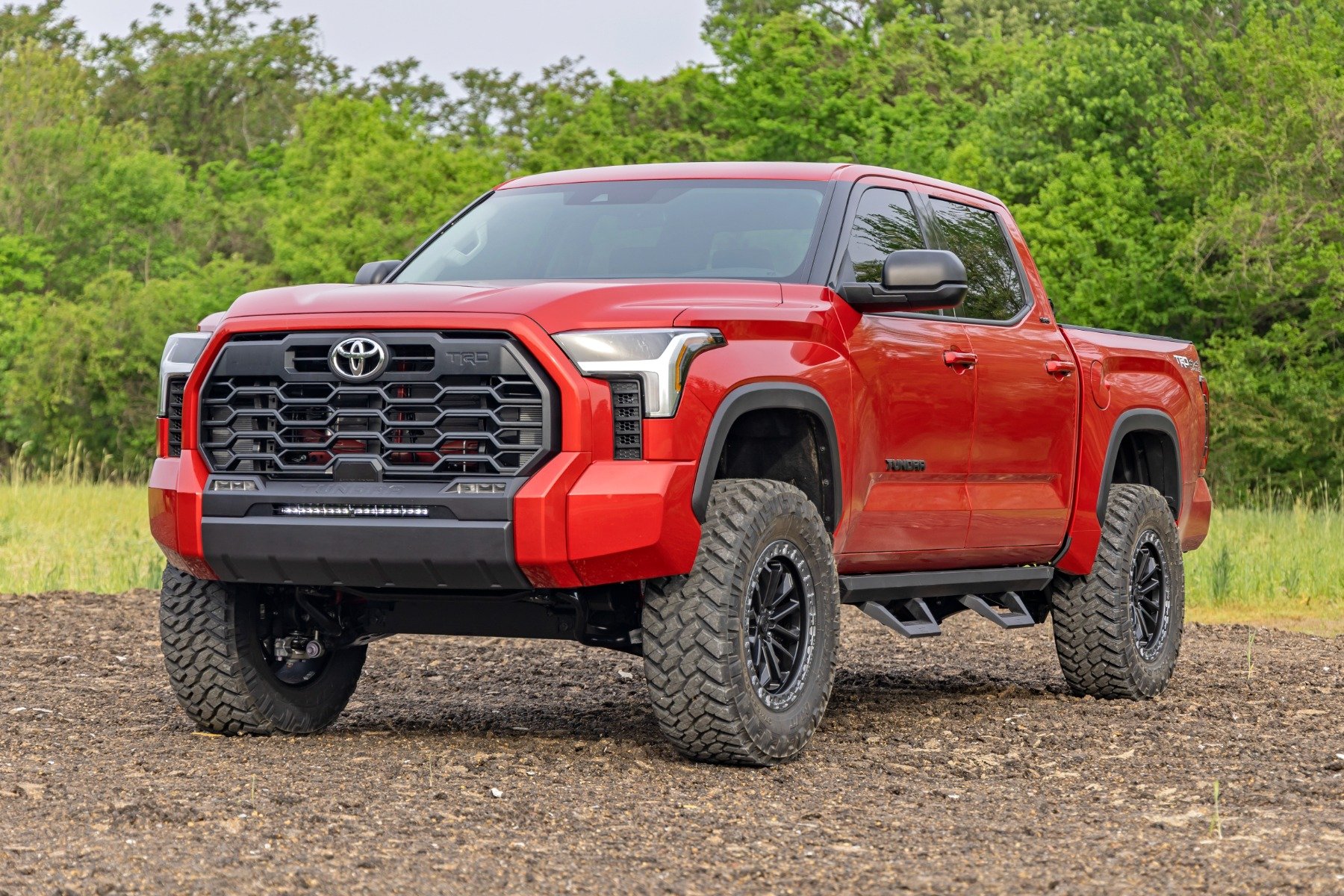

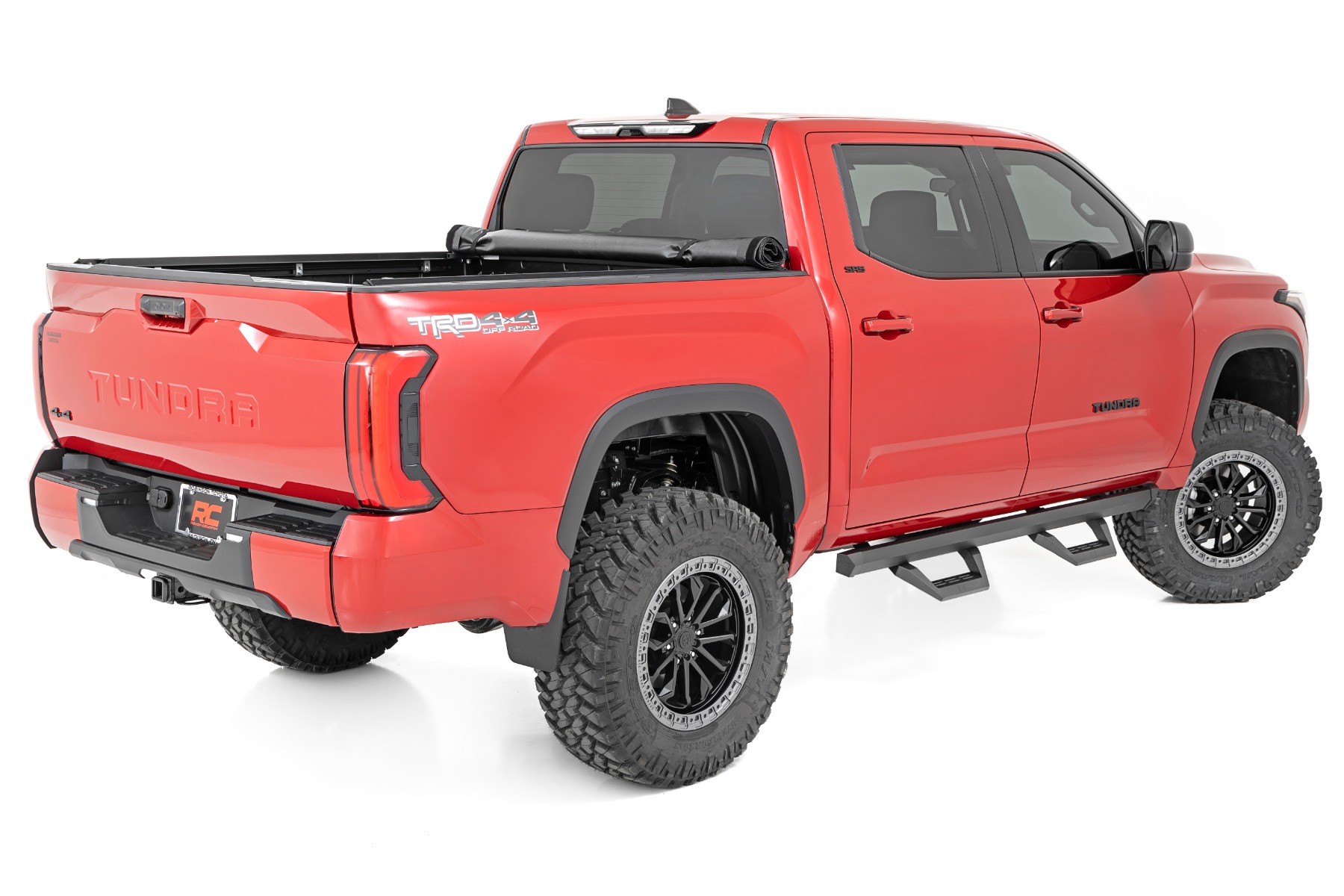

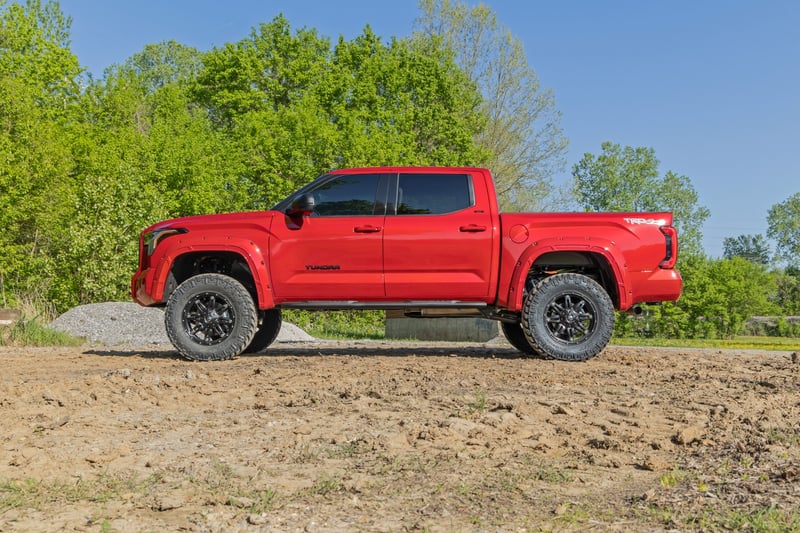

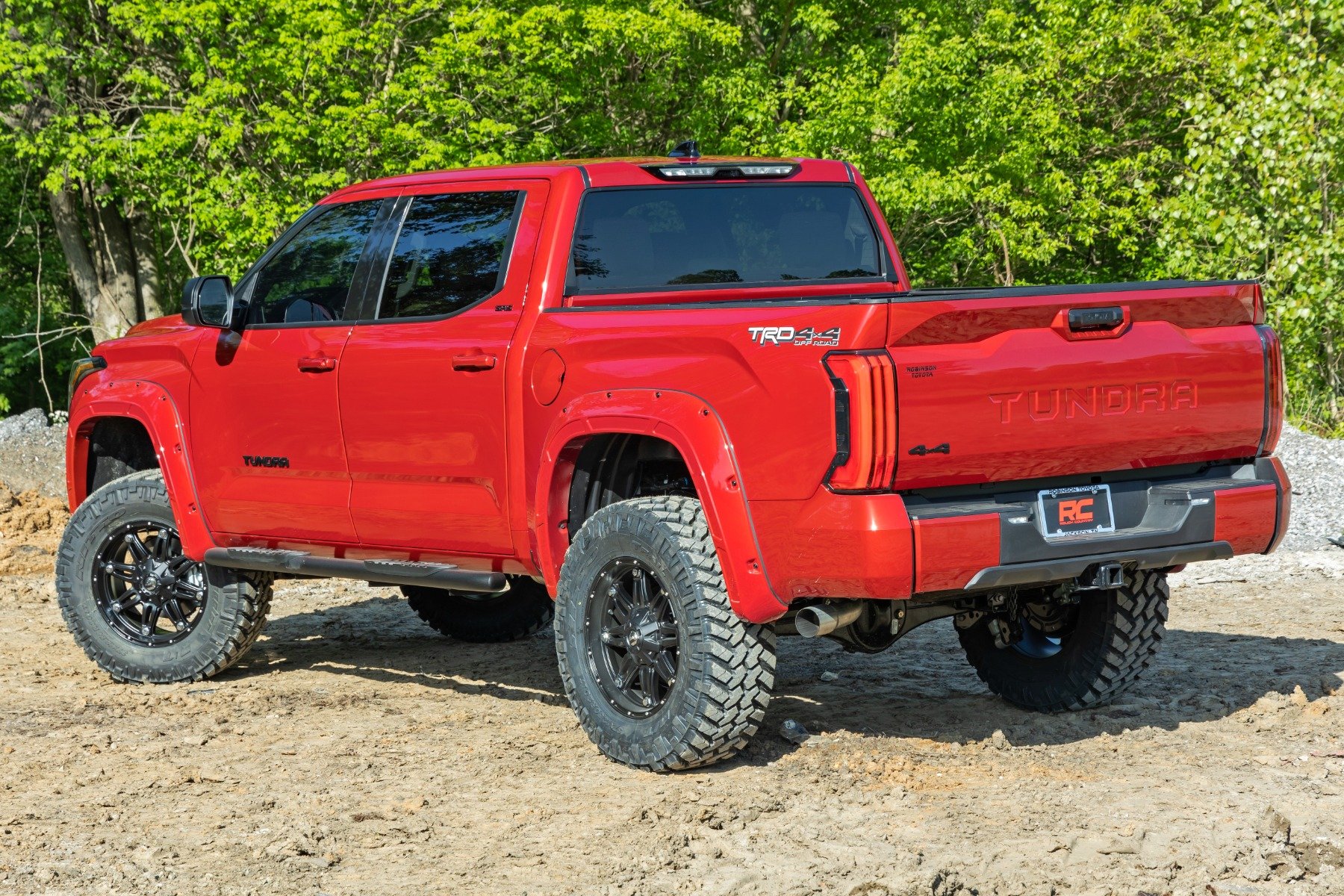

6 Inch Lift Kit Toyota Tundra 4WD (2022-2024)
Features

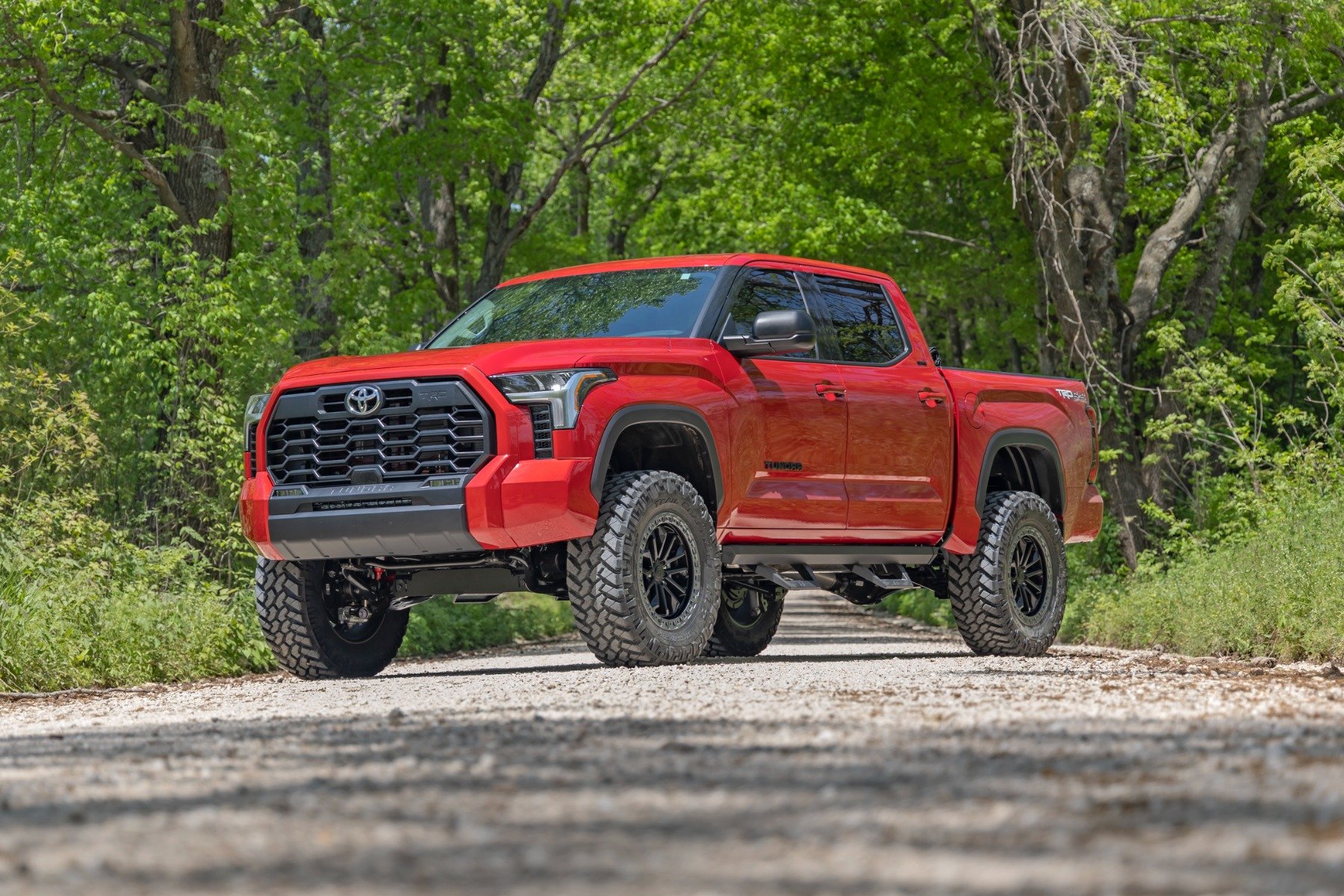

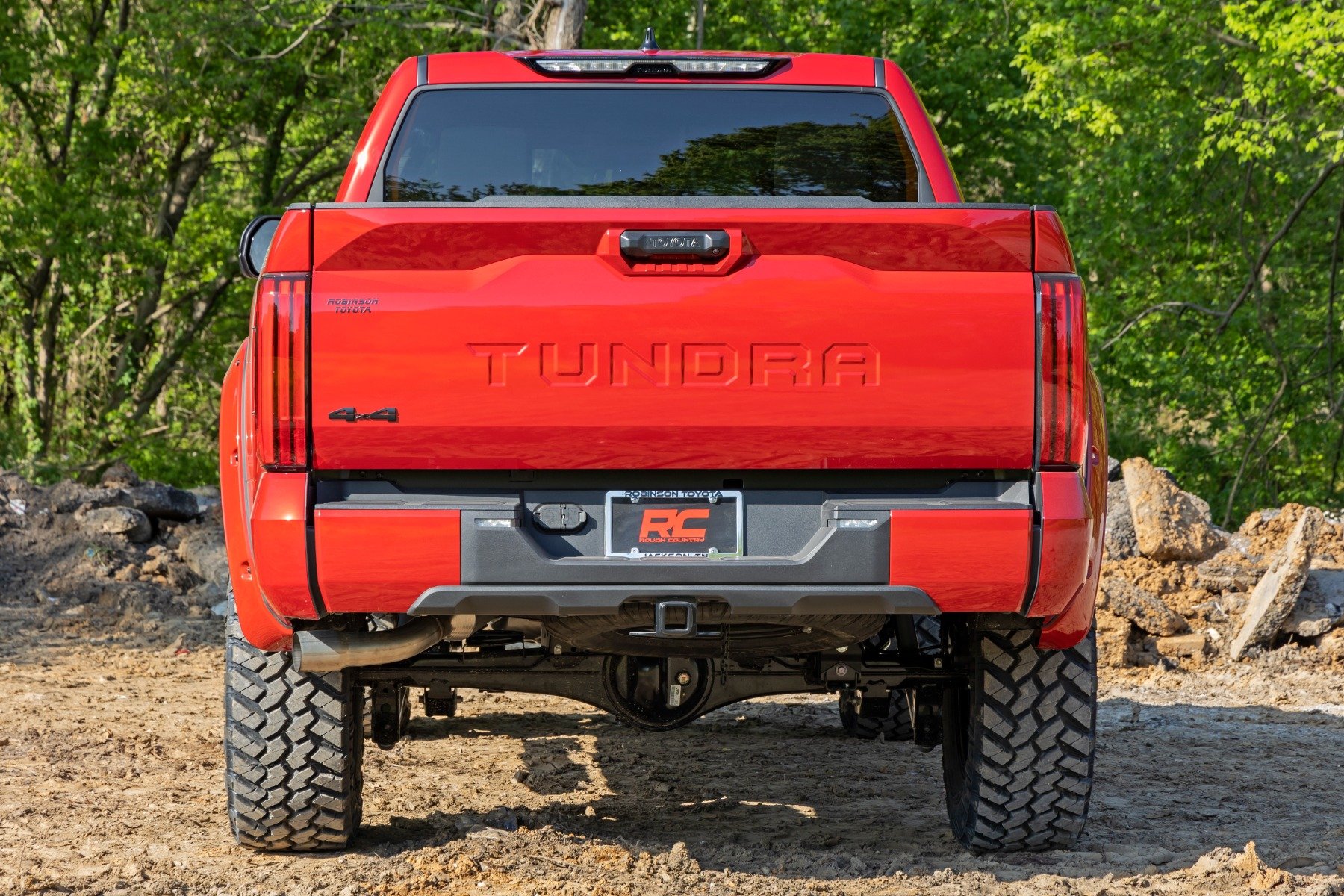

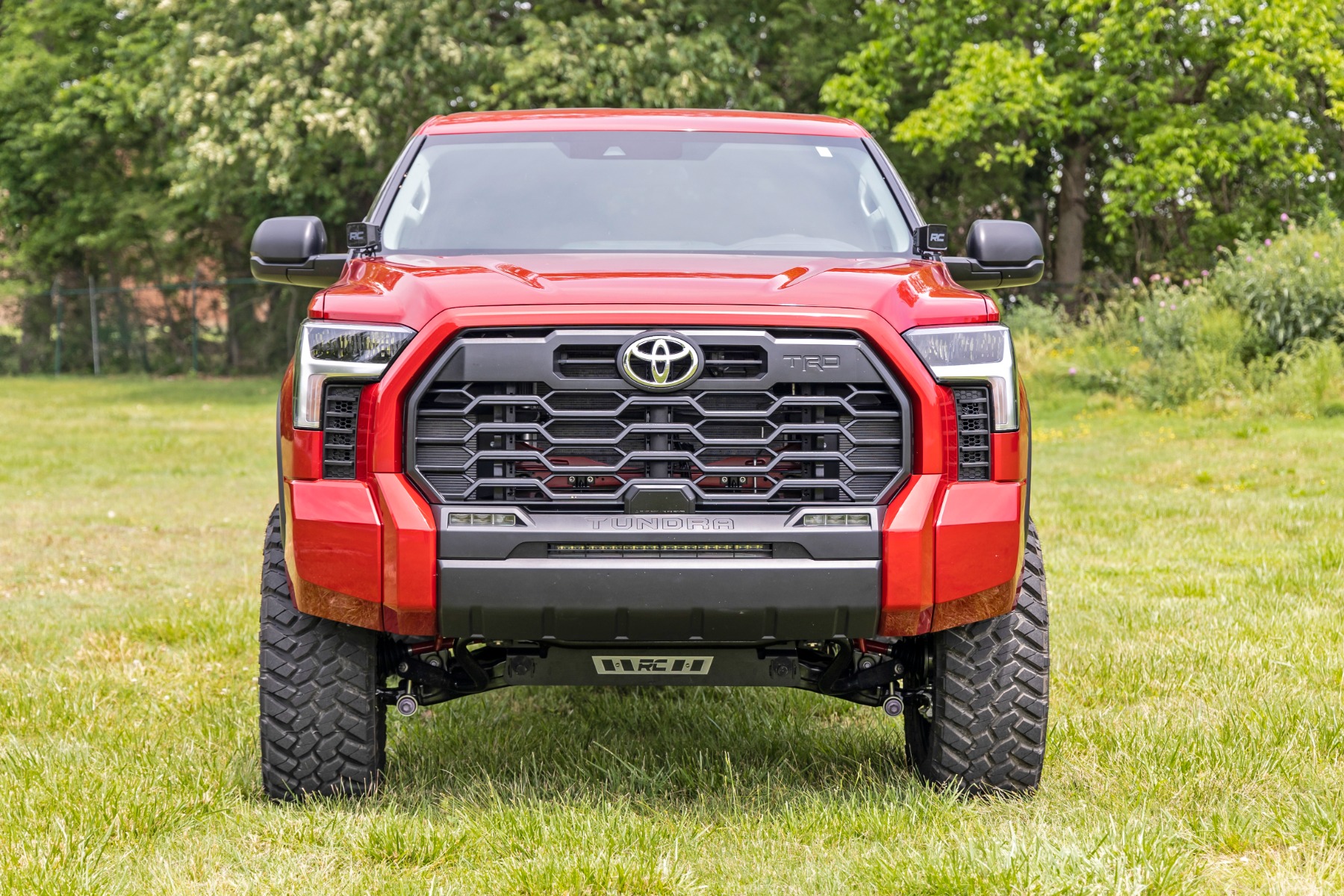

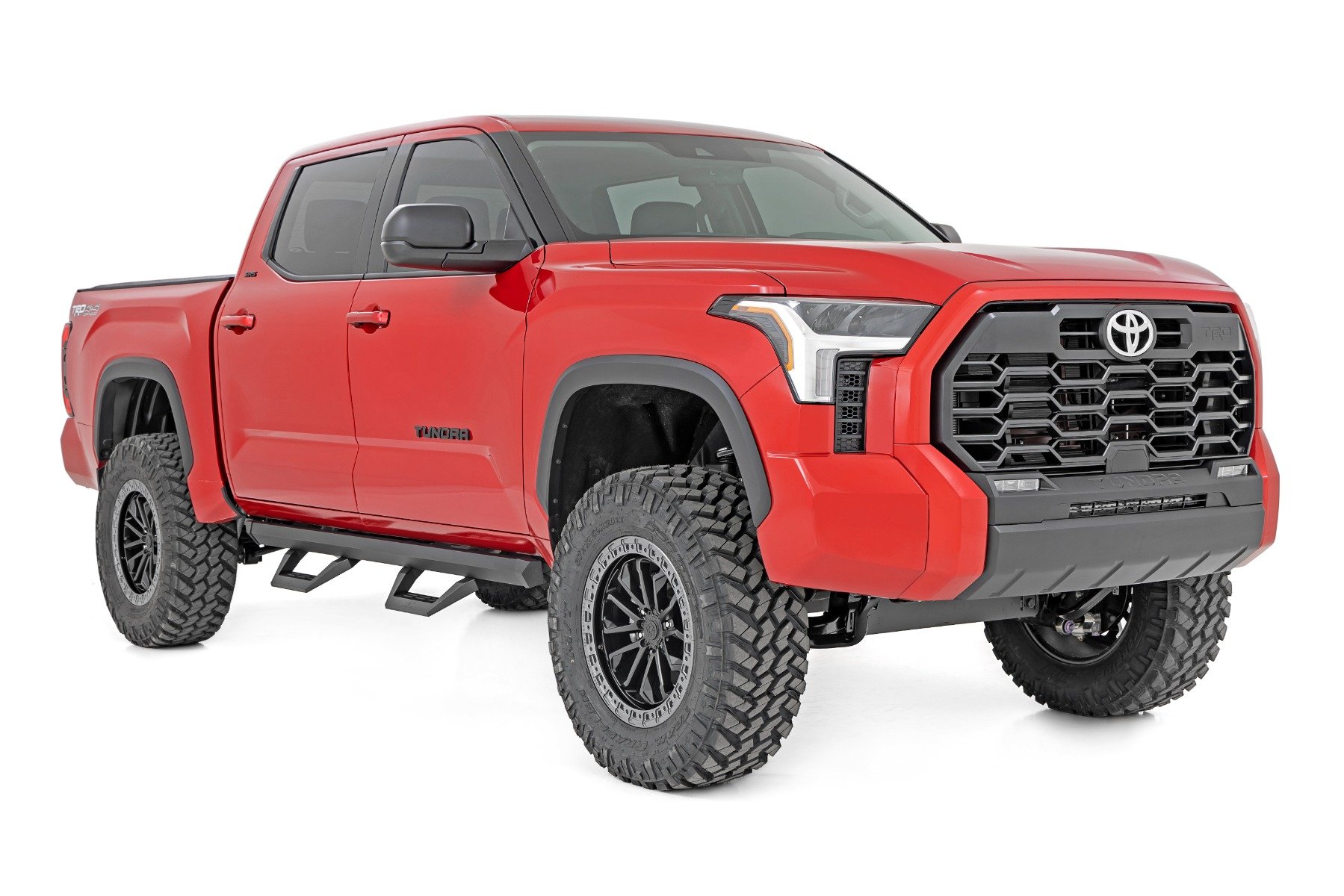

Looking to add some serious attitude to your 2022 Toyota Tundra? Rough Country's 6-Inch Lift Kit is just what you need. This lift kit gives your Tundra a meaner, lifted, and level stance while providing a smooth ride for unmatched highway and trail performance. It also adds room for larger wheels and tires, so you can make your truck stand out from the crowd. With excellent ride quality and handling characteristics on the road, this lift kit is the perfect way to take your Tundra to the next level.

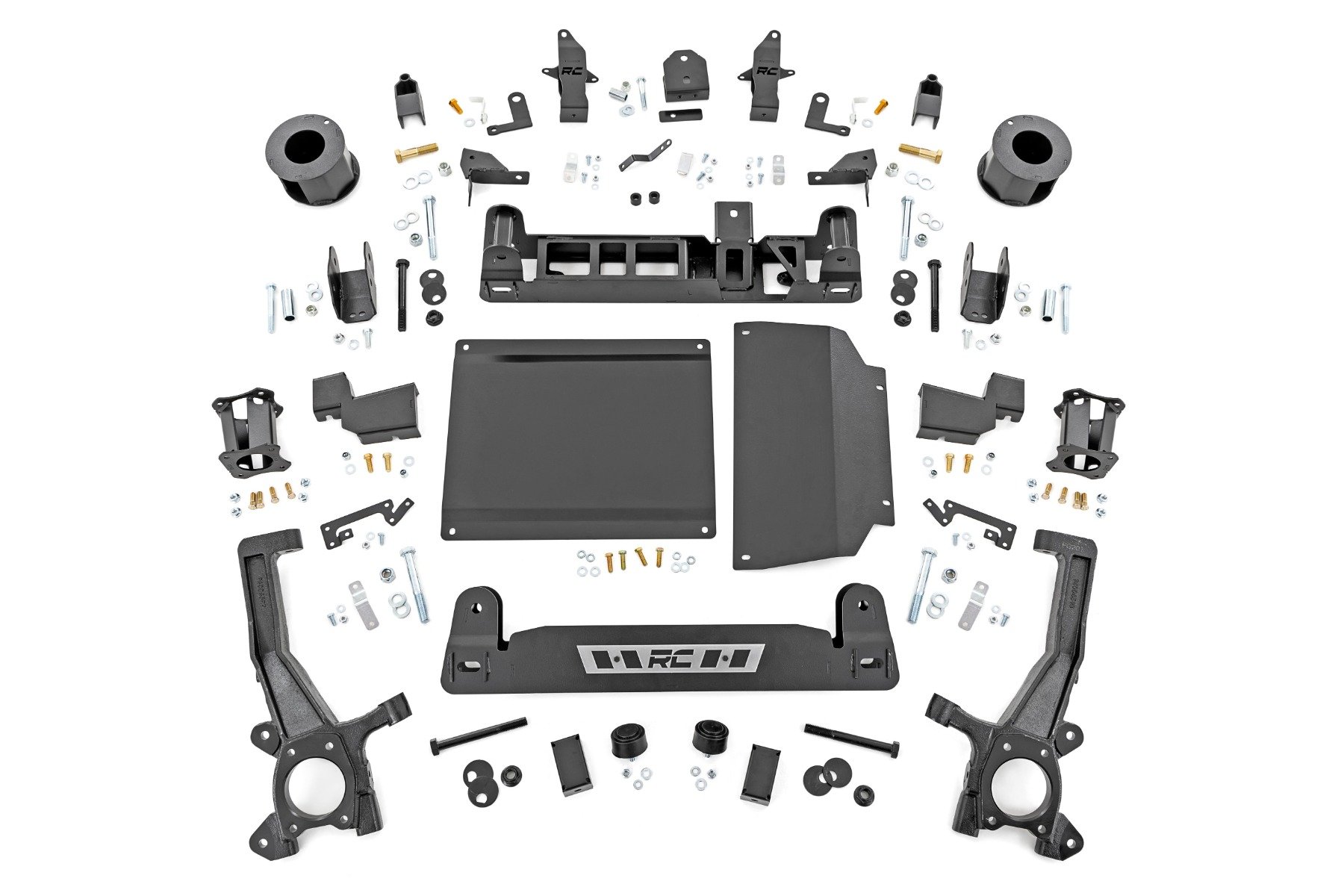

- Unmatched ground clearance due to high clearance crossmember design.
- 100% precision laser cut materials used in latest computer aided design process.
- Maintains factory track width and alignment specs.
- Includes rear upper control arm relocation brackets for droop clearance.
- Fits 35" tire and 37" tire with minor trimming depending on wheel offset.
- Levels the front with the rear of the vehicle.
- Includes pre-loaded coil.
- Maintains smooth, factory-like ride.
- Increased ground clearance.
- Engineered for lifted applications.
- Infinitely Variable Damping.
- Leak-proof piston seal.
- Massive 1 3/8in Bore.
- Silver powder coat finish.
- 3-year Manufacturer's Warranty.
- 2-inch seamless extruded tube.
- 46mm digressive piston.
- Digressive valving.
- 46mm digressive piston.
- Fast heat dissipation.
- Fade-free performance
- Natural rubber bushings.
- Zinc plated aluminum body.
- 3-year Manufacturer's Warranty.
- 8-Stage Adjustable Damping.
- Monotube Design.
- Nitrogen-charged.
- Massive 2.5in Piston.
- 22mm Chrome-Hardened Piston Rod.
- 3-Stage Seal System.
- Heat-Treated, Alloy Bearing.
- Honed Steel Body.
- 3-year Manufacturer's Warranty.
Optional N3 Loaded Struts
Optional M1 Monotube Struts
Optional Vertex Coilovers
Fitment Notes
- Cutting and drilling is required.
- Does NOT fit TRD Pro Series models.
- Does NOT fit vehicles with rear air ride system.
- Does NOT fit XSP-X models.
- ONLY fits models with TRD off-road package.
- 4WD models not equipped TRD off-road package will require Toyota's TRD axles part number 434200C020 driver side and 434100C020 passenger side.
- Requires 20-inch or larger wheels.
Installation
GET IT INSTALLED
Don’t want to install it yourself? Search for installers in your area.
FITMENT
Vehicles
Year : 2022 - 2024
Make : Toyota
Model : Tundra
Drive : 4WD
Always read all product page details for more important fitment information
Tires
Size: 35x12.50R20
Wheel: 20x9
Bolt Pattern: 6x5.5
Wheel Offset: +0
Note: -
Stance: -
Size: 35x12.50R20
Wheel: 20x9
Bolt Pattern: 6x5.5
Wheel Offset: +1
Note: -
Stance: -
Size: 35x12.50R20
Wheel: 20x9
Bolt Pattern: 6x5.5
Wheel Offset: +18
Note: -
Stance: -
Size: 35x12.50R20
Wheel: 20x9
Bolt Pattern: 6x5.5
Wheel Offset: +20
Note: -
Stance: -
Size: 37x12.50R20
Wheel: 20x9
Bolt Pattern: 6x5.5
Wheel Offset: +0
Note: Minor Trimming
Stance: -
Size: 37x12.50R20
Wheel: 20x9
Bolt Pattern: 6x5.5
Wheel Offset: +1
Note: Minor Trimming
Stance: -
Size: 37x12.50R20
Wheel: 20x9
Bolt Pattern: 6x5.5
Wheel Offset: +18
Note: -
Stance: -
Size: 37x12.50R20
Wheel: 20x9
Bolt Pattern: 6x5.5
Wheel Offset: +20
Note: Minor Trimming
Stance: -
Size: 35x12.50R22
Wheel: 22x10
Bolt Pattern: 6x5.5
Wheel Offset: -12
Note: Minor Trimming
Stance: -
Due to differences in manufacturing, dimension and inflated measurements, tire & wheel combinations should be test fit prior to installation
