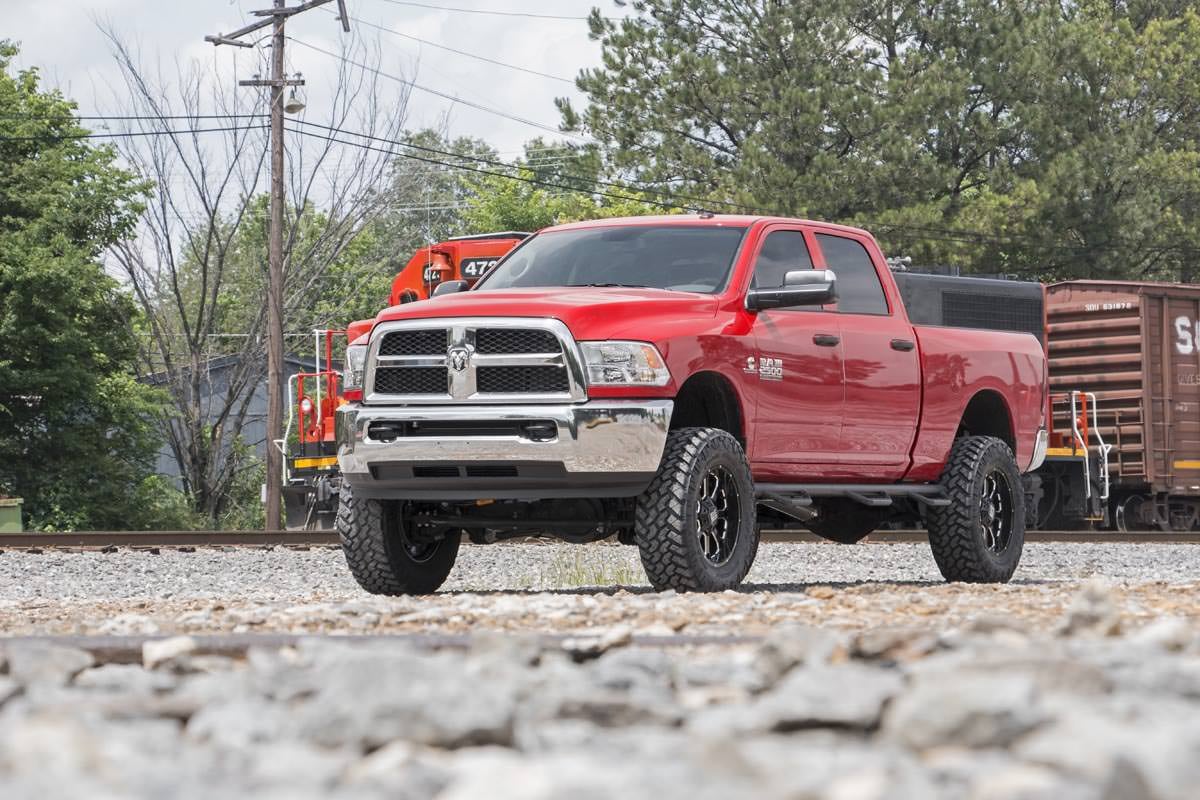

5 Inch Lift Kit FR Spacer | Radius Arm Drop | Ram 2500 4WD (14-18)

Low Stock • Ships FREE
FREE SHIPPING
$899.95
FREE SHIPPING
$899.95
Low Stock • Ships FREE

SKU:

35720


Brand:

Rough Country


Lowest Price Guarantee
Select Matching Wheels and Tires
Select Matching Wheels and Tires
FREE Mount, Balance, and Shipping!

Features

Compliment your RAM 2500's aggressive, good looks with Rough Country's 5-inch Lift Kit. This kit is designed for Dodge RAM’s equipped with either factory rear coils or factory rear air ride suspension.
  • Increased ground clearance
  • Maintains factory progressive rate coil springs
  • Track bar bracket keeps the front axle properly centered.
  • Fits both rear coil spring and rear air ride suspension models!
  • Rear ride height arm brackets let you adjust the rear ride height, up to 1-inch higher than the front - Air Ride models ONLY
  • Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
Fitment Notes
  • Does NOT fit "Power Wagon" models.
  • Requires drilling and cutting.
  • On vehicles equipped with a two piece driveshaft & carrier bearing as on the Mega Cab, there is the potential for take off vibration, depending on the severity, this can be corrected with shimming down the carrier bearing. SKU: 1161.
Warranty Details

Est. Install Time 6-8 hours
Customer Support Headshot
Need Help?
Talk to a Build Expert
1-800-222-7023

Installation


GET IT INSTALLED

Don’t want to install it yourself? Search for installers in your area.


FITMENT

Vehicles

Year : 2014 - 2018

Make : Ram

Model : 2500

Drive : 4WD

Always read all product page details for more important fitment information

Tires

Size: 37x12.50R17

Wheel: 17x9

Bolt Pattern: 8x6.5/8x165.1

Wheel Offset: +0

Note: -

Stance: -

Size: 37x12.50R17

Wheel: 17x9

Bolt Pattern: 8x6.5/8x165.1

Wheel Offset: +1

Note: -

Stance: -

Size: 37x12.50R18

Wheel: 18x9

Bolt Pattern: 8x6.5/8x165.1

Wheel Offset: +0

Note: -

Stance: -

Size: 37x12.50R18

Wheel: 18x9

Bolt Pattern: 8x6.5/8x165.1

Wheel Offset: +1

Note: -

Stance: -

Size: 37x12.50R20

Wheel: 20x10

Bolt Pattern: 8x6.5/8x165.1

Wheel Offset: -18

Note: Trimming Required

Stance: -

Size: 37x12.50R20

Wheel: 20x10

Bolt Pattern: 8x6.5/8x165.1

Wheel Offset: -19

Note: Trimming Required

Stance: -

Size: 37x12.50R20

Wheel: 20x9

Bolt Pattern: 8x6.5/8x165.1

Wheel Offset: +0

Note: -

Stance: -

Size: 37x12.50R20

Wheel: 20x9

Bolt Pattern: 8x6.5/8x165.1

Wheel Offset: +1

Note: Minor Trimming

Stance: -

Size: 37x12.50R22

Wheel: 22x10

Bolt Pattern: 8x6.5/8x165.1

Wheel Offset: -18

Note: Minor Trimming

Stance: -

Size: 37x12.50R22

Wheel: 22x10

Bolt Pattern: 8x6.5/8x165.1

Wheel Offset: -19

Note: Minor Trimming

Stance: -

Due to differences in manufacturing, dimension and inflated measurements, tire & wheel combinations should be test fit prior to installation

Select Matching Wheels and Tires
Select Matching Wheels and Tires
FREE Mount, Balance, and Shipping!
About this Product

5 Inch Lift Kit | FR Spacer | Radius Arm Drop | Ram 2500 4WD (14-18)
