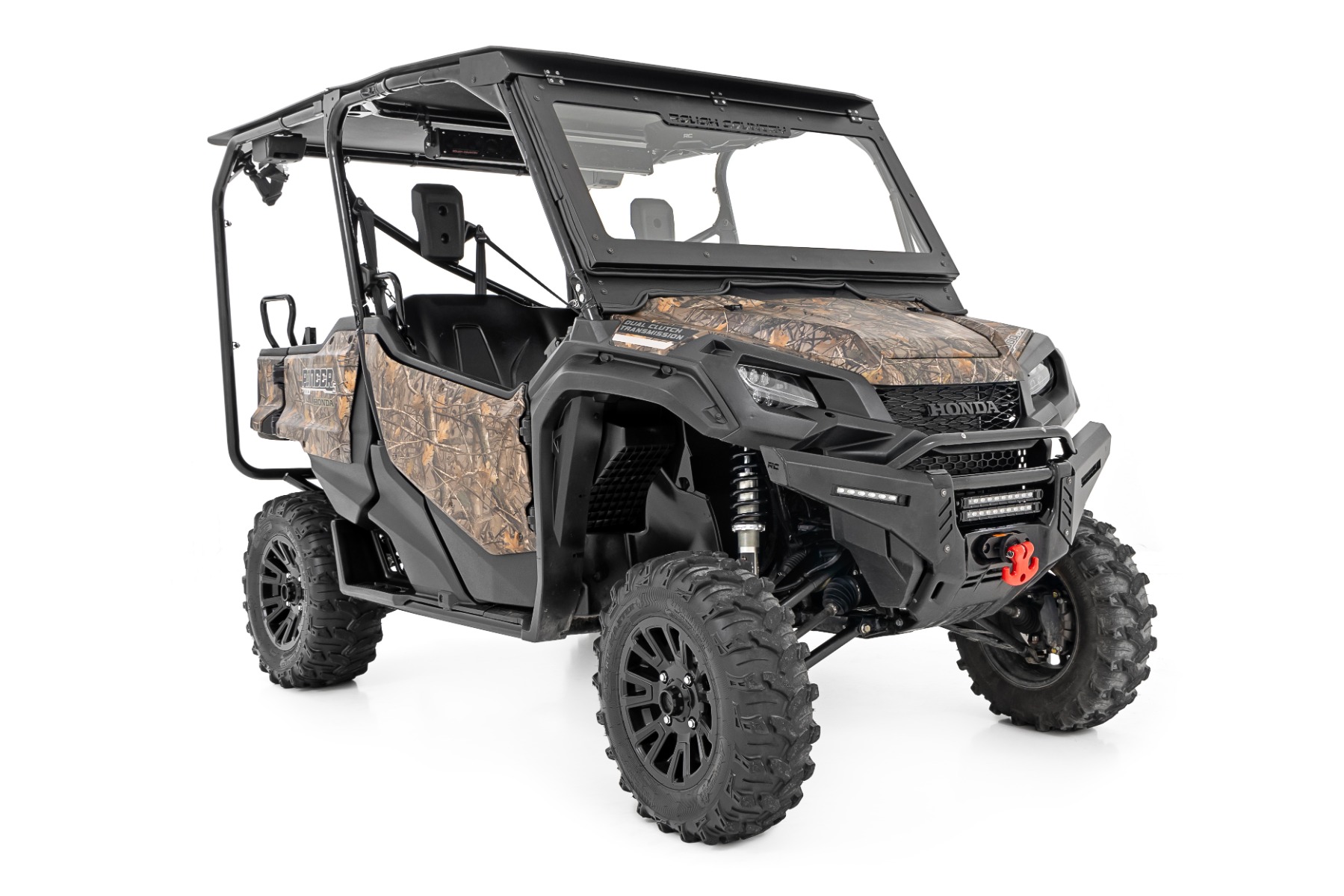

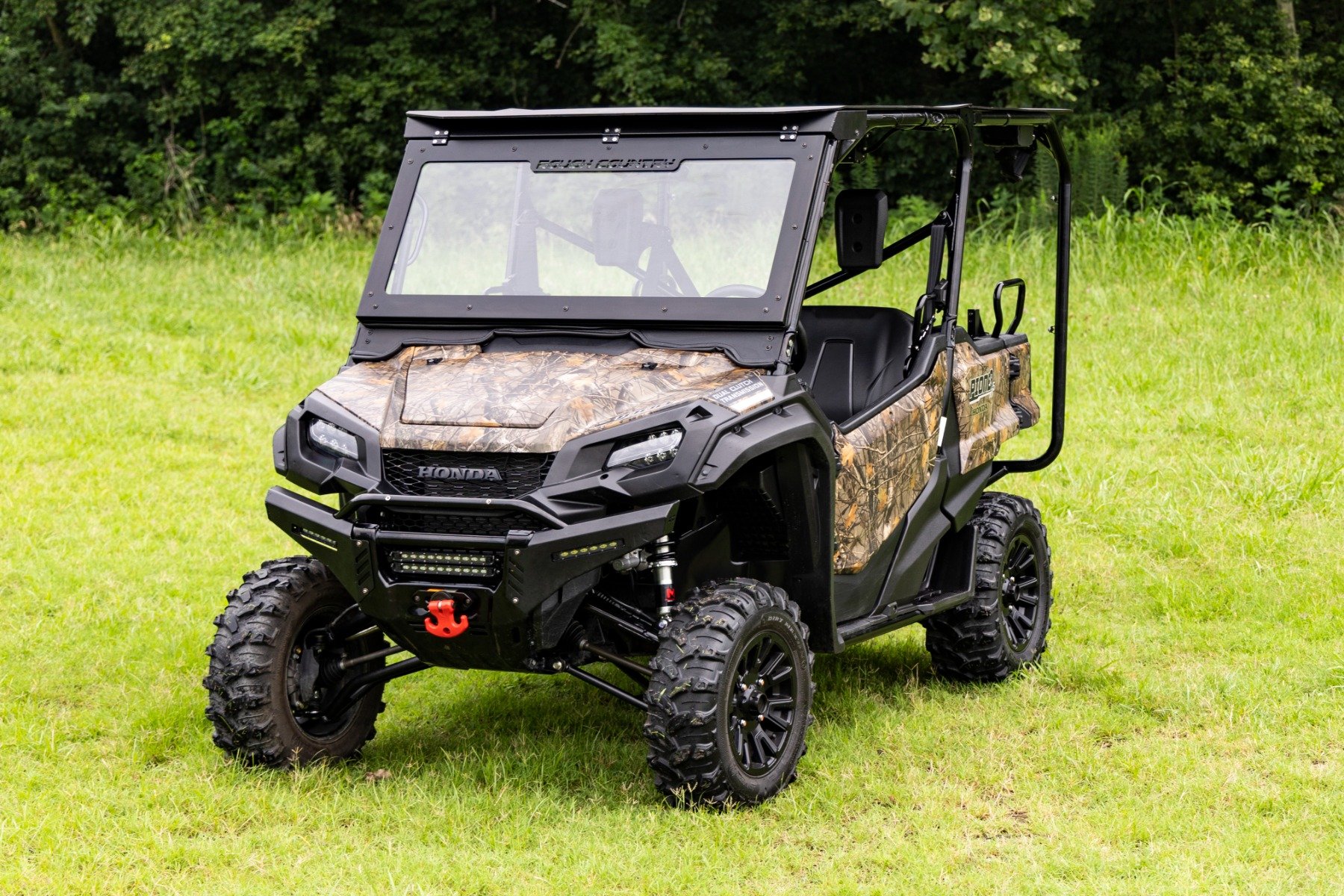

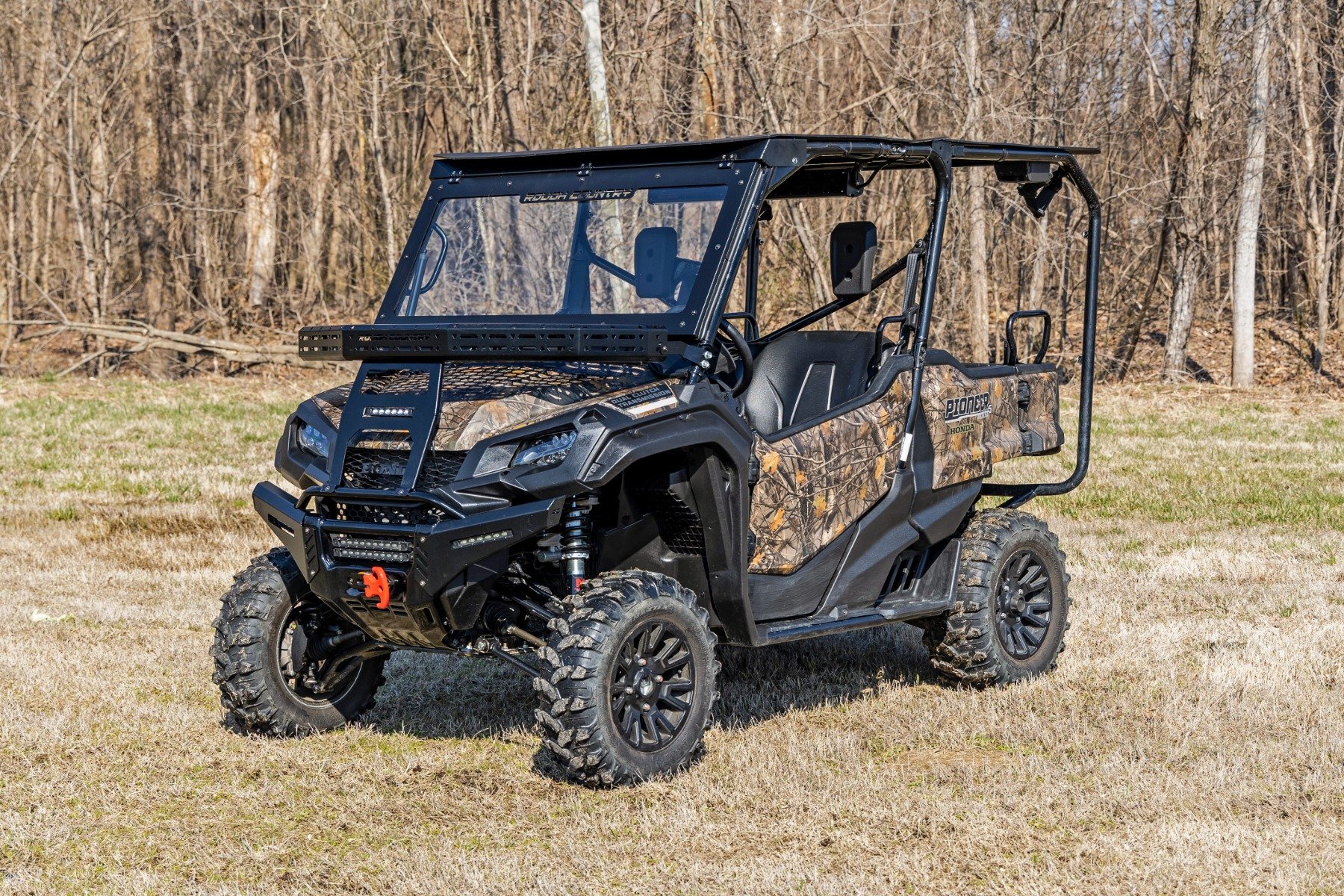

Electric Tilt Windshield Glass | Honda Pioneer 1000
In Stock • Ships FREE
FREE SHIPPING
$749.95
In Stock • Ships FREE
SKU:
98316222
Brand:
Rough Country
Lowest Price Guarantee
Features
- Precision Fitment: Overall frame dimensions measure 50.75 inches wide and 29.5 inches tall for a clean, factory style install on Honda Pioneer models.

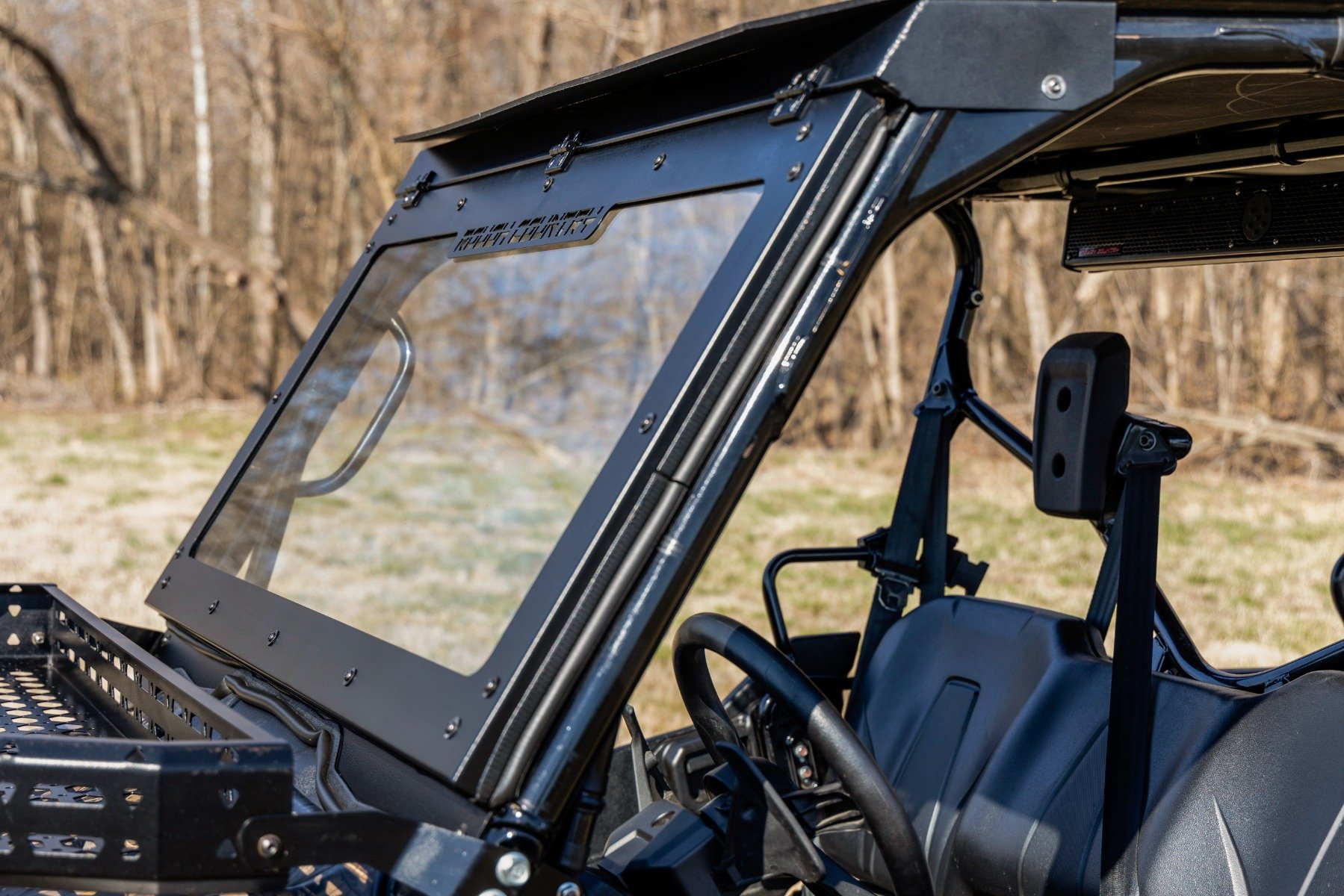

- Full Glass Viewing Area: Glass panel measures 44.66 inches wide and 21.75 inches tall for excellent forward visibility.

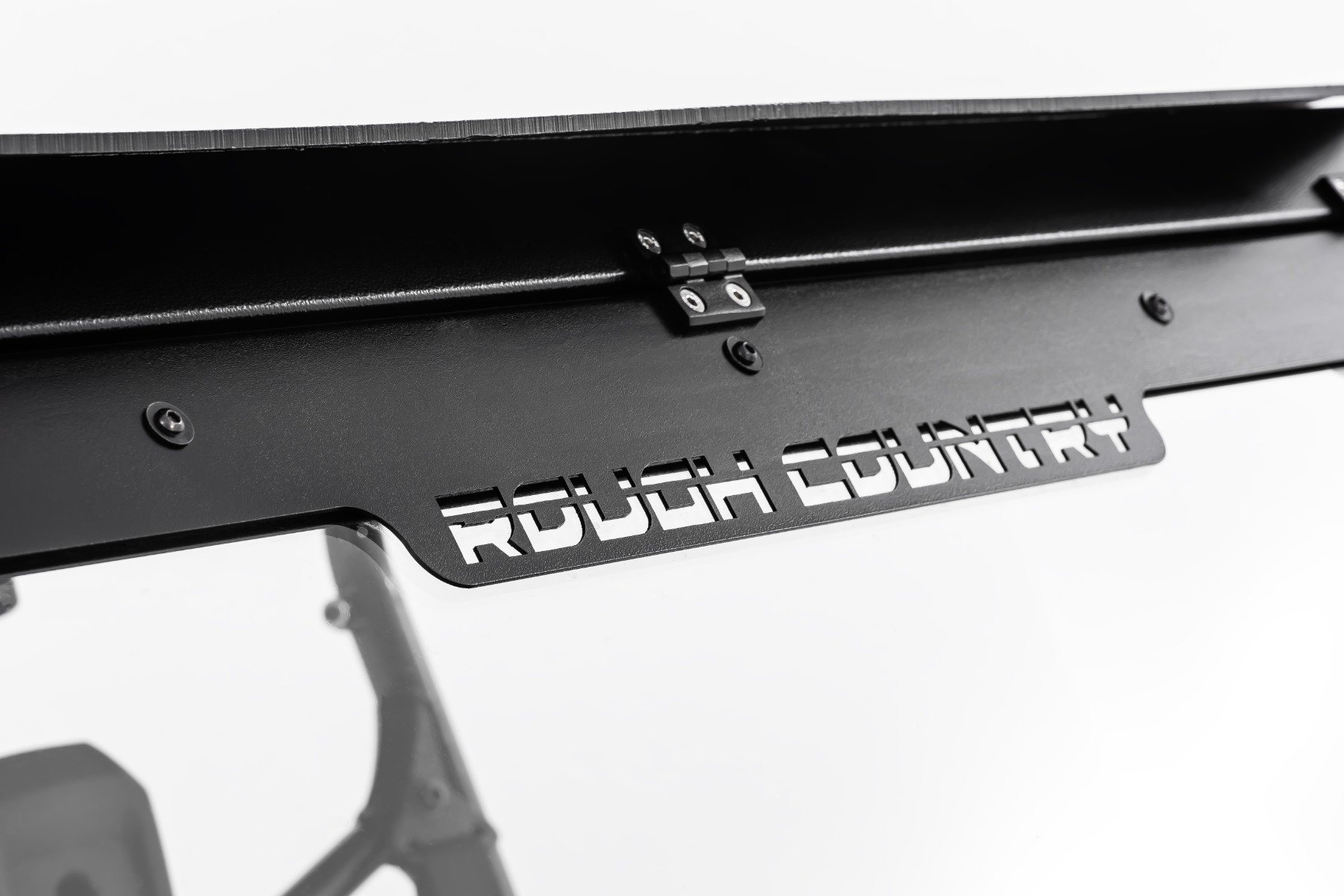

- Heavy Duty Metal Frame: Built from durable steel and finished with a UV and scratch resistant powder coat for long lasting protection.
- DOT Approved Safety Glass: Scratch and impact resistant glass provides confidence on the trail and around the property.

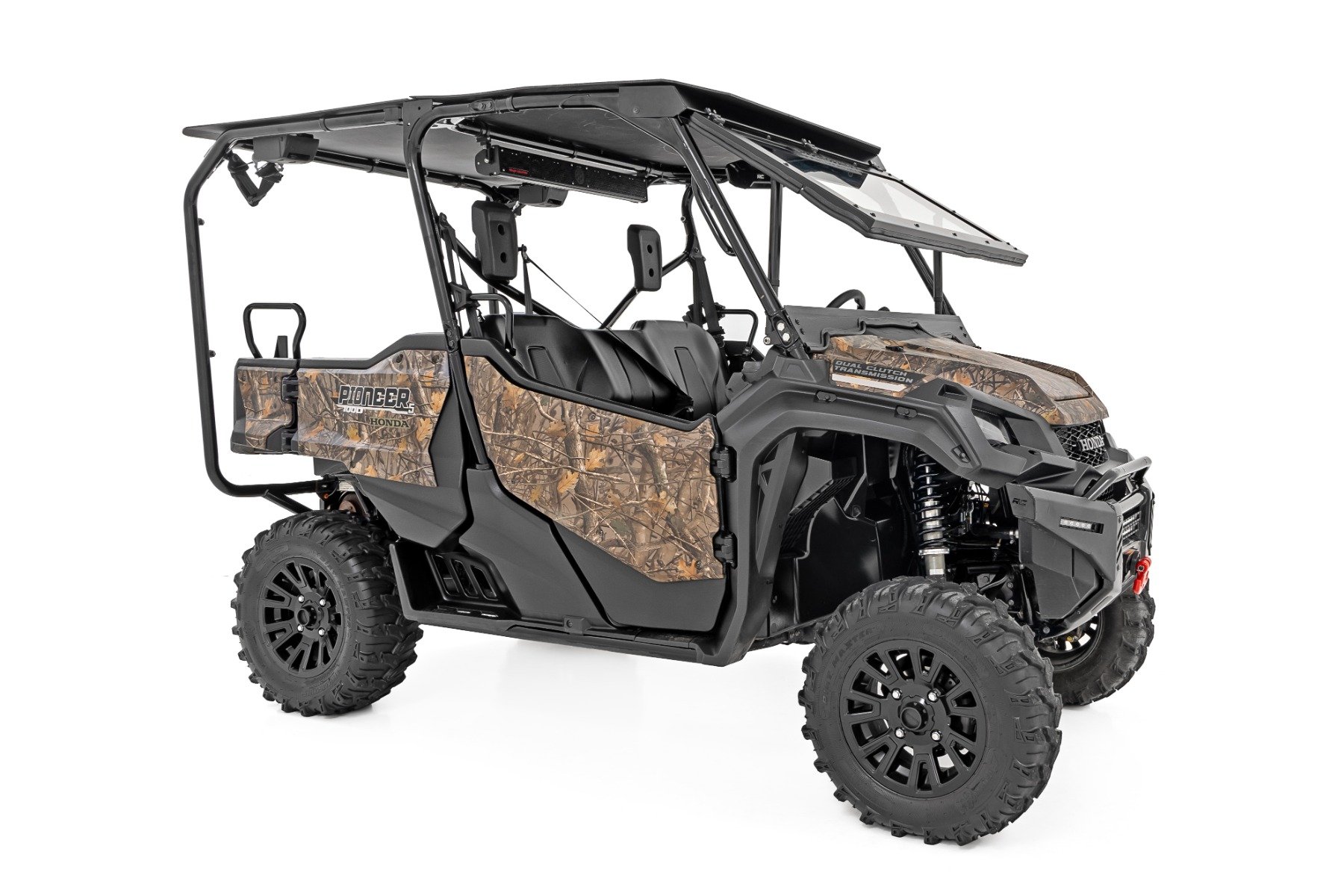

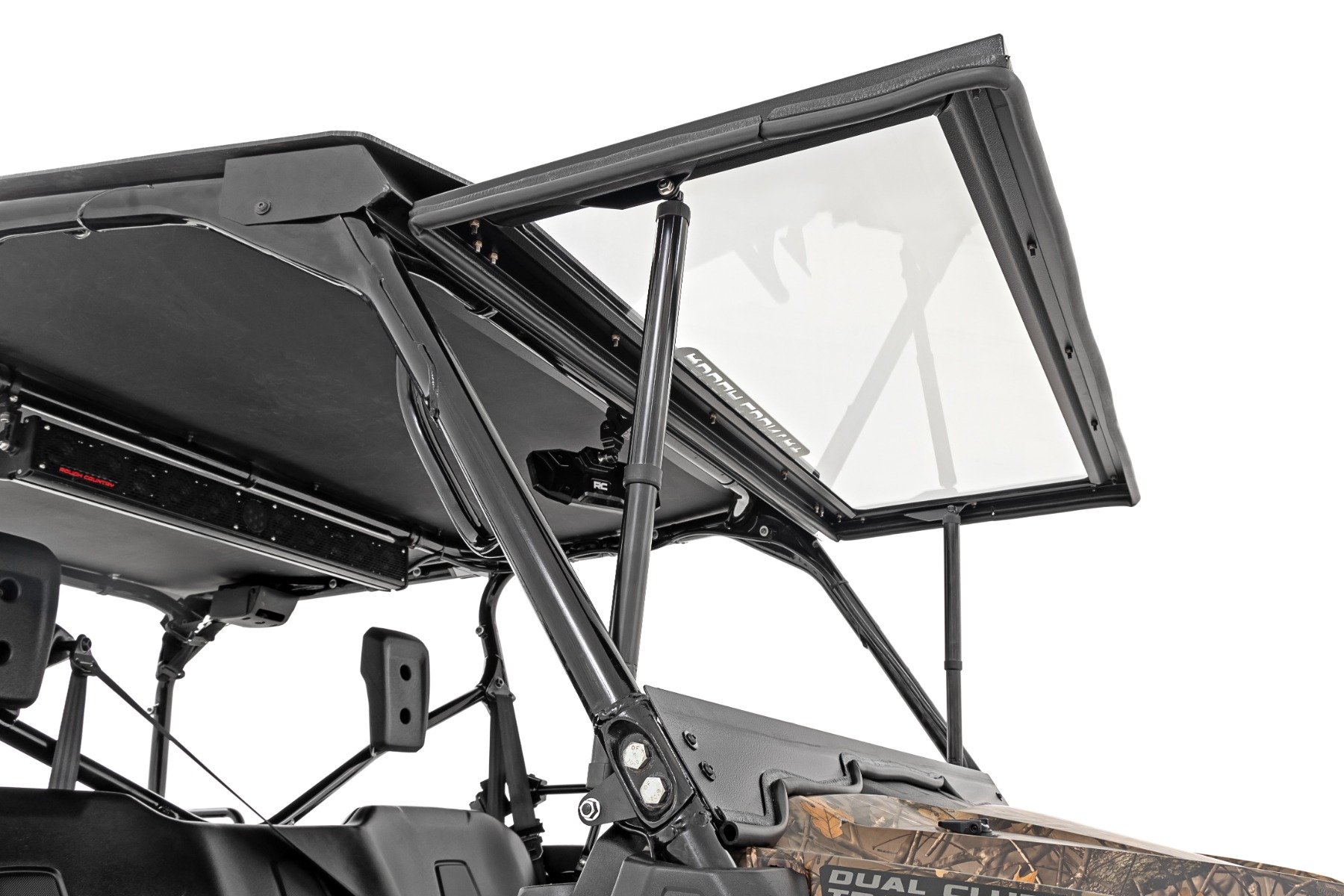

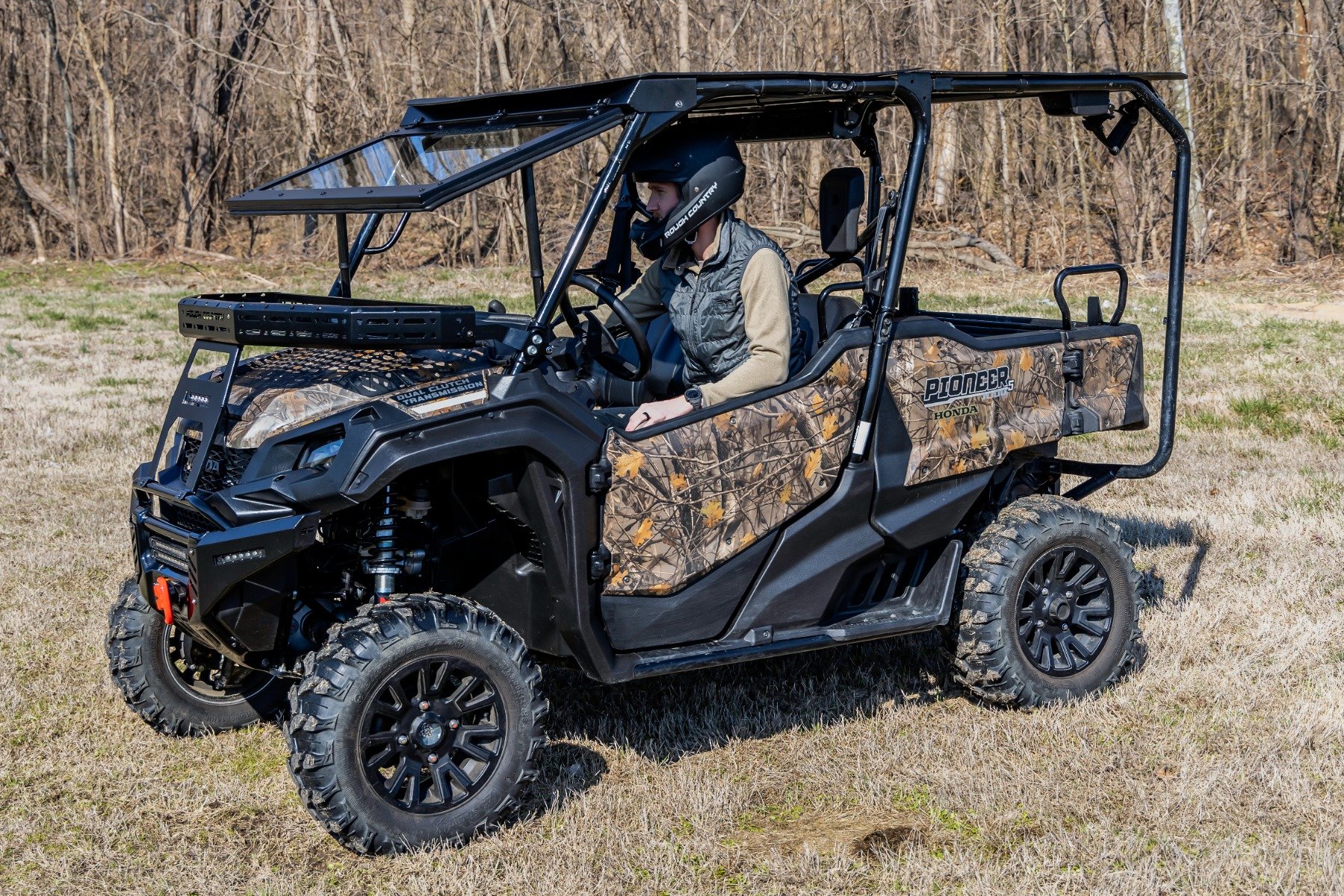

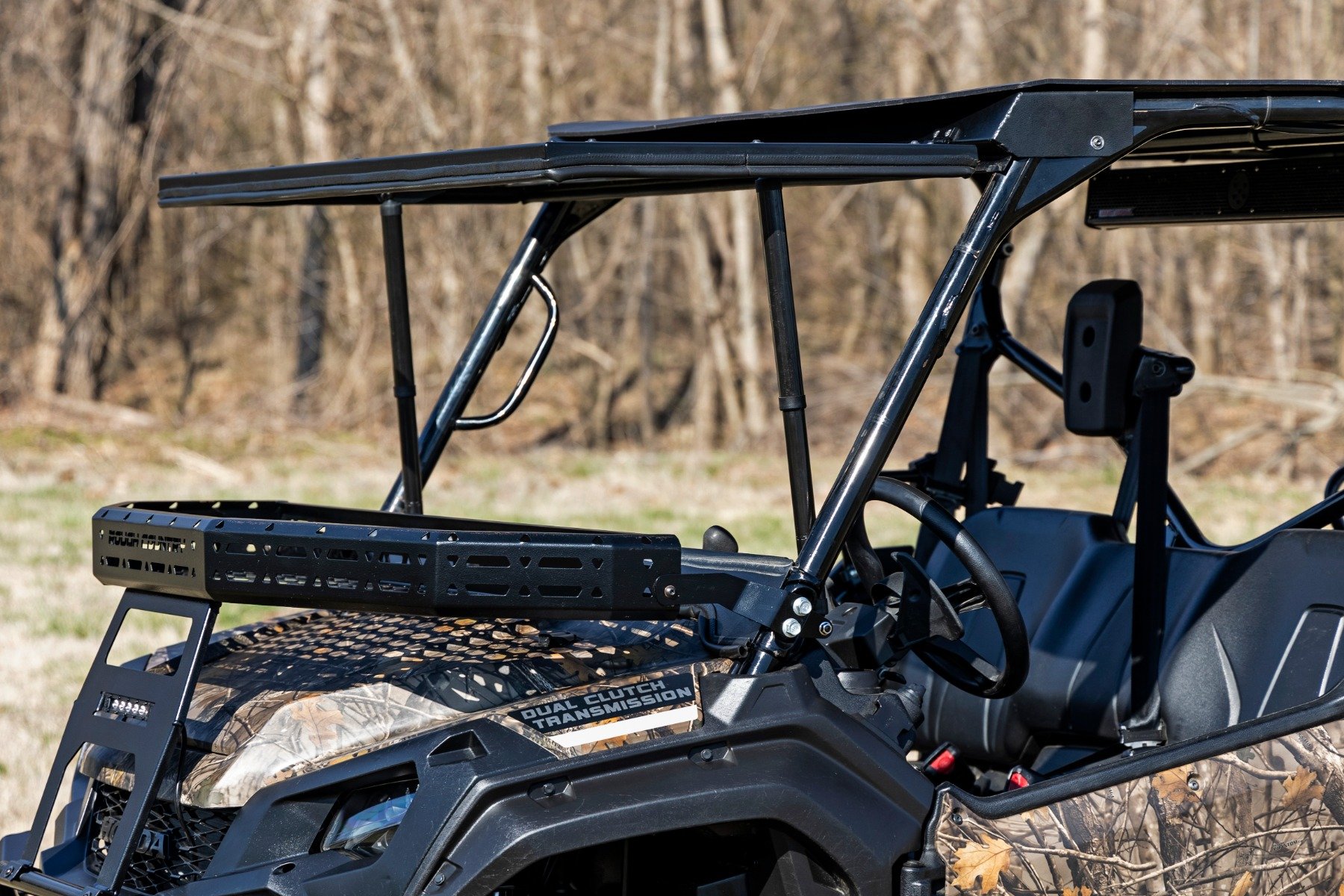

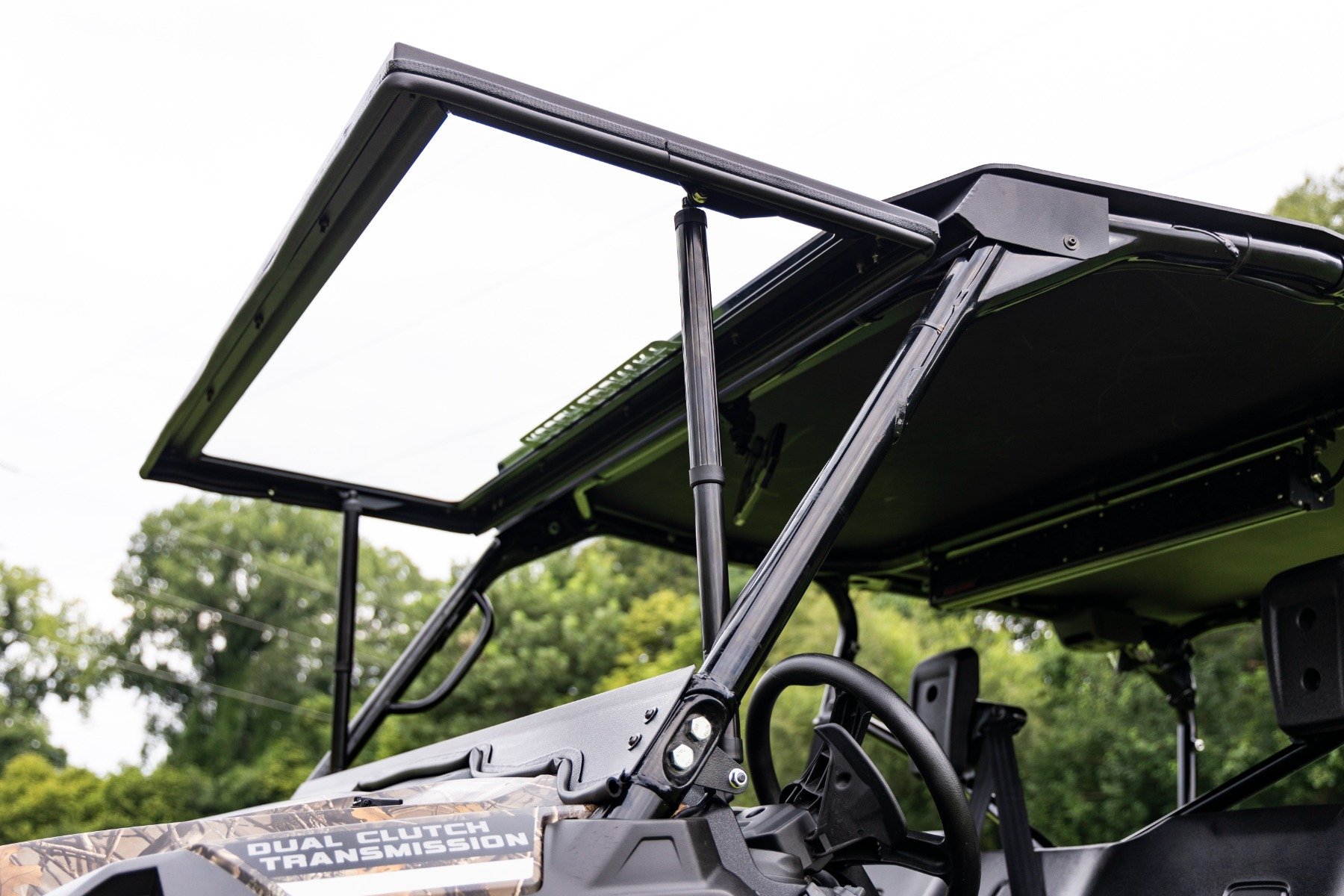

- Electric Tilt Function: Electrically actuated windshield allows precise position control for light airflow or fully open ventilation.

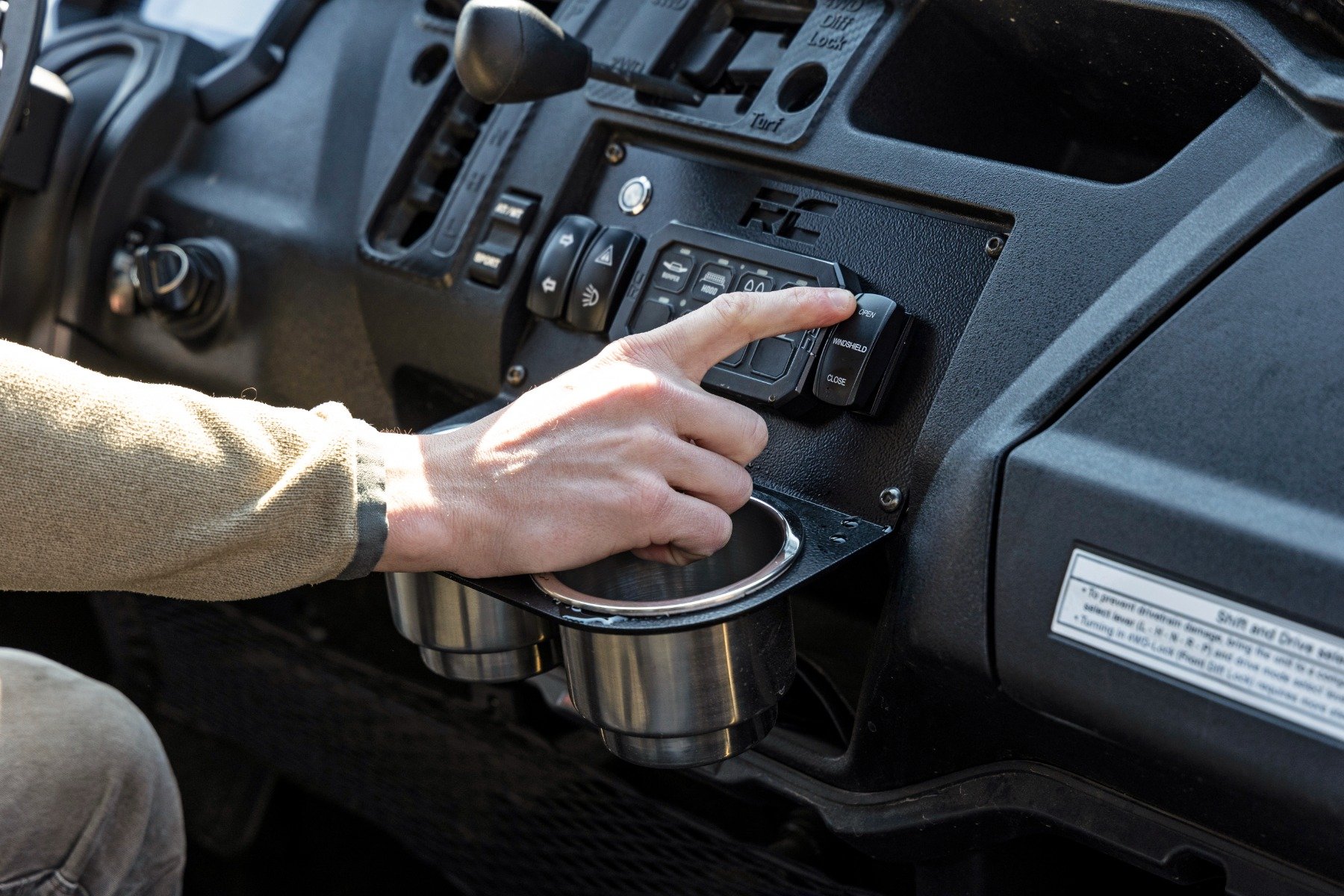

- Push Button Operation: Open and close the windshield effortlessly with the touch of a button.
- Weather Sealing Edge Trim: Integrated edge seal presses against the vehicle frame to block out most dust, wind, and water.
- Simple Installation: Designed for an easy install with minimal tools required.
- Operating Voltage: 12V system compatible with Honda Pioneer electrical systems.
- Stroke Range: Adjustable stroke length from approximately 382 mm to 586 mm.
- Lifting Force: Rated at 410N with maximum support capacity up to 45 kg.
- Operating Speed: Moves at 10 mm per second under no load.
- Weather Resistance: IP65 rated for reliable performance in wet and dusty environments.
- Operating Temperature Range: Designed to operate in temperatures from 23 to 122 degrees Fahrenheit.
- Current Draw: 5 amps at full load.

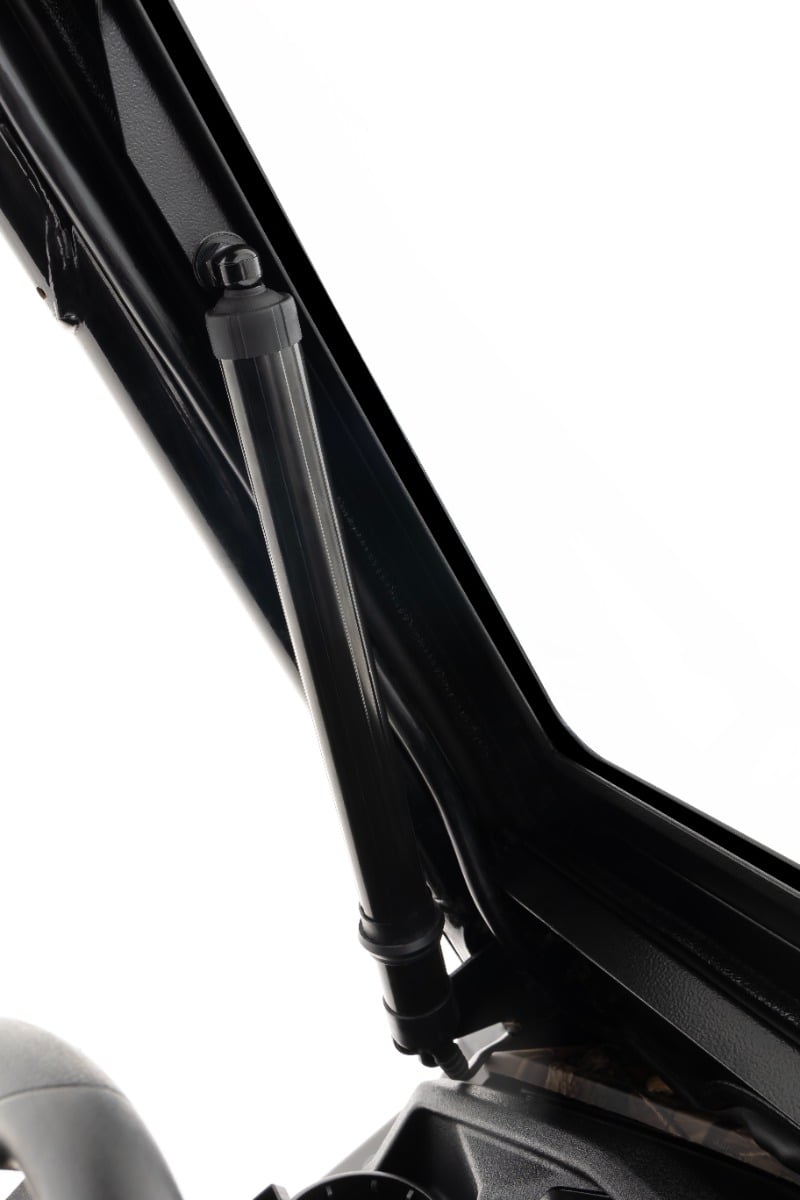

Cylinder Specifications:
Fitment Notes
- Fits with most factory roofs but in some cases requires the roof to be trimmed ¼ to 3/8” along the front edge to clear windshield movement.
- Does NOT fit factory roofs with plastic leaver snap clamps.
- For ease of installation a nutsert tool is recommended 10583.
- For tips on how to install a nutsert please watch this video here!
Installation
GET IT INSTALLED
Don’t want to install it yourself? Search for installers in your area.
FITMENT
Vehicles
year: 2023 - 2025
make: Honda
model: SXS10M6 Pioneer 1000-6 Deluxe Crew
year: 2020 - 2025
make: Honda
model: SXS1000M3 Pioneer 1000 Deluxe
year: 2017 - 2021
make: Honda
model: SXS1000M5 Pioneer 1000-5 Limited Edition
year: 2017 - 2019
make: Honda
model: SXS1000M3 Pioneer 1000 Limited Edition
year: 2016 - 2025
make: Honda
model: SXS1000M5 Pioneer 1000-5 Deluxe
year: 2016 - 2025
make: Honda
model: SXS1000M5 Pioneer 1000-5
year: 2016 - 2025
make: Honda
model: SXS1000M3 Pioneer 1000
Always read all product page details for more important fitment information
